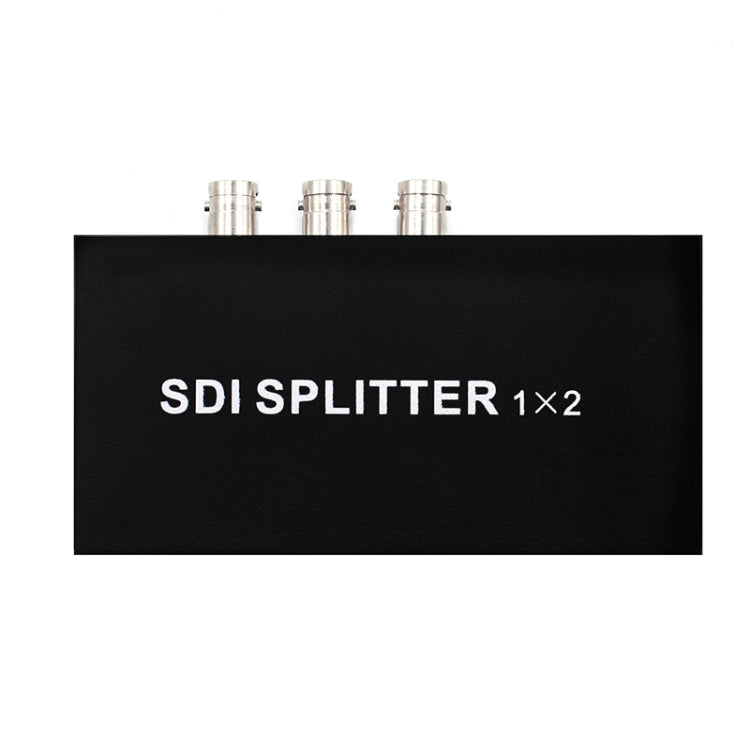

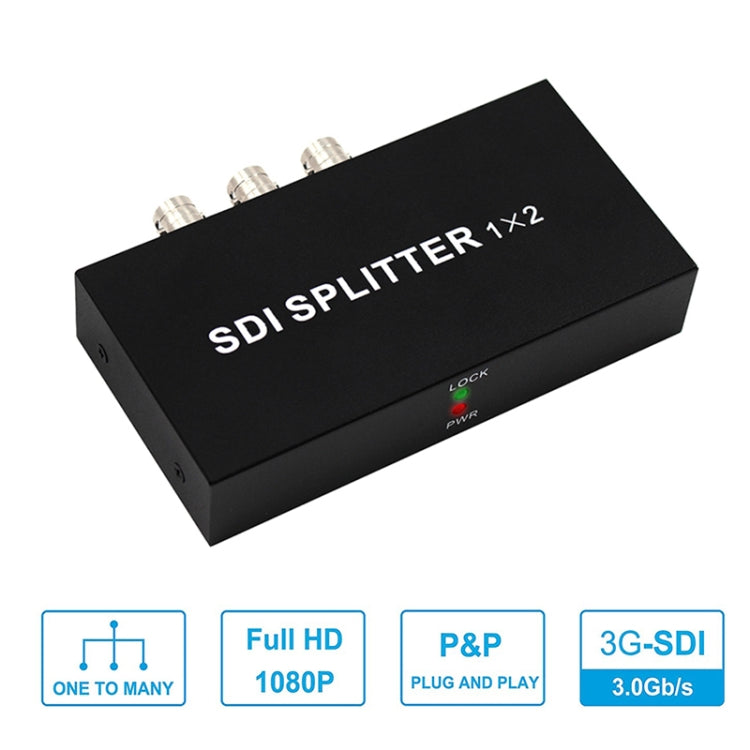

1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter(US Plug)

1 In 2 Out SD-SDI / HD-SDI / 3G-SDI Distribution Amplifier Video SDI Splitter is designed to distribute SDI signals to multiple outputs. It is suitable for connecting SDI sources to multiple display devices in professional video environments.

• SDI output interfaces: BNC SDI x2, BNC SDI x4, BNC SDI x8
• SDI standard compatibility: SMPTE 424M, SMPTE 292M, SMPTE 259M-C
• SDI signal formats supported: SD-SDI, HD-SDI, 3G-SDI
• Supported SDI rates: 143-2970 MB/s
• SDI impedance: 75 ohms
• Supported resolutions: 480i 60Hz, 576i 50Hz, 720P 50Hz, 720P 60Hz, 1080i 50Hz, 1080i 60Hz, 1080P 24Hz, 1080P 25Hz, 1080P 30Hz, 1080P 50Hz, 1080P 60Hz
• SDI signal output amplitude: 800 mVp-p

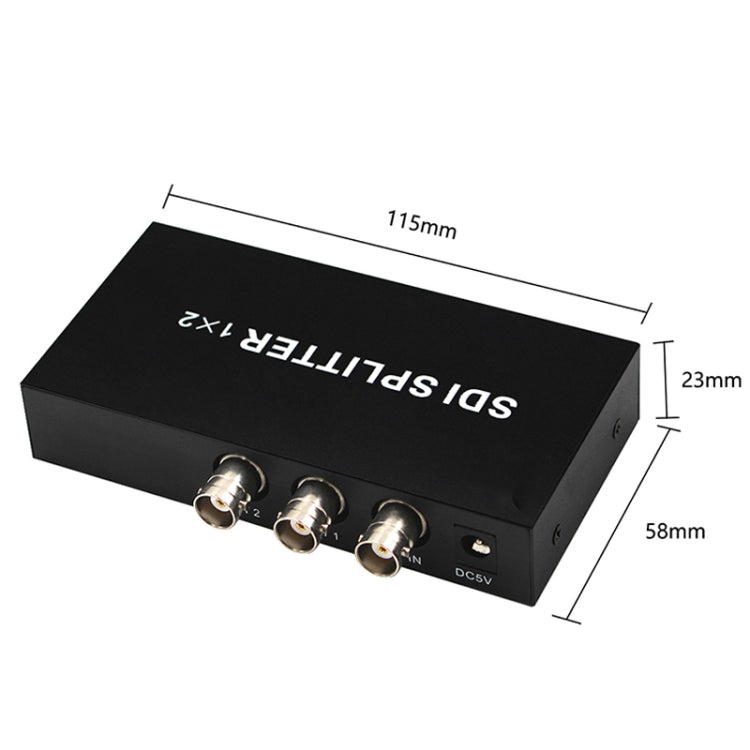

• Dimensions: 115 mm x 58 mm x 23 mm

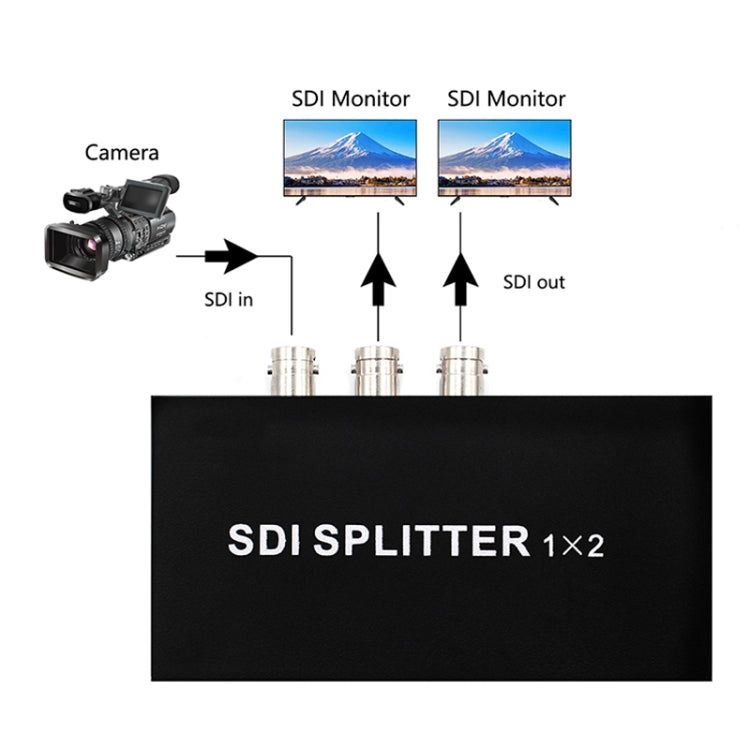

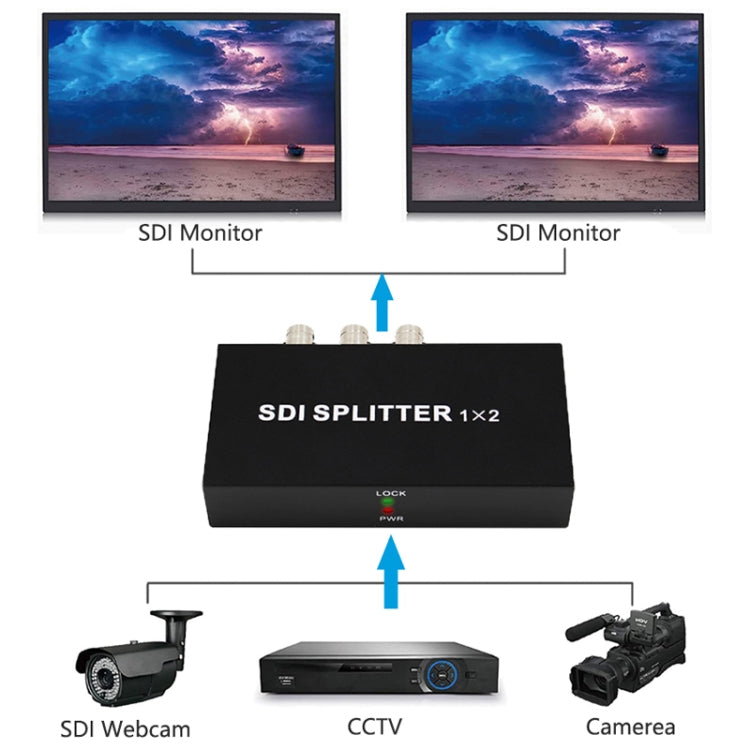

• Installation steps: Connect SDI input to signal source via coaxial cable, connect SDI output to display devices, power on the unit
• SDI distribution function: Supports SD-SDI (270 Mbps), HD-SDI (1.485 Gbps), 3G-SDI (2.97 Gbps) video formats
• Extension capability: Supports cable lengths up to 400m for SD, 200m for HD, and 100m for 3G (theoretical values based on cable quality)
• Voltage input: DC 5V to 36V, power consumption up to 2W

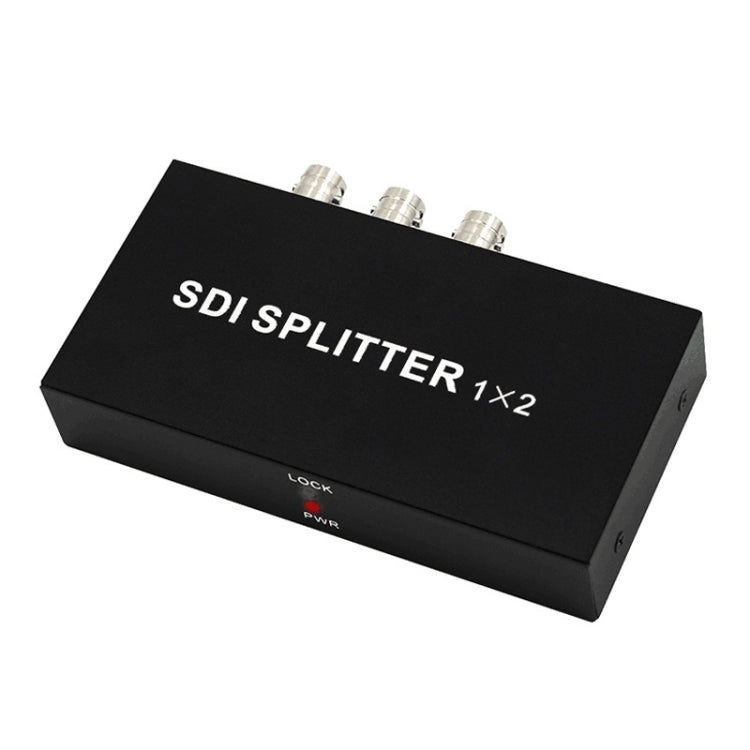

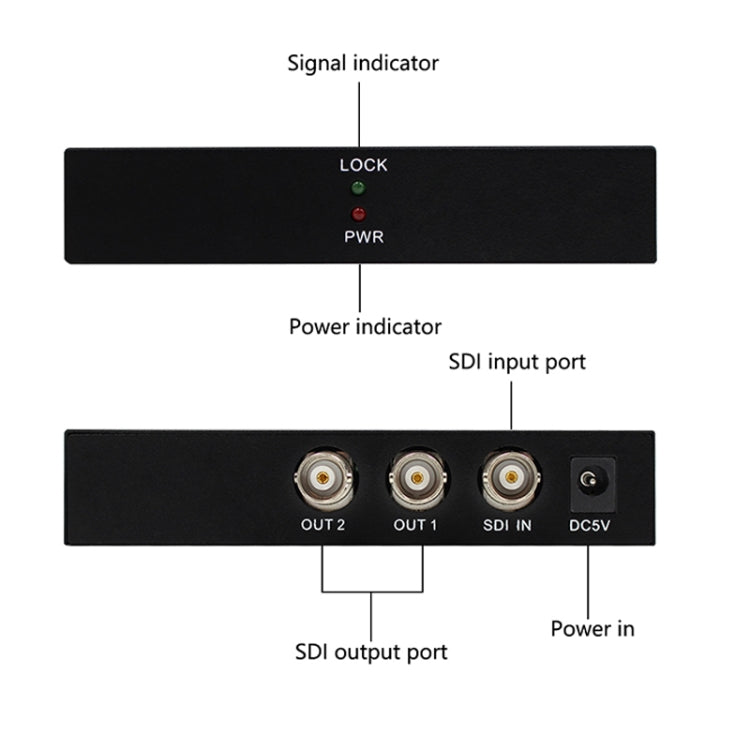

• Intelligent design: Pure hardware processing, plug and play, automatic detection of SDI signals with LED indicators for signal status
