12V Cummins Inline6 Data Link Adapter Heavy Duty Diagnostic Tool Scanner

Introduction
Note: You need to turn off the anti-virus software (including the system built-in one) before installation. Please do not place an order if you mind.

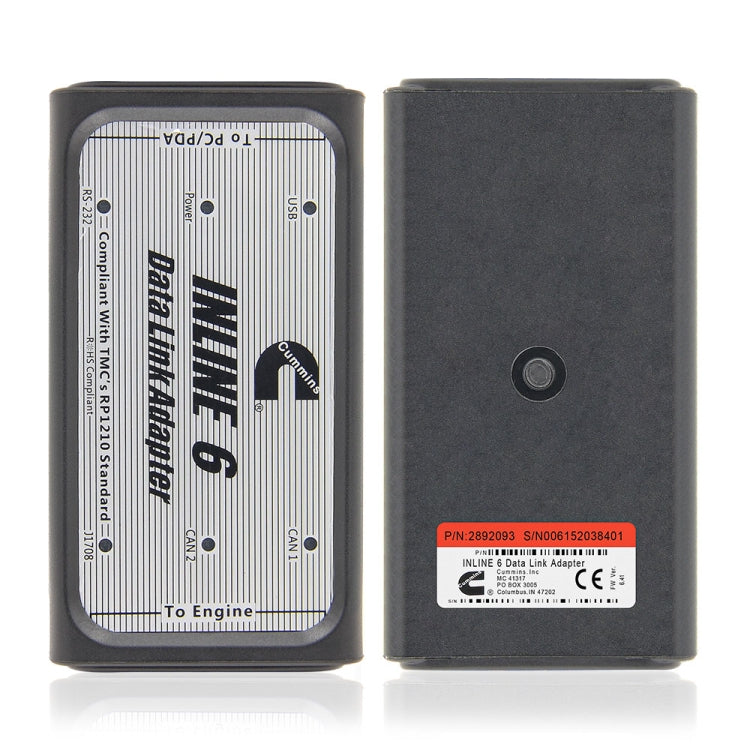

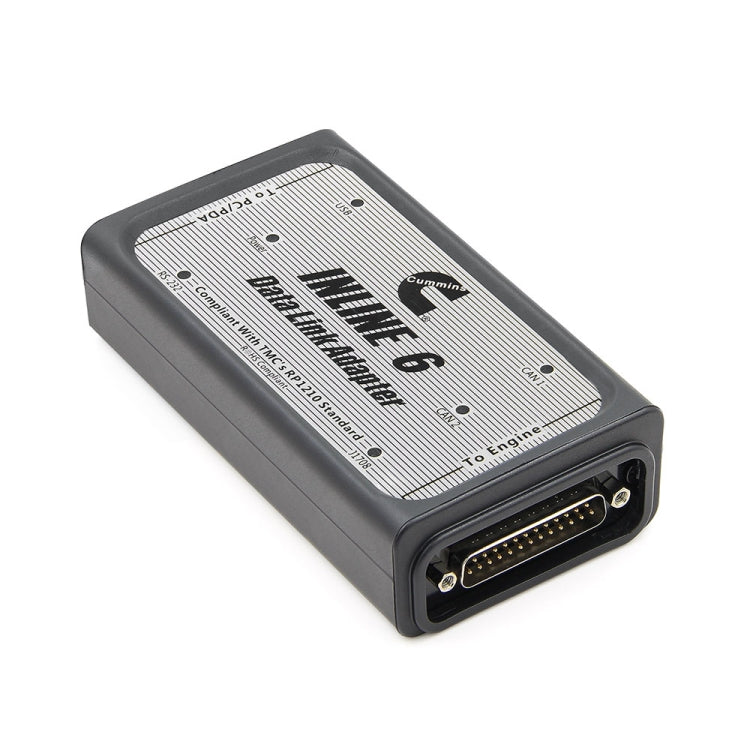

1. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
2. With full compliance to the Technology and Maintenance Council''''''''s RP1210 standard, the INLINE 6 will work with the latest Cummins INSITE, PowerSpec and Calterm III software applications.
3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non-Cummins applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).
4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.
5. Each Cummins INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.

Feature
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Is fully compliant with TMCs RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8 V to 50 V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. INLINE 6 is certified to meet European CE requirements
14. Rated for -40to +85 degree Celsius operating temperature
15. INLINE 6 meets rigorous Cummins in-cab environmental test requirements
16. Language: English, Hungarian, Polish, Czech, Indonesian, Portuguese, German, Italian, Romanian, Danish, Japanese, Russian, Greek, Korean, Swedish, Spanish, Netherlands, Turkish, Finnish, Norwegian, Chinese
17. System: Windows 7 only

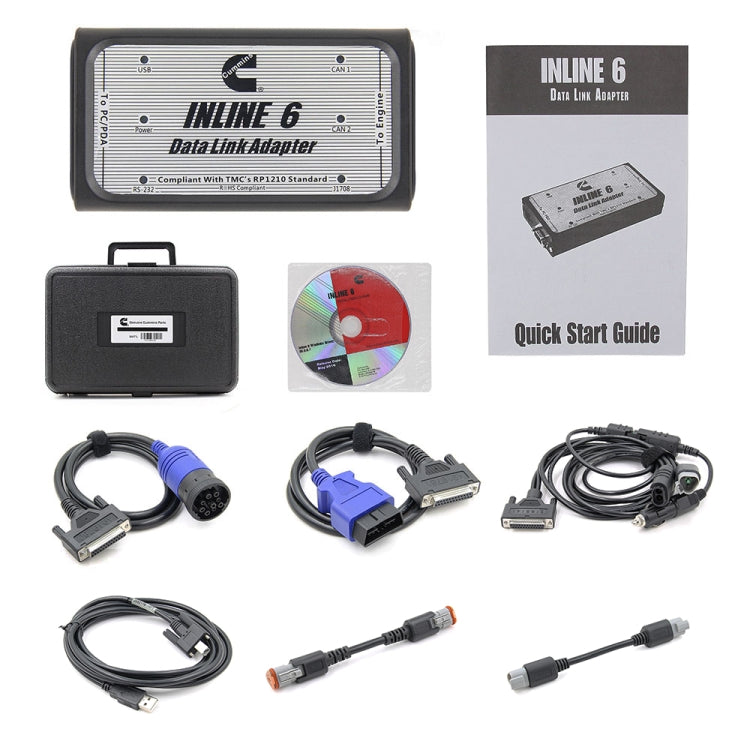

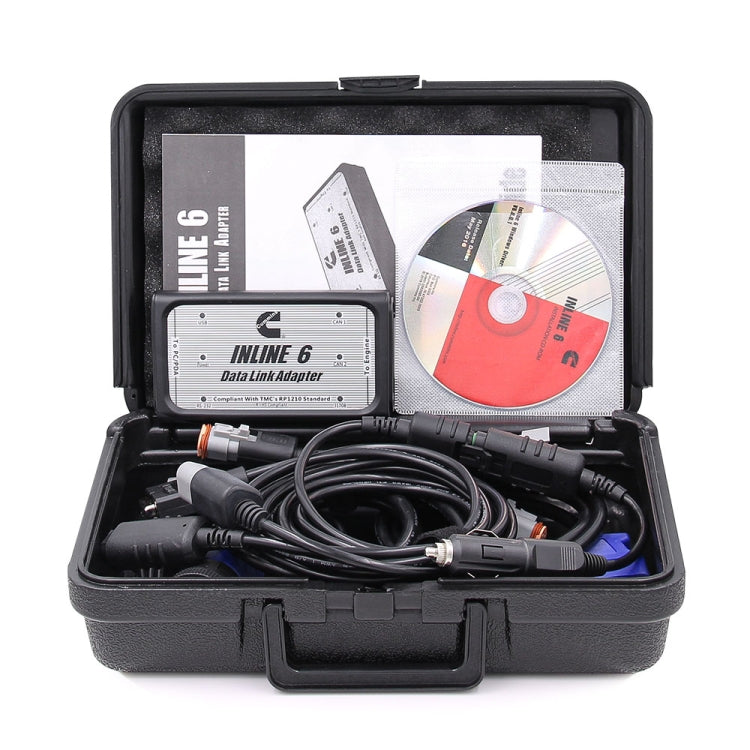

Package List
- INLINE 6 data link adapter (P/N 2892093) x 1

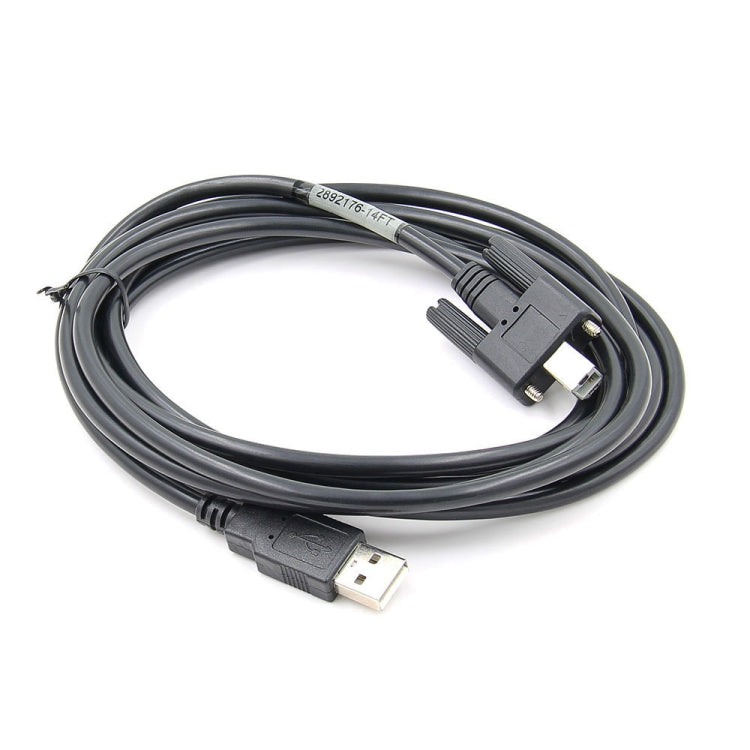

- USB 14-foot cable (P/N 2892176) x 1
- DB25F/9-pin data link cable (P/N 4919780) x 1
- DB25F/3-pin/3-pin/2-pin cable (P/N 4919797) x 1

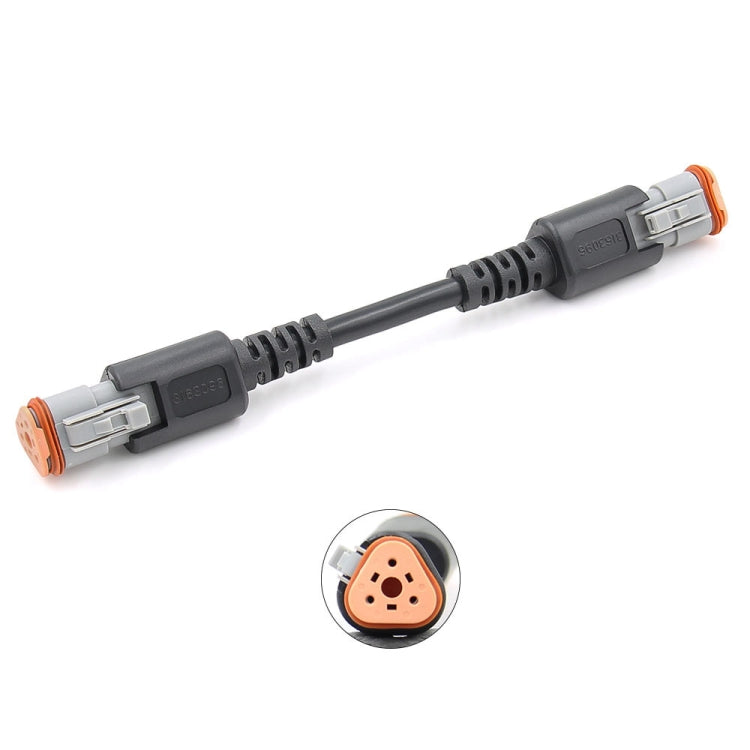

- J1939 Gender Changer adapter (P/N 3163597) x 1
- J1939 Backbone adapter (P/N 3163096) x 1
- ObdII cable?? (P/N 4919781) x 1
- Komatsu 12 pin cable x 1
- INLINE 6 software CD (P/N 2892095)?? Include Insite 7.6.2 + keygen x 1
