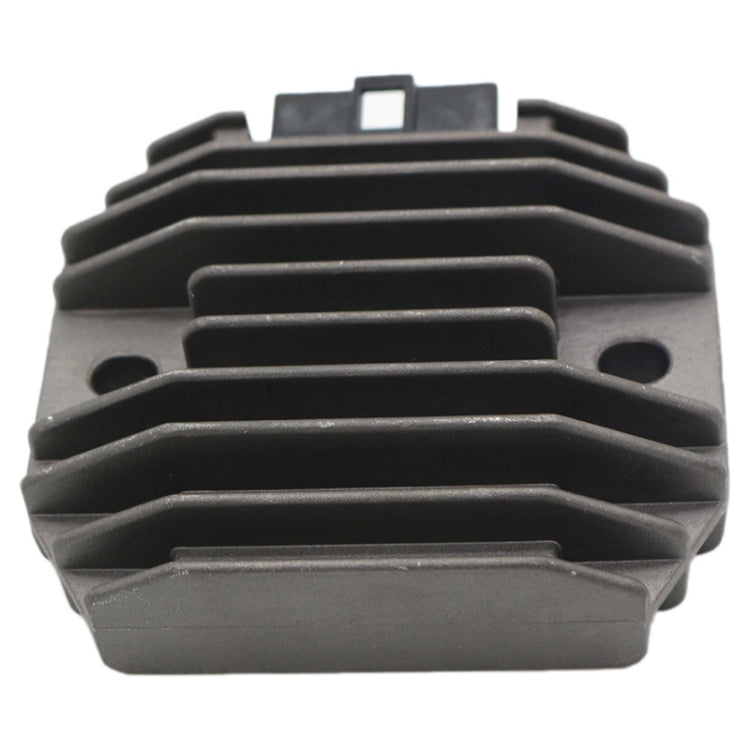

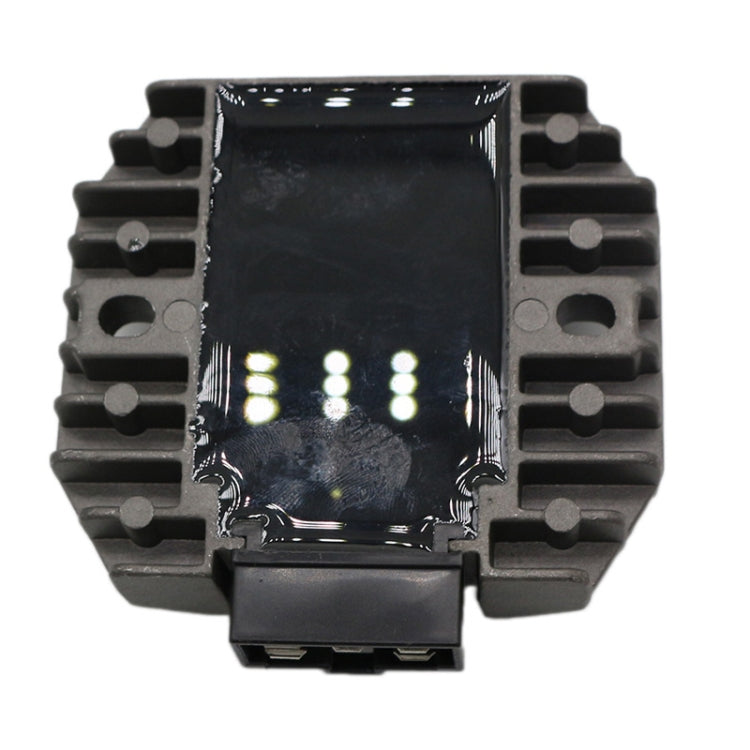

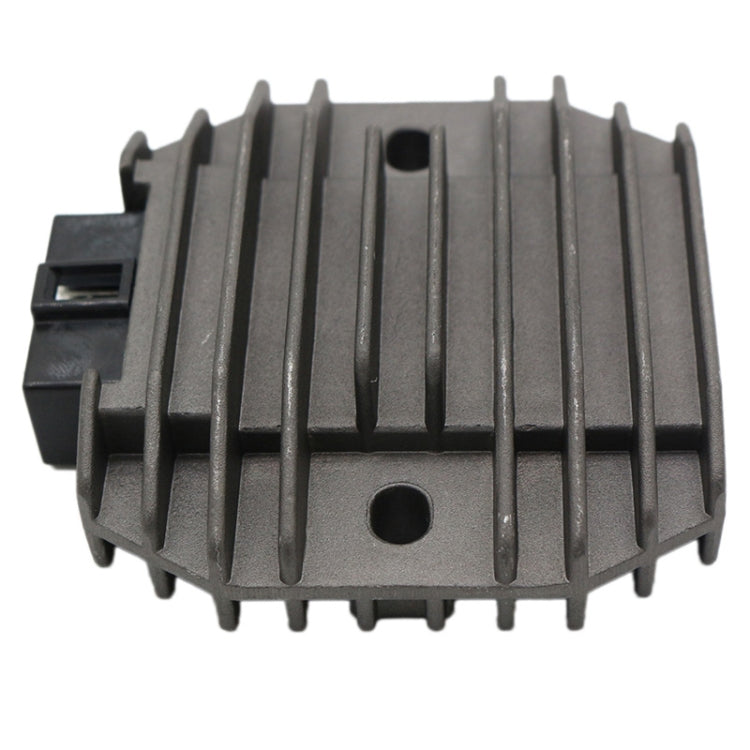

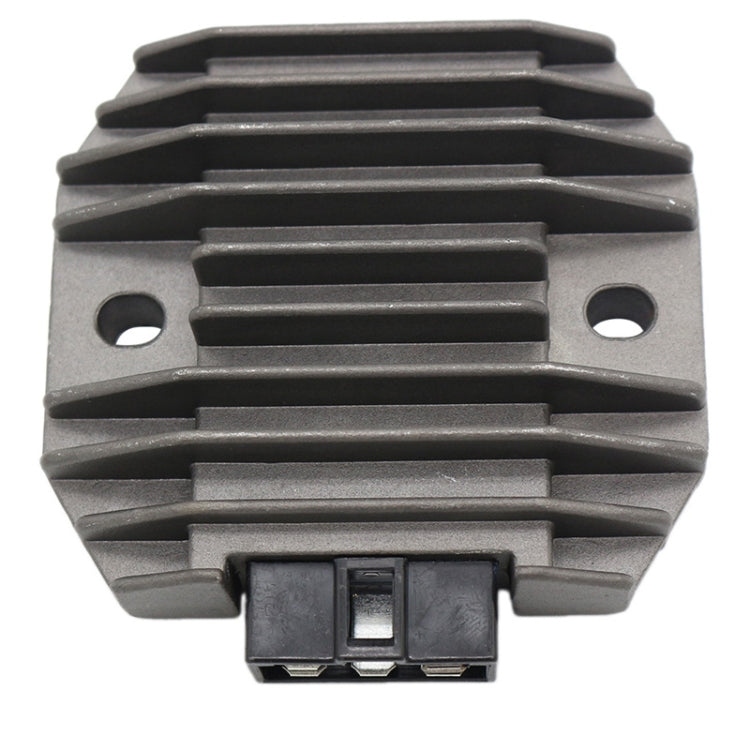

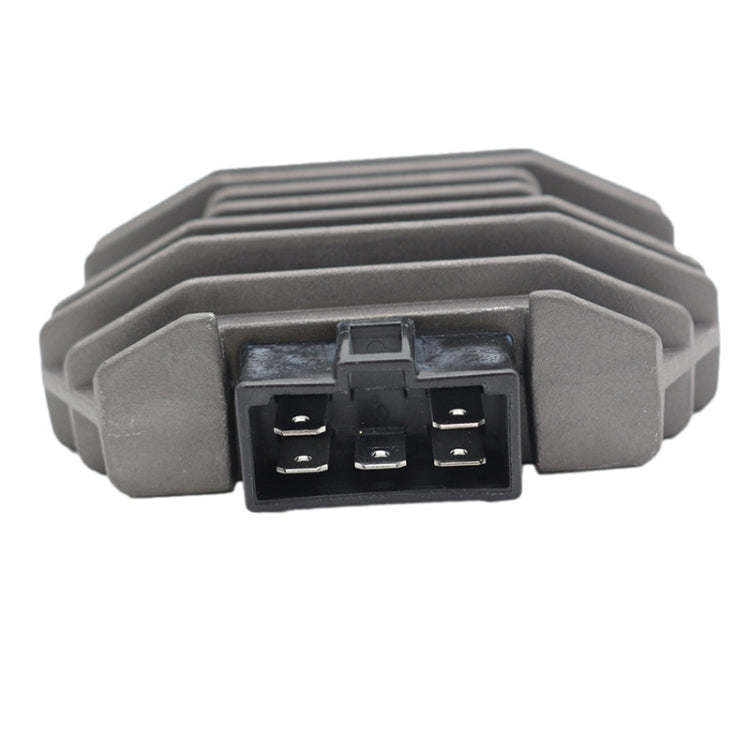

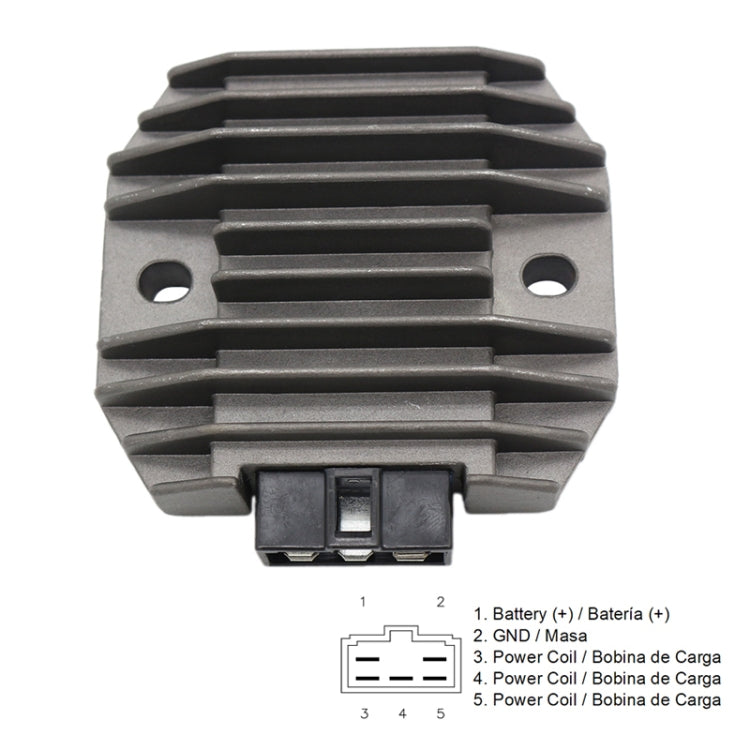

2005.1 Motorcycle Rectifier For Yamaha YZF 600 R1

1. Weight: 240G
2. Output voltage: 14.5V
3. Category: Three-phase full-wave rectifier
4. Wire length: 25CM

Installation precautions:
1. The rectifier should be installed in a place with good ventilation and good heat dissipation. The rectifier will produce high temperature when it is working, and poor heat dissipation will damage the rectifier
2. The installation procedure of the rectifier is to connect the AC input line, not connect the positive and negative output, start the locomotive, measure the positive and negative output voltage, and insert the positive and negative power supply when the voltage range is reasonable. Negative, then test the positive and negative of the battery or rectifier. If the voltage range is unreasonable, please stop using it and provide feedback. The entire installation process should be recorded and saved.
3. Please note that the rectifier should be tightly installed on the frame during installation, which is conducive to heat conduction. You can also add thermal glue between the rectifier and the frame
4. Do not press other wires between the rectifier and the frame
5. There should be a fuse between the positive socket of the rectifier and the battery to prevent damage to the rectifier when the voltage is too high and other electronic components are burned.

Applicable models:
For MBK Skyliner 150 2002 2010 4HM-81960-00
For MBK Skyliner 125 2002 2010 4HM-81960-00
For MBK Skyliner 180 2002 2010 4HM-81960-00
For Suzuki DR SE 650 1996 2017 32800-32E00
For Suzuki XF Freewind 650 s 1997 32800-32E00
For Yamaha Flame X 125 4HM-81960-00
For Yamaha Majesty 125 2002 2010 4HM-81960-00
For Yamaha Majesty 180 2002 2010 4HM-81960-00
For Yamaha Majesty 250 1996 1999 4HM-81960-00
For Yamaha Majesty 150 2002 2010 4HM-81960-00
For Yamaha NXC Cygnus 125 2004 2010 4HM-81960-00
For Yamaha NXC X 125 2004 2010 4HM-81960-00
For Yamaha Vity 125 4HM-81960-00
For Yamaha Waap 125 4HM-81960-00
For Yamaha X-OVER 125 4HM-81960-00
For Yamaha XJ Diversion 600 1996 2002 4HM-81960-00
For Yamaha XJ SECA II 600 1998 4HM-81960-01
For Yamaha XJ SECA II 600 1997 4HM-81960-00
For Yamaha XMAX 250 2010 4HM-81960-00
For Yamaha YBR 125 s 2007 4HM-81960-00
For Yamaha YP 125 2002 2003 4HM-H1960-01
For Yamaha YZF R 125 2010 4HM-81960-00
For Yamaha Zuma YW 125 2009 2013 5ML-H1960-00
For Benelli Velvet 250 1999 2003 R51540071A0
For MBK Skyliner 250 2000 2001 4JH-81960-01
For Peugeot Elyseo 125 737918
For Peugeot Elyseo 150 737918
For Peugeot Elystar 125 737918
For Peugeot Elystar 150 737918
For Peugeot Jetforce 150 737918
For Peugeot Jetforce 125 737918
For Peugeot Looxor 150 737918
For Peugeot Looxor 125 737918
For Yamaha FZ6 R 600 2009 2017 5SL-81960-00
For Yamaha FZR R 600 1998 1999 4JH-81960-01
For Yamaha FZR R 600 1995 1997 4JH-81960-00
For Yamaha HW Xenter 125 2014 2017 52S-H1960-00
For Yamaha HW Oceo 125 2012 52S-H1960-00
For Yamaha HW Xenter 150 2012 2016 52S-H1960-00
For Yamaha MM 700 2001 2003 4JH-81960-01
For Yamaha MM 600 2001 2002 4JH-81960-01
For Yamaha SRX 700 2000 2002 4JH-81960-01
For Yamaha SX 600 2000 2003 4JH-81960-01
For Yamaha SZR 660 1995 1997 4JH-81960-01
For Yamaha TDM 850 1996 2001 4JH-81960-01
For Yamaha TMAX 500 2000 2003 4JH-81960-01
For Yamaha VT VENTURE 700 2001 2003 4JH-81960-01
For Yamaha VT VENTURE 600 2001 2003 4JH-81960-01
For Yamaha VX F 700 2001 4JH-81960-01
For Yamaha VX 600 2001 2003 4JH-81960-01
