Product details
Description

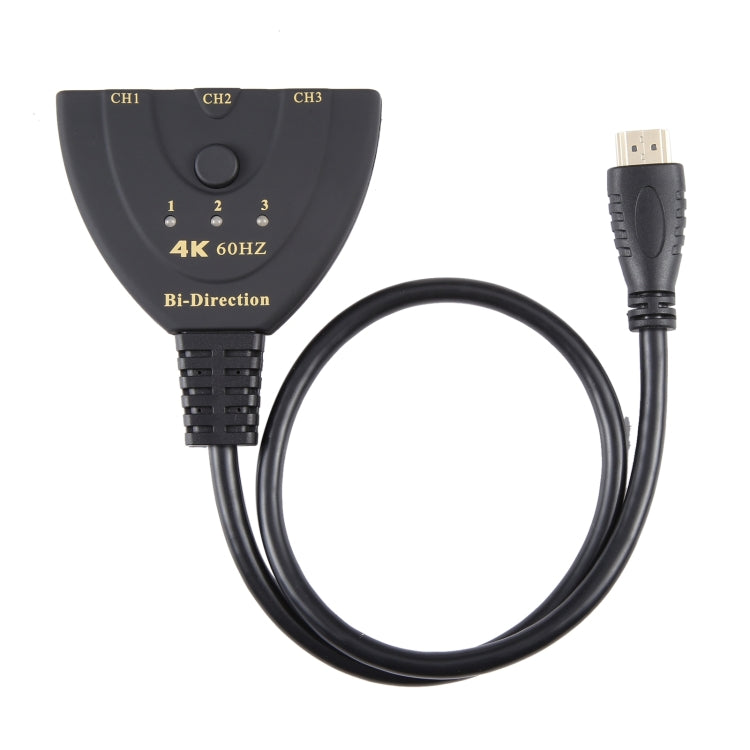

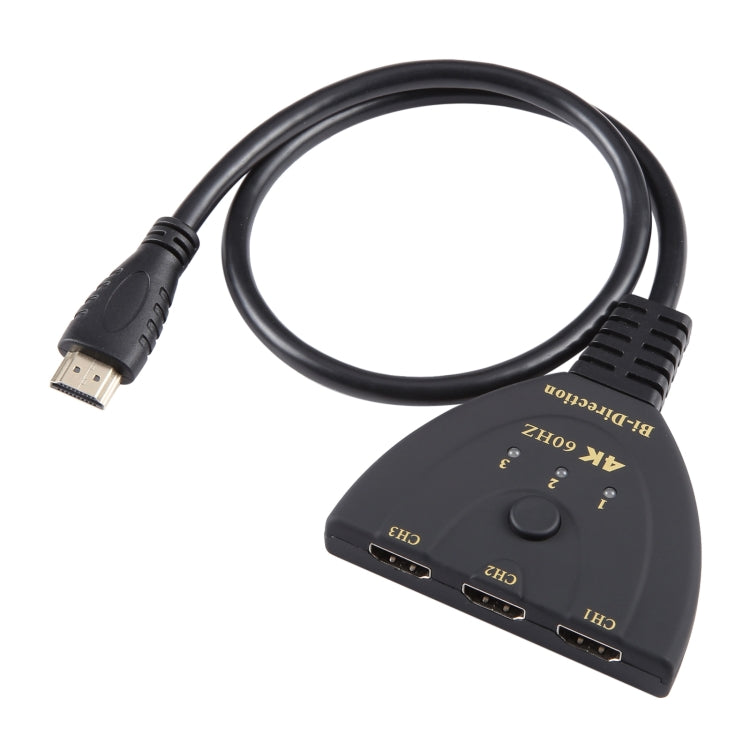

The 3 x 1 4K 60Hz HDMI Bi-Direction Switcher allows connection of multiple HDMI sources to a single display or vice versa. It is suitable for use in home entertainment systems where multiple devices need to be connected to one TV or monitor.
- Type: HDMI Bi-Direction Switcher
- Max Operation Current: 30mA
- HDMI Compliance: V1.0, V1.1, V1.2, V1.3, V1.4, V2.0

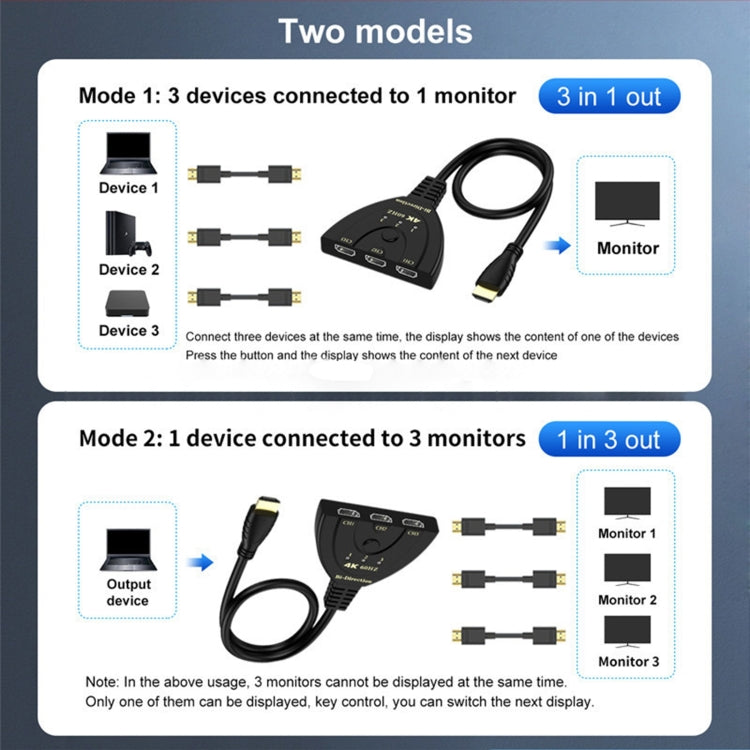

- Mux Status: Connects 3 HDMI sources (e.g., DVD player, PS4) to 1 HDMI sink (monitor or TV)
- DEMUX Status: Connects 1 HDMI source (e.g., DVD player, PS4) to 3 HDMI sinks (monitor or TV)
- Channel Switching: Short press button within 3 seconds
- Status Switching: Long press button for more than 3 seconds
- LED Indicators: Blue LED for Mux Status, Red LED for DEMUX Status
- Power-off Memory Function: Remembers working status before power off
- Installation: Fast installation and operation
- Hot Plug and Play: Supports HDMI hot plug and play
- Resolution Support: 4K x 2K at 60Hz, 4:2:2 or 4:2:0
- Input Cable Length: Supports up to 3 meters AWG26 HDMI standard cable
- Output Cable Length: Supports up to 3 meters AWG26 HDMI cable
- Dimensions: 9 x 8.2 x 1.5 cm
