Product details
Description
The 4K 2x2 HDMI Video HD Splice is a device that divides a complete HDMI or DVI HD image signal into four outputs. It is suitable for applications requiring multiple video displays, such as presentations or video walls.
- HDMI resolution: up to 4K/30Hz
- Audio format: stereo
- Input/output cable length: approximately 10 meters (AWG26 HDMI standard cable)
- Maximum operating current: 300mA
- Power adapter input: AC (50Hz, 60Hz) 100V-240V
- Power adapter output: DC 12V/1A
- Operating temperature range: 0 - 45 degrees Celsius
- Remote control power supply: 2 x AA batteries (not included)
- Dimensions: approximately 12.1 x 11.7 x 1.9 cm
- Weight: approximately 246g

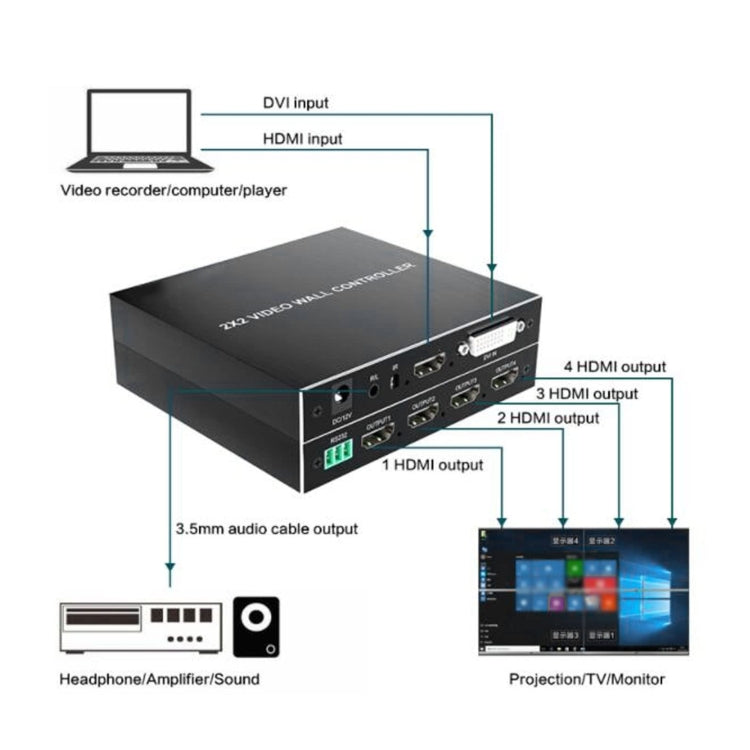

- Main function: divides HDMI/DVI HD image signal into 4 outputs

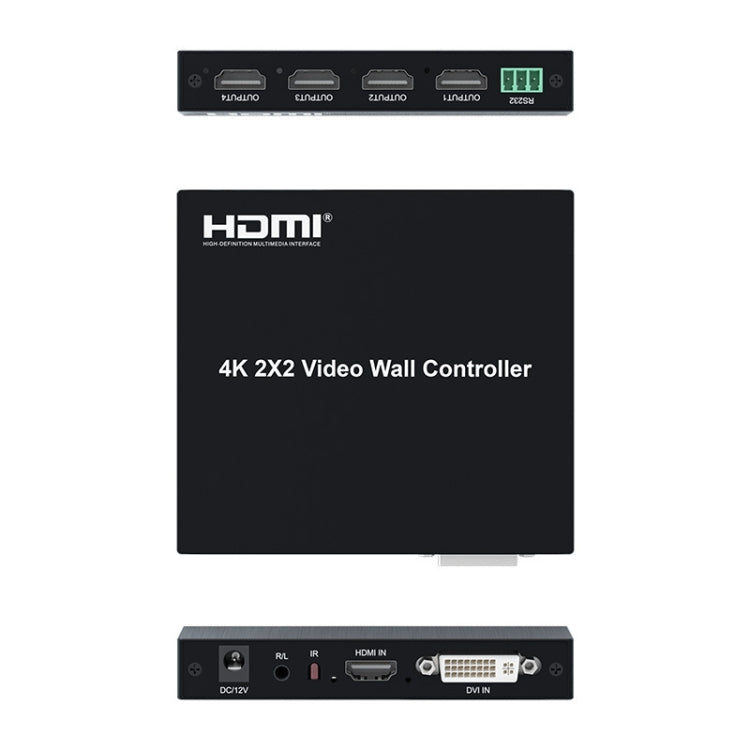

- Input: supports 1 channel HDMI or DVI
- Output: supports 4 channel HDMI
- Output format: RGB 4:4:4
- Control: supports RS232 control

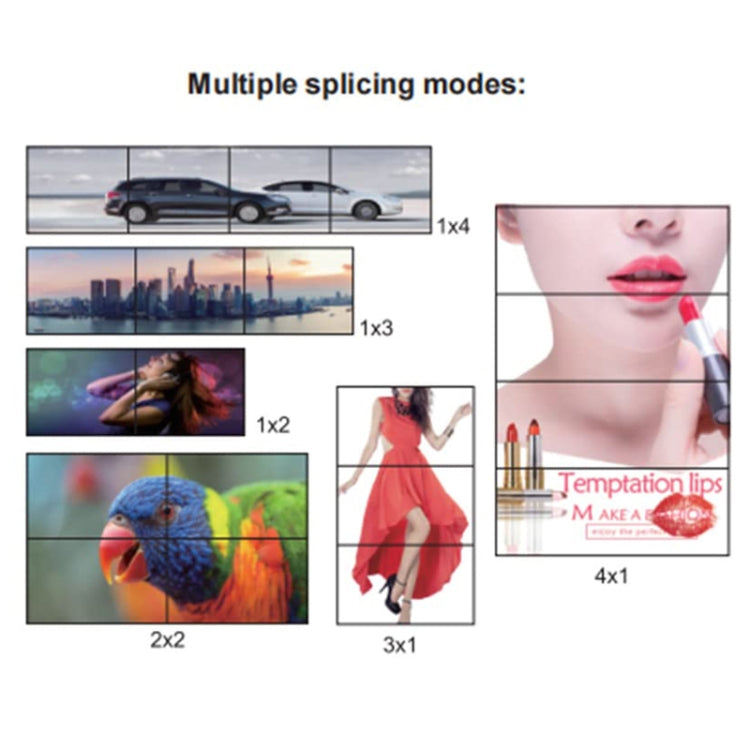

- Splicing options: supports 2x2/1x2/2x1 configurations
- Automatic splicing function: supports 2x2 automatic splicing
- Input support: up to 4K/30Hz; output support: up to 4-way 1080P/60Hz

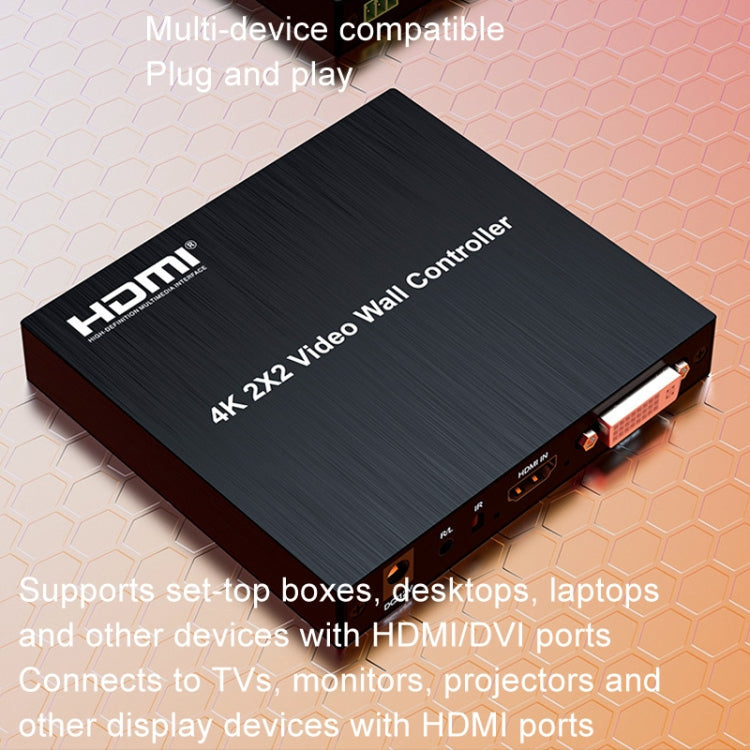

- Compatibility: supports set-top boxes, desktop computers, notebooks, and other HDMI/DVI interface devices

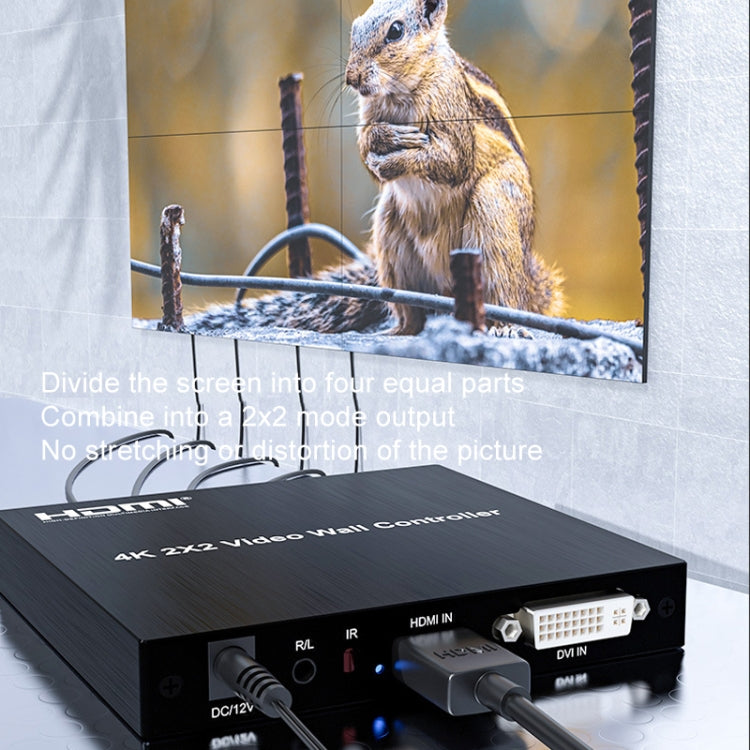

- Screen division: equal division into four, combined into a 2x2 mode output without stretching or deformation

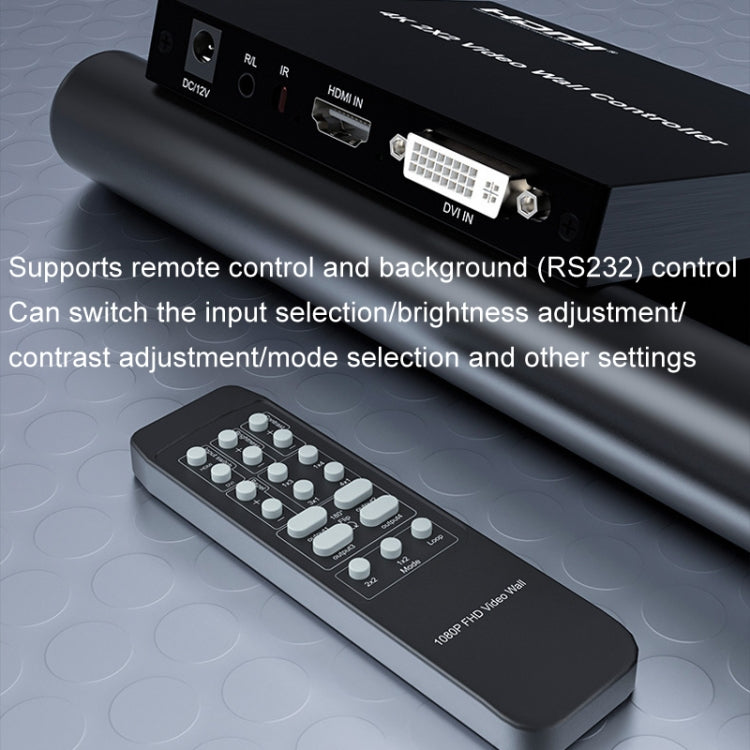

- Remote control features: input switching options, brightness adjustment, contrast adjustment, mode selection, and other settings
