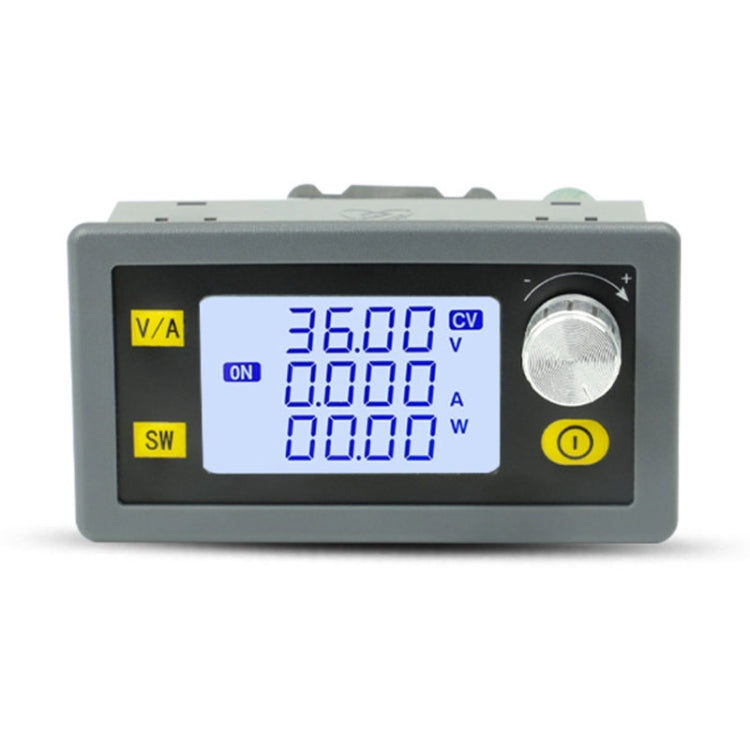

80W 5A DC-DC Adjustable Voltage Regulator Battery Charging Module

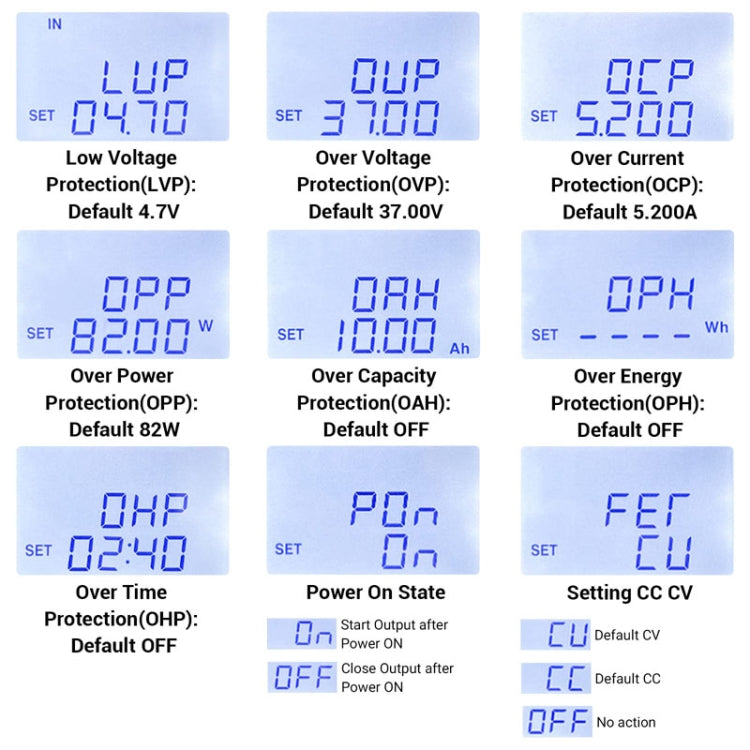

Protection mechanism:
1. Input anti-reverse connection: yes
2. Output backflow prevention: yes
3. Input undervoltage protection: 4.7-30V adjustable, default 4.7V
4. Output over-voltage protection: 0-37V adjustable, default 37V
5. Output overcurrent protection: 0-5.2A adjustable, default 5.2A
6. Output over power protection: 0-82W adjustable, default 82W
7. Over-temperature protection, default 100 degrees celsius

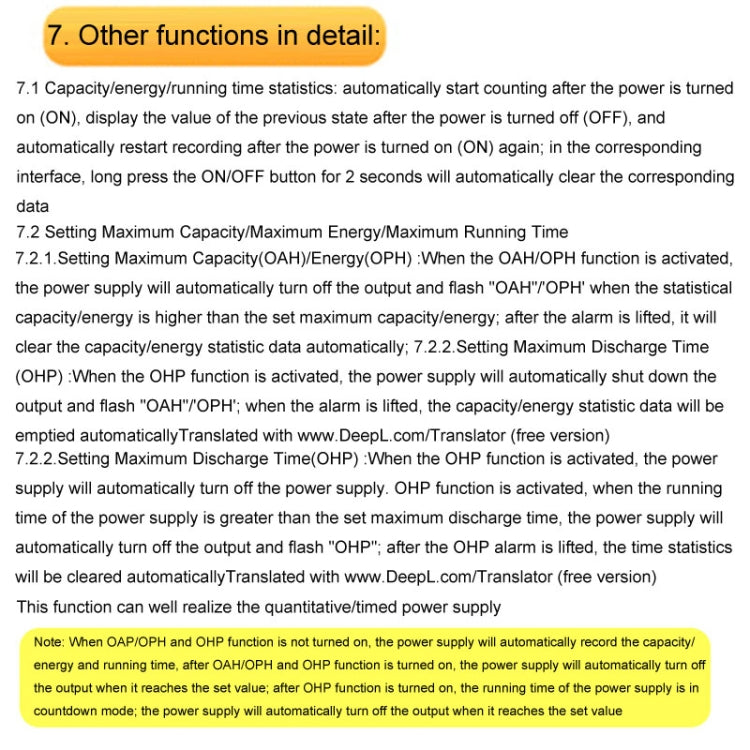

8. Timeout protection: 0-100H adjustable, default off
9. Over capacity protection: 0-9999AH adjustable, default off
10. Super energy protection: 0-9999WH adjustable, default off

Parameters:
1. Input voltage: 6.0-36V
2. Output voltage: 0.6-36V
3. Output current: 0-5.0A
4. Voltage accuracy: the error does not exceed 0.5 percent+1 word
5. Output power: 80W
6. Current accuracy: error of no more than 0.5 percent + 3 words
7. Voltage resolution: 0.01V
8. Current resolution: 0.001A
9. Conversion efficiency: 88 percent or so
9. Soft start: yes

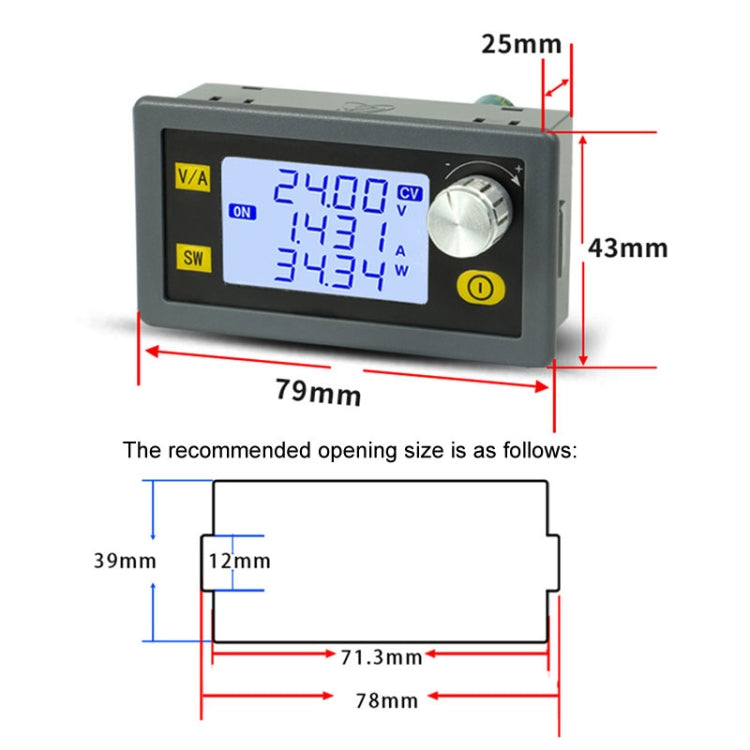

10. Size: 79 x 43 x 25mm

Notes:
1. Electronic module for a kind of electronic components, the purchase must have the basis for use
2. Please look at the product picture and description before purchase, otherwise it is easy to buy the wrong or cause damage
3. After purchase, please use it according to the parameters, otherwise it will be damaged
4. Power supply is very important, DC products must be a standard DC voltage, (i.e., a complete rectifier, filtering, voltage regulator), otherwise it can not be used or will cause damage to the product
5. Pay attention to the output connected to the battery, capacitor, positive and negative poles do not reverse, reverse direct scrapped
6. Connect inductive loads such as fans, motors, etc., start-up current is large, please leave 2-3 times the margin, that is, 35W can only use the current 1-2A or less, the power is about 10W or less
7. When boosting, if the input voltage is low, the output will be limited
