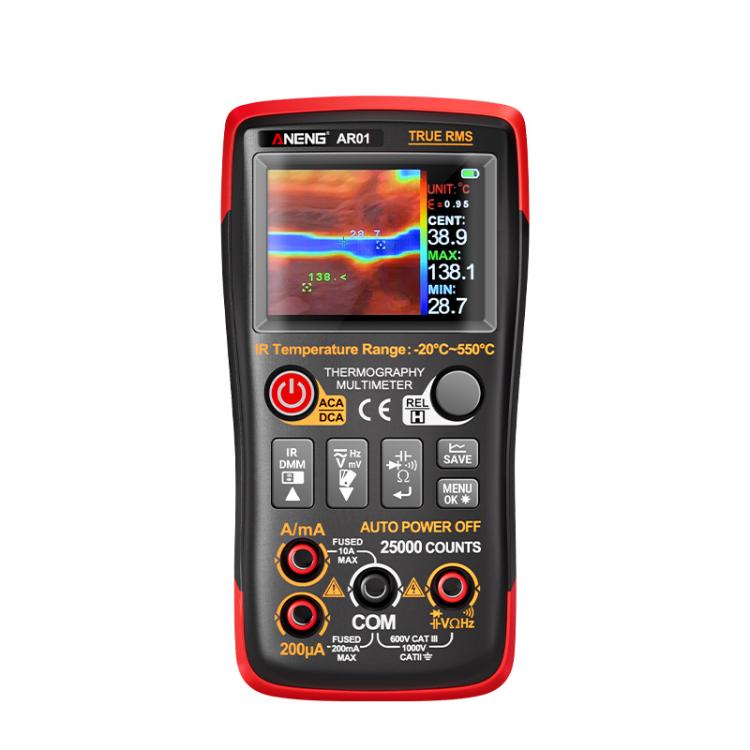

ANENG 2 In 1 HD Infrared Thermal Imager Digital Multimeter(AR01)

1. Infrared resolution: 32x32
2. Infrared band: 8~14um (wavelength)
3. Emissivity: 0.10~1.00 adjustable
4. Frame rate: 7 frames/second
5. Field of view: FOV 33° (H) x 33° (V)
6. Focusing mode: auto focus
7. Temperature measurement area: 3 (high temperature, real-time temperature, low temperature)
8. Imaging mode: infrared light + visible light
9. Color palette: black and white, iron red, heat, rainbow
10. Image format: bmp
11. Screenshot saving and reading: supported
12. Focus distance (MIN): 0.25m
13. Effective temperature measurement distance: 2m
14. Temperature measurement range: -20-550℃
15. High and low temperature values: automatic capture measurement
16. Temperature measurement point: center point
17. USB communication interface: Typе-C
18. Firmware upgrade: support
19. Charging: USB interface 5V
20. Charging time: about 3 hours, battery life 6 hours
21. DC voltage (V): 0V-1000.0V
22. DC voltage (mV): 0mV-250.00mV
23. AC voltage (V): 0V-750.0V
24. AC voltage (mV): 0mV-250.0mV
25. DC current (A): 0A-10.000A
26. DC current (mA): 0mA-250.00mA
27. AC current (A): 0A-10.000A
28. AC current (μA/mA): 0mA-250.00mA
29. Resistance: 0Ω-250.0ΜΩ
30. Capacitance: 0nF-99.99mF
31. Hz: 0Hz-99.99kHz
32. Language options: Simplified Chinese/English
33. Count: 25,000 words
34. Display: 2.4-inch TFT high-definition display
35. Display resolution: 320x240
36. Infrared thermal imaging, supports adjustable fusion of infrared light and natural light
37. 25,000 counts, one-button intelligent switching between thermal imaging or multimeter mode

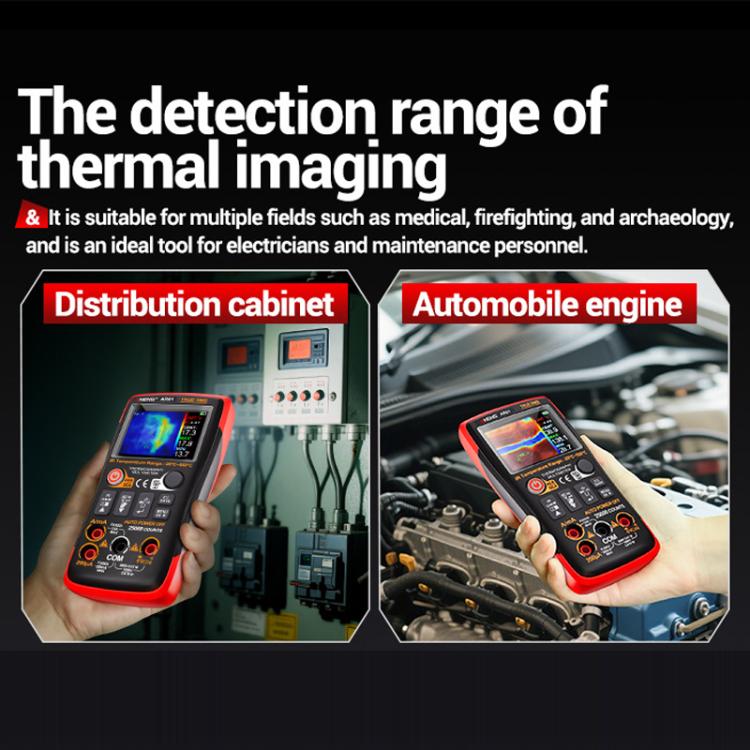

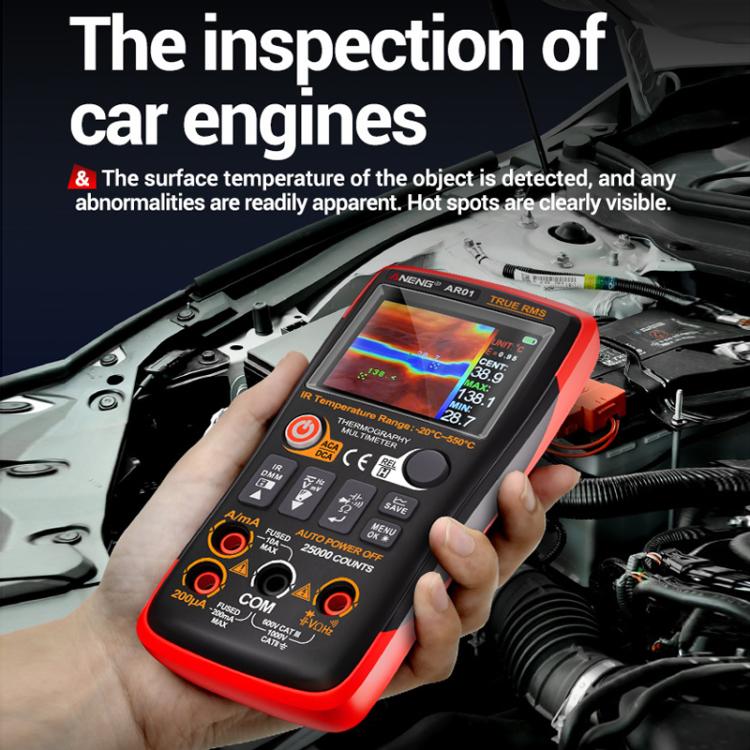

38. The thermal imager can detect the surface temperature of an object, with high-definition screen display, high and low temperature anomalies can be seen on one screen, hot spots are easier to find and the image is clearer

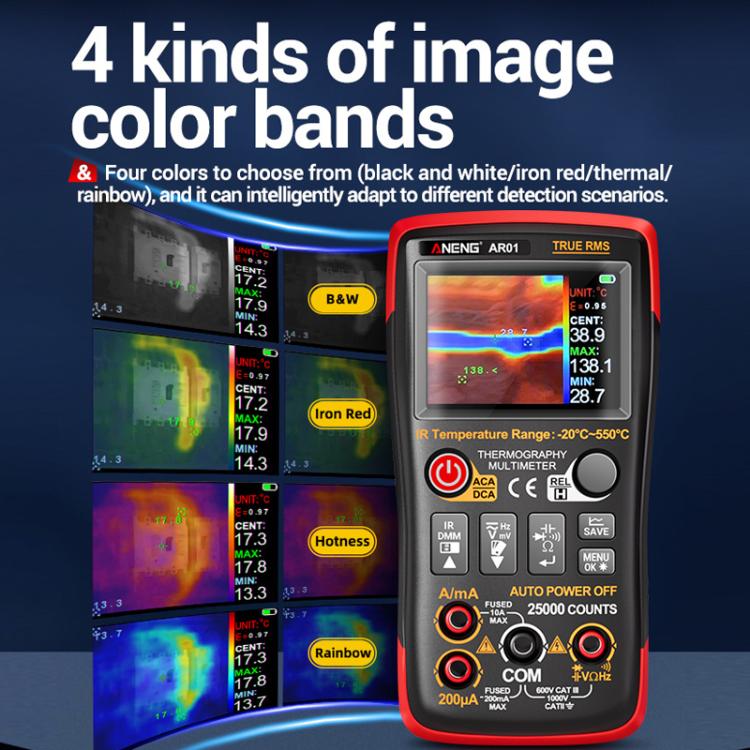

39. Four image color bands and rich color plate functions help users choose the appropriate color plate according to different test scenes. They can be adjusted to four colors: black and white, iron red, heat, and rainbow.

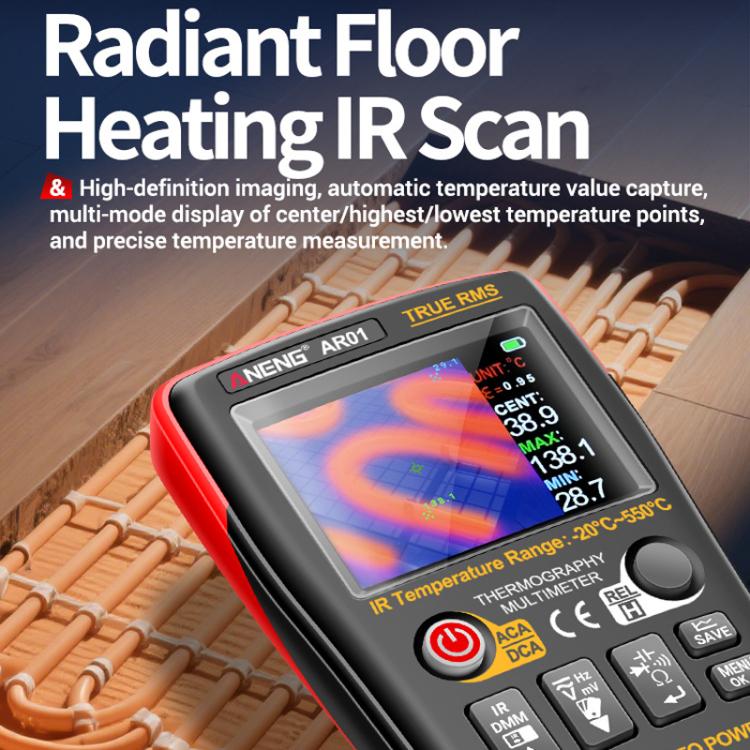

40. The image is clearer, the target temperature value is automatically captured, and the center point, high temperature point, and low temperature point of the display effect in multiple scenes are accurately measured.

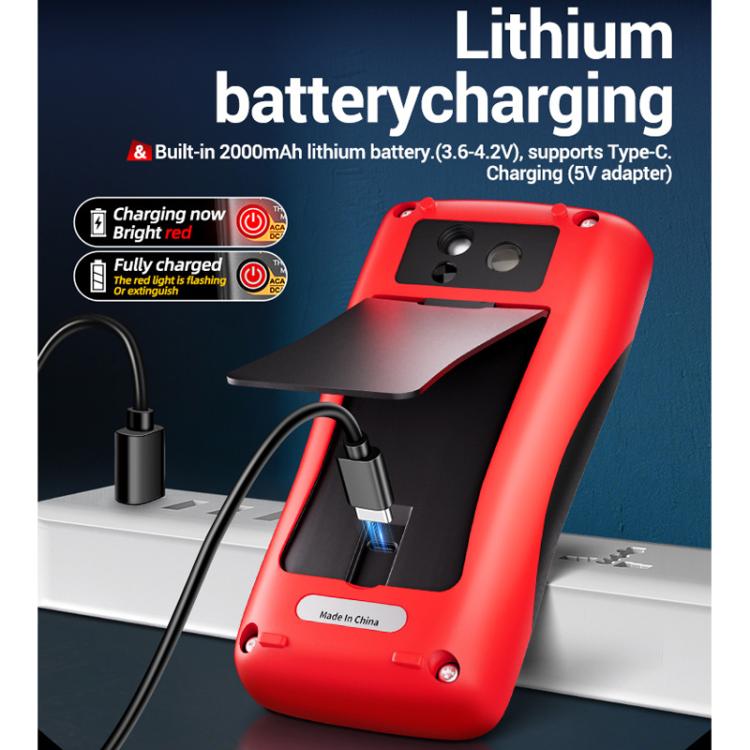

41. Equipped with 3.6V~4.2V 2000mAh lithium battery, the Type-C data cable is connected to the DC 5V output adapter for charging

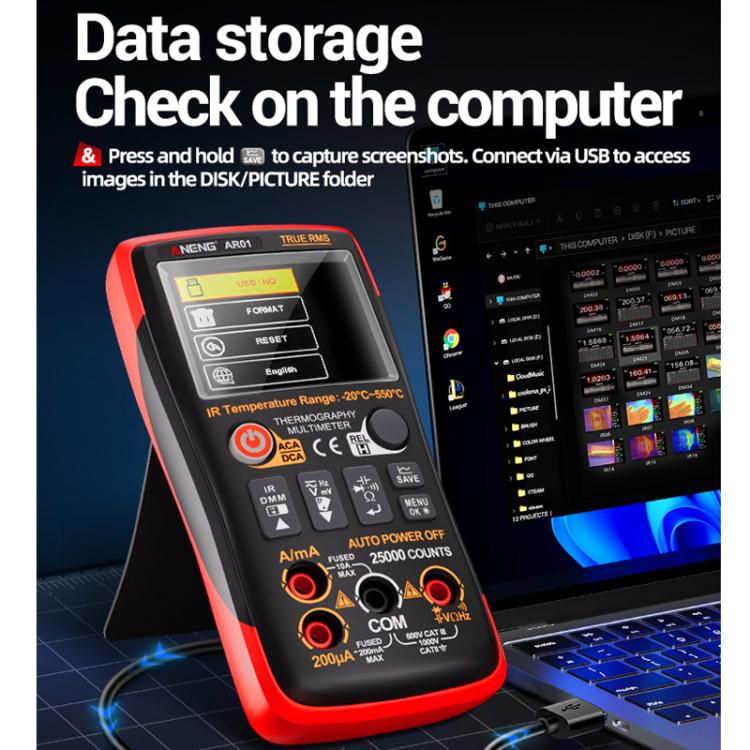

42. Long press to save the measurement data screenshot, the data cable is connected to the USB interface of the computer and the instrument, and the USB communication is turned on in the setting interface. After the connection is successful, the computer will pop up the DISK U disk. At this time, open the PICTURE folder to see the saved pictures

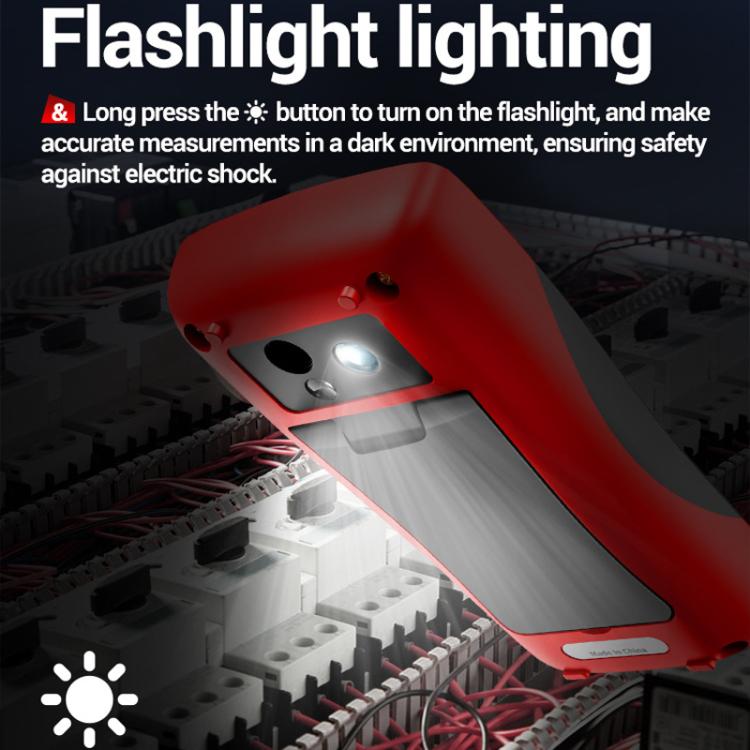

43. Turn on the flashlight to assist in working in a dark environment, no longer afraid of not being able to see the measurement location, and eliminate the risk of electric shock

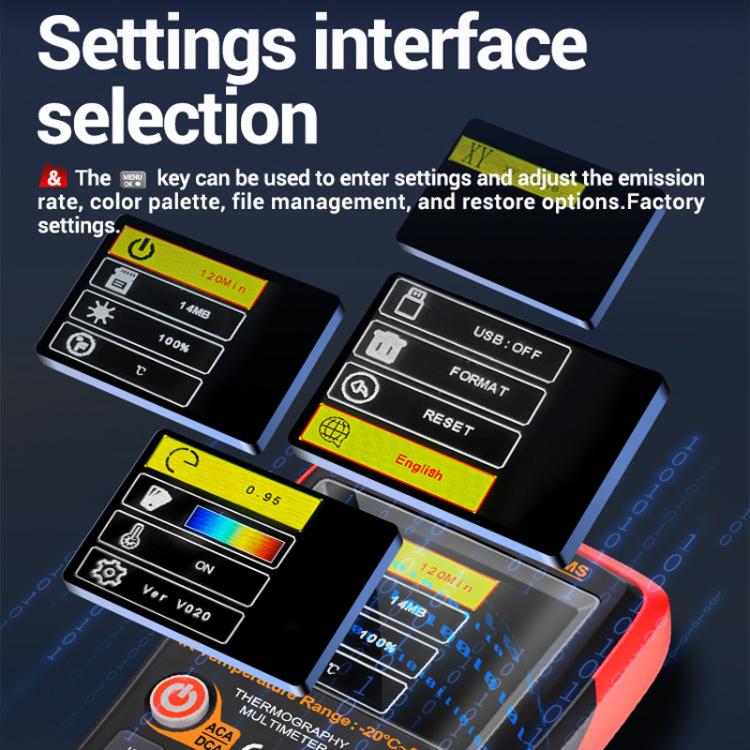

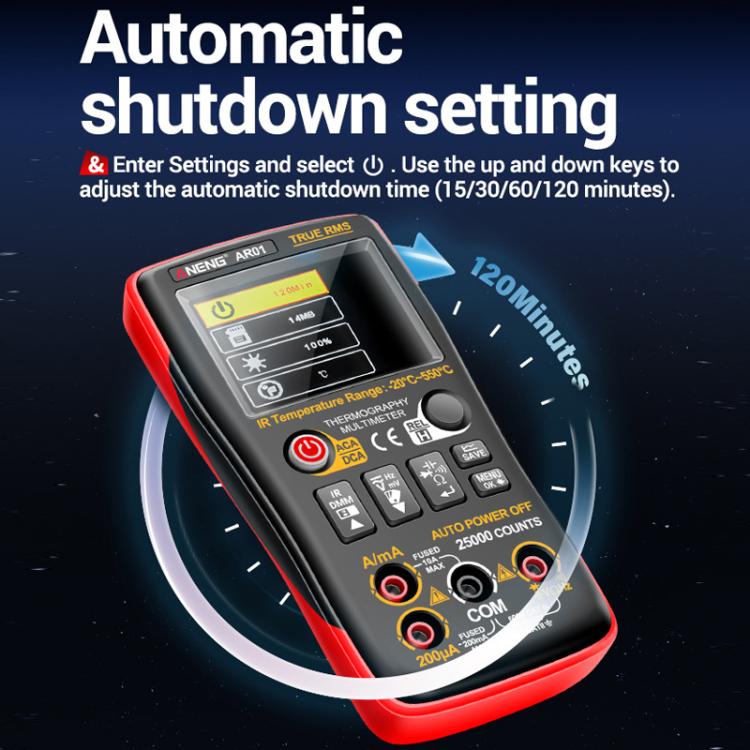

44. Enter the setting interface and select the option to press the up and down keys to set the required automatic shutdown time, off/15 minutes/30 minutes/60 minutes/120 minutes

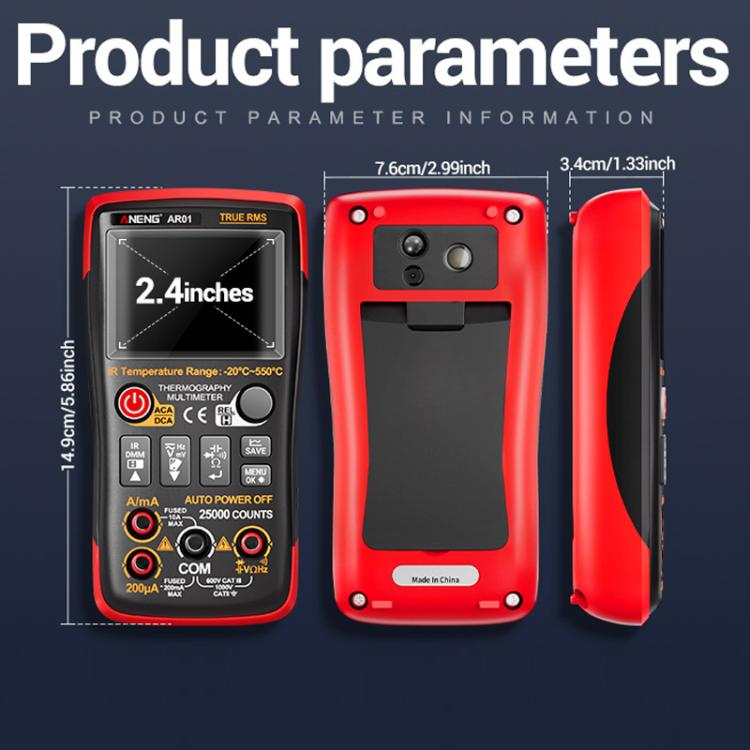

45. Dimensions: 14.9 x 7.6 x 3.4 cm
46. Weight: 200 g
