Description

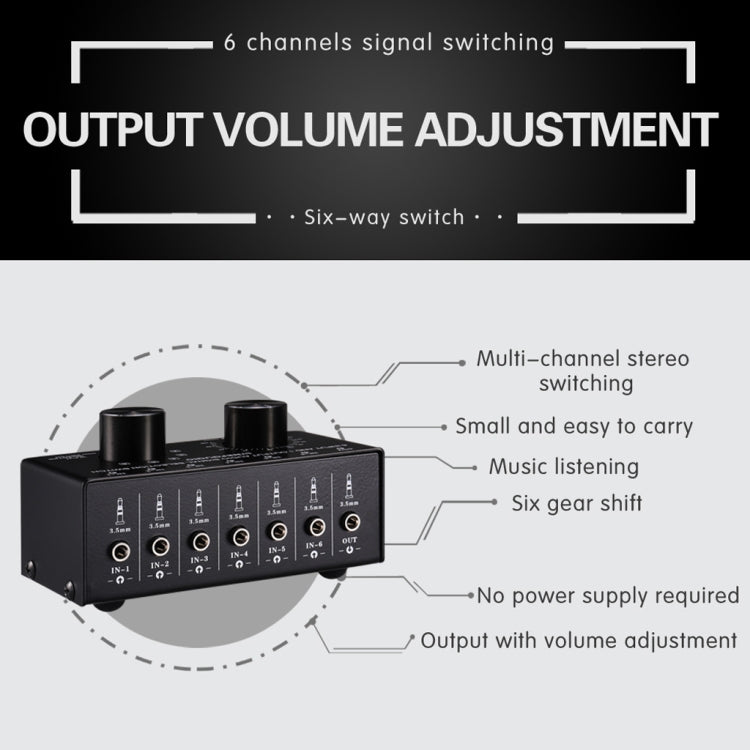

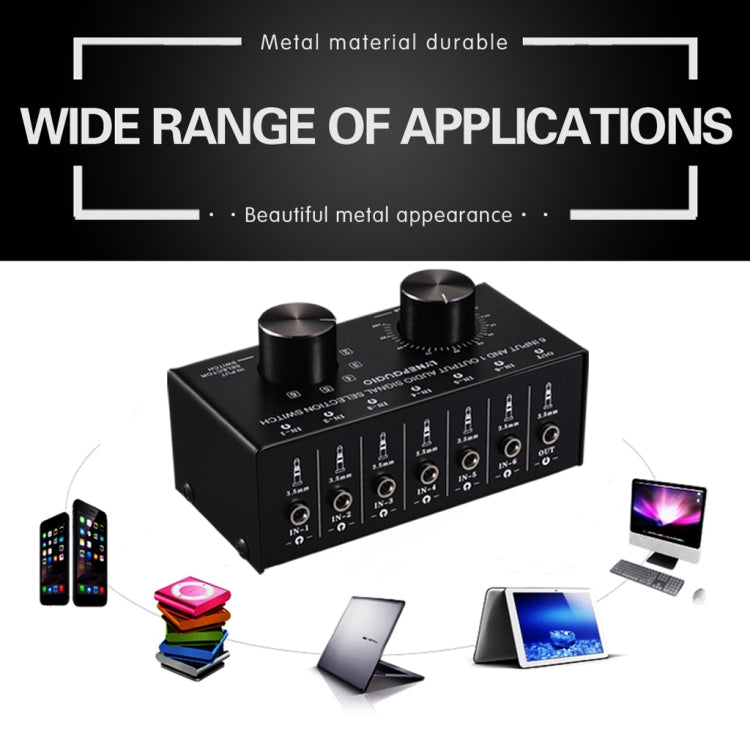

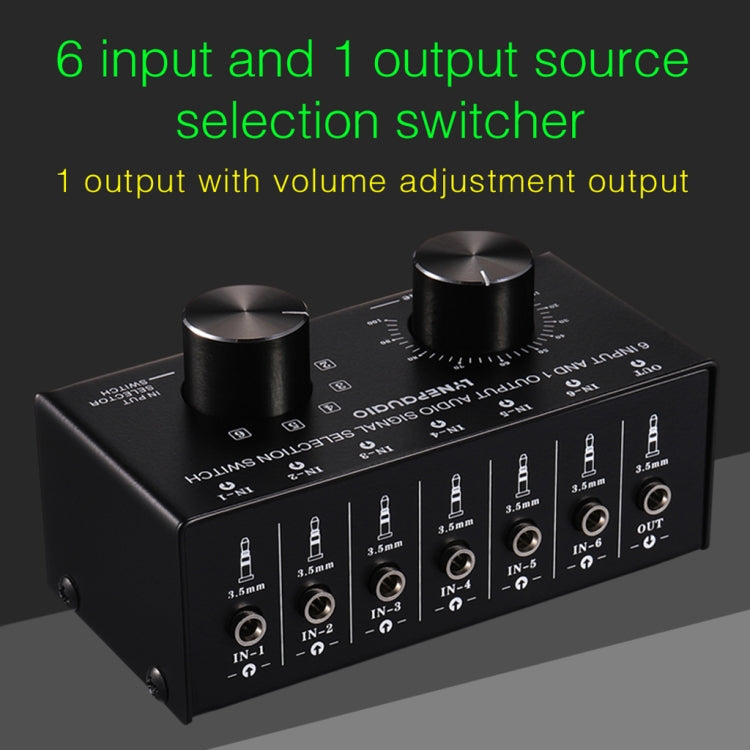

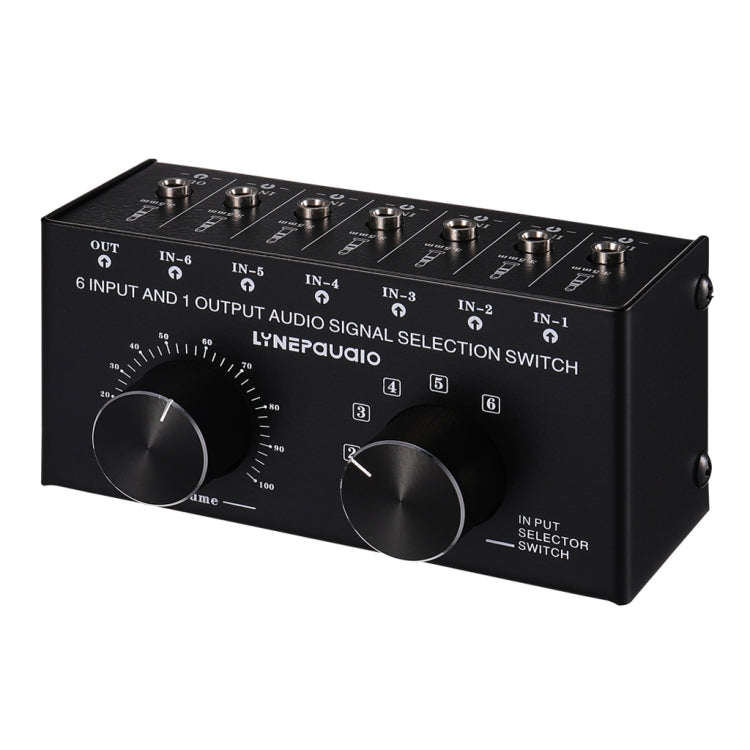

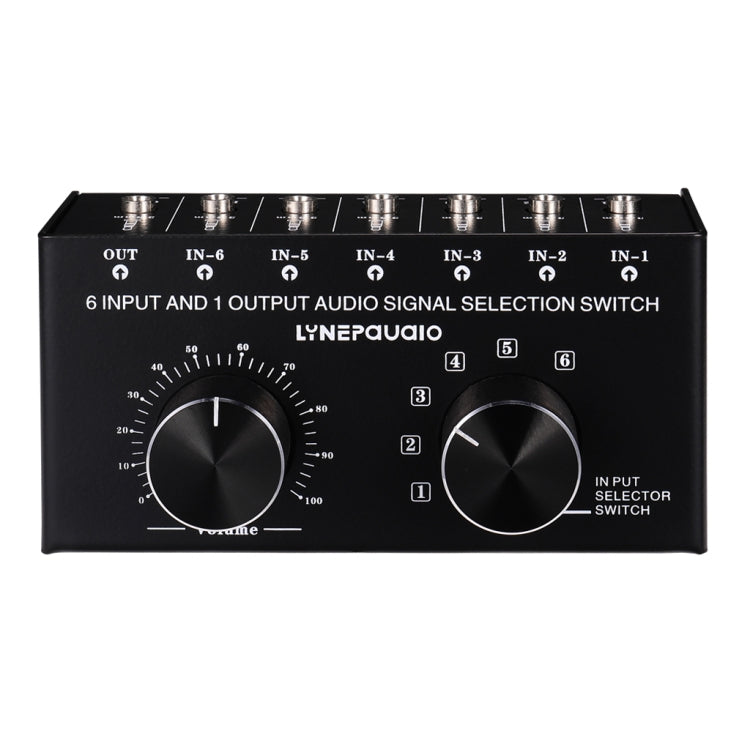

The B017 is a 6-channel stereo audio signal selection switcher with output volume adjustment. It allows users to easily switch between multiple audio sources such as TVs, MP3 players, and computers to a single output device.
- Power supply: passive design, direct insertion
- Material: all-metal case
- Input and output impedance: 10KΩ - 50KΩ
- Frequency response: 20 – 20kHz
- Distortion: <0.002%
- Insertion loss: <0.01dB
- Signal gain: 0dB
- Signal to noise ratio S/N: >98dB

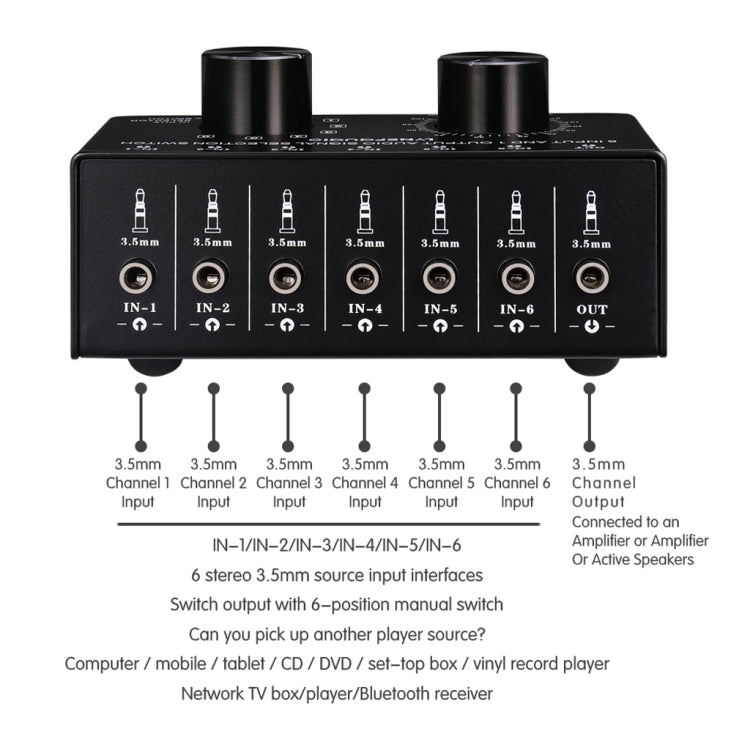

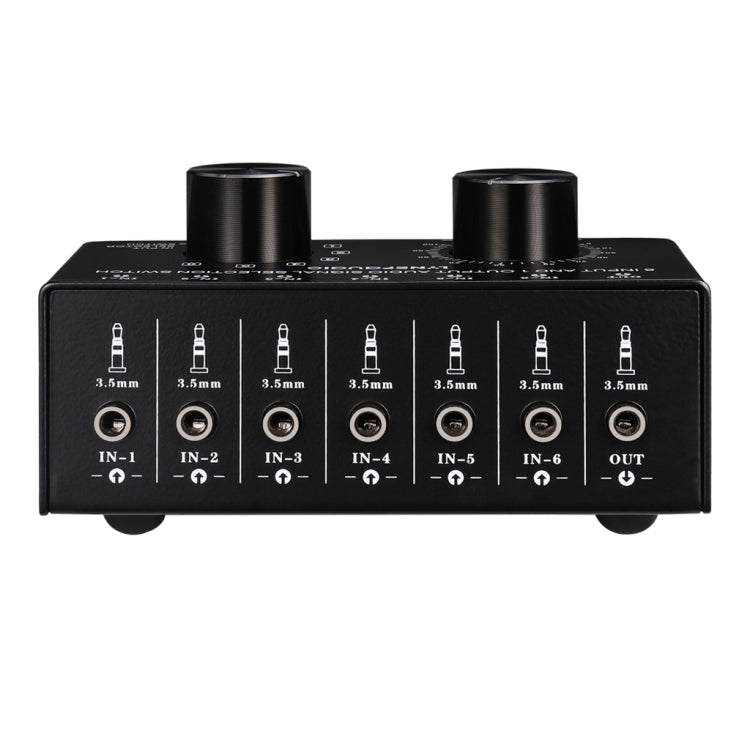

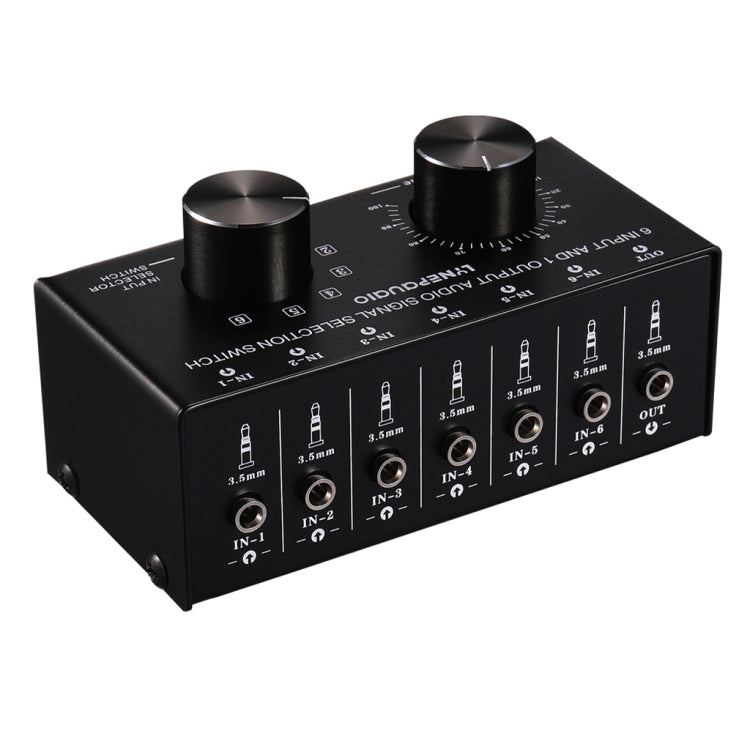

- Input port: standard 3.5mm interface
- Output port: standard 3.5mm interface
- Number of input channels: 6-channel stereo input signal sources
- Number of output channels: 1-channel stereo output

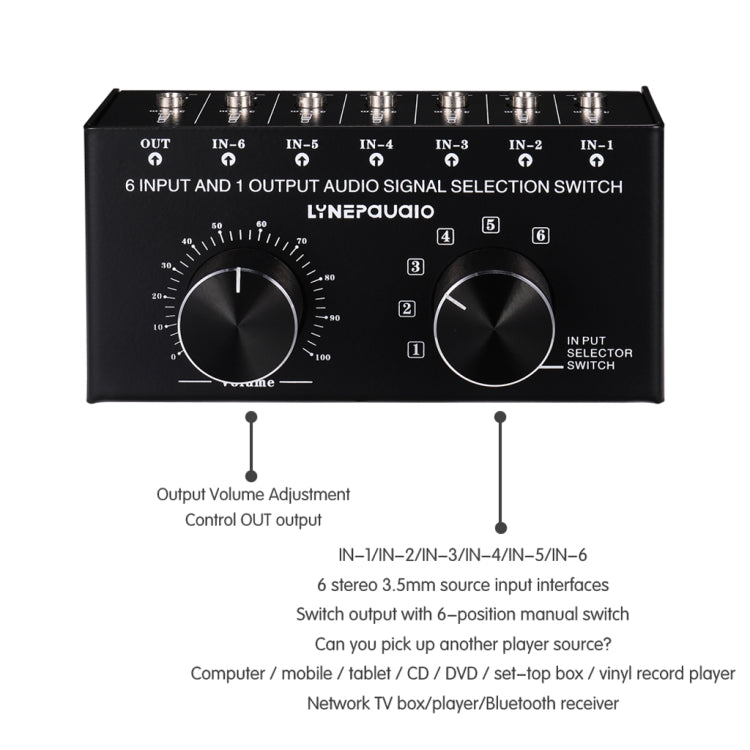

- Control switch: 6-level precise manual selection switch
- Switching channel: 6 channels
- Net weight: 0.26 kg
- Gross weight with packaging: 0.36 kg

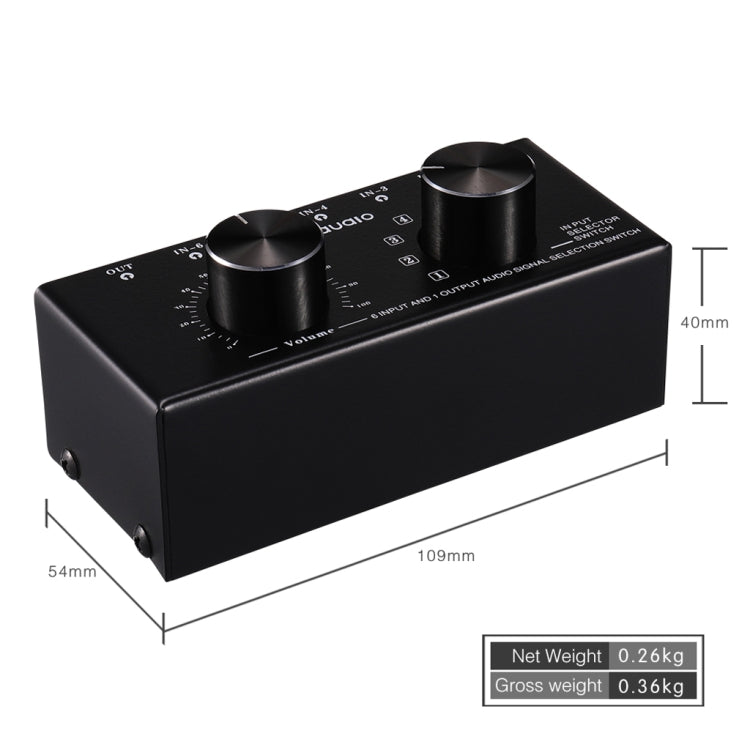

- Product size: length 109mm X width 54mm X height 40mm
- Packaging size: length 185mm X width 135mm X height 65mm
- Kit list: 1 X 6 input 1 output stereo audio signal selection switcher output volume adjustment 3.5mm interface
