Product details
Description

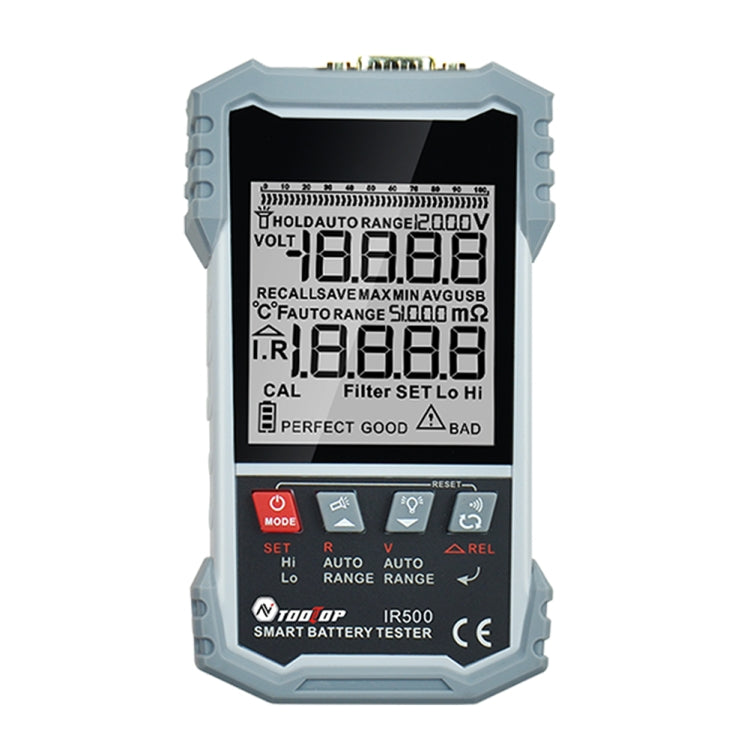

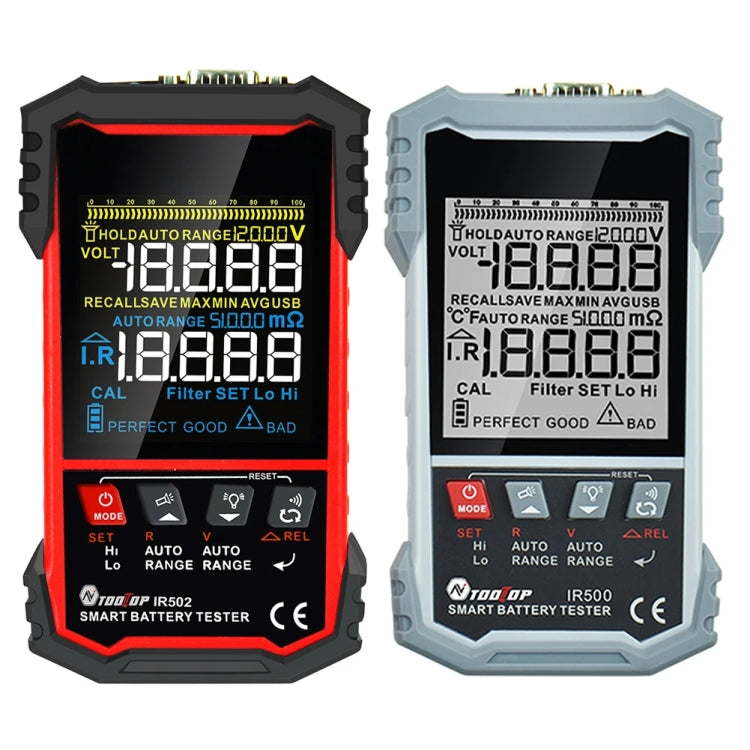

The Battery Internal Resistance Tester is designed to measure the internal resistance of various battery types. It can be used to assess the condition of lithium, lead-acid, carbon, alkaline, and button batteries.
- Voltage range: 0.00V to 120V
- Internal resistance measurement range: 0.000mΩ to 500Ω
- Input voltage: DC 120V (AC input not allowed)
- Measurement current: 50mA to 50µA
- Measurement speed: 3 times per second
- Measurement signal frequency: 1KHz

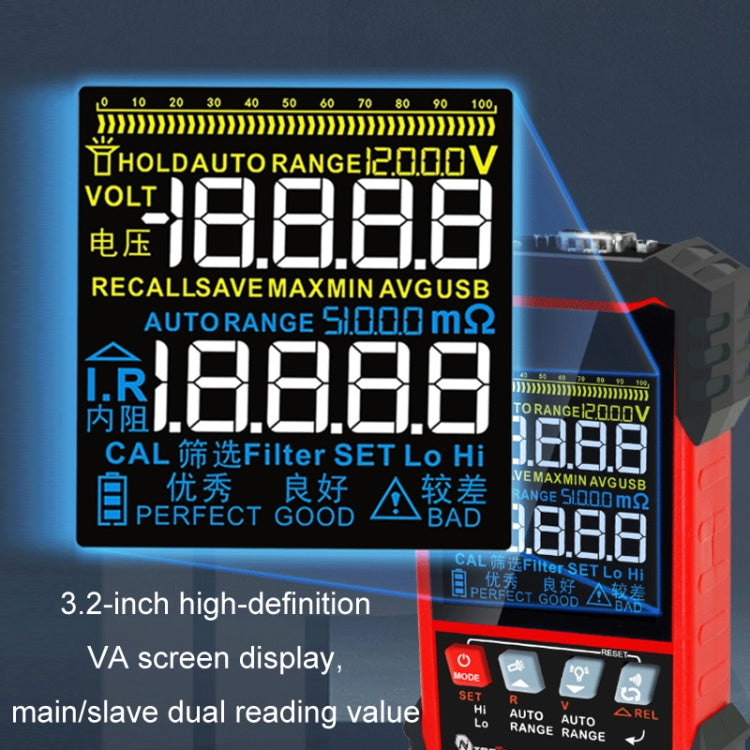

- Screen size: 3.2-inch high-definition VA screen
- Screen type: TN black and white or TN color
- Power supply: 3.7V 1200mAh lithium battery

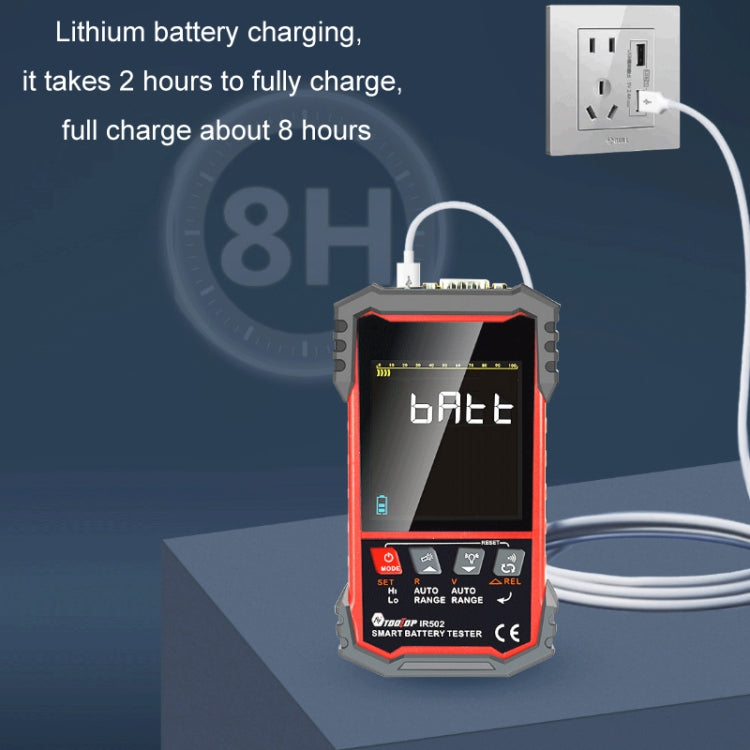

- Charging time: 2 hours for full charge
- Operating time: approximately 8 hours on a full charge

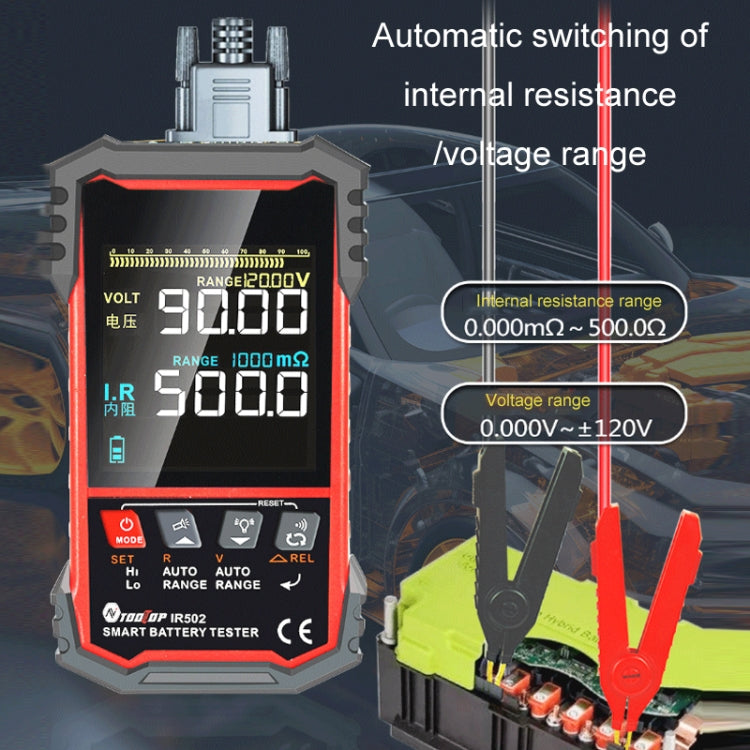

- Automatic switching between internal resistance and voltage measurement

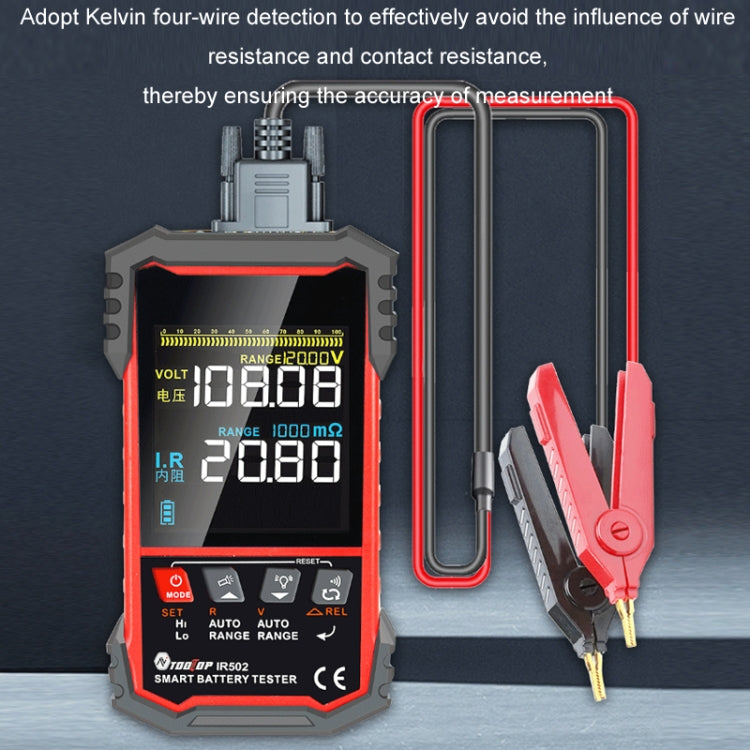

- Kelvin four-wire detection method for accurate measurements

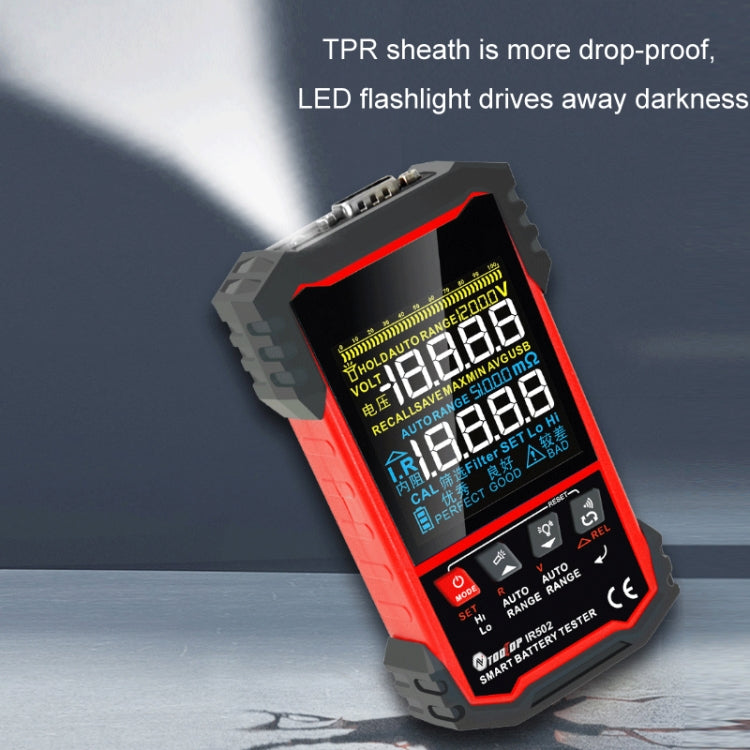

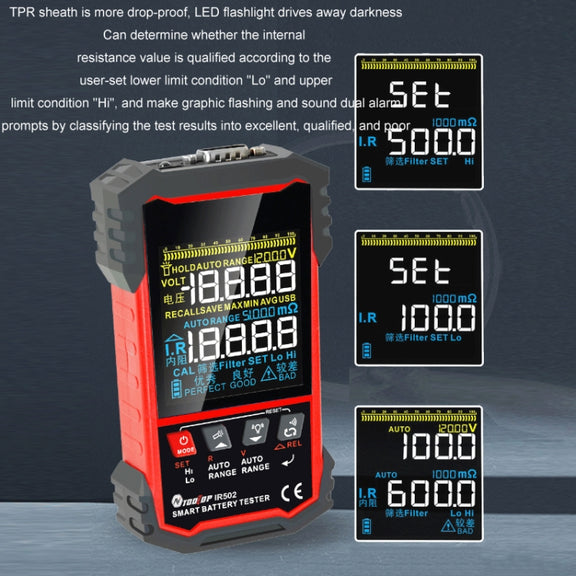

- TPR sheath for shatter resistance
- LED flashlight included

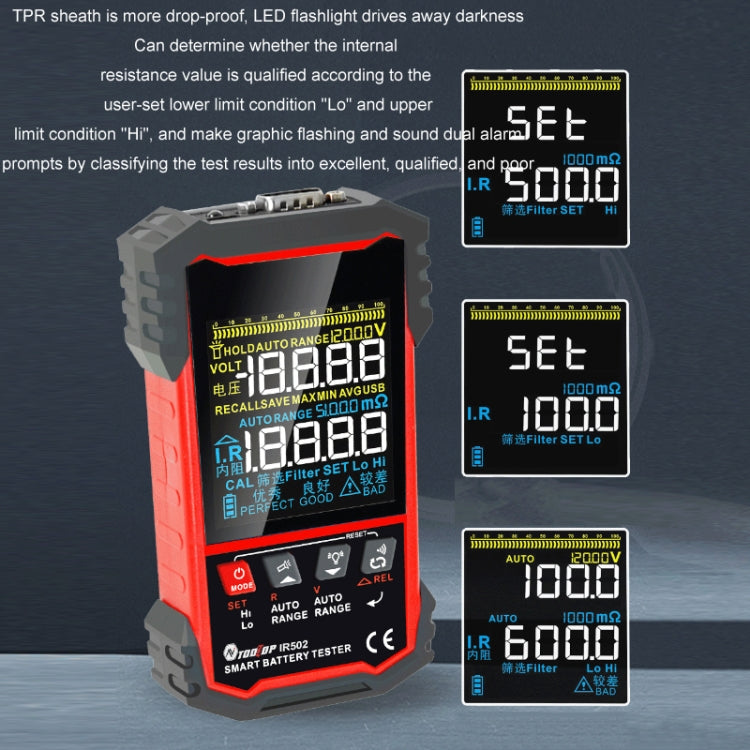

- User-defined lower and upper limit conditions for internal resistance
- Test result classification: excellent, qualified, poor with visual and sound alerts
- Automatic shutdown after 20 minutes of inactivity

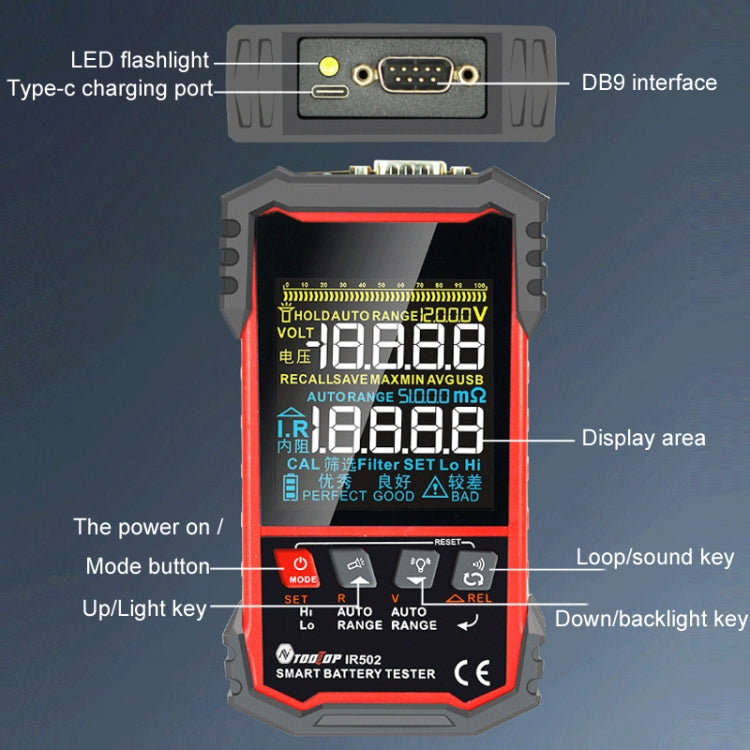

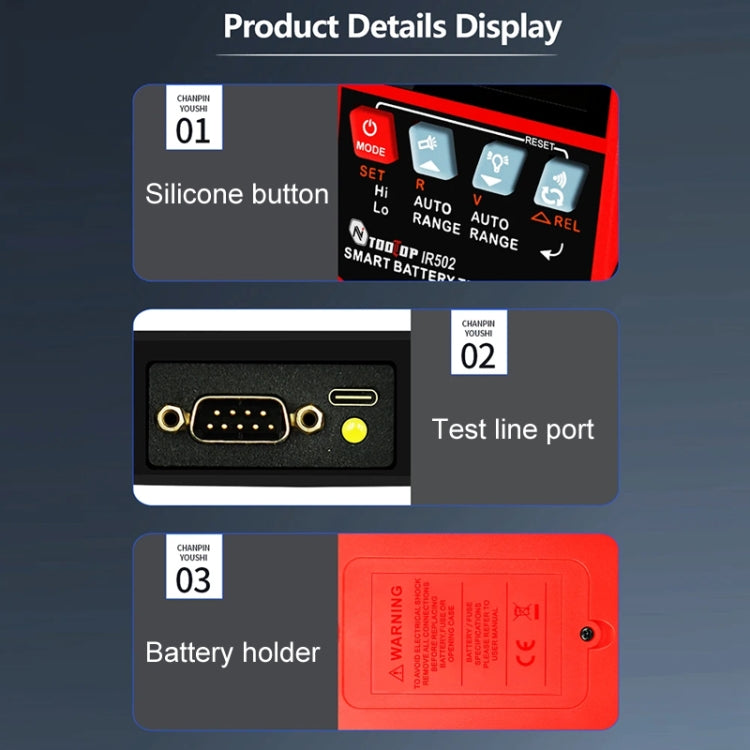

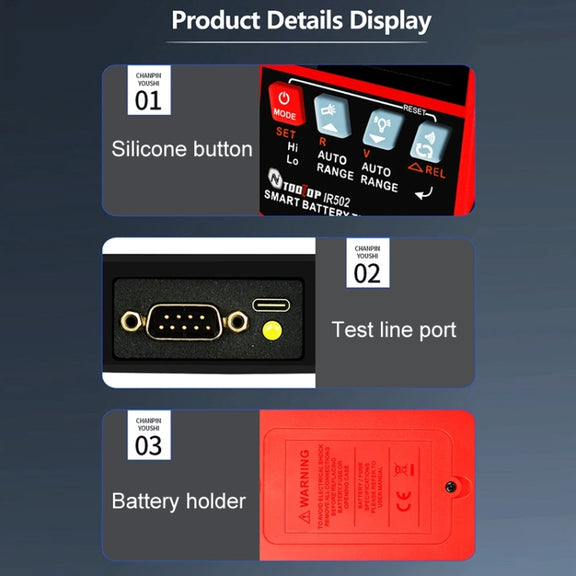

- Connection interface: DB9 with specific pin assignments for test clips
