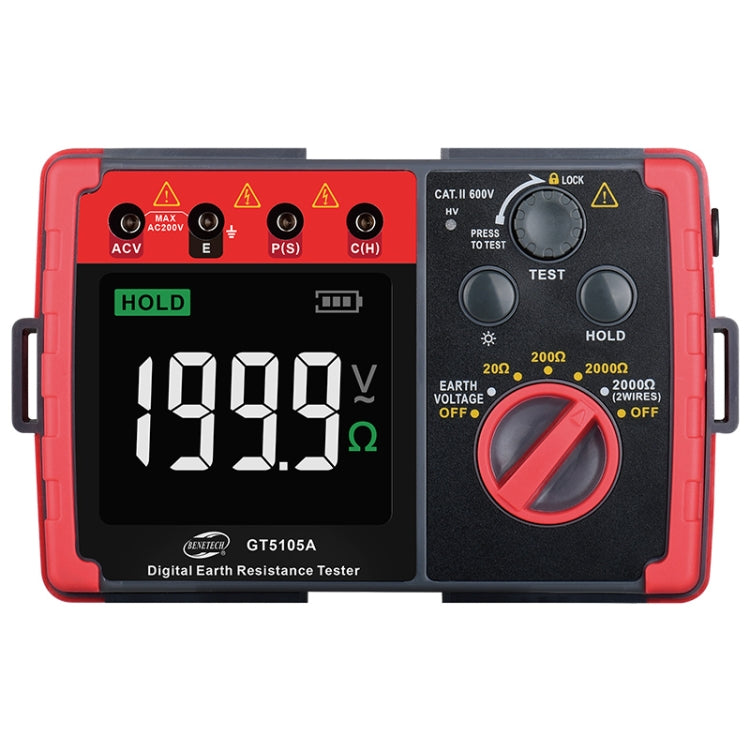

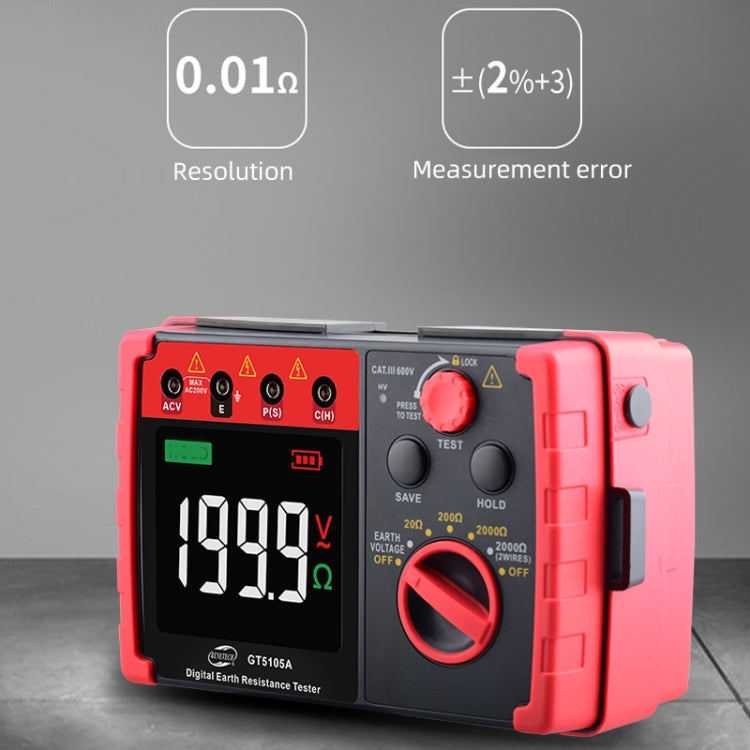

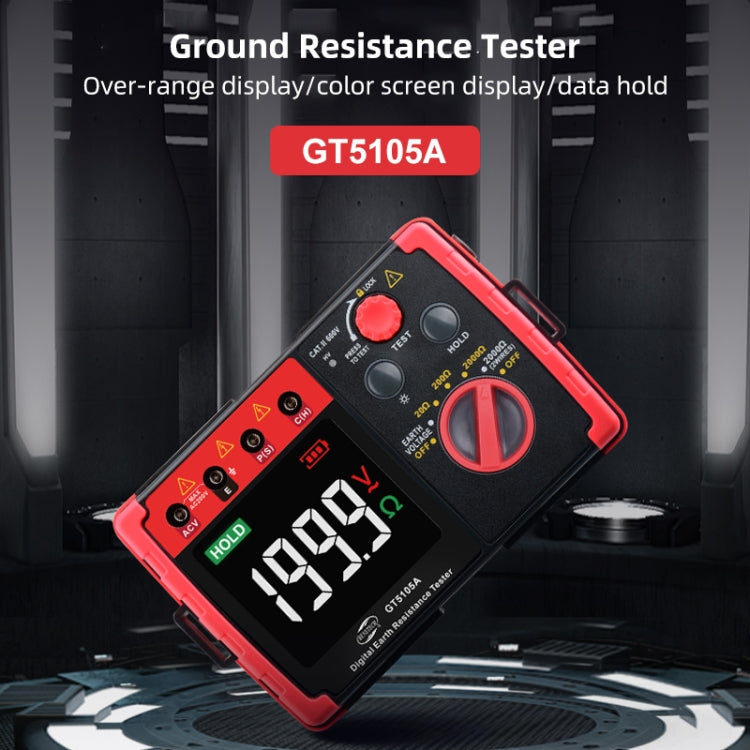

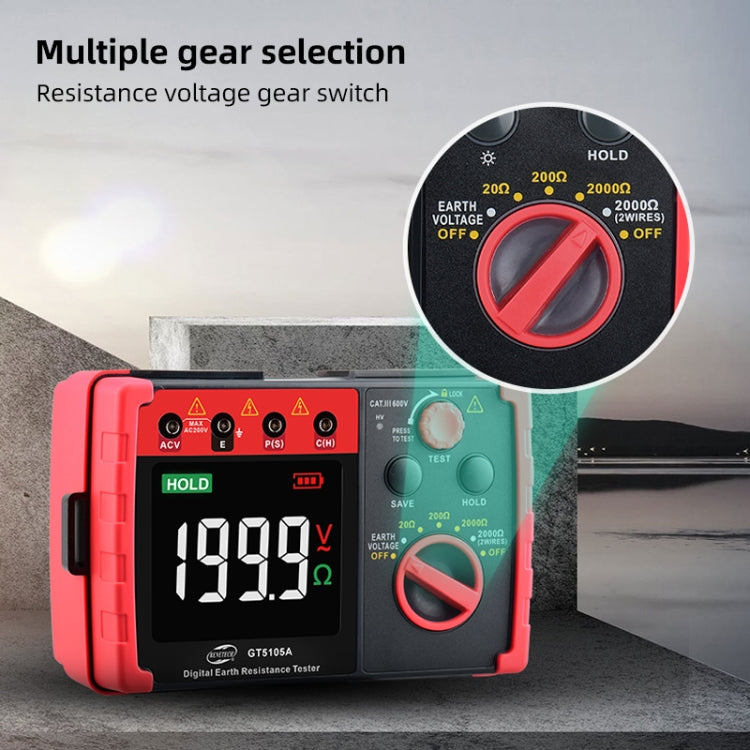

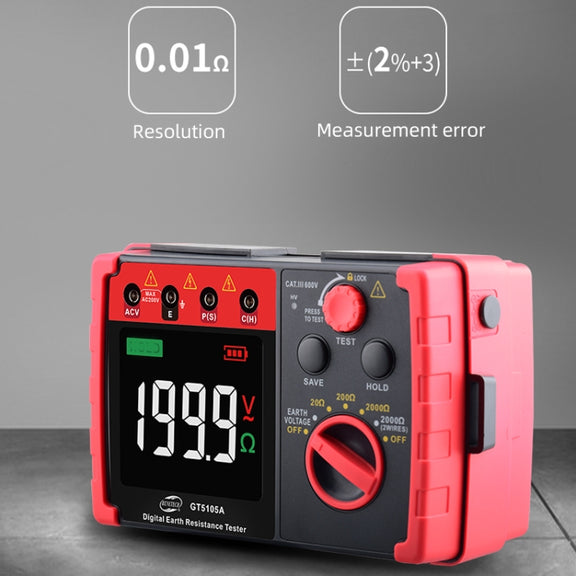

BENETECH GT5105A Professional LCD Digital Resistance Tester Meter Megger Earth Ground Resistance Voltage Tester
BENETECH GT5105A Professional LCD Digital Resistance Tester Meter Megger Earth Ground Resistance Voltage Tester
Sale
Sold out
Pre-order
Regular price
R 3,189.00
Regular price
Sale price
R 3,189.00
Unit price
per
Pay in monthly instalments with
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Brand:BENETECH
Description
This instrument is controlled by intelligent microcontroller chip, with high accuracy and high reliability; it can be used to measure grounding resistance of various power facilities wiring, electrical equipment, fulmination protection equipment and other grounding devices, and it can also measure ground voltage. (Note: This instrument is not suitable for harsh outdoor environmental conditions, such as raining, lightning, etc.)

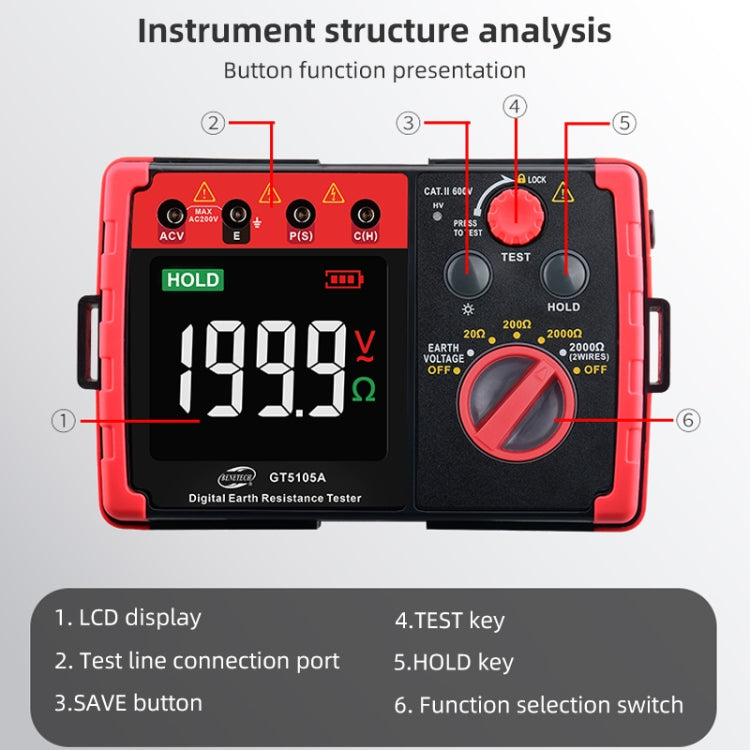

Functions
1. Backlight and battery detection function.

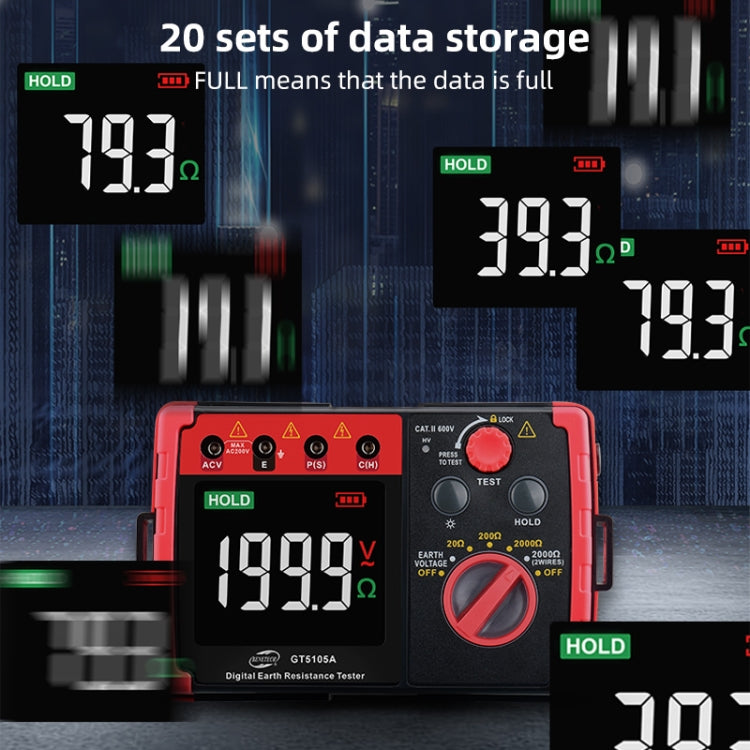

2. Data holding.
3. It can be used for precise three-wire measurement or simple two-wire measurement.
4. When measuring ground resistance, if C or E end of test lead is not in good contact, "---- ohm" warning appears on LCD.

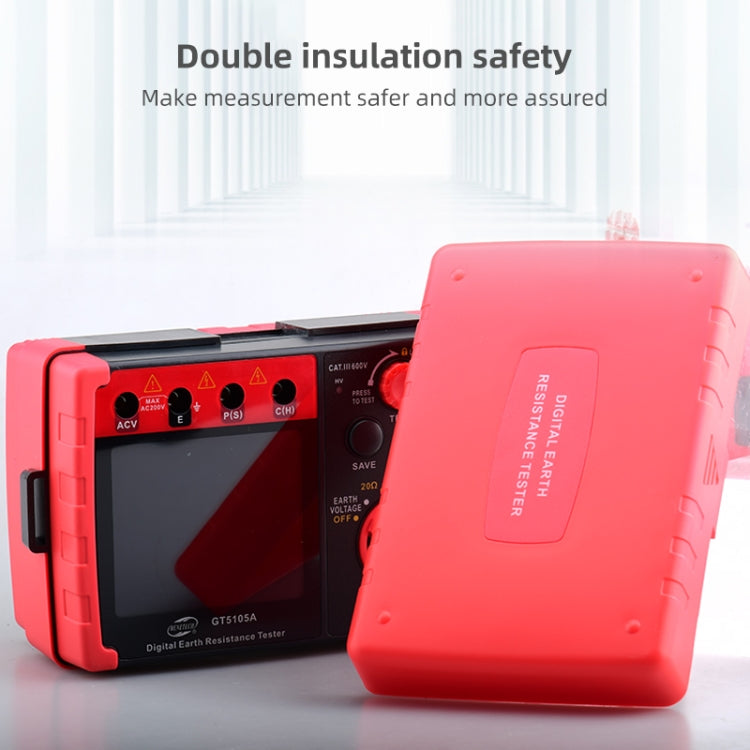

5. "OL" stands for over range. 6.Double insulation or reinforced insulation safety structure
1. Measurement method:
- Ground voltage measurement: Average response
- Ground resistance measurement: Test signal frequency: about 820Hz, current: 20 ohm about 3.2mA
2. Working environment: Temperature: 5~ 40 degree C, Relative humidity: Less than or equal 80 ~ RH (no fog) Altitude Less than or equal 2000 meters
3. Storage conditions: Temperature: -20 ~ 60 degree C; Relative humidity: Less than or equal 70% RH (no fog)
4. Power supply: 9V power supply: 1.5V (No. 5 alkaline battery) * 6 (Not included battery)
5. Overload protection: Ground resistance: 200V AC (10 seconds) Ground voltage: 400V AC (30 seconds)
6. Insulation resistance: The insulation resistance between measurement circuit and case is not less than 20Mohm
Functions
1. Backlight and battery detection function.
2. Data holding.
3. It can be used for precise three-wire measurement or simple two-wire measurement.
4. When measuring ground resistance, if C or E end of test lead is not in good contact, "---- ohm" warning appears on LCD.
5. "OL" stands for over range. 6.Double insulation or reinforced insulation safety structure
1. Measurement method:
- Ground voltage measurement: Average response
- Ground resistance measurement: Test signal frequency: about 820Hz, current: 20 ohm about 3.2mA
2. Working environment: Temperature: 5~ 40 degree C, Relative humidity: Less than or equal 80 ~ RH (no fog) Altitude Less than or equal 2000 meters
3. Storage conditions: Temperature: -20 ~ 60 degree C; Relative humidity: Less than or equal 70% RH (no fog)
4. Power supply: 9V power supply: 1.5V (No. 5 alkaline battery) * 6 (Not included battery)
5. Overload protection: Ground resistance: 200V AC (10 seconds) Ground voltage: 400V AC (30 seconds)
6. Insulation resistance: The insulation resistance between measurement circuit and case is not less than 20Mohm
Questions about features, compatibility, or warranty? Chat with our local support team!
What is the BENETECH GT5105A used for?
The listing describes grounding resistance and ground voltage measurement for power wiring, electrical equipment, lightning protection equipment, and grounding devices.
Can the GT5105A be used in harsh outdoor weather?
No. The product description notes that it is not suitable for harsh outdoor environmental conditions such as rain or lightning.
