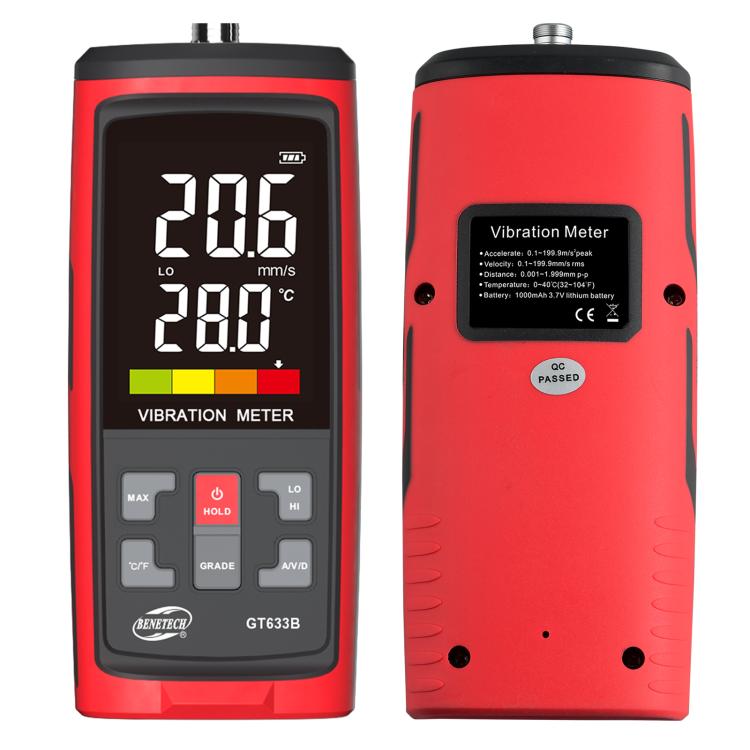

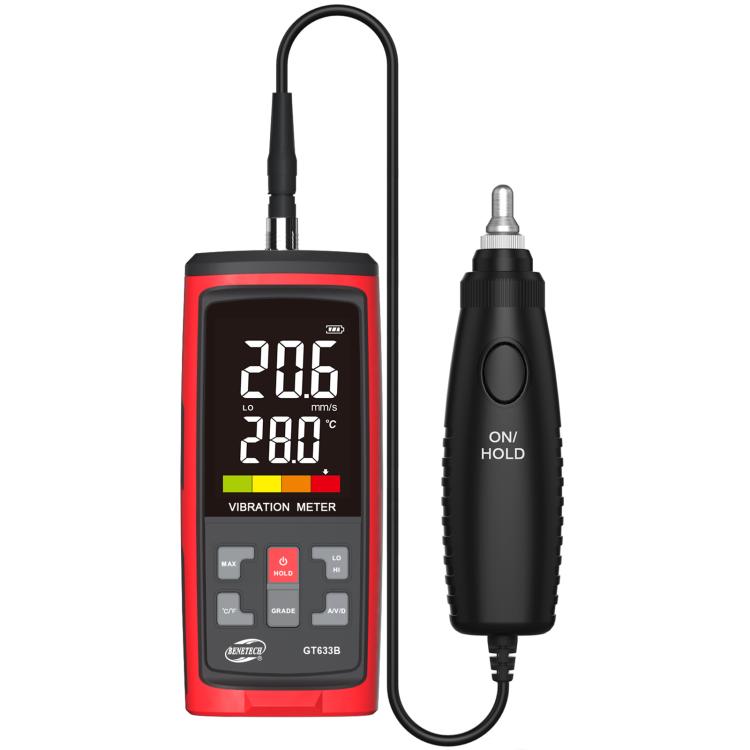

BENETECH GT633B Handheld Motor Probe Vibration Tester
BENETECH GT633B Handheld Motor Probe Vibration Tester
Sale
Sold out
Pre-order
Regular price
R 2,879.00
Regular price
Sale price
R 2,879.00
Unit price
per
Pay in monthly instalments with
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Brand:BENETECH
Type:
Other Tester Tool
Description
1. Vibration testing is an important means to achieve equipment status and fault diagnosis. The use of handheld vibration meters improves production safety, quality and efficiency.
2. This instrument uses a piezoelectric acceleration sensor to convert vibration signals into electrical signals. By processing and analyzing the input signal, it displays the acceleration, velocity and displacement value of the vibration. It is widely used in machinery manufacturing, electricity, metallurgy, automobiles and other fields.
3. Sensor: piezoelectric ceramic accelerometer (shear type)
4. Acceleration measurement range: 0.1 to 199.9m/s2 (peak value)
5. Velocity measurement range: 0.1 to 199.9mm/s (true effective value)
6. Displacement measurement range: 0.001 to 1.999mm (peak-to-peak value)
7. Measurement error: +/-(5%+2digits)
8. Low-frequency acceleration measurement frequency range: 10Hz to 1KHz (LO)
9. High-frequency acceleration measurement frequency range: 1KHz to 3KHz (HI)
10. Velocity measurement frequency range: 10Hz to 1KHz (LO)
11. Displacement measurement frequency range: 10Hz to 1KHz (LO)
12. Data update: about 0.5 seconds
13. Maximum value hold: Yes
14. Temperature measurement: 0 to 40 degrees Celsius
15. Temperature accuracy: +/-1.5 degrees Celsius
16. Automatic shutdown: 1 minute of no operation
17. Power supply: 1000mAh 3.7V lithium battery
18. Dimensions: 150x63x34mm
2. This instrument uses a piezoelectric acceleration sensor to convert vibration signals into electrical signals. By processing and analyzing the input signal, it displays the acceleration, velocity and displacement value of the vibration. It is widely used in machinery manufacturing, electricity, metallurgy, automobiles and other fields.
3. Sensor: piezoelectric ceramic accelerometer (shear type)
4. Acceleration measurement range: 0.1 to 199.9m/s2 (peak value)
5. Velocity measurement range: 0.1 to 199.9mm/s (true effective value)
6. Displacement measurement range: 0.001 to 1.999mm (peak-to-peak value)
7. Measurement error: +/-(5%+2digits)
8. Low-frequency acceleration measurement frequency range: 10Hz to 1KHz (LO)
9. High-frequency acceleration measurement frequency range: 1KHz to 3KHz (HI)
10. Velocity measurement frequency range: 10Hz to 1KHz (LO)
11. Displacement measurement frequency range: 10Hz to 1KHz (LO)
12. Data update: about 0.5 seconds
13. Maximum value hold: Yes
14. Temperature measurement: 0 to 40 degrees Celsius
15. Temperature accuracy: +/-1.5 degrees Celsius
16. Automatic shutdown: 1 minute of no operation
17. Power supply: 1000mAh 3.7V lithium battery
18. Dimensions: 150x63x34mm
Questions about features, compatibility, or warranty? Chat with our local support team!
What does the BENETECH GT633B measure?
The listing describes acceleration, velocity, displacement, and temperature measurement for vibration testing.
What sensor type is listed for the GT633B?
The product description lists a piezoelectric ceramic accelerometer with shear-type sensor design.
