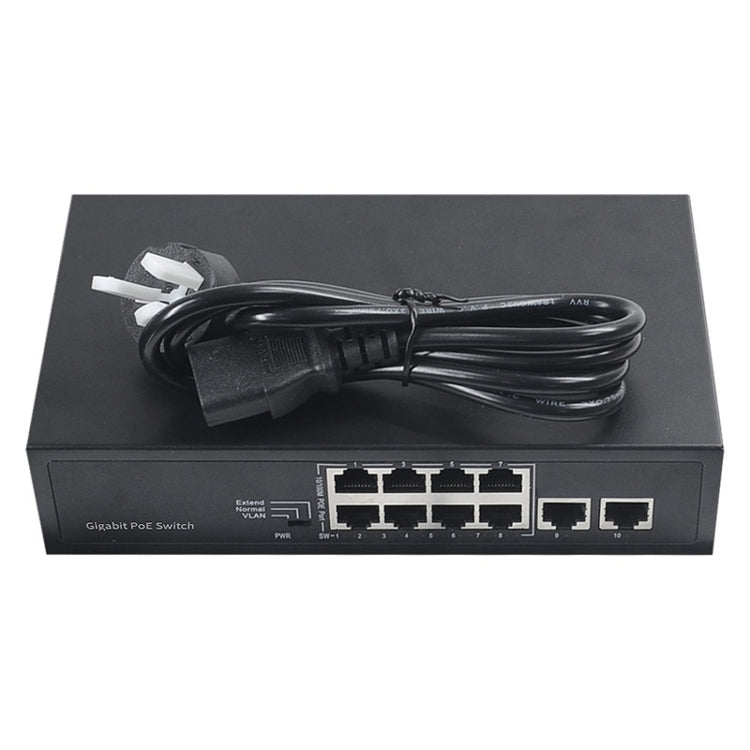

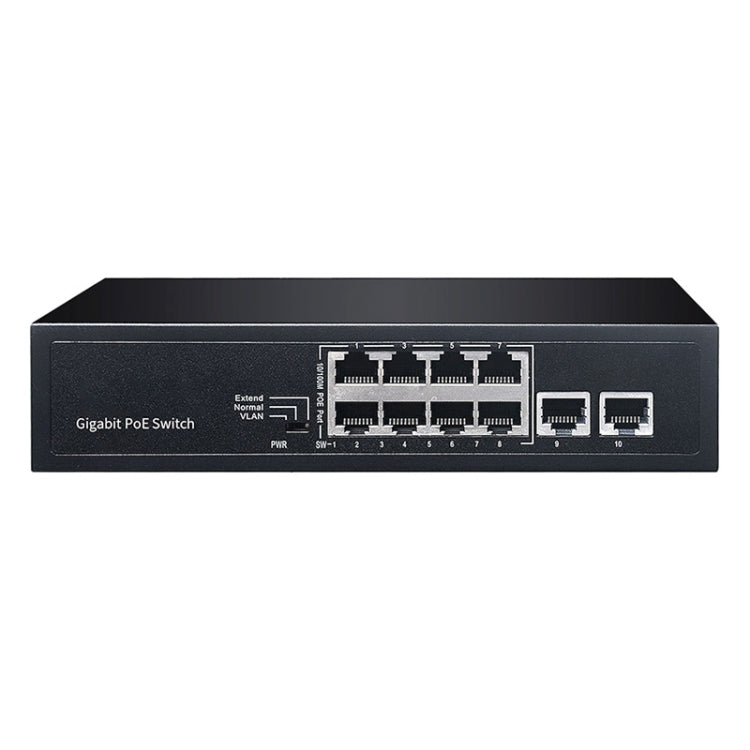

COMFAST CF-SG181P 10 Port Gigabit POE Ethernet Switch 20Gbps Backplane Bandwidth Monitoring

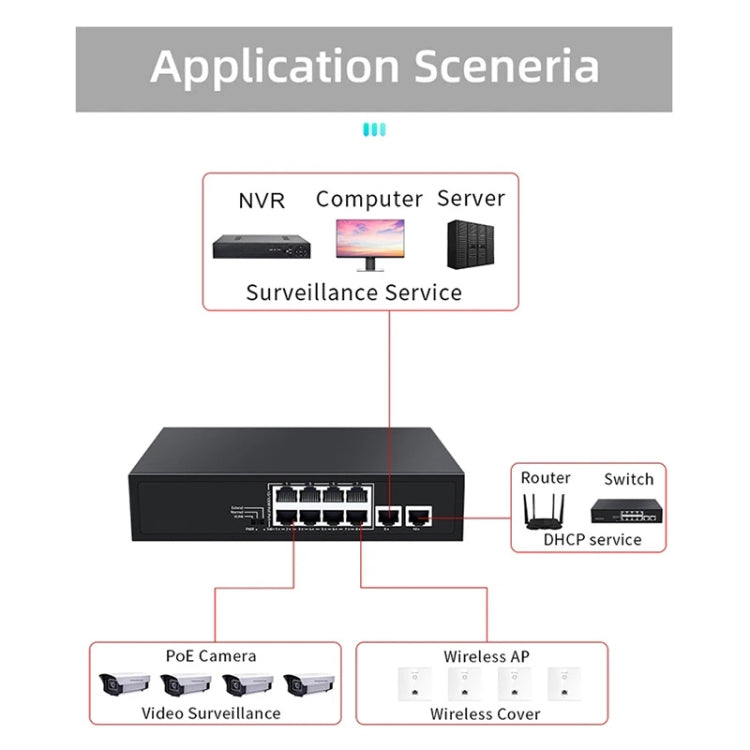

COMFAST CF-SG181P is a 10-port Gigabit POE Ethernet switch designed for high-speed data transmission and power supply management. It is suitable for use in network environments requiring multiple POE devices, such as IP cameras and wireless access points.

• Ports: 8 x 10/100/1000M RJ45 adaptive POE power supply ports
• Ports: 2 x 10/100/1000M RJ45 uplink ports
• Data Transmission: Gigabit port for high-speed data transmission
• POE Standard: Compatible with IEEE802.3af/at
• Power Output Management: Supports power output management

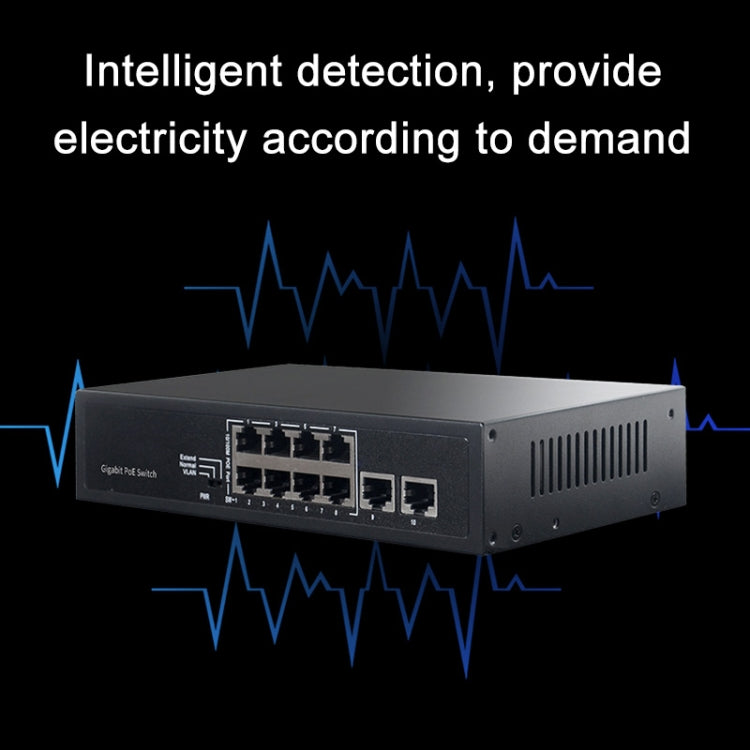

• PD Device Detection: Automatically detects PD devices
• Flow Control: Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
• MAC Address Support: Supports 2K MAC addresses, automatic learning and updating
• Indicator Lights: Panel indicator lights for monitoring working status and fault analysis
• Energy Saving: Supports IEEE802.3az high-efficiency energy-saving function
• Power Supply Input: AC 110-260V
• Power Supply Output: 52V 2.88A
• POE Parameters: Single port output of 15.4W (IEEE802.3af) and 30W (IEEE802.3at)
• Output Voltage: DC 48V
• Power Supply Core: 1/2+, 3/6-
• Material: Metal
• Backplane Bandwidth: 20Gbps
• Network Protocols: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at

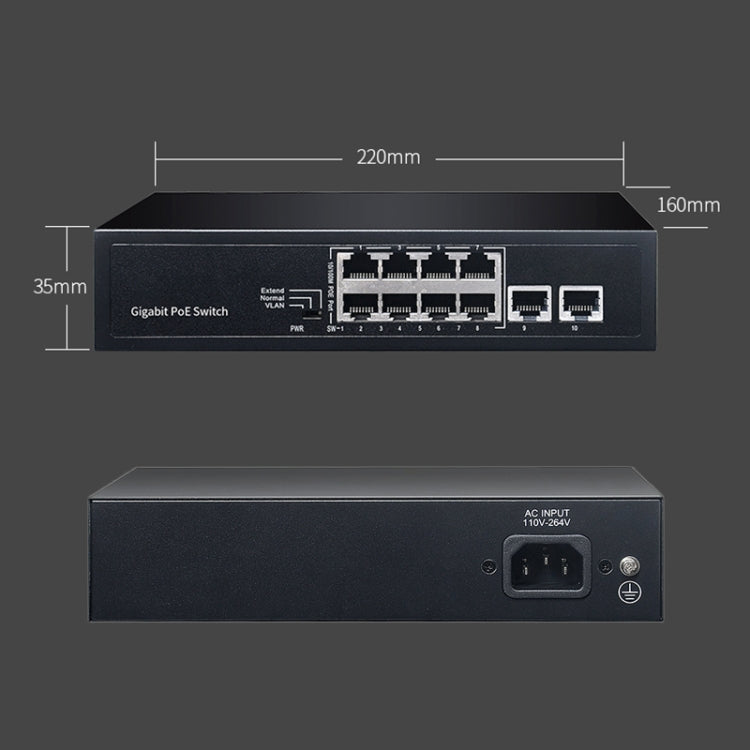

• Dimensions: 220 x 160 x 35 mm
• Operating Environment: Working temperature: -20 to 55 degrees Celsius
• Storage Temperature: -40 to 80 degrees Celsius
• Working Humidity: 10 to 90% RH non-condensing
• Storage Humidity: 5 to 90% RH non-condensing
