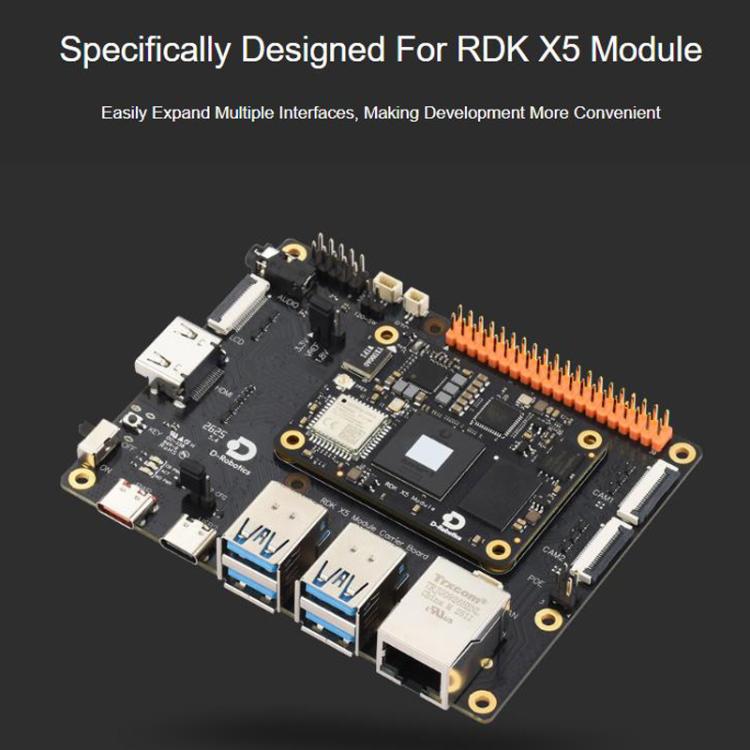

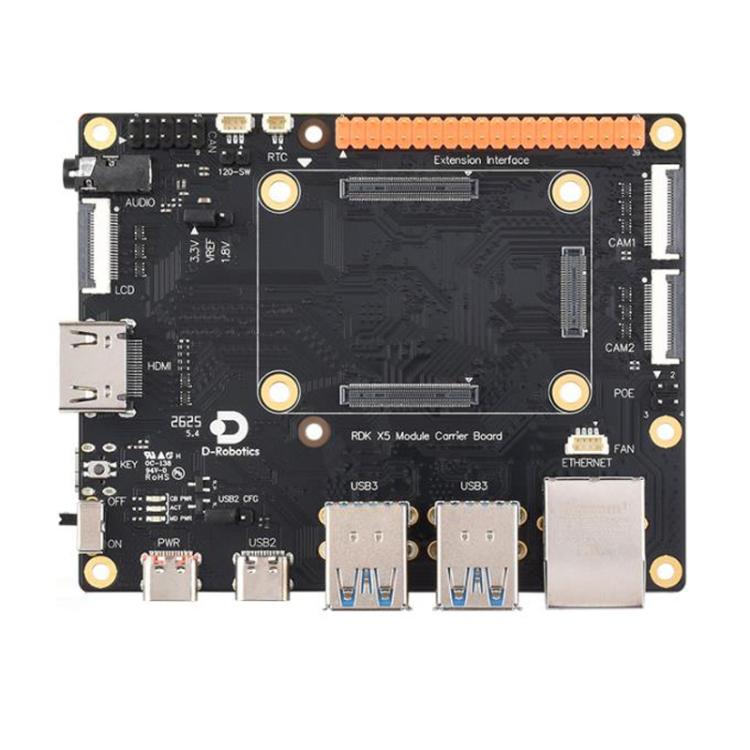

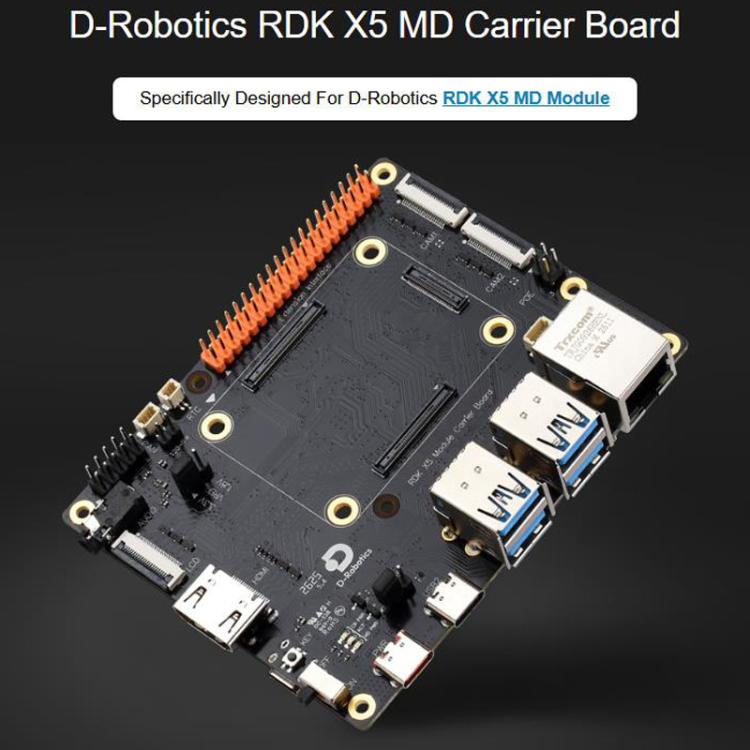

D-Robotics RDK X5 MD Carrier Board Matching Base Board With 40-PIN GPIO Interface And Gigabit Ethernet RJ45 Port
D-Robotics RDK X5 MD Carrier Board Matching Base Board With 40-PIN GPIO Interface And Gigabit Ethernet RJ45 Port
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description

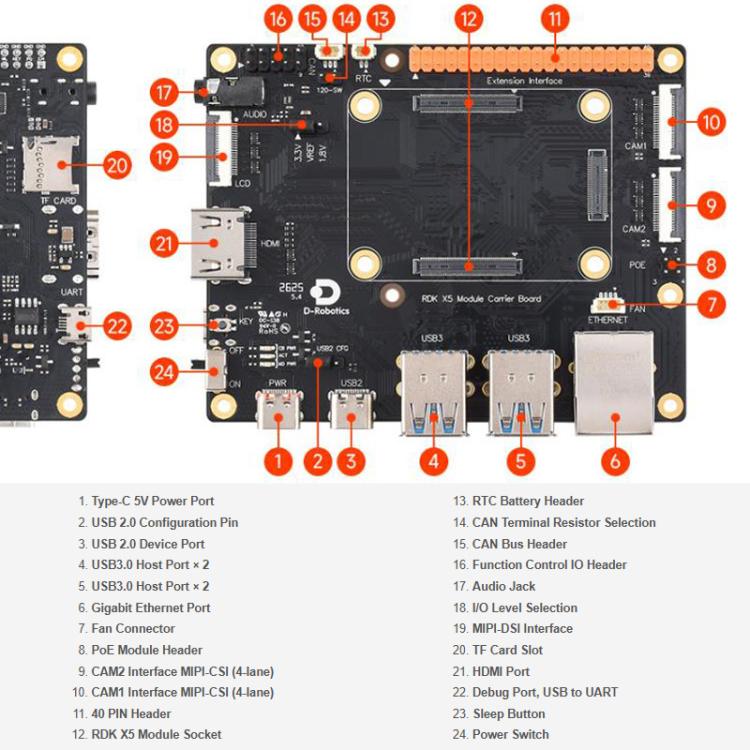

1. Core board socket: compatible with all versions of RDK X5 MD
2. Ethernet: Gigabit Ethernet RJ45 port
3. USB: USB 3.0 host ports x 4; Micro USB 2.0 Device port x 1; Micro USB 2.0 (serial debug port)
4. Connectors: 40-pin GPIO interface; 10-pin function control I/O

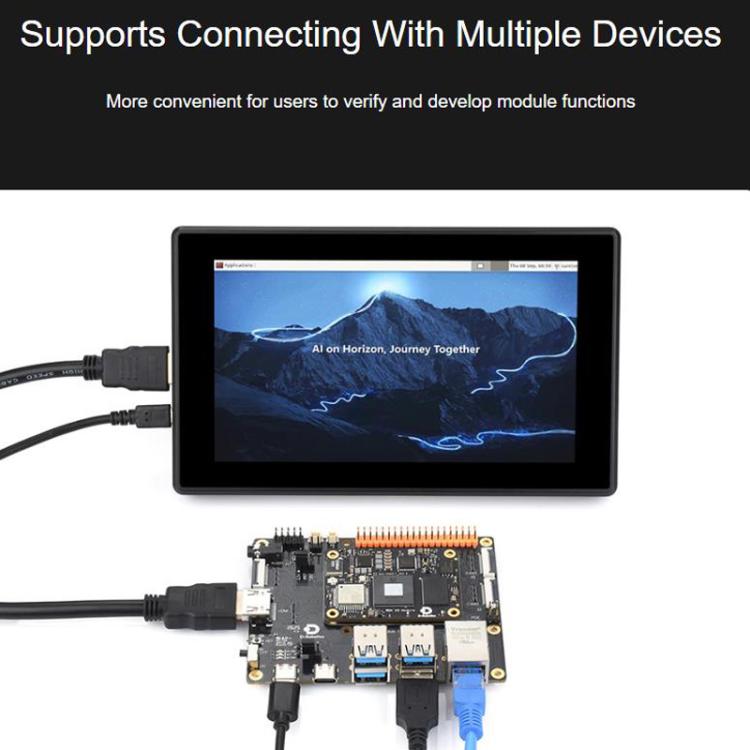

5. Display: MIPI-DSI interface (15-pin 1.0mm FPC connector); HDMI interface x 1
6. Camera: MIPI-CSI (4-lane) interface x 2
7. Real-time clock: battery-backed interface
8. Storage: on-board Micro SD card slot (for RDK X5 MD versions without eMMC)
9. Fan Interface: speed-adjustable, speed-measurable, 12V
10. Other resources: CAN interface, power switch, PoE interface, etc.
11. Power input: 5V 5A

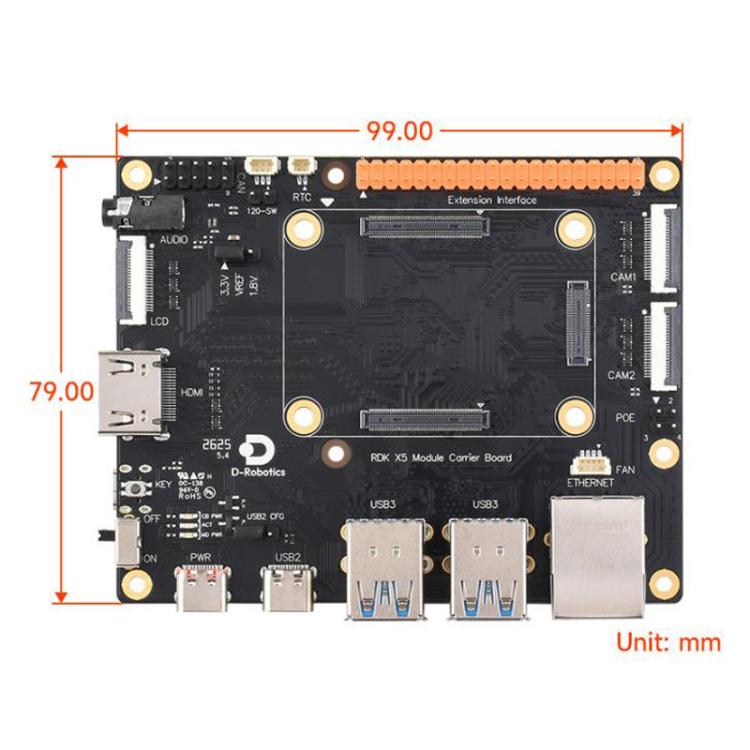

12. Size: about 9.9 x 7.9cm
