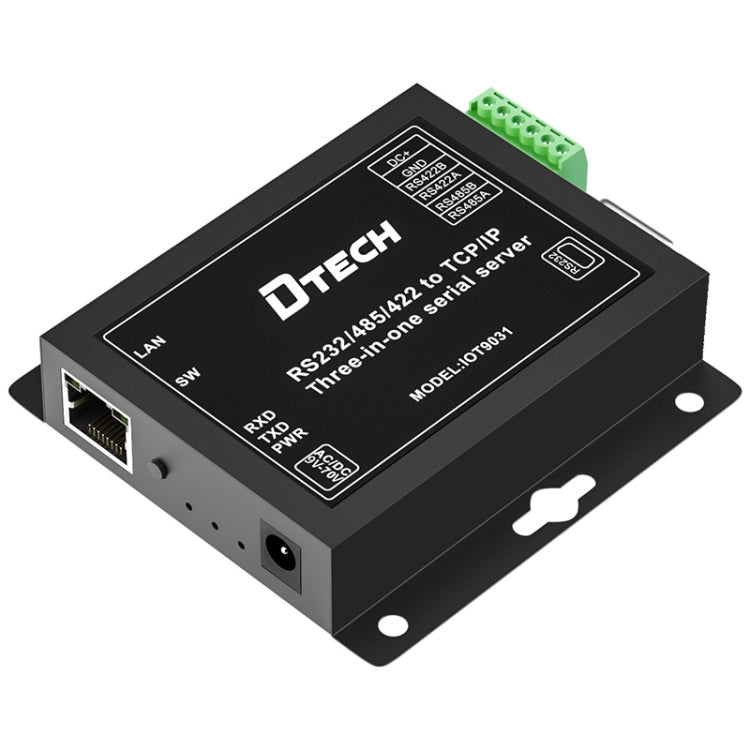

DTECH IOT9031 RS232/485/422 To TCP 3 In 1 Serial Server, CN Plug
DTECH IOT9031 RS232/485/422 To TCP 3 In 1 Serial Server, CN Plug
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description
DTECH IOT9031 is a 3-in-1 serial server that converts RS232/485/422 signals to TCP. It is suitable for applications requiring remote communication over distances exceeding 1200 meters, connecting up to 32 devices.
- Input voltage: DC 9V-70V
- Input current: 1A (external power supply)
- Power supply modes: wide voltage or POE

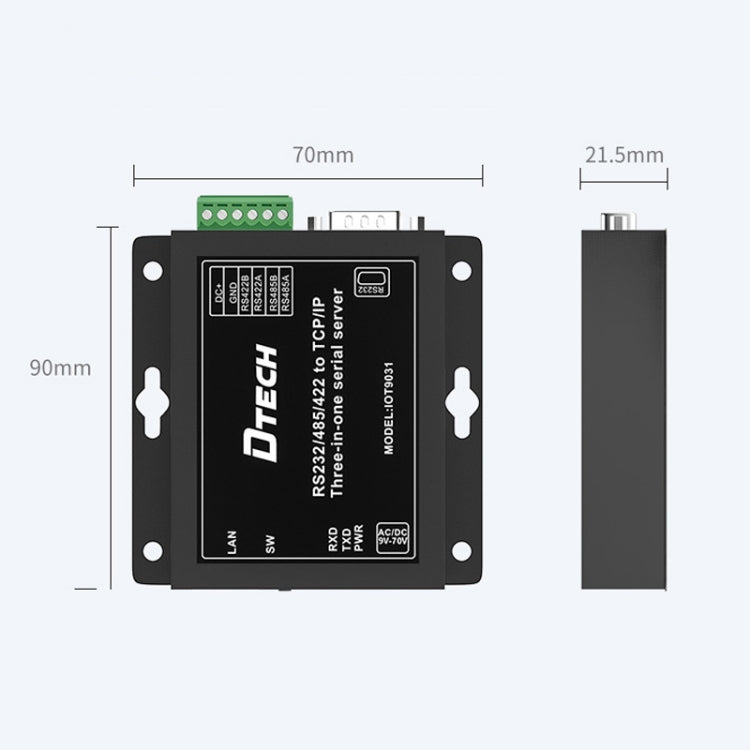

- Size: 9 x 7 x 2.15 cm

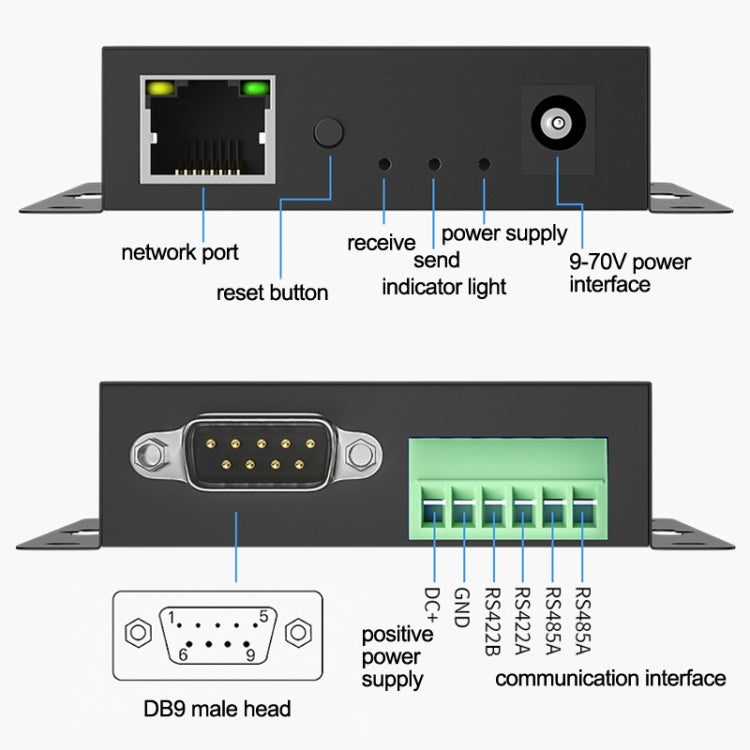

- Ethernet port: 1 RJ45 standard network port
- Ethernet speed: supports 10/100M, full-duplex/half-duplex adaptive
- Network protocols: IP, TCP, DHCP, RTU, HTTPD Client
- Buffer: send 6K bytes, receive 4K bytes
- Serial ports: 2 (RS-232, RS-485, RS-422)
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 2
- Check digit: None, Even, Odd, Space, Mark

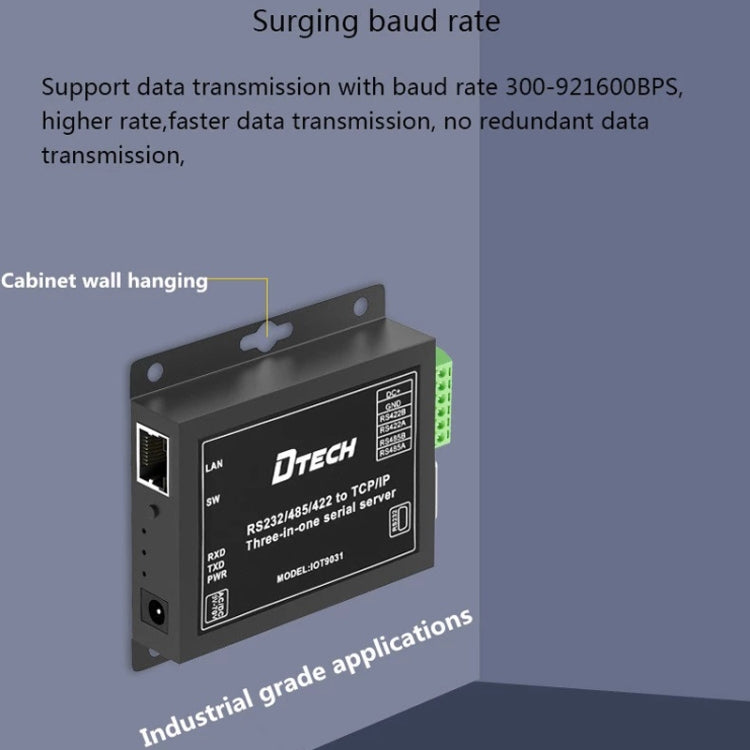

- Baud rate: 300-921.6 kbps
- Cache: Receive 800 bytes
- Software: Virtual serial port via NetModuleConfig (Windows 2000 or higher, 32/64 bit)
- Configuration method: PC setting software
- Transmission distance: over 1200 meters
- Maximum devices connected: 32 RS232/485/422 interfaces

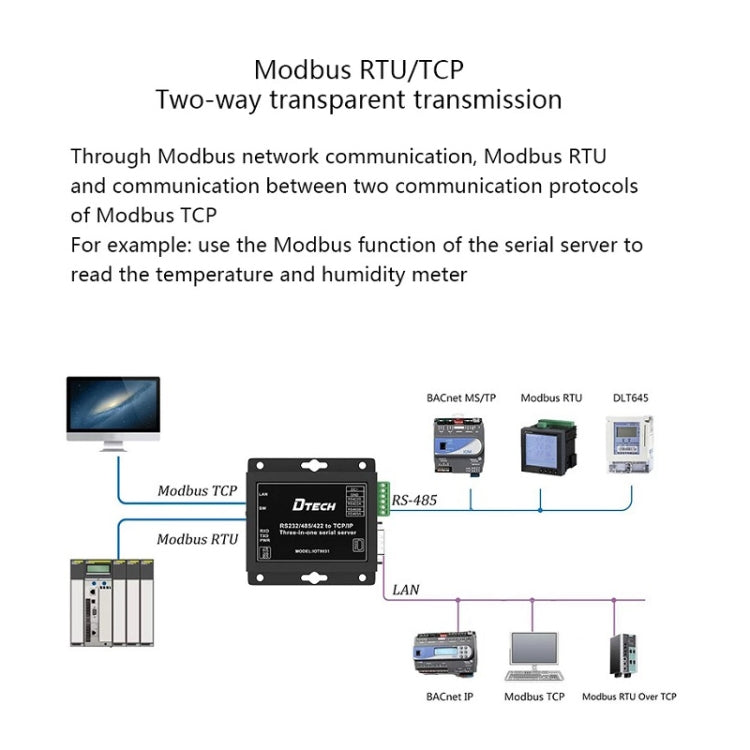

- Modbus RTU/TCP bidirectional transparent transmission

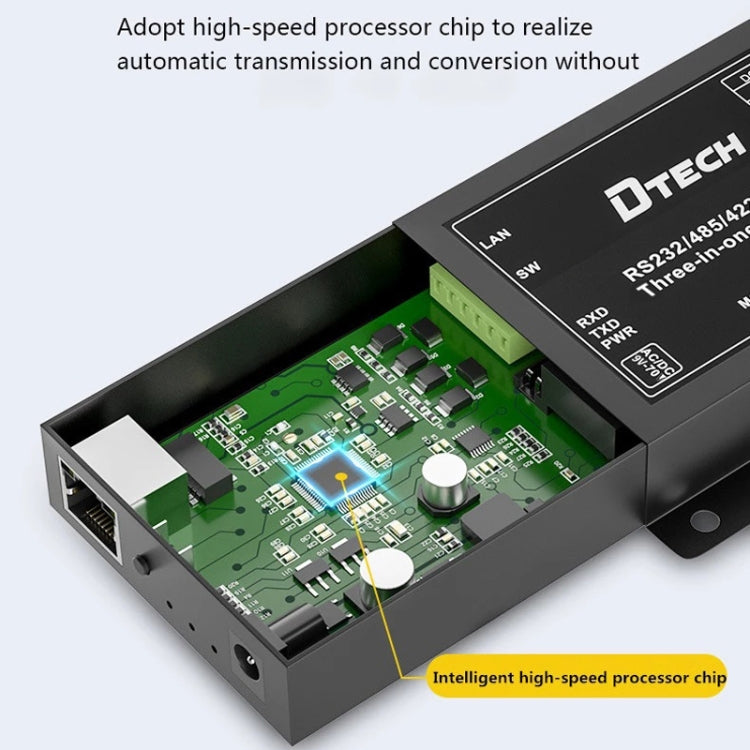

- Built-in Ethernet media transport layer (MAC) and physical layer (PHY)
- DHCP for automatic IP address acquisition
- POE power supply function with specific switch compatibility
- 4 working modes: TCP Server, TCP Client, UDP, HTTPD Client
- Host computer virtual serial port configuration tool
- Applications: automatic control systems, access control systems, attendance systems, credit card systems, POS systems, power systems, monitoring systems, data acquisition systems, bank self-service systems
