Product details
Description

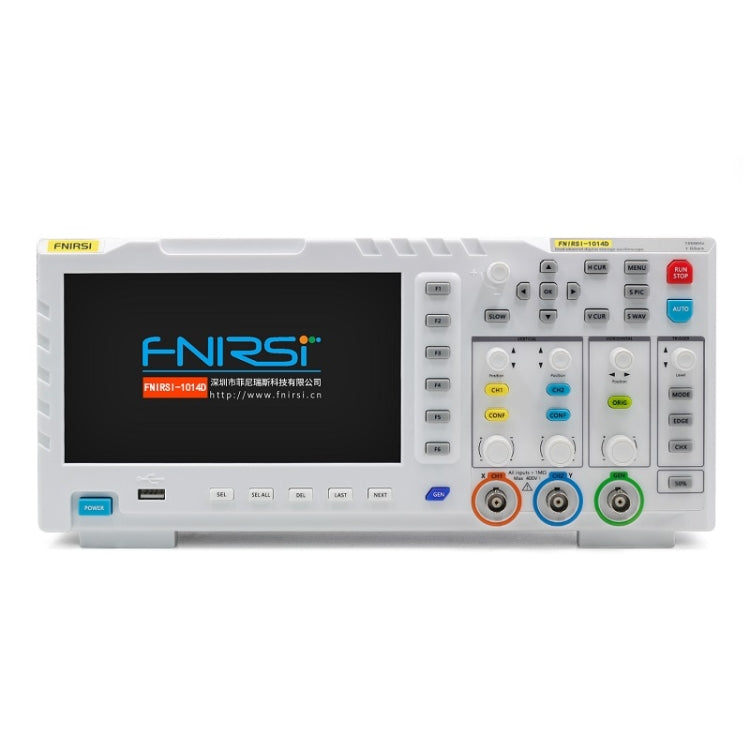

The FNIRSI 2 In 1 Dual-Channel Digital Oscilloscope is designed for measuring and analyzing electrical signals. It is suitable for both periodic analog signals and non-periodic digital signals, making it ideal for various testing applications.
- Type: Digital Oscilloscope

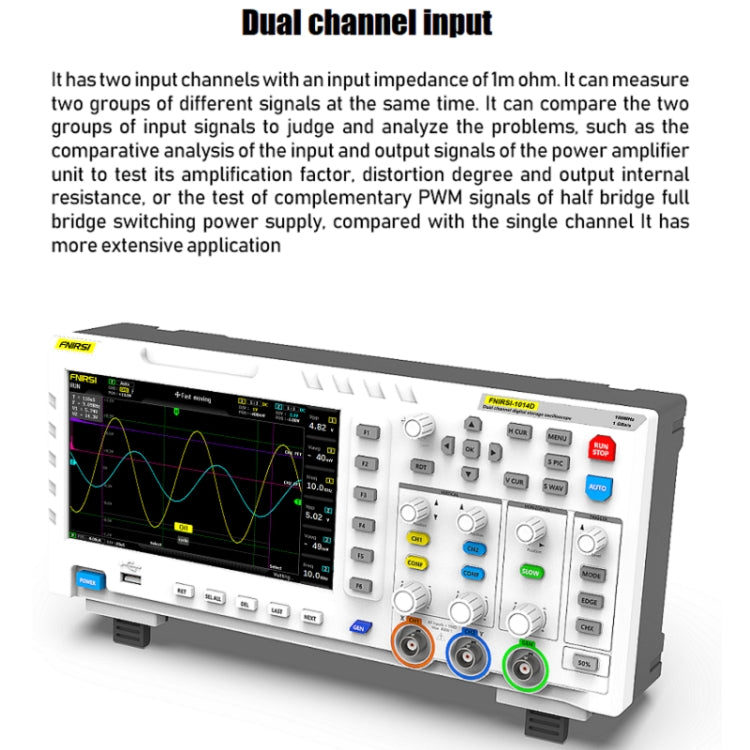

- Channels: 2
- Analog Bandwidth: 100 MHz
- Real-time Sampling Rate: 1 GSa/s
- Vertical Sensitivity: 50 mV/div to 500 V/div
- Horizontal Time Base Range: 50 S/div to 10 nS/div

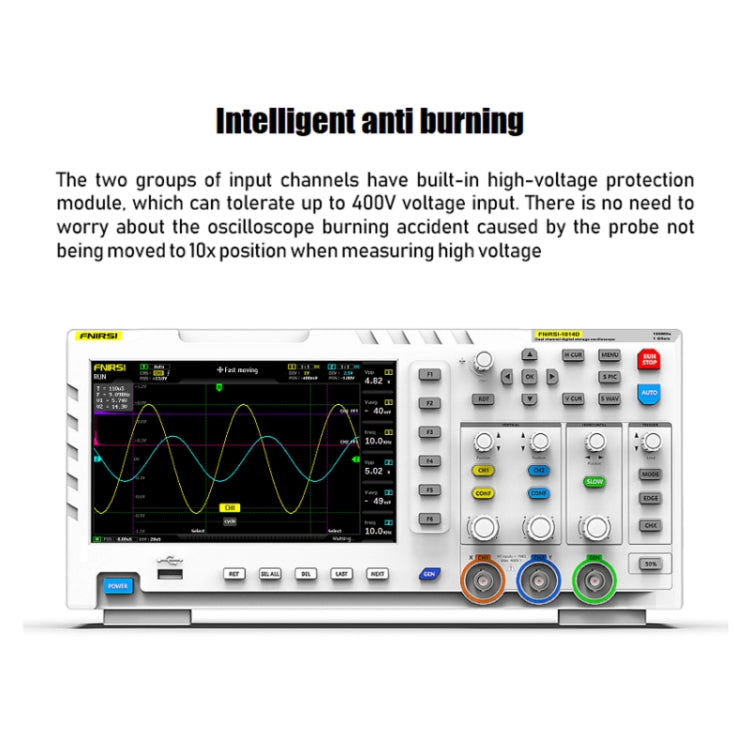

- Test Voltage: 40 V (1X probe), 400 V (10X probe)
- Storage Depth: 240 Kbit
- Input Resistance: 1 MΩ
- ADC Precision: 8 bits
- Coupling Method: AC/DC

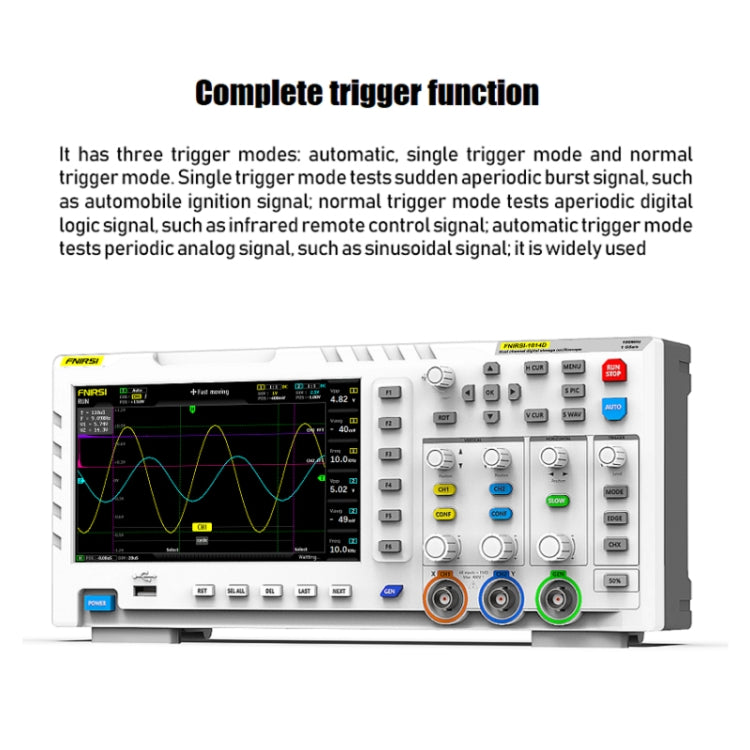

- Trigger Modes: Single, Normal, Automatic
- Trigger Edge: Rising Edge/Falling Edge
- External Trigger Voltage: 0 to 40 V

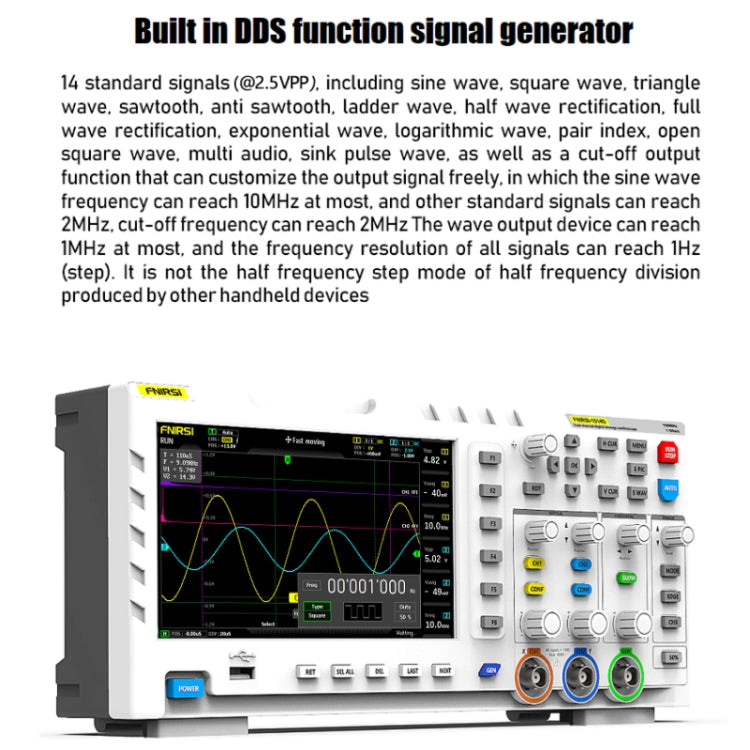

- Built-in Signal Generator: Supports 12 function signals

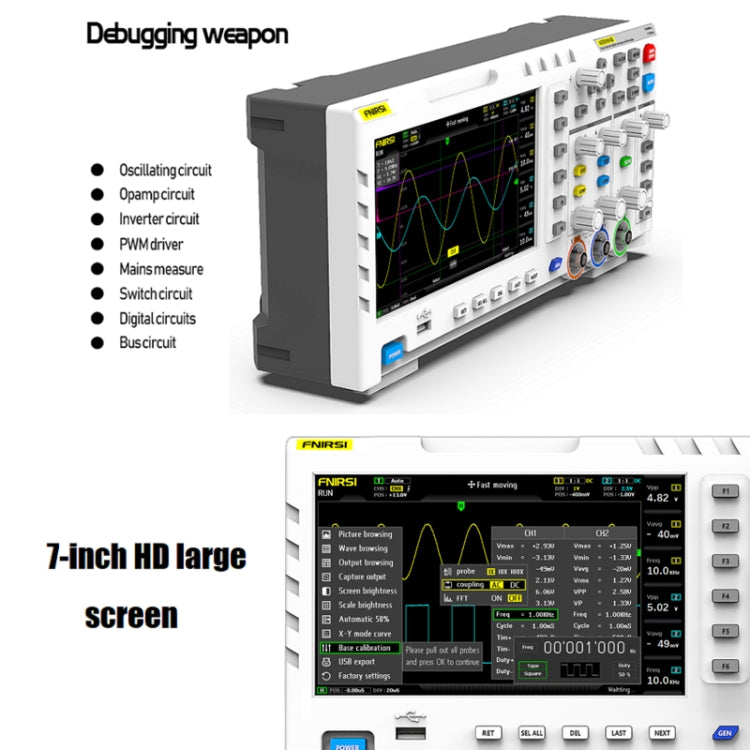

- Display: 7-inch, 800 x 480 resolution LCD

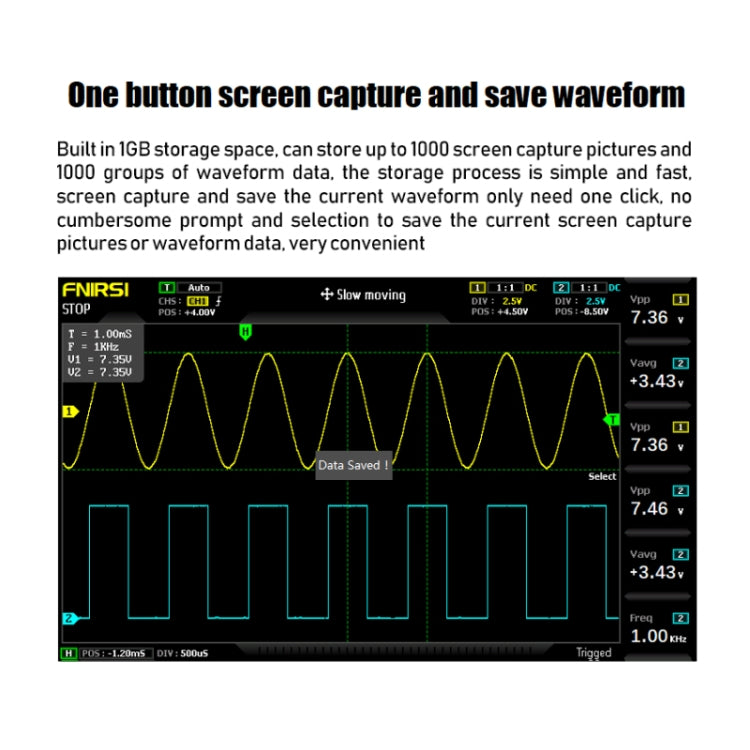

- Storage Capacity: 1 GB (1000 screenshots + 1000 waveform data sets)

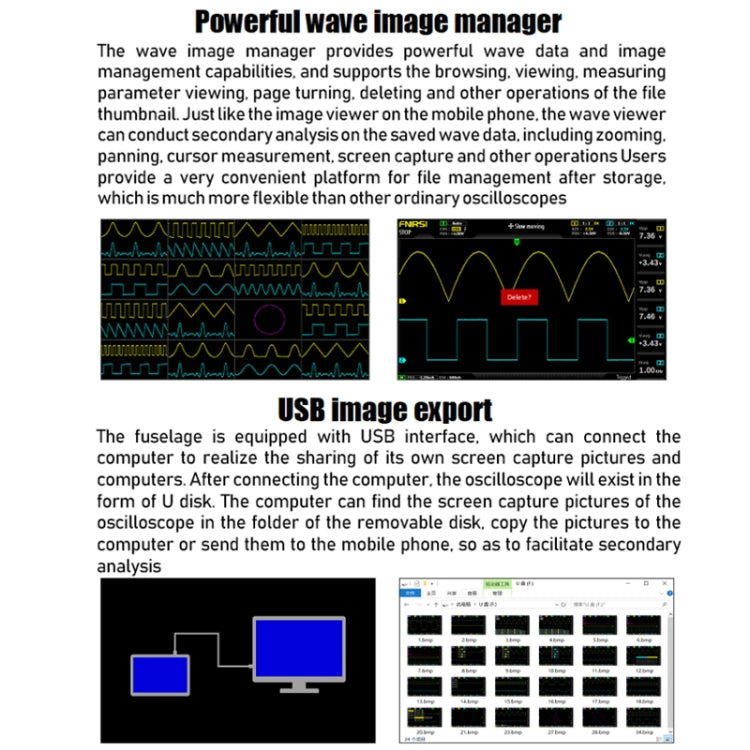

- USB Interface: For image export and connection to a computer
- Material: ABS
- Power Supply: EU Plug

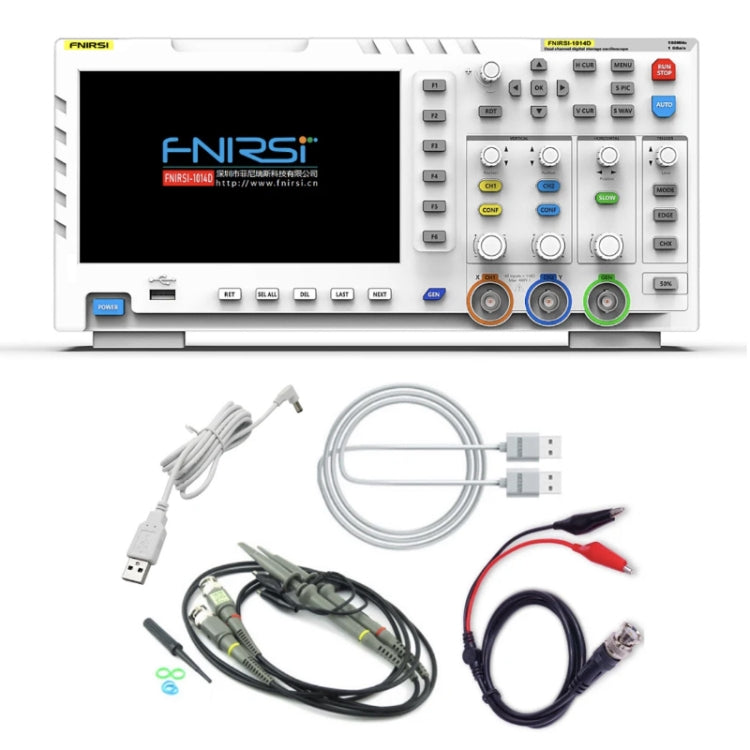

- Packing List: Oscilloscope host, 2 matched 100 MHz probes (1X and 10X), clip, EU power adapter, USB cable, English user manual, optional P4100 probe
