For DJI Air 3 Smart Flight Battery LKTOP 200W 3-Channel Charging Manager

1. 200W Air 3 3-channel charging manager, supports 2 100W inputs. In standard mode, the first battery is fully charged in 60 minutes, and the three batteries are fully charged in 80 minutes; in fast charging mode, the first battery is fully charged in 40 minutes, and the three batteries are fully charged in 60 minutes. (The above charging time is based on the Charging Manager with two LKTOP 100W desktop chargers, and the initial battery capacity is 0-10%. The charging test data is measured in a laboratory environment (room temperature 25 degrees Celsius) and is for reference only. .)

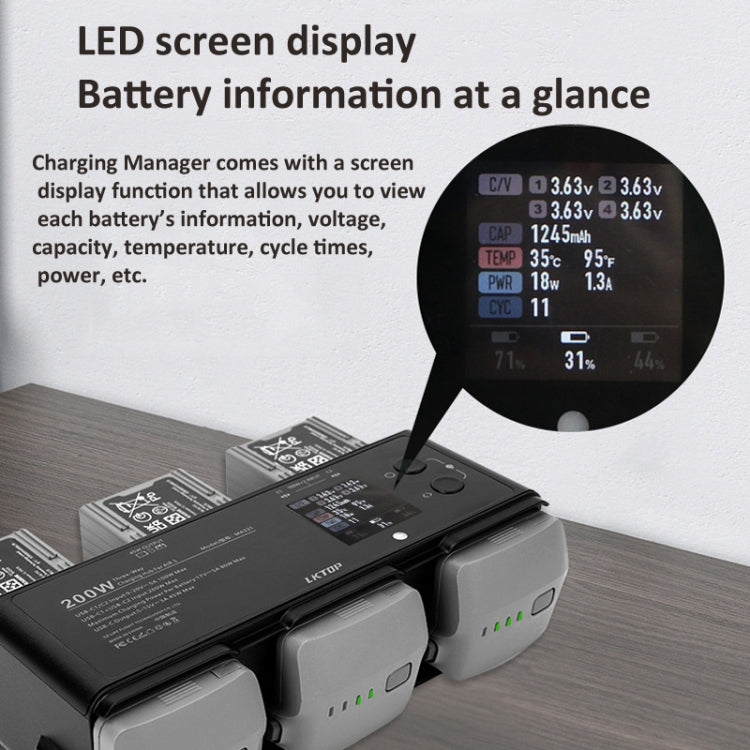

2. With built-in screen display function, you can view each battery’s information, voltage, capacity, temperature, number of cycles, power, etc.

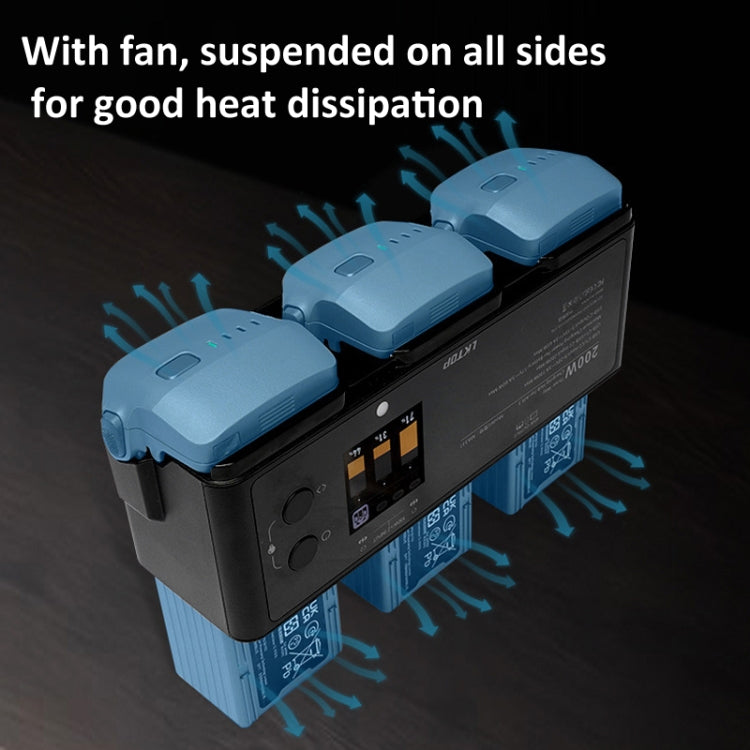

3. Exquisite and compact design, the contact area between the battery and the charging compartment is small, and the battery is suspended on all sides for good heat dissipation, which delays the battery lifespan.

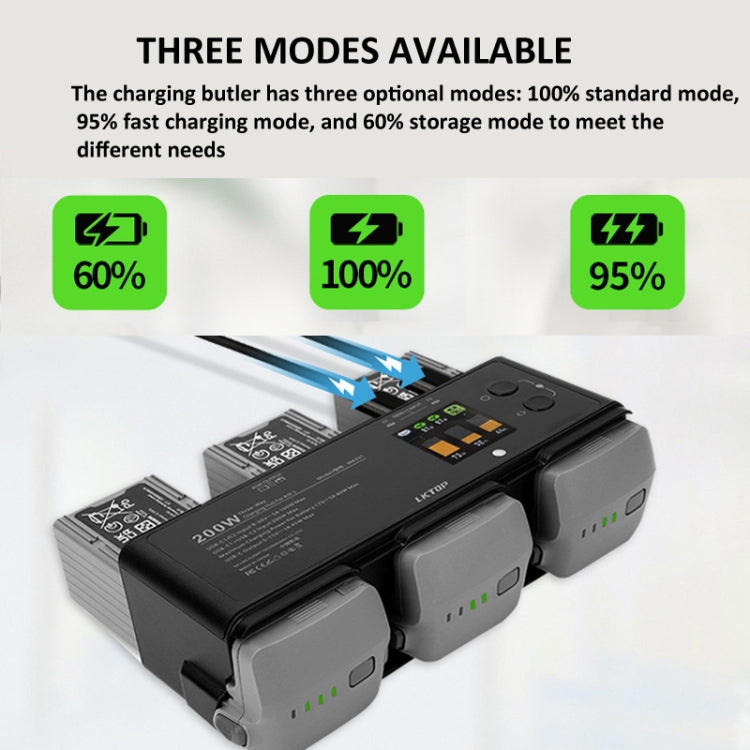

4. Three charging modes are available: the charging butler has three modes: 100% standard mode, 95% fast charging mode, and 60% storage mode to meet different needs.

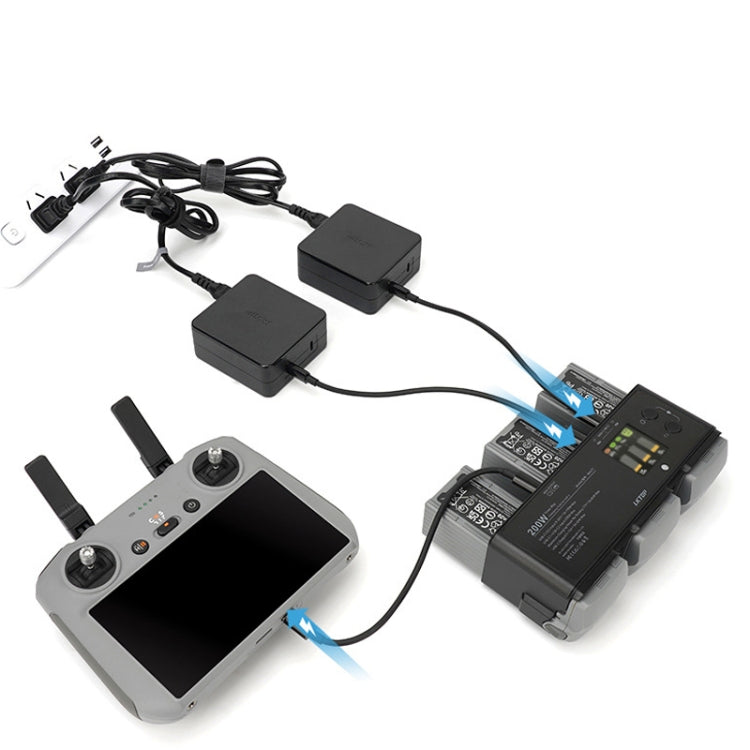

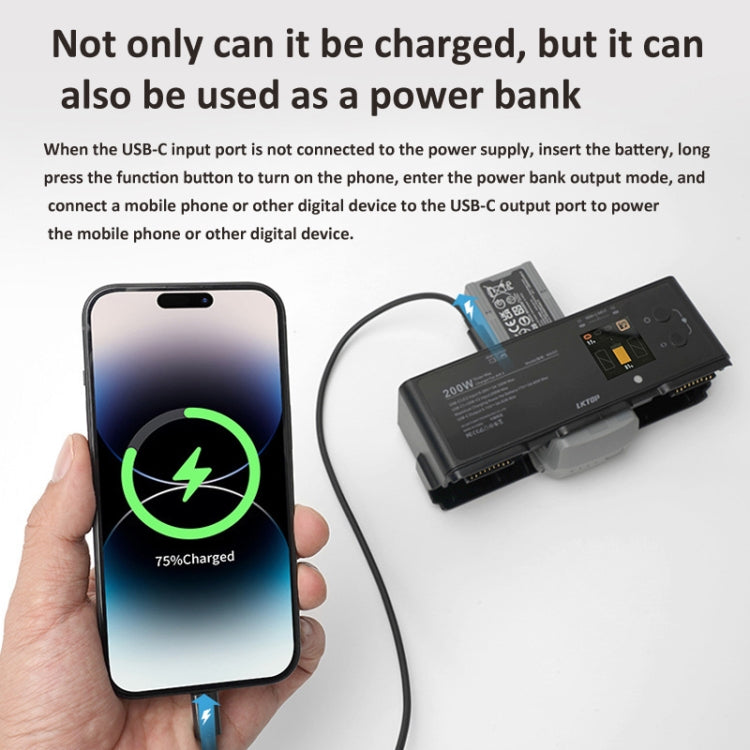

5. Power bank output mode: When the USB-C input port is not connected to the power supply, insert the battery, long press the function button to turn on the phone, enter the power bank output mode, and connect a mobile phone or other digital device to the USB-C output port.

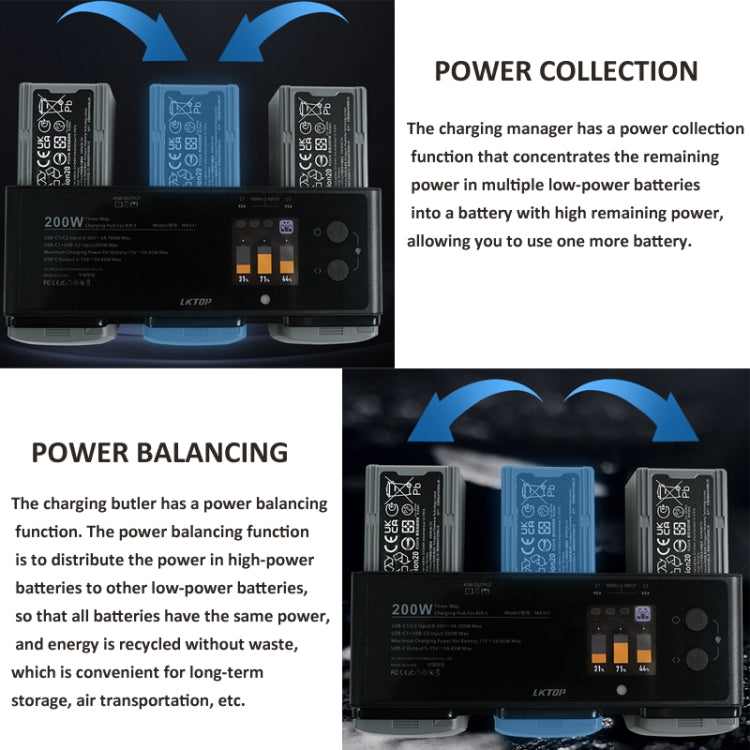

6. Power collection function: The charging butler has a power collection function that concentrates the remaining power in multiple low-power batteries into a battery with high remaining power, allowing you to use one more battery.
7. Power balancing function: The charging butler has a power balancing function. The power balancing function is to distribute the power in high-power batteries to other low-power batteries, so that all batteries have the same power, and energy is recycled without waste, which is convenient for long-term storage and aviation. Transportation etc.
8. Built-in multiple safety protections, including over-current, over-voltage, over-temperature and other protections

Parameter:
1. Applicable battery model: suitable foe DJI Air 3 intelligent flight battery (BWX233-4241-14.76)
2. Working temperature: 5-40 degrees Celsius
3. USB-C1/C2 input: 9-20V--5V 100W Max
4. USB-C1+USB-C2 input: 200W Max
5. USB-C output: 5-15V-3A 45W Max
6. USB-C1/C2 protocol: C port input supports PD fast charging protocol, with power greater than 18W
7. Maximum charging power of each battery: 17V-5A 80W Max
8. Recommended power adapter: 100W/65W charger
9. Product size: approximately 164×61×52mm (product host)
10. Product weight: about 158g (excluding wire weight)
