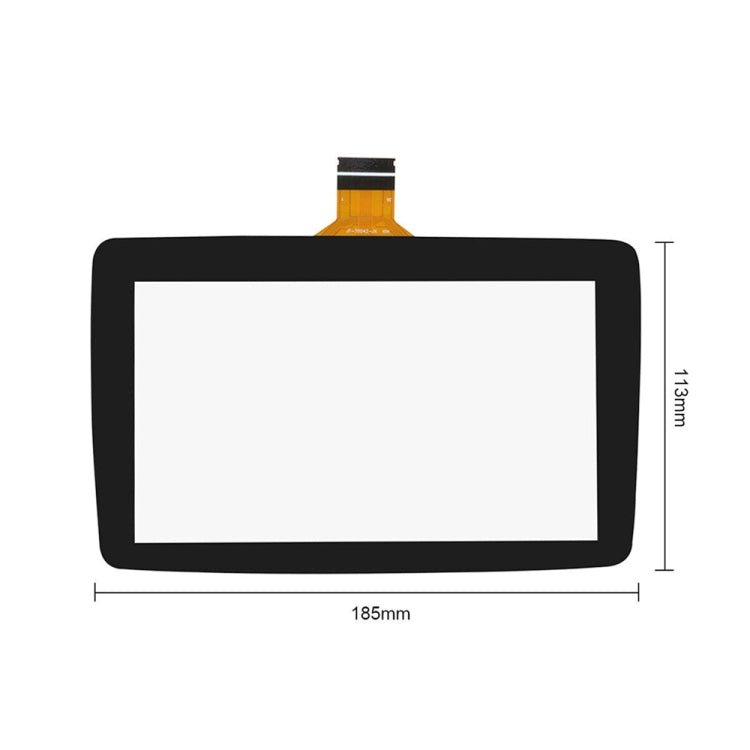

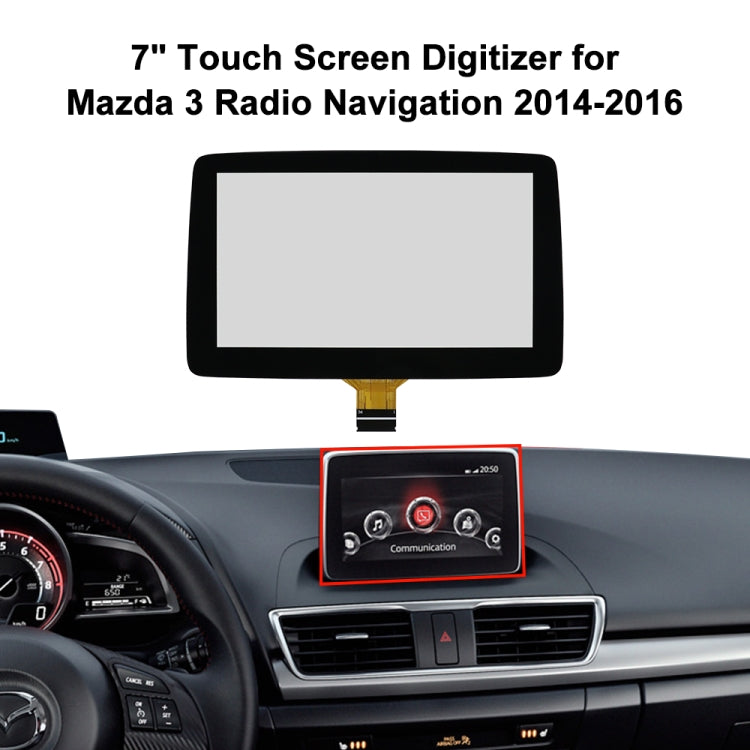

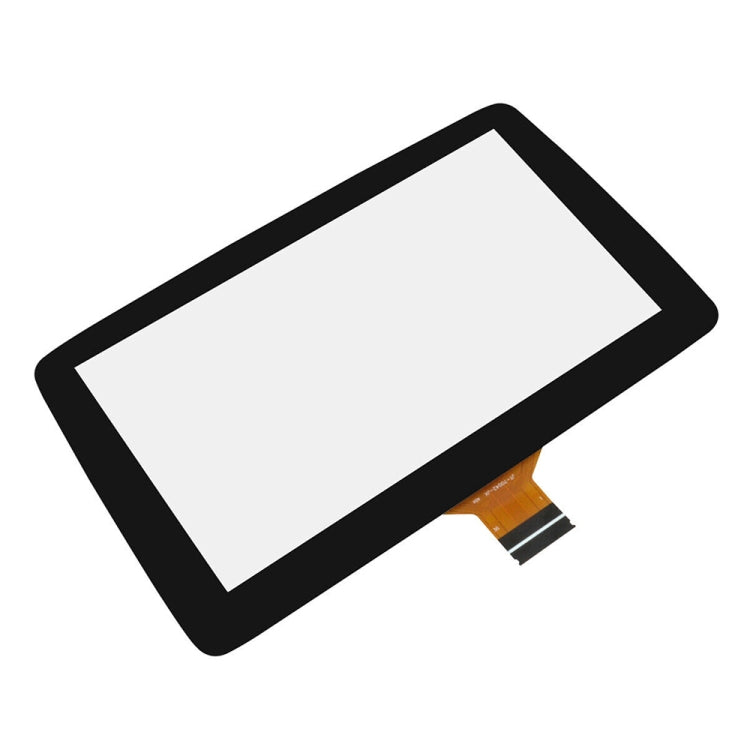

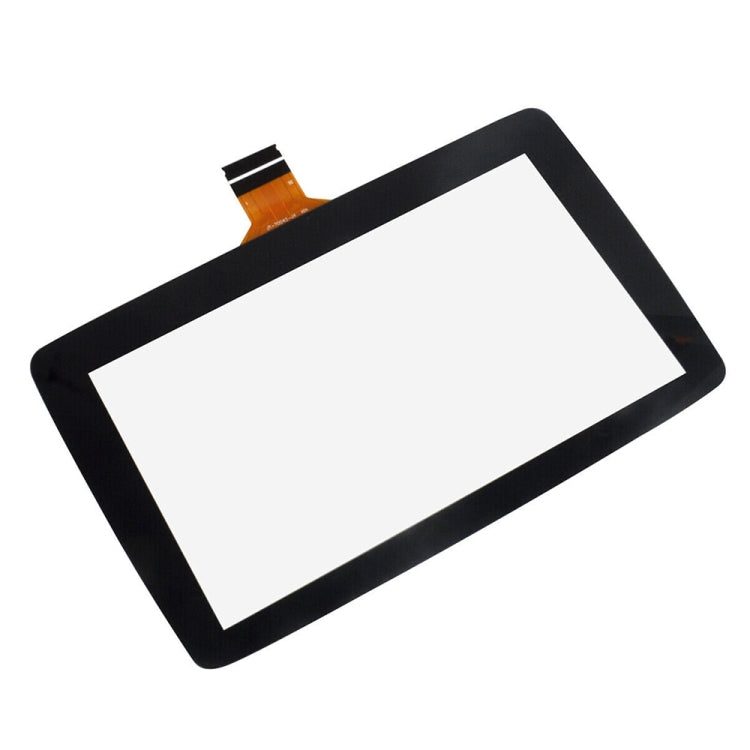

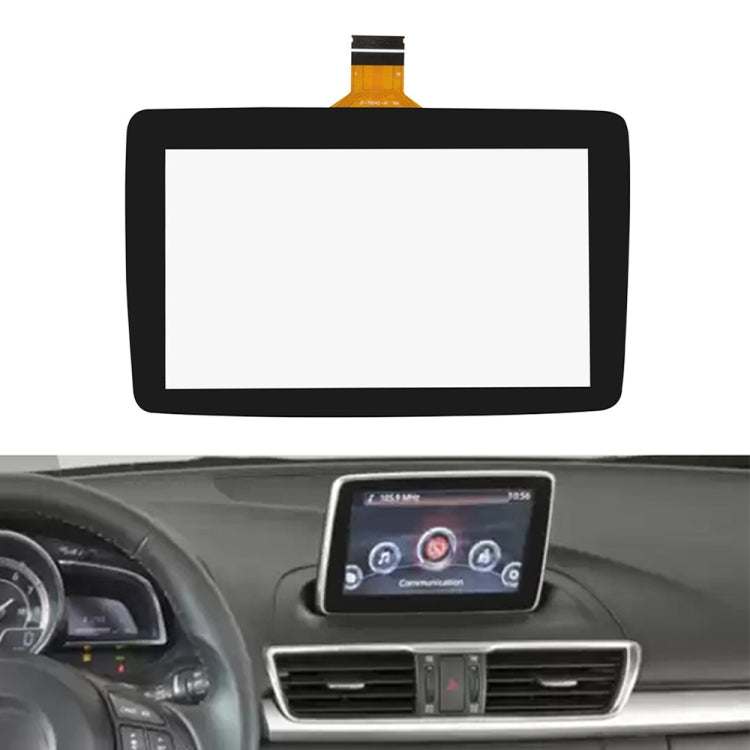

For Mazda Axela 2014-2016 7 inch Car Capacitive Touch Screen BHP1611J0D

1. High resolution, high speed transmission response. Surface hardness treatment to reduce scratches, scratches and anti-chemical treatment. With smooth and matte treatment. One calibration, high stability, never drift.
2. Screen structure: ITO Film and ITO Glass are bonded together, separated by DOT points in the middle
3. Connector: 2.54mm pitch socket, standard AMP87499-9
4. Touch media: fingers, gloved hands, pens, credit cards, etc.
5. Screen thickness: 1mm-5mm
6. OE: BHP1611J0D
7. Resolution: 4096x4096
8. Response time: less than 8 milliseconds (finger input)
9. Touch strength: 15-40gr use silicone grease with a hardness of 600 and a diameter of 16mm
10. Conversion speed: less than 20ms
11. Position accuracy: standard deviation is less than 2mm
12. Supply voltage: DC 5V
14. Screen resistance: 200-50 Ohm (X1-X2); 200-500 Ohm (Y1-Y2)
15. Insulation resistance: greater than 20M Ohm at DC25V
16. Electrostatic protection: can withstand 20 discharges of 15 kV voltage randomly distributed on the screen surface (per IEC 801-2; 150pF and 150 Ohm)
17. Light transmittance: 75-85% (at a wavelength of 550 nanometers)
18. Working temperature: -20-60 degrees Celsius
19. Storage temperature: -25-70 degrees Celsius
20. Anti-destructive: 3-12mm optical glass is fully tempered by special process as the base material. Use 1 pound to make it fall freely to the center of the glass at a height of 130cm without breaking the glass.
21. Sealing feature: High sealing material tightly seals the filter device, frame and anti-riot glass to prevent liquid leakage
22. Working temperature: -20 degrees to 70 degrees
23. Storage temperature: -40 degrees to 85 degrees
24. Working humidity: 90%RH at 40 degree Celsius (no condensation)
25. Storage humidity: 90%RH at 40 degree Celsius (no condensation)

Note: LCD display is not included, it is just a touch screen.
