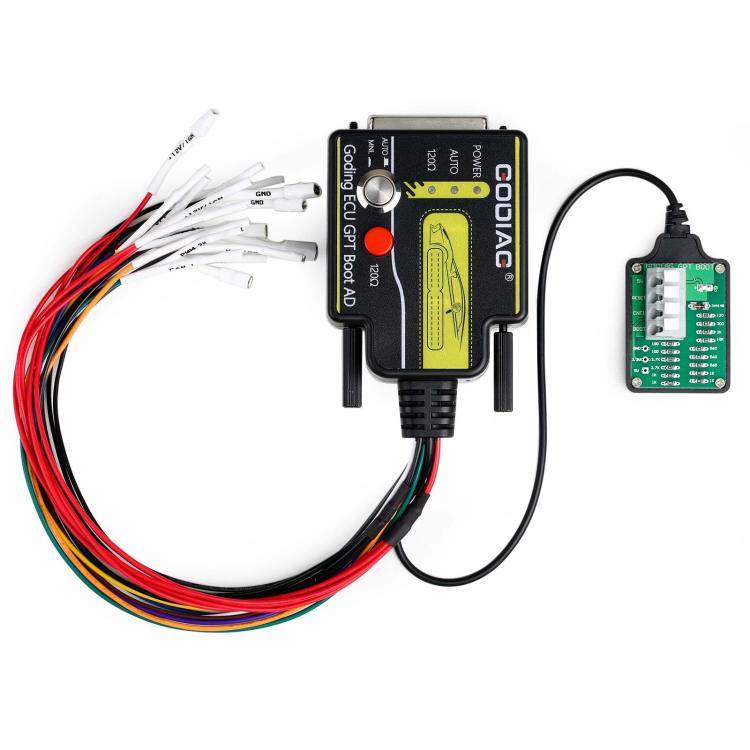

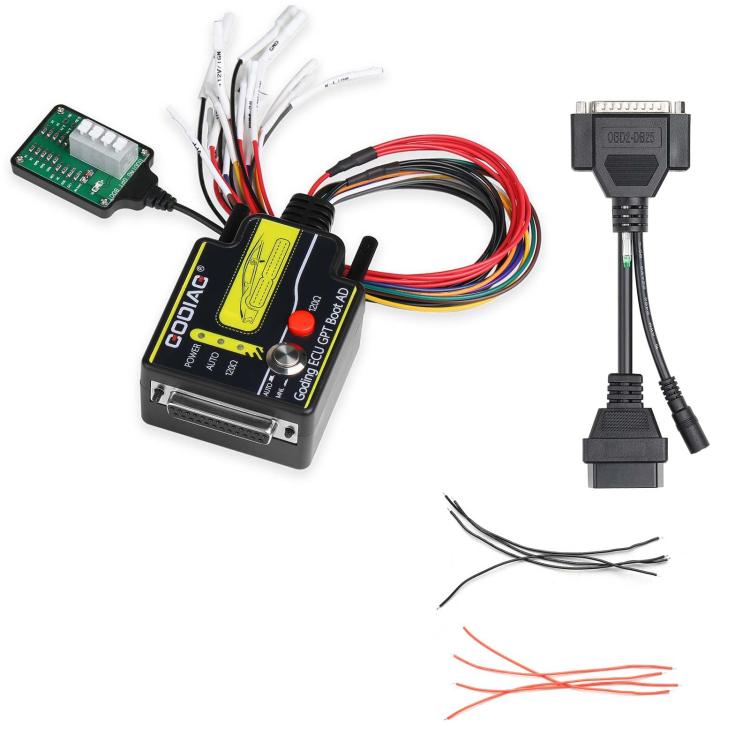

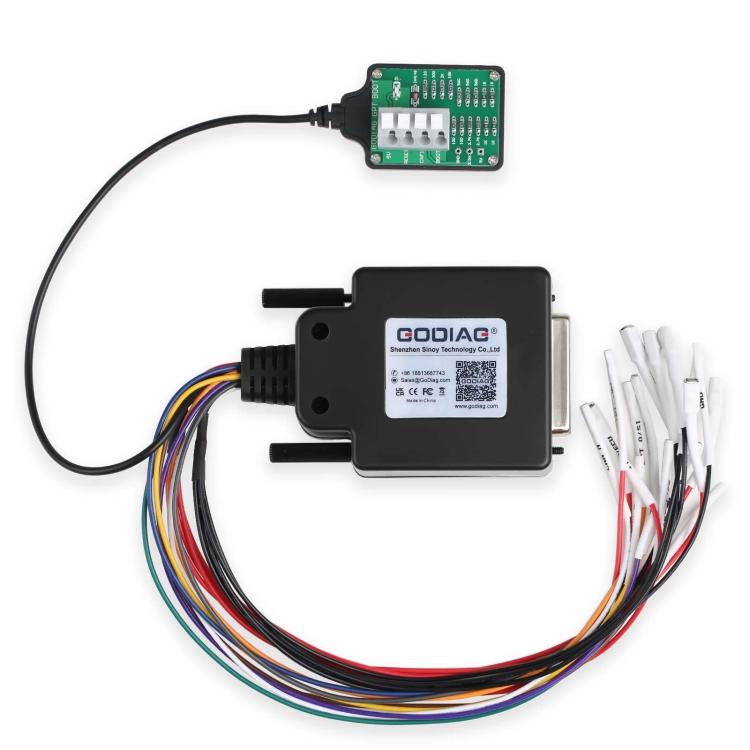

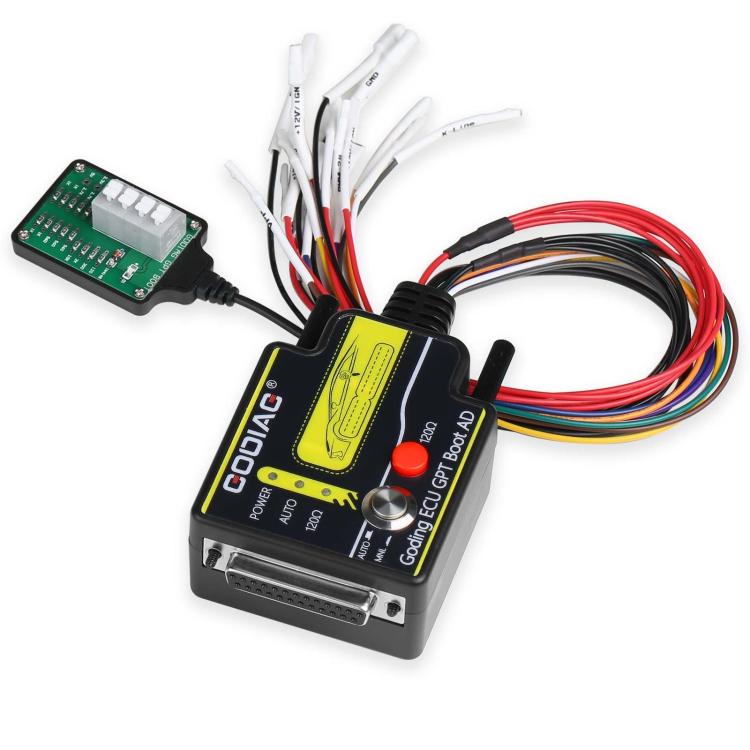

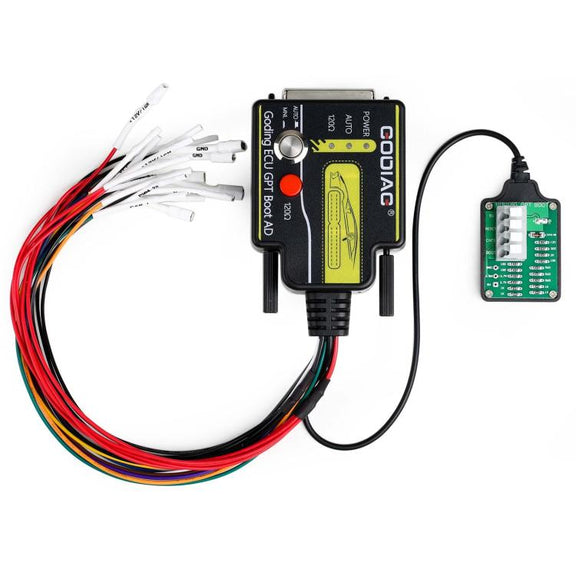

GODIAG ECU GPT Boot AD Connector Programming Adapter

GODIAG ECU GPT Boot AD programming adapter can help customers use OBD2 Bench or GPT Bench method or disassemble ECU and use Boot method to read and write ECU data.
This product is equipped with anti-short circuit BOOT resistor board connection line to protect ECU. Customers can use it with J2534 equipment and PCMFLash software.

Product features:
1. ECU dedicated connection terminal.
2. Support manual ignition power control
3. ECU interface line with label
4. Support ECU to OBD2 mode to read and write data
5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.
6. Support PCMFlash automatic control of ignition power
7. Support ECU to open BOOT mode to read and write data
8. CANbus equipped with a switch to freely select 120Ω resistor
9. Support GPT to read and write data without disassembling the ECU.
10. Equipped with BOOT resistor board connection line (anti-lost resistor design)

Product features:
1. The diagnostic function supports standard OBD2 protocol devices.
2. Support ECU to read and write data, support J2534 devices.
3. Only Scanmatik 2 PRO for PCMflash allows the formation of GPT1 and GPT2 signals required for use with module 71.
3. Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR, Teradyne GNA600 (VCM 1), Mazda VCM 2 support OBD2 or BOOT 53 mode to read and write ECU data.
