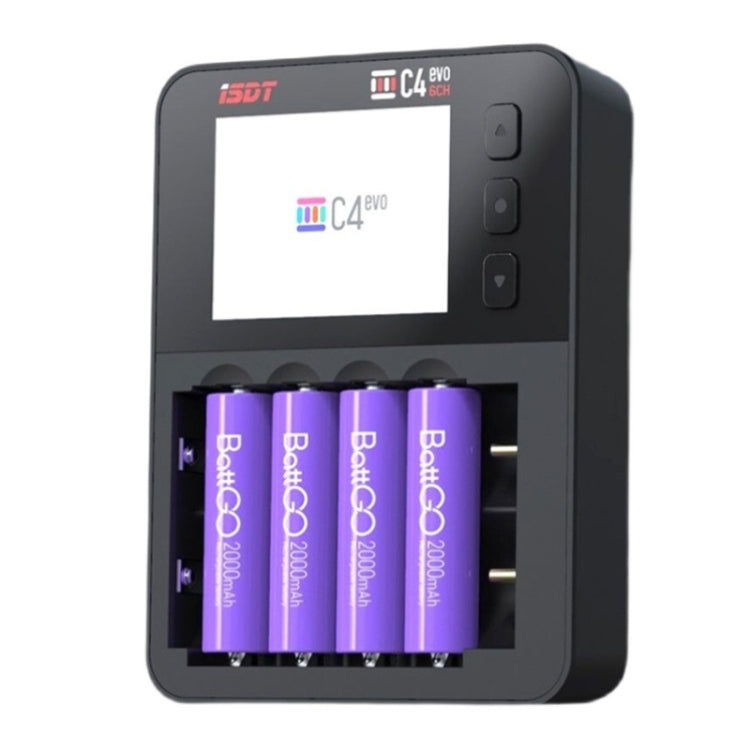

ISDT C4 EVO NiMH/NiCd Cylindrical Lithium Battery Smart Charger(Black)

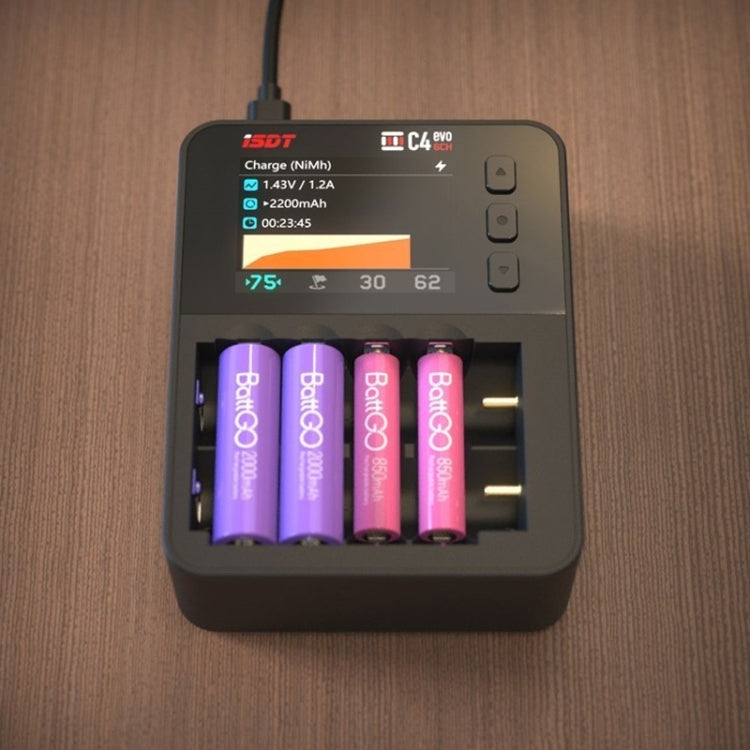

The ISDT C4 EVO is a smart charger designed for cylindrical lithium batteries and NiMH/NiCd cells. It can charge up to four batteries simultaneously, making it suitable for users with multiple battery types and sizes.

• Number of batteries supported: 1-4 cells
• Cylindrical battery specifications supported: AAA, AA, 10440, 10500, 12500, 13500, 14500, 14650, 16650, 17650, 17670, 18650, 18700, 20650, 20700, 21700, 22650, 26650, 26700
• Supported battery types: Li-lon, LiFe, LiHv, NiMH, NiZn, Eneloop
• Working voltage range: 5-12V (supports QC, PD protocols)
• Charging current range: 0.1-3.0A (horizontal), 0.1-1.5A (vertical)
• Discharge current range: 0.1-1.5A (horizontal), 0.1-1.0A (vertical)
• Operation modes: charge, discharge, store, destroy, cycle, activate, analyze
• Display: 320×240 IPS LCD
• Buzzer: multi-tone
• Temperature sensor: 6 internal
• Voltage measurement accuracy: 10mV
• Current measurement accuracy: 10mA
• Standby drain: less than 0.05mA/battery
• External port: USB power input (Type-C)

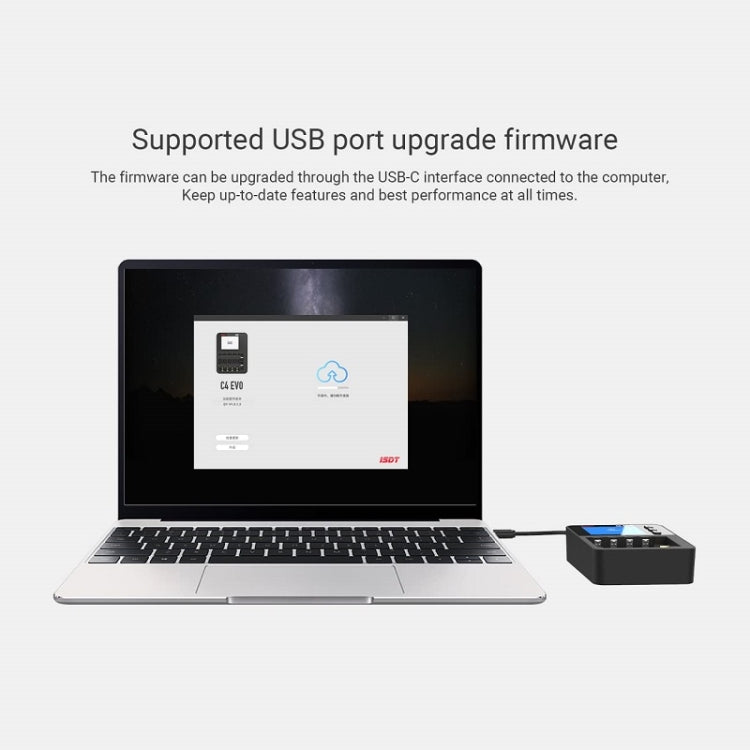

• Firmware upgrade: supports vertical physical reverse connection protection and horizontal hardware reverse connection protection

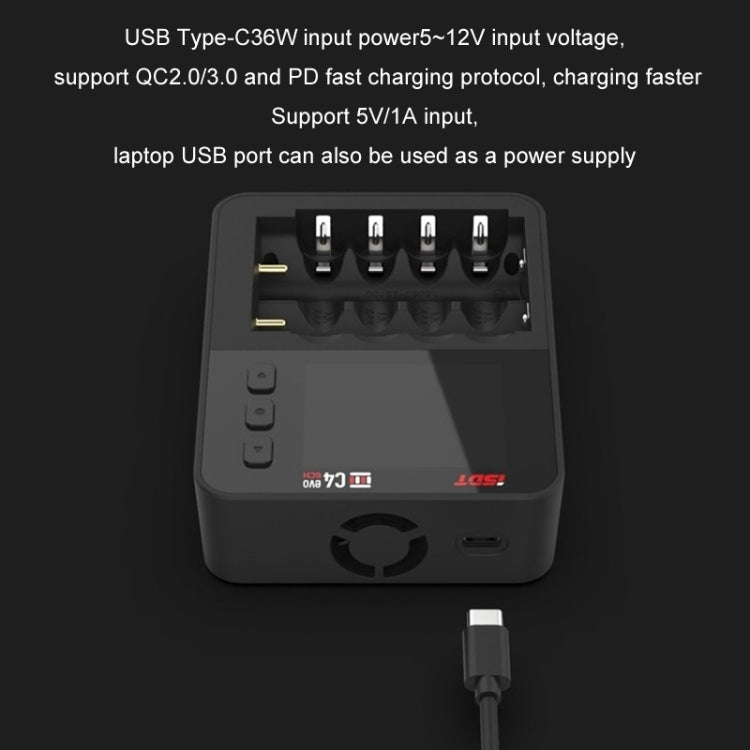

• USB Type-C input power: 36W, 5~12V input voltage, supports QC2.0/3.0 and PD fast charging protocols
• Supports 5V/1A input, compatible with laptop USB ports

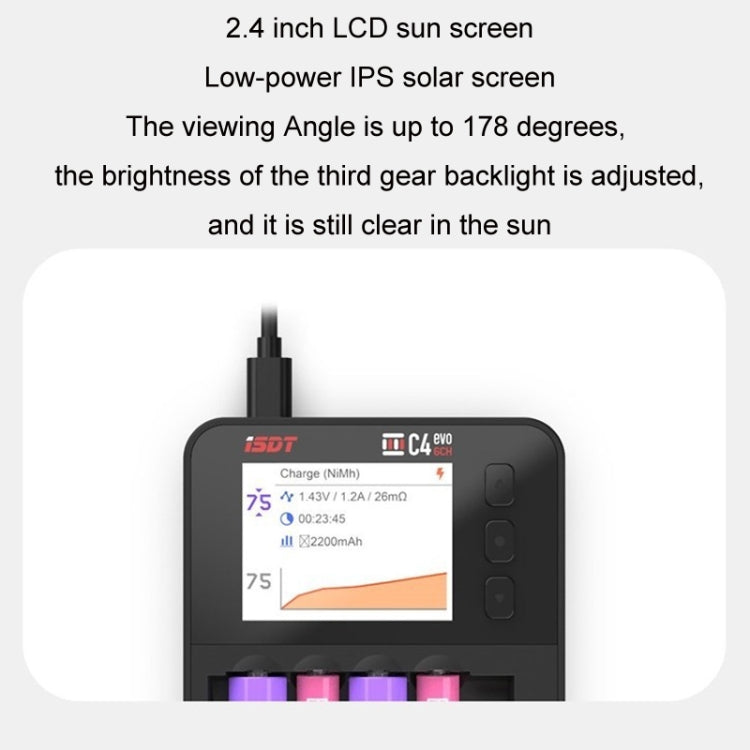

• Display: 2.4-inch LCD low-power IPS sunlight screen, viewing angle up to 178 degrees, three-level backlight brightness adjustment

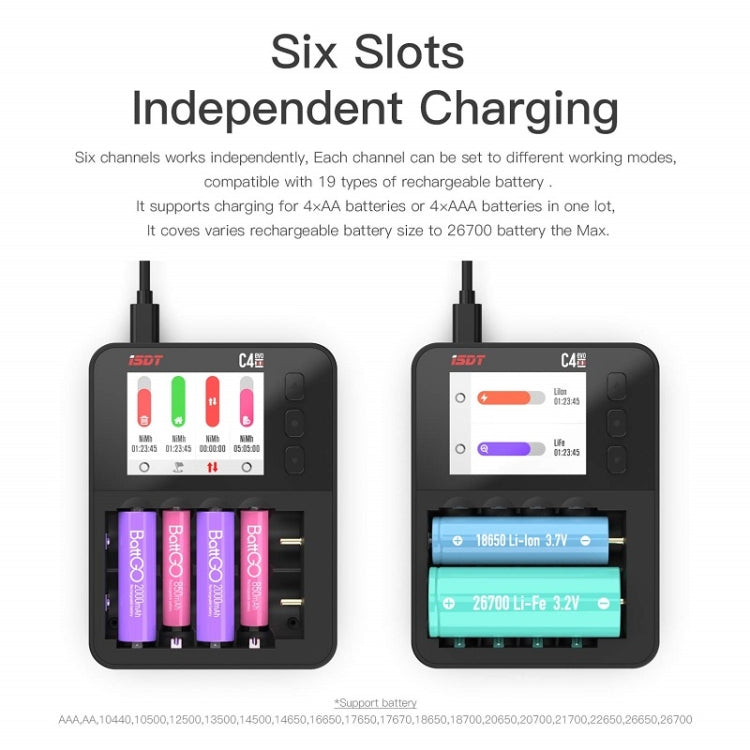

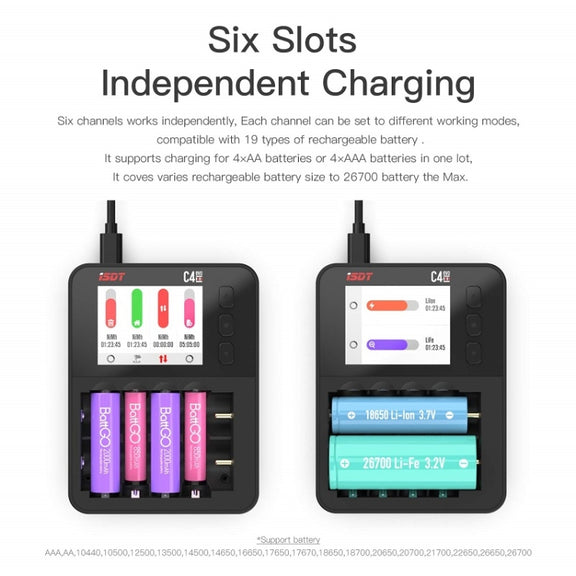

• Independent operation: six channels work independently, each channel can be set to different working modes

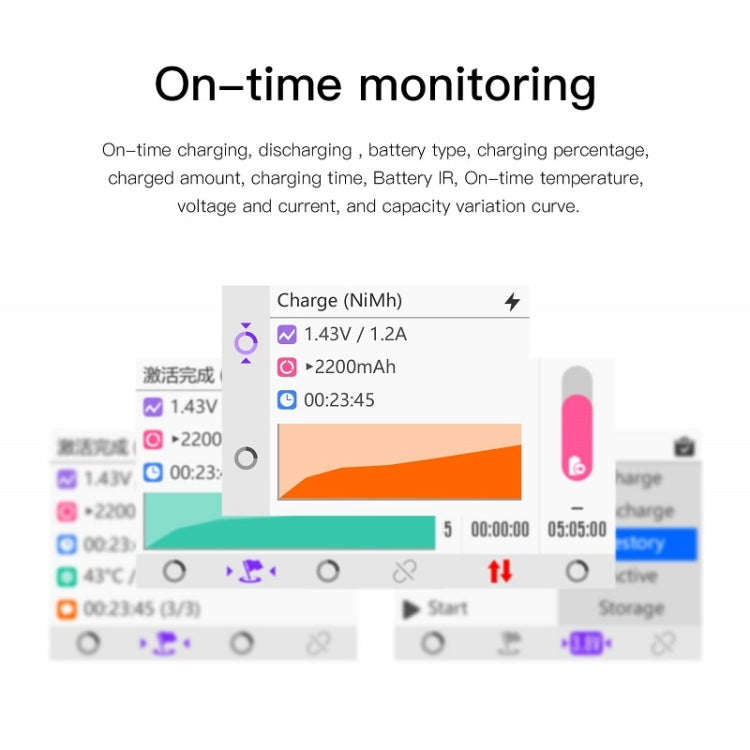

• Real-time monitoring of charging and discharging status, battery type, charging percentage, charged amount, charging time, battery internal resistance, real-time temperature, current voltage and current, and power change curve

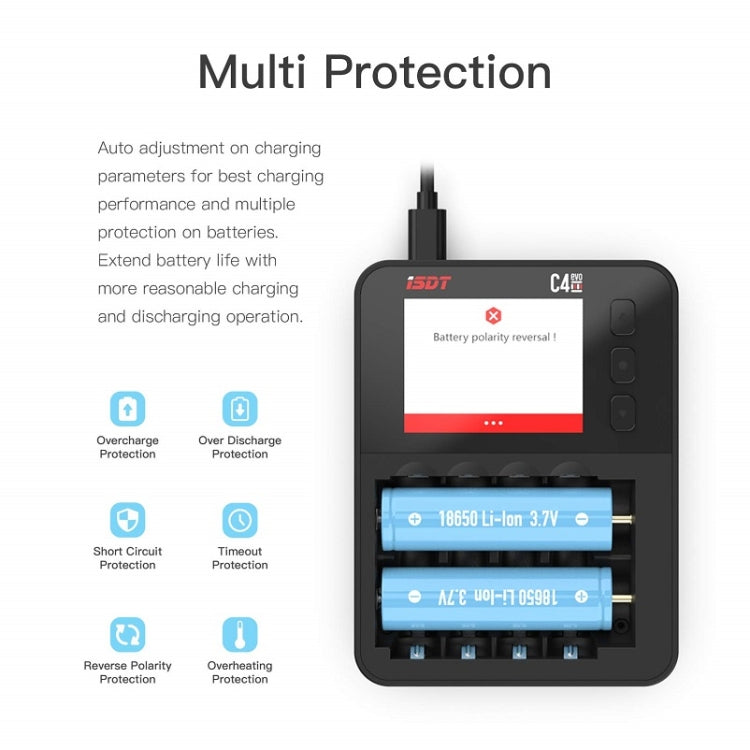

• Charging parameters adjusted in real time based on battery status
• Dimensions: 92x120x34mm
