Product details
Description

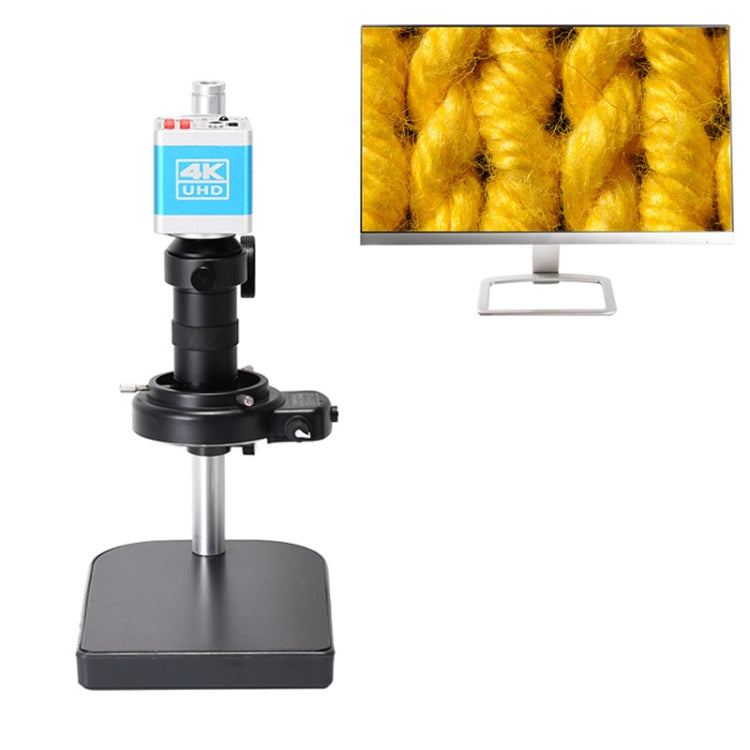

Digital microscope designed for industrial applications with measurement capabilities. It is suitable for use in various fields such as microelectronics, jewelry, and biological anatomy.
- Product Type: Digital Microscope
- Compatibility: Measuring Electron Microscope
- Material: Metal
- Color Variants: Color, Black and White, Reverse Color

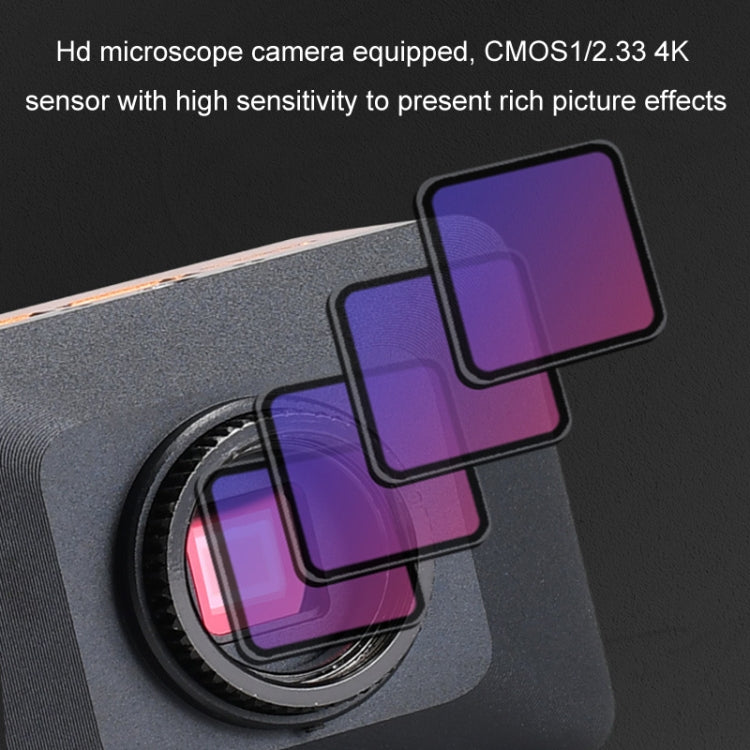

- Image Sensor: SONY COMS 1/1.8IMX334 4K sensor
- Video Output Frame Rate: HDMI output 3840X2160@30fps; 1920X1080P@60FPS; USB output 3840X2160@60fps; 1920X1080P@60fps
- Photo Pixels: HDMI photo 41 million pixels; USB photo 16 million pixels
- Video Output Resolution: 1920X1080P (HDMI interface)
- Digital Zoom: 7x digital electronic zoom
- Storage: 128GB TF memory card
- Language Settings: Chinese, English, Japanese, French, German, Russian, Italian, Arabic, Korean
- Crosshairs: Support for 8 horizontal lines and 8 vertical lines
- White Balance: Automatic and manual support, RGB adjustable
- Exposure: Automatic and manual support
- File Format: Video MP4, Photo JPG
- Camera Interface: Support C (25mm) / CS interface
- Mirror Settings: Standard, horizontal mirror, vertical mirror, horizontal + vertical
- Light Source Frequency: 50Hz, 60Hz

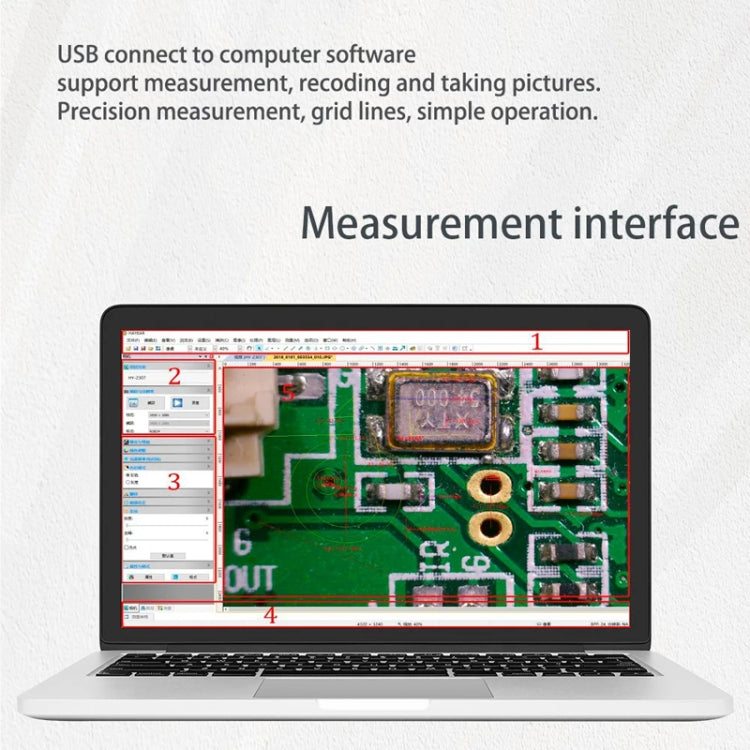

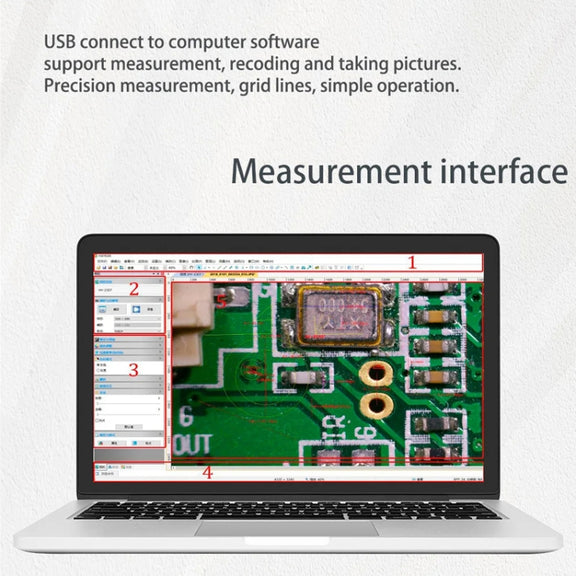

- Measurement Compatibility: Supports Windows XP/7/8/10, PC software with measurement function included
- Field of View: Super large field of view

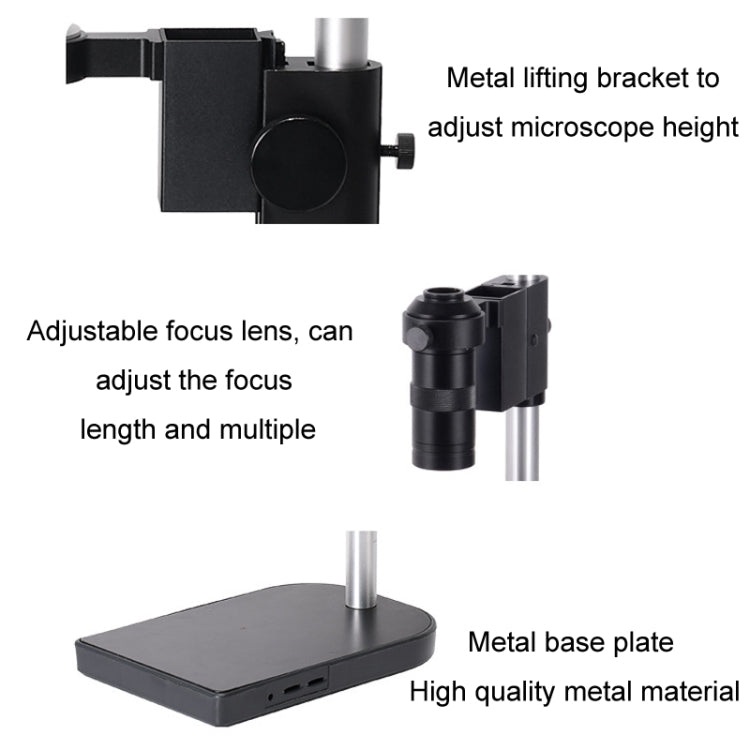

- Bracket: Metal lifting bracket for height adjustment

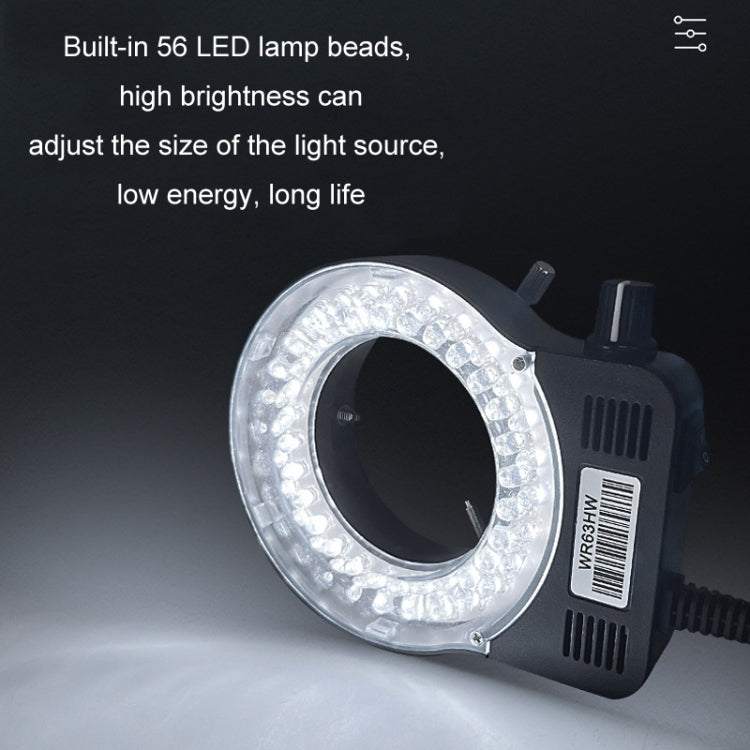

- Lighting: Ring light with 56 LED beads, adjustable brightness

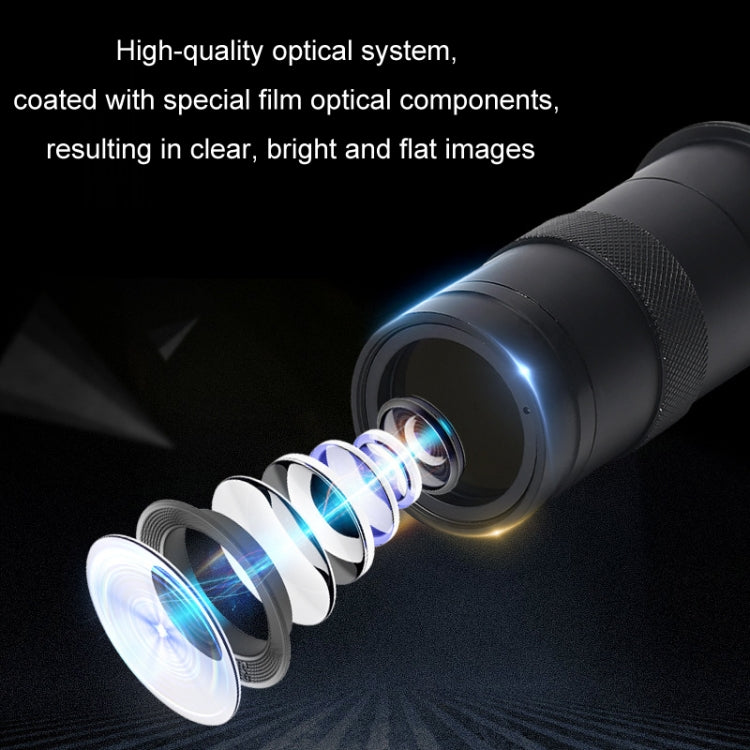

- Optical System: High-frequency zoom lens, optical components coated for clarity
- Applications: Suitable for microelectronics, molds, precision machinery, jewelry, watches, fingerprint identification, ticket identification, printing, mobile phone repair, archaeology, biological anatomy, and school teaching
