Mini 8 Band SSB/CW QRP Transceiver For Ham Radio, Style: Host + Hand Mi + EU

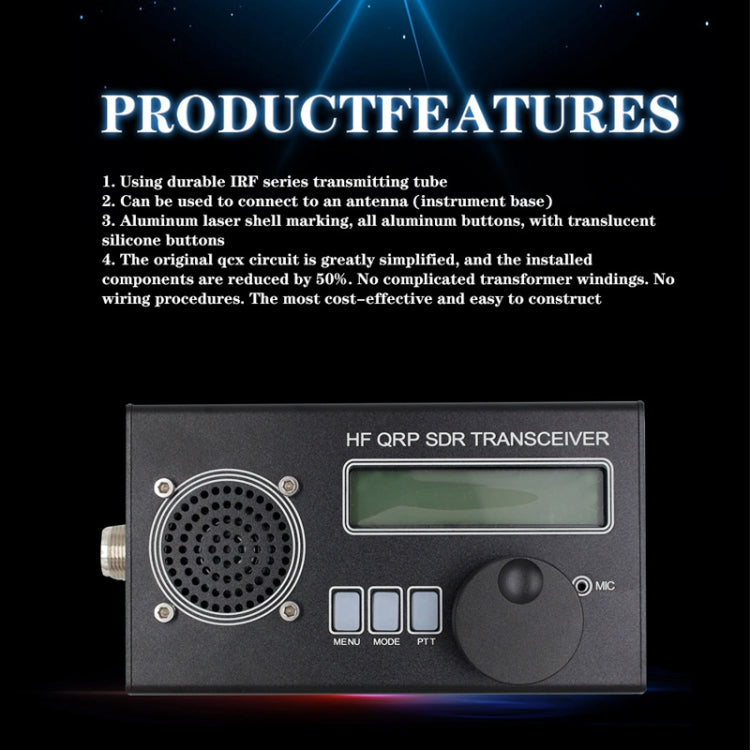

Mini 8 Band SSB/CW QRP Transceiver is a high-frequency transceiver designed for amateur radio communication. It is suitable for various applications, including portable operations and experimentation with open-source firmware.

• Type: Mini 8 Band SSB/CW QRP Transceiver
• Frequency Range: 160m-10m
• Output Power: 10W SSB PEP
• Power Supply: 13.8V external power supply, built-in 12.6V battery
• Battery Capacity: 6000mAh
• Dimensions: 13.3 x 7.5 x 4 cm
• Weight: Lightweight design
• Transmitter Tubes: IRF series
• Filters: 4000, 2500, 1700, 500, 200, 100, 50 Hz passband
• DSP Functions: AGC, noise reduction, voice trigger, attenuator, TX noise gate, volume control, dBm/S-meter
• SSB Transmission: Better than -45 dBc carrier suppression, better than -50 dBc receive suppression
• Open Source Firmware: Allows experimentation and feature additions via GitHub
• Analog Governors: Three switchable independent governors
• Receiver Noise Level: -135 dBm (200 Hz BW) at 28 MHz
• Blocking Dynamic Range: 123 dB at 20 kHz offset, 78 dB at 2 kHz offset
• Charging: Built-in lithium battery charging port
• Switch: Off, Battery Power, External Power Supply

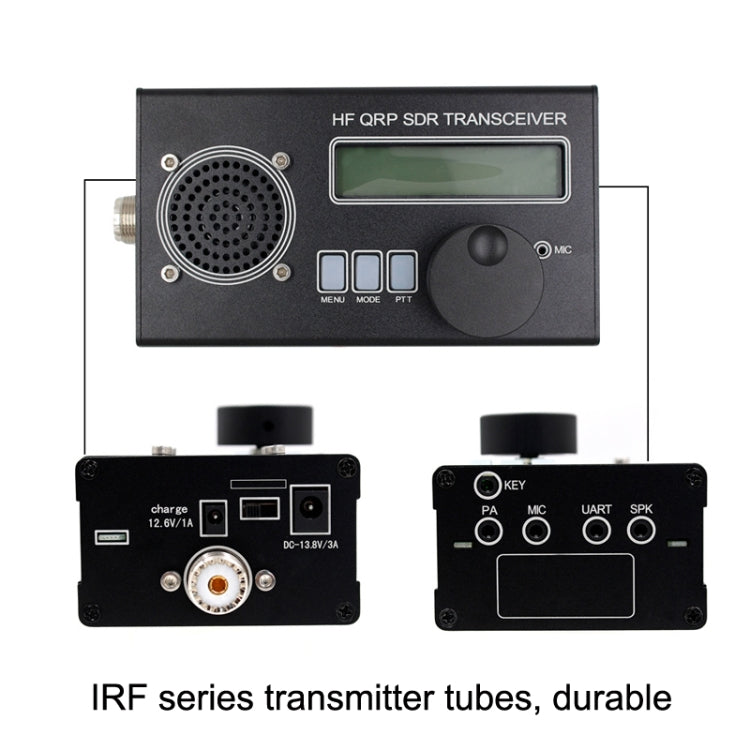

• Interfaces: External microphone, external speaker, PTT signal, UART for serial communication

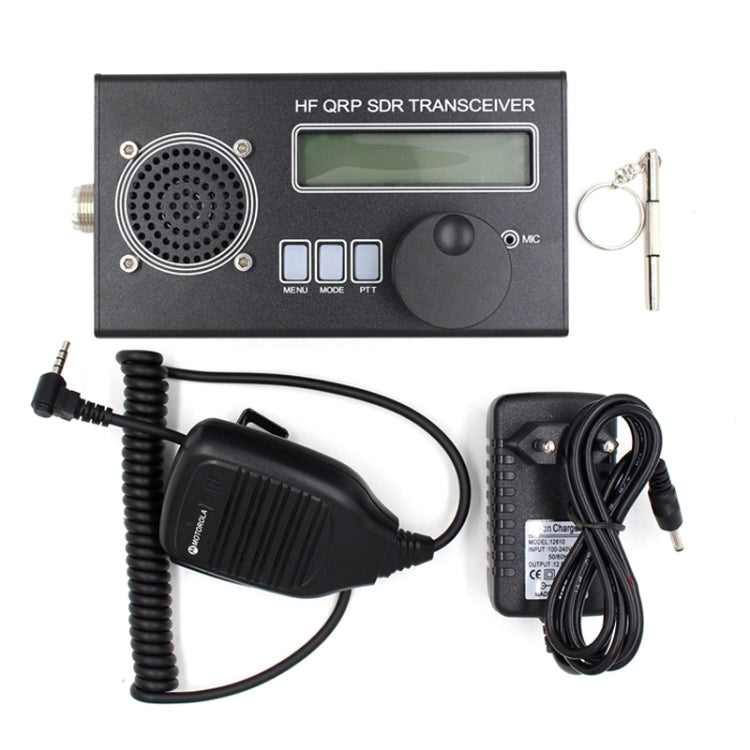

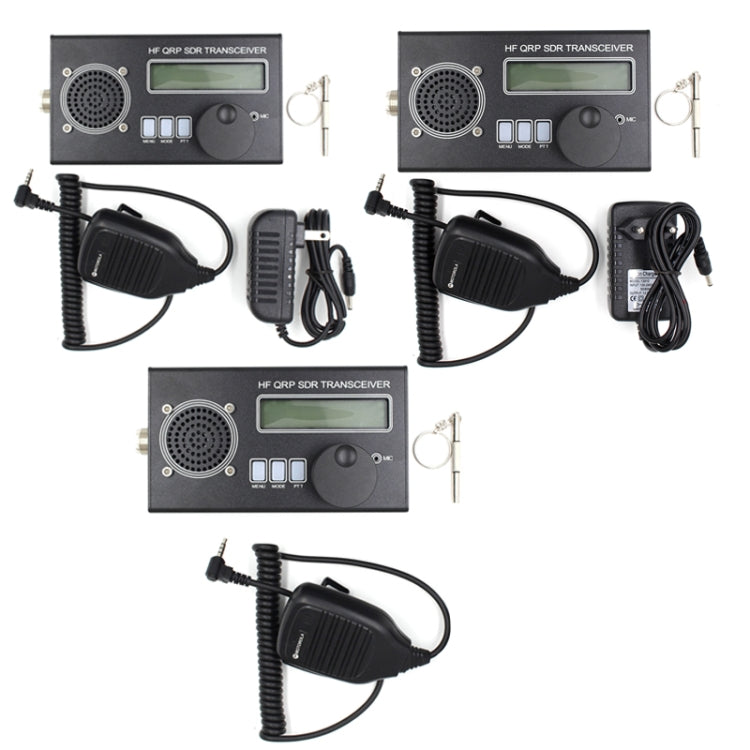

• Included Accessories: Host unit, handheld microphone, power supply (not included), three-in-one screwdriver
