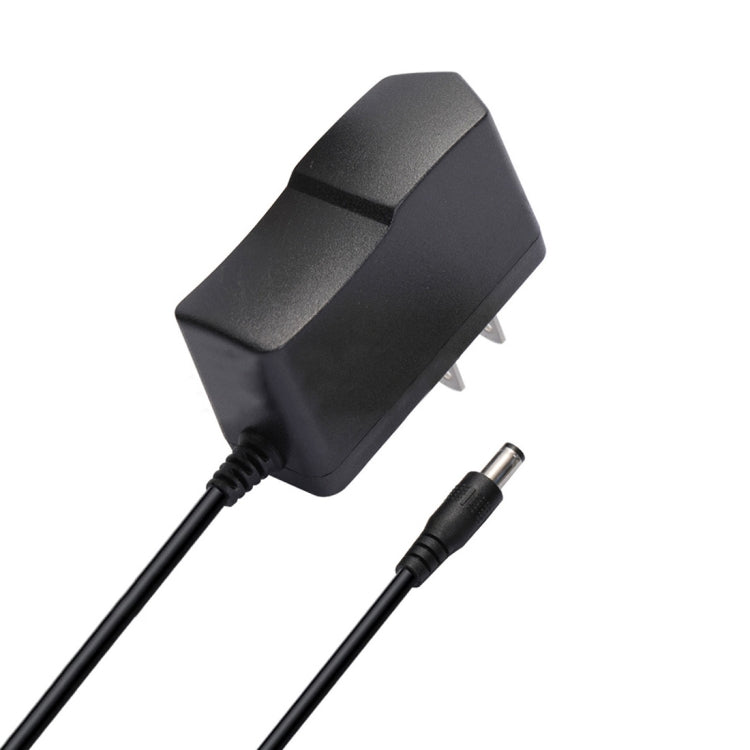

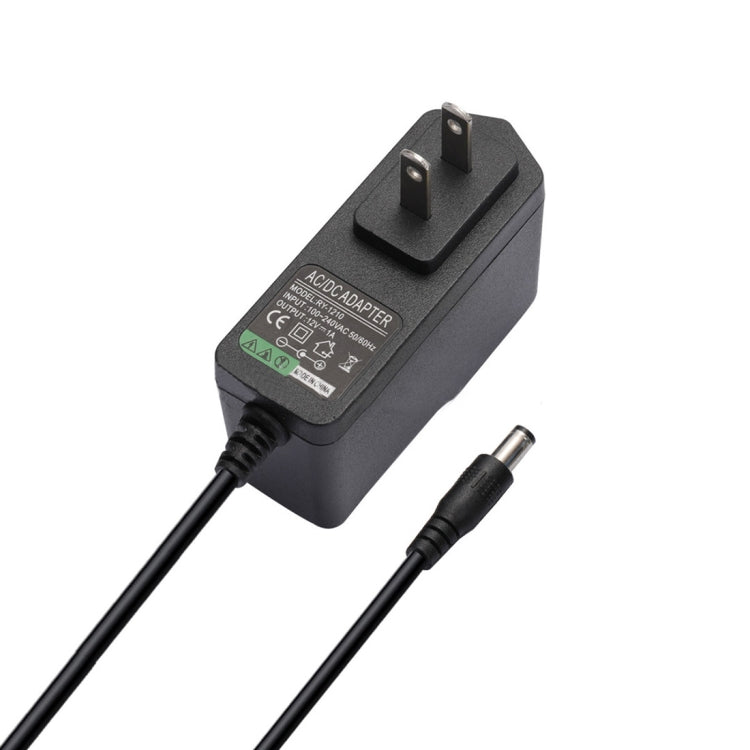

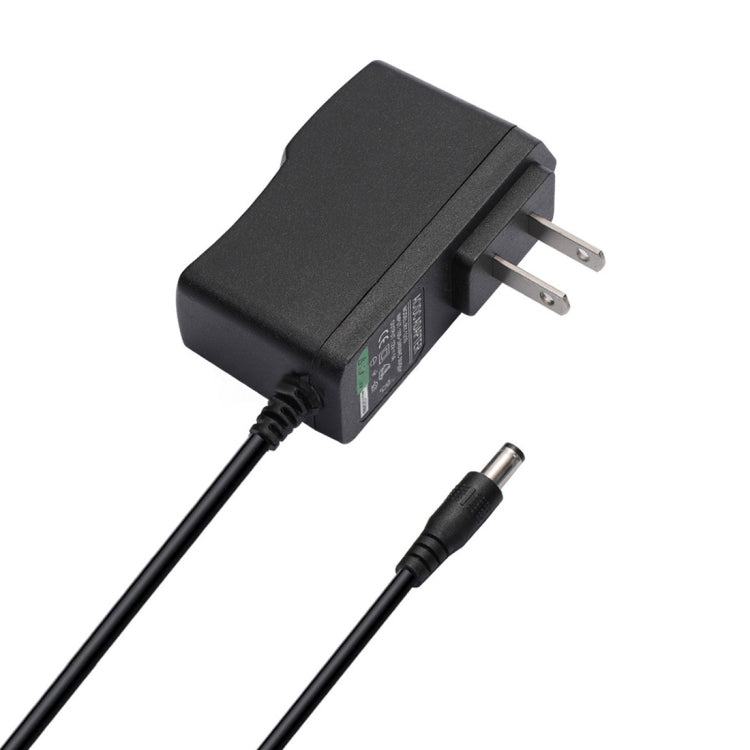

REY01 12V/1A (S-CA-2302) Power Adapter Charging Cable, US Plug
REY01 12V/1A (S-CA-2302) Power Adapter Charging Cable, US Plug
Sale
Sold out
Pre-order
Regular price
R 229.00
Regular price
Sale price
R 229.00
Unit price
per
Pay in monthly instalments with
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Type:
Other Accessories
Description
Features
1. The EMC circuit effectively eliminates the interference to peripheral equipment and has its own anti-interference performance and high reliability.
2. The DC ripple is small and the work efficiency is high.
3. Low working temperature and long service life.
4. The wide input voltage range complies with global standards.
5. Good insulation performance and high electric strength.
6. With short circuit, over current, overload, over voltage protection functions.
7. Output short circuit protection.
8. Overheat protection.
9. Working temperature 0~+50 Degrees Celsius
10. Storage temperature -20~+85 Degrees Celsius
11. Power polarity: positive inside and negative outside
Technical Parameter
1. Input voltage: AC (alternating current) 100V-240V 50-60Hz
2. Output voltage: DC (direct current) 12V
3. Rated output current: 1A
4. Modulation method: pulse width modulation
5. Work efficiency: 85%
6. Temperature coefficient: +-0.02% degrees Celsius
7. Start-up time <1S (AC 220V input Io=10%)
8. Output ripple & noise: 100mVp-p
9. Output voltage accuracy: 95%
10. Voltage adjustment rate: 5%
11. Load regulation rate: 4%
1. The EMC circuit effectively eliminates the interference to peripheral equipment and has its own anti-interference performance and high reliability.
2. The DC ripple is small and the work efficiency is high.
3. Low working temperature and long service life.
4. The wide input voltage range complies with global standards.
5. Good insulation performance and high electric strength.
6. With short circuit, over current, overload, over voltage protection functions.
7. Output short circuit protection.
8. Overheat protection.
9. Working temperature 0~+50 Degrees Celsius
10. Storage temperature -20~+85 Degrees Celsius
11. Power polarity: positive inside and negative outside
Technical Parameter
1. Input voltage: AC (alternating current) 100V-240V 50-60Hz
2. Output voltage: DC (direct current) 12V
3. Rated output current: 1A
4. Modulation method: pulse width modulation
5. Work efficiency: 85%
6. Temperature coefficient: +-0.02% degrees Celsius
7. Start-up time <1S (AC 220V input Io=10%)
8. Output ripple & noise: 100mVp-p
9. Output voltage accuracy: 95%
10. Voltage adjustment rate: 5%
11. Load regulation rate: 4%
