Product details
Description

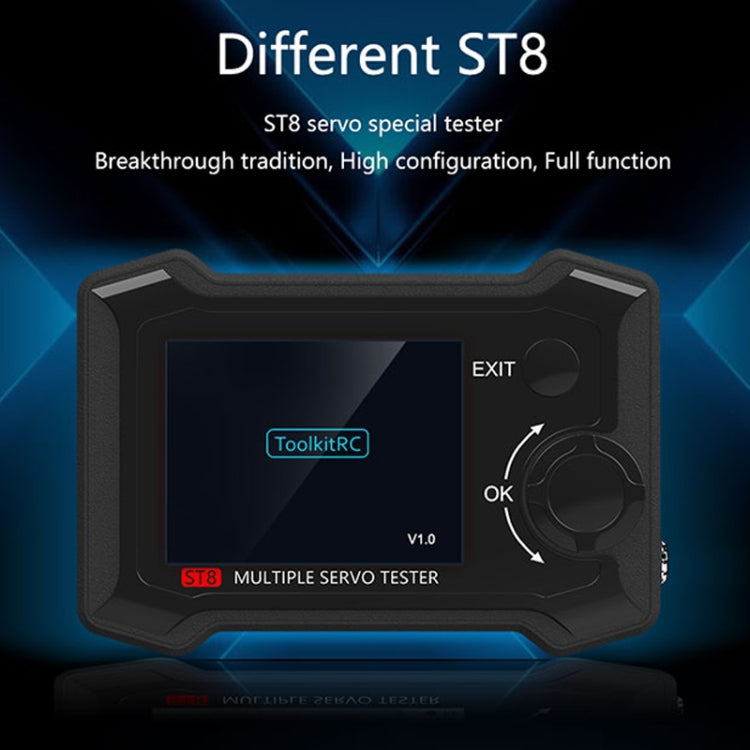

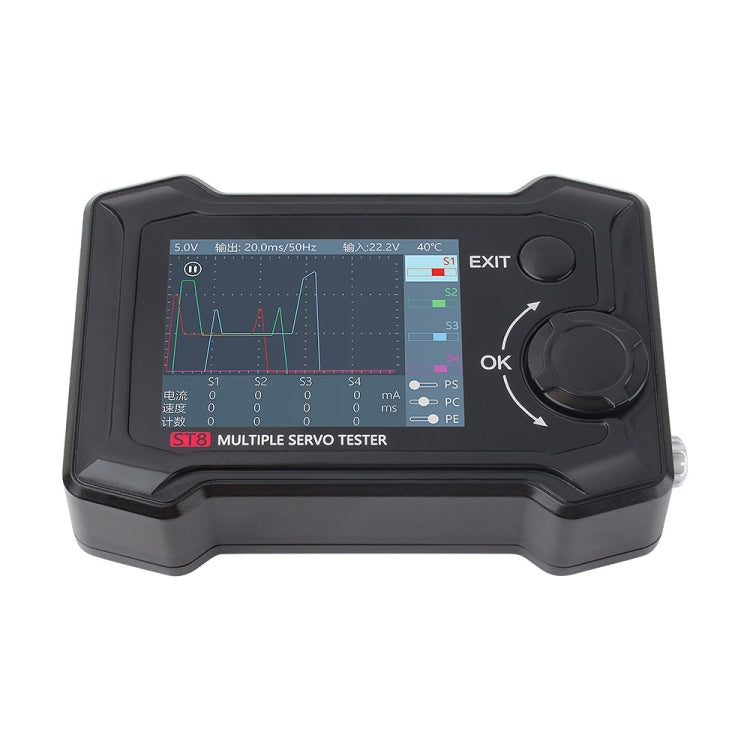

The ToolkitRC ST8 Multi-Channel Servo Tester is a device designed for testing and analyzing servo signals. It is useful for hobbyists and professionals who need to evaluate servo performance in various applications.

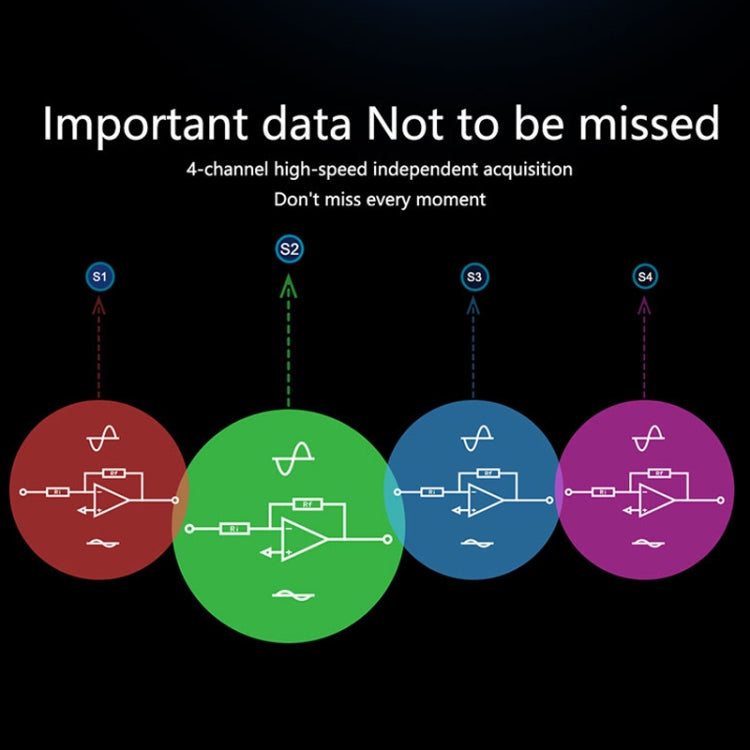

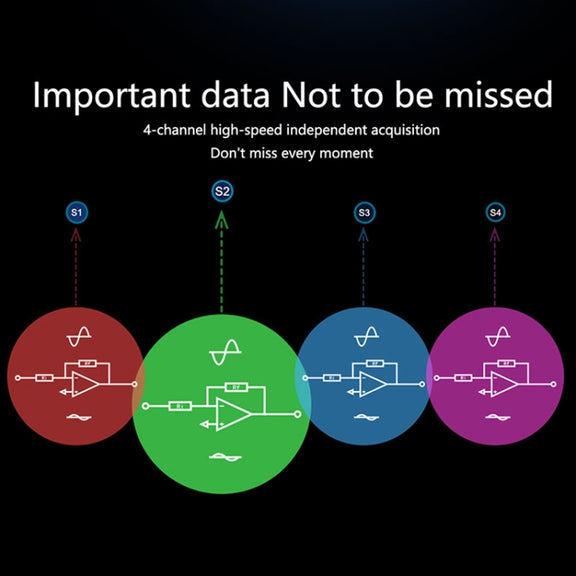

- Channels: 4-channel independent acquisition

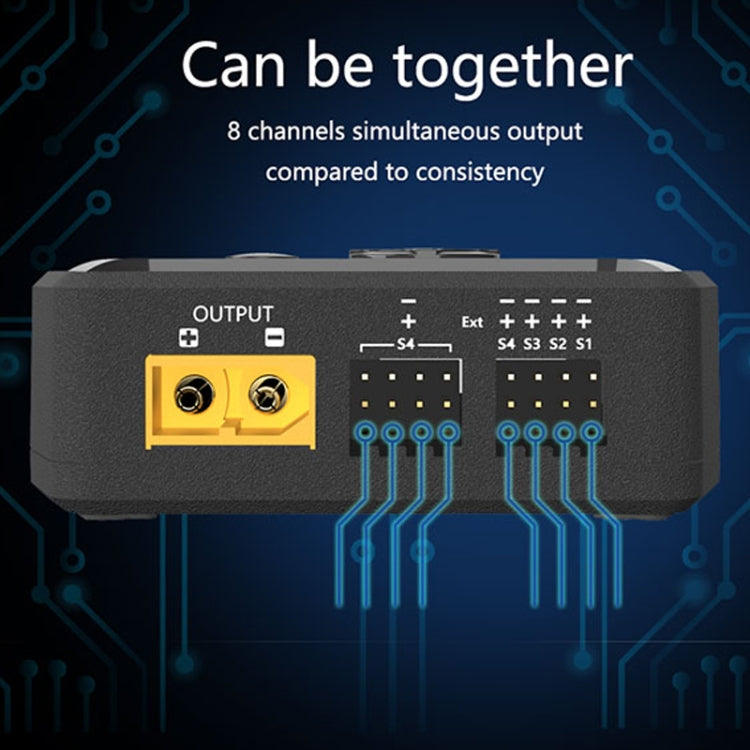

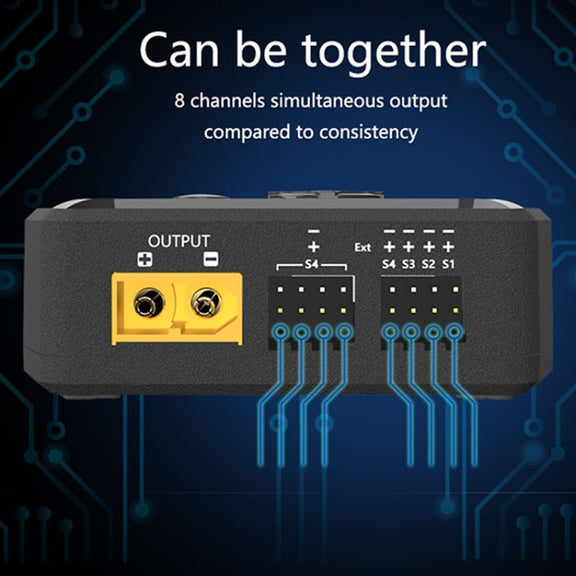

- Output: 8-channel simultaneous output

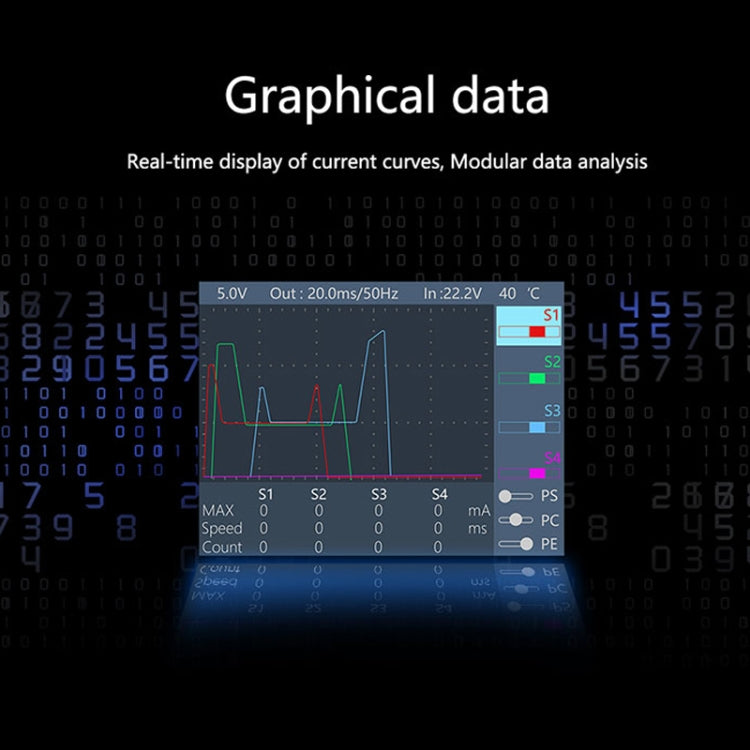

- Data display: Graphical data with real-time current curve

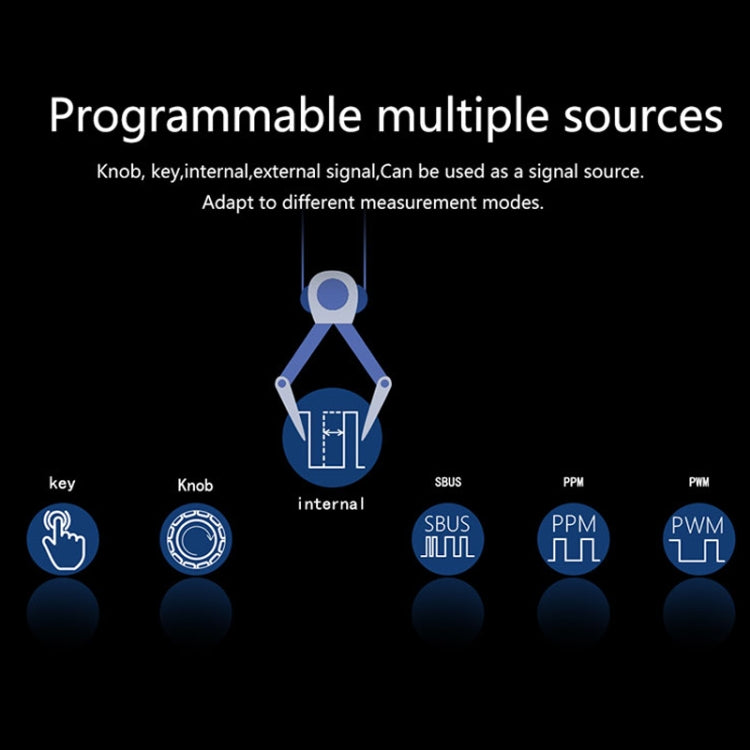

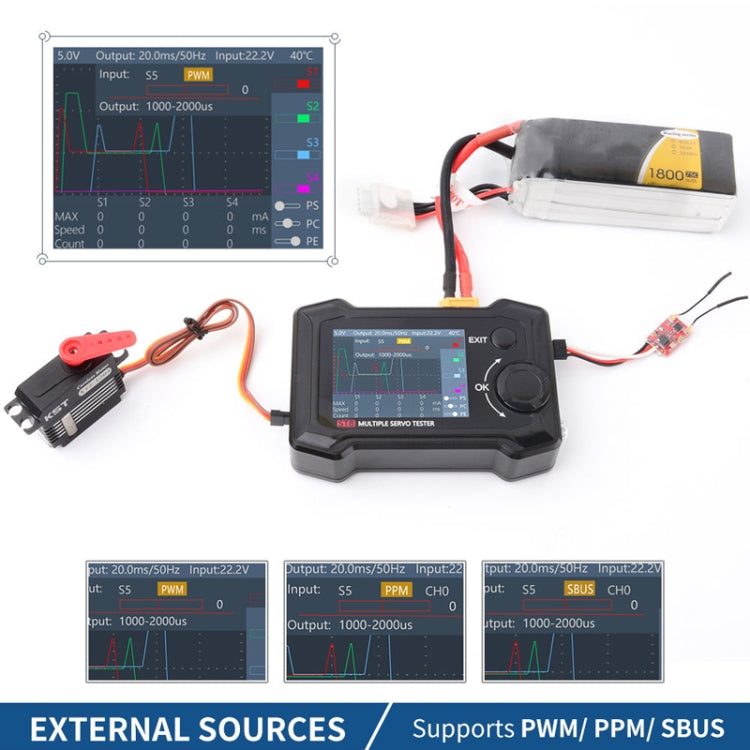

- Signal sources: Programmable multiple sources including knob, key, internal and external signals

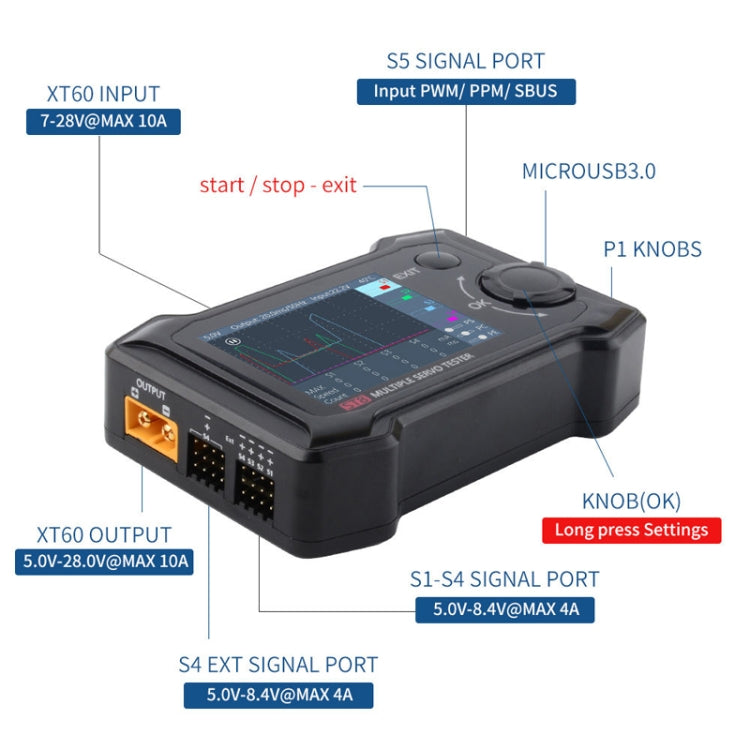

- Input voltage: 7-28V, MAX 10A

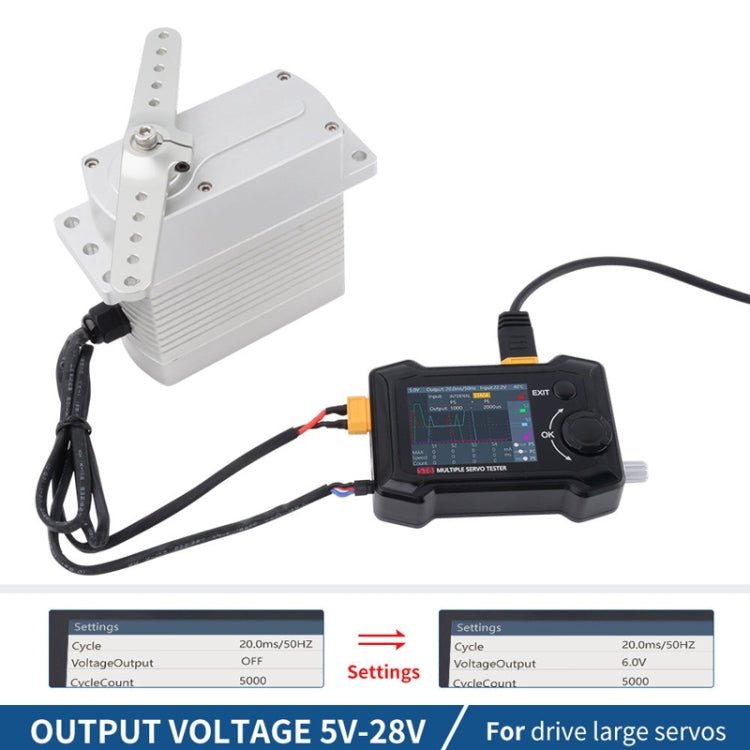

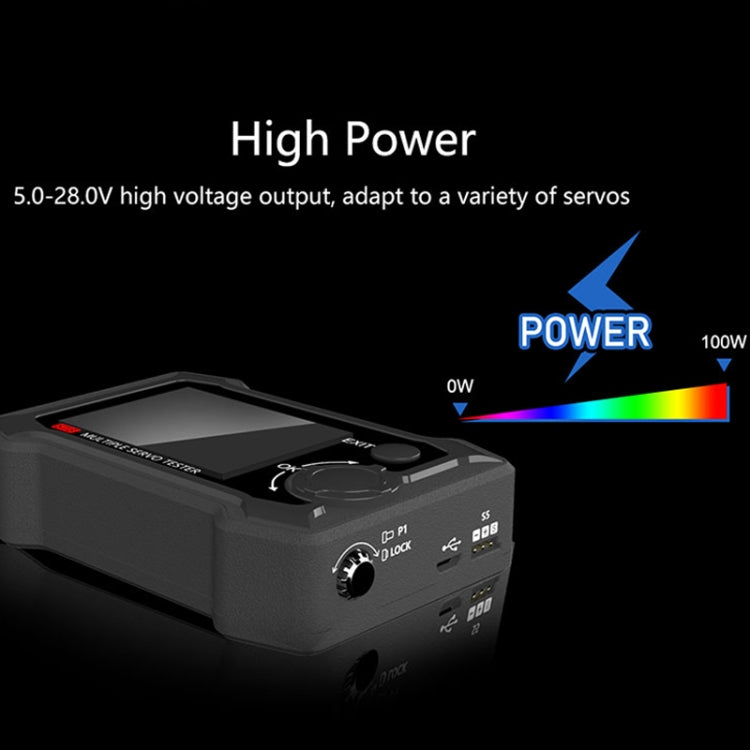

- Main input port voltage: 5.0V-28.0V, MAX 10A
- Signal port output voltage: 5.0-8.4V, MAX 4A/S1-S4; 5.0-8.4V, MAX 4A/S4 Ext
- Output signal: 100us-2900us, 33-1000Hz S1-S4; PWM 500us-2500us S5; PPM 8CH S5; SBUS 16CH S5
- P1 knob range: 1000us-2000us
- MicroUSB: Firmware upgrade USB3.0
- Display: 2.4-inch TFT RGB, 320 x 240 pixels
- Dimensions: 99 x 68 x 26 mm
- Weight: 140 g
