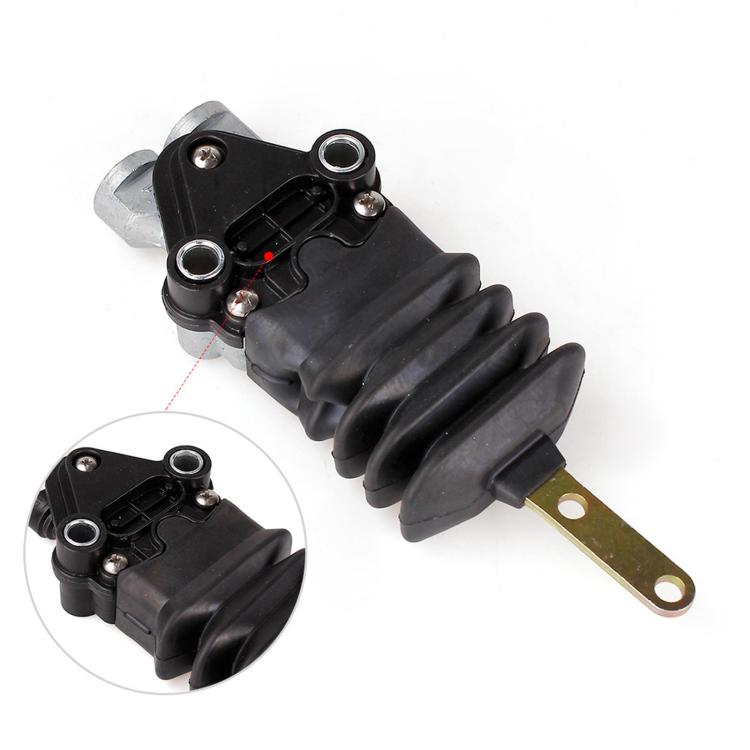

Truck Bus Cab Air Suspension Height Control Valve For Scania P / G / R / T 4640070100(Black)

1. Material: zinc alloy/plastic
2. OEM: 4640070100
3. When the vehicle load changes or the vehicle travels on different road conditions, this valve senses changes in the relative height of the cab and automatically adjusts the inflation and deflation of the air spring, thus maintaining the cab at a set stable height, effectively absorbing vibrations, and improving chassis stability and ride comfort during driving.

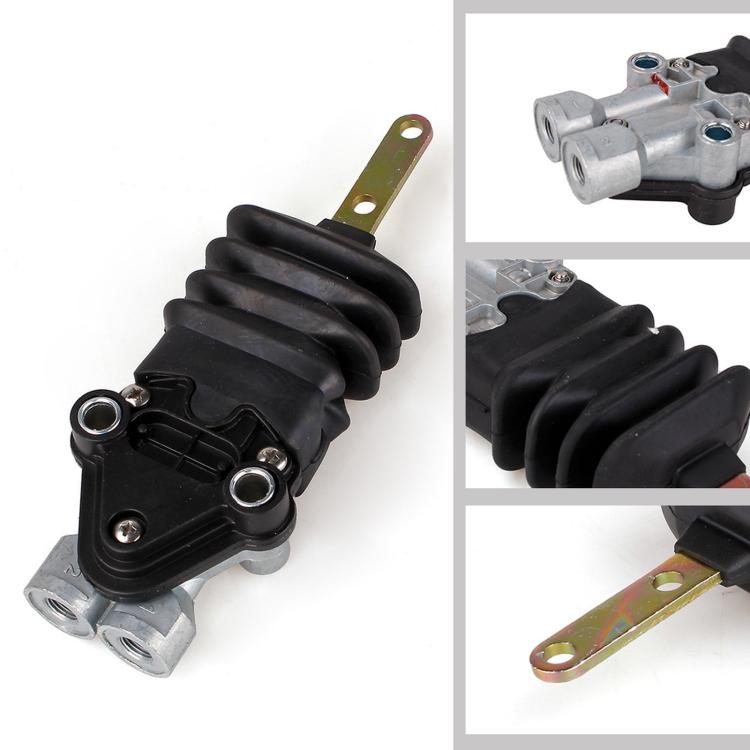

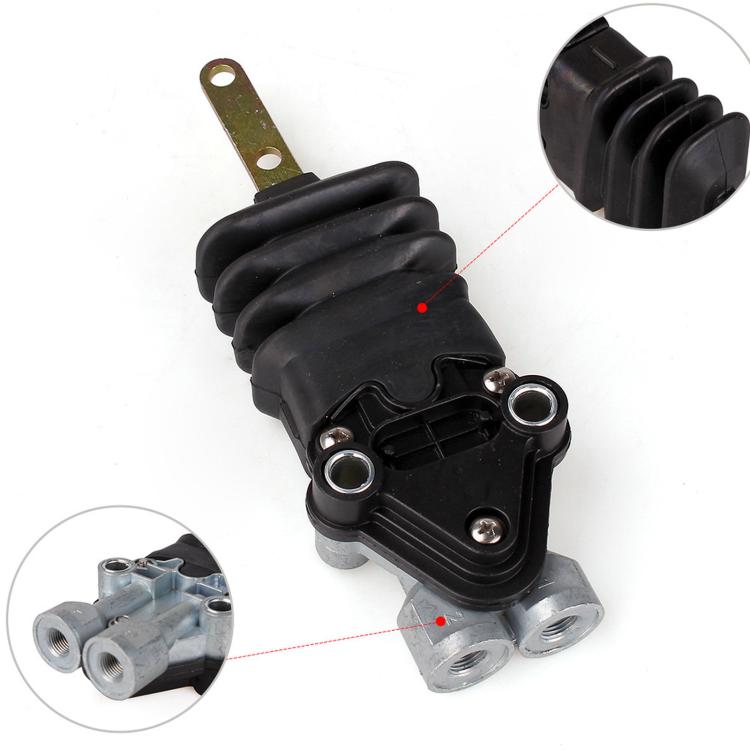

4. The valve body is equipped with a thickened corrugated black rubber dust cover in the middle, which can prevent external road debris, mud, sand, water, and oil from entering the internal core linkage transmission area, protecting the internal seals from wear.
5. The main structure of the valve body has a through-hole mounting positioning hole with a metal bushing, which can withstand the long-term high-frequency vibration of the commercial vehicle chassis and prevent the fixing bolts from loosening.

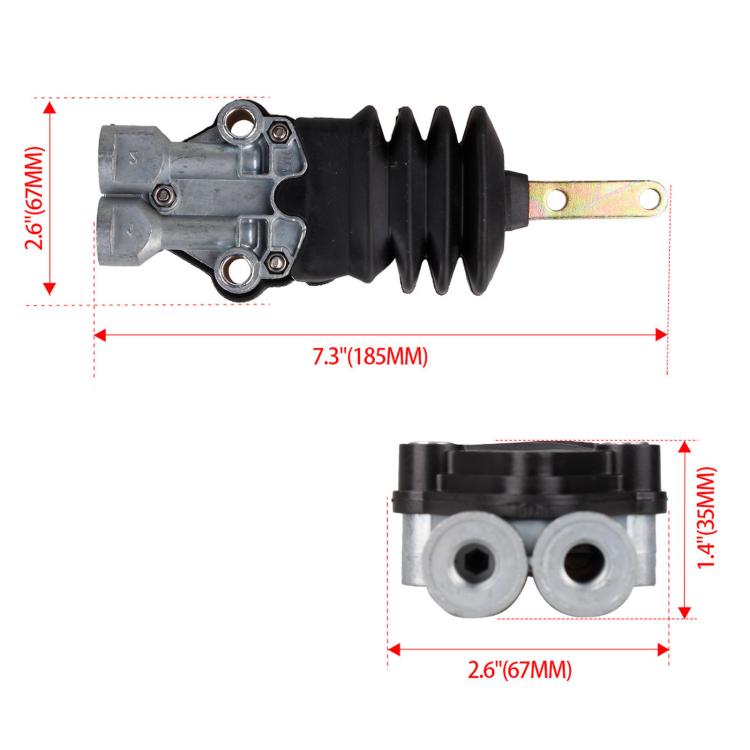

6. Overall length: 7.3 inches / 185mm
7. Total width at the air inlet/outlet end: 2.6 inches / 67mm
8. Total side thickness: 1.4 inches / 35mm
