Product details
Description

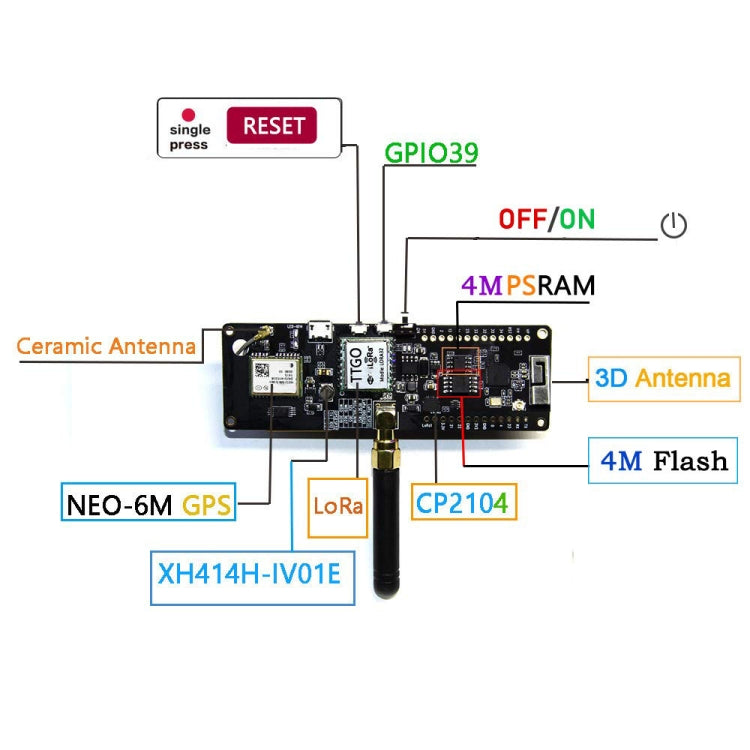

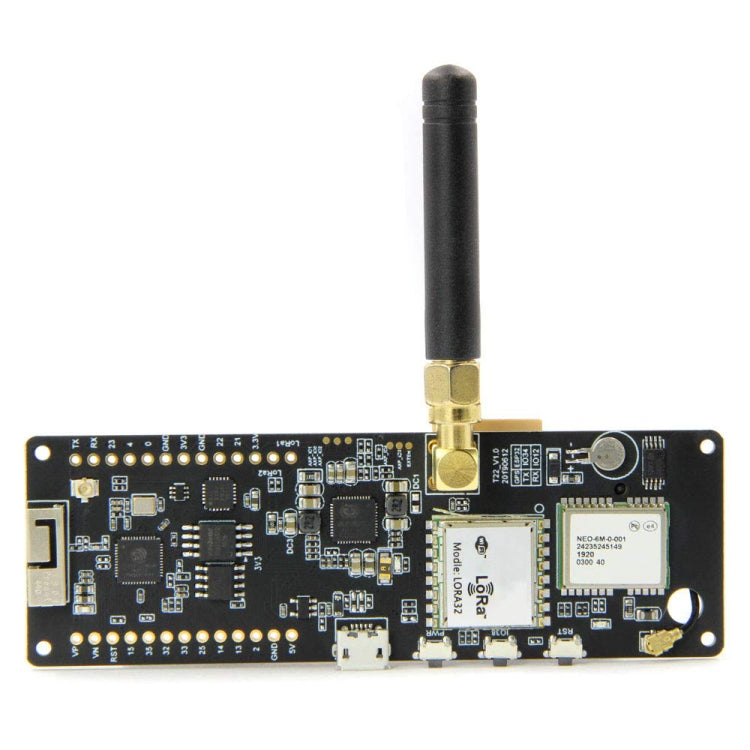

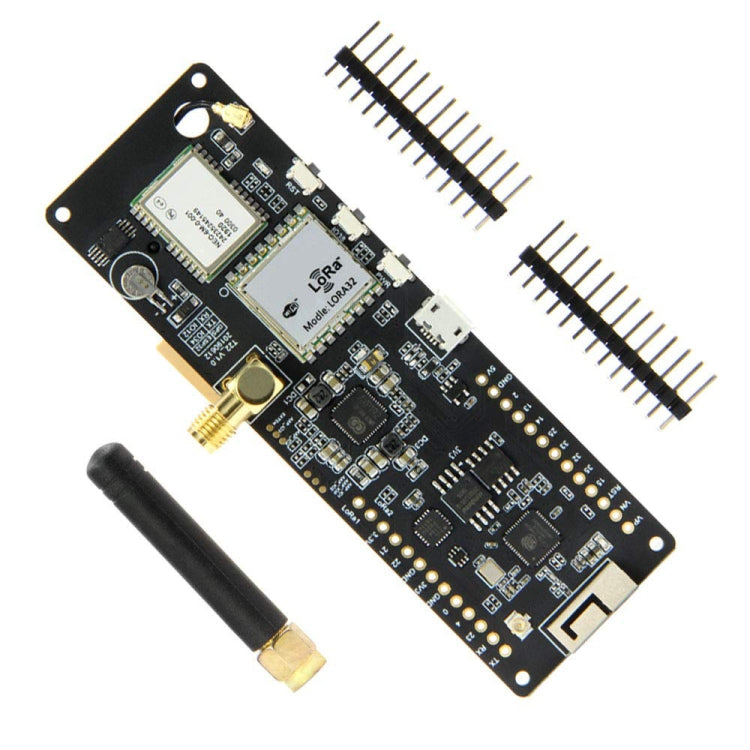

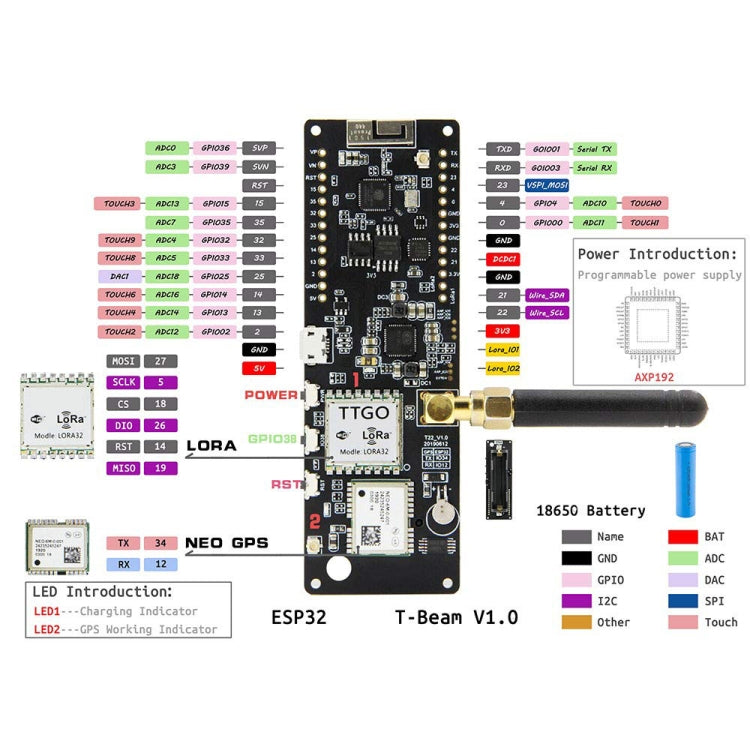

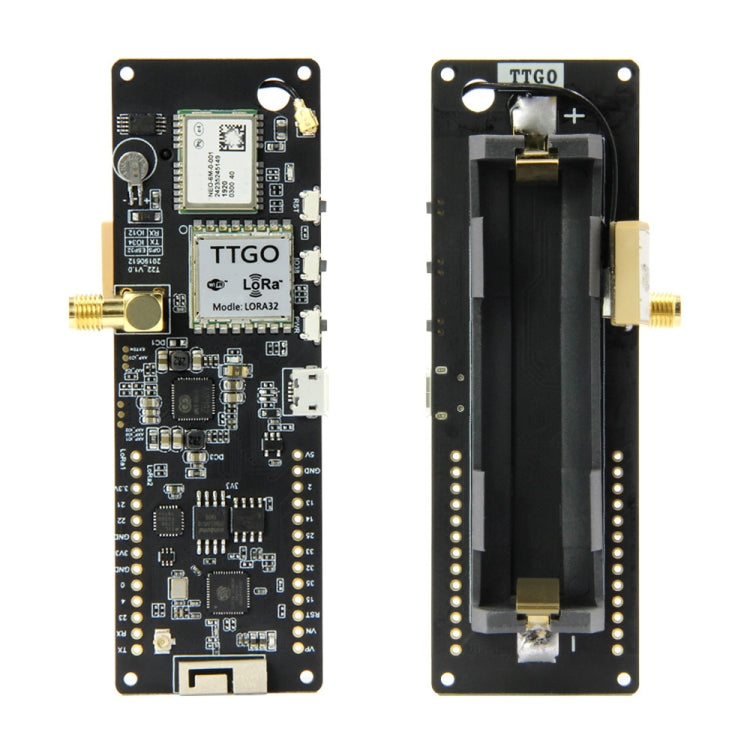

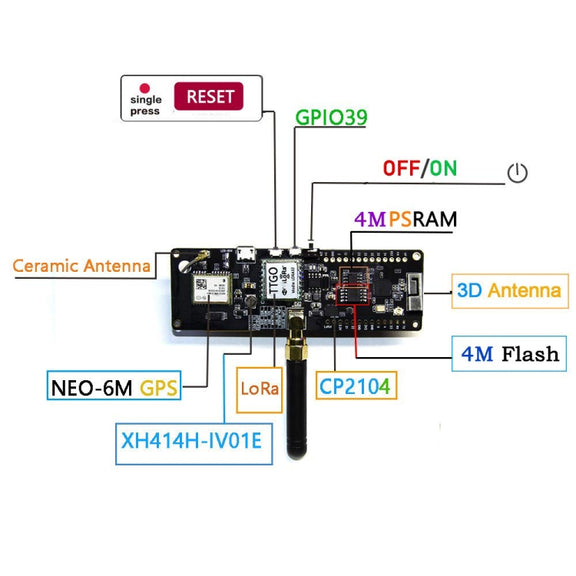

TTGO T-Beamv1.0 is a Bluetooth and WiFi module with integrated LoRa and GPS capabilities. It is suitable for applications requiring long-range communication and location tracking.
- Working voltage: 1.8V to 13.7V
- Acceptable current: 10mA to 114mA
- Emission current: 120mA at +20dBm, 90mA at +17dBm, 29mA at +13dBm
- Working frequency: 923MHz
- Transmitting power: +20dBm
- Receiving sensitivity: -139dBm at LoRa & 62.5KHz & SF = 12 & 146bps
- Receiving sensitivity: -136dBm at LoRa & 125KHz & SF = 12 & 293bps
- Receiving sensitivity: -118dBm at LoRa & 125KHz & SF = 6 & 9380bps
- Receiving sensitivity: -123dBm at FSK & 5KHz & 1.2Kbps
- Frequency error: +/- 15KHz
- FIFO space: 64 bytes
- Data rate: 1.2Kbps to 1300Kbps at FSK
- Data rate: 0.018Kbps to 37.5Kbps at LoRa
- Modulation modes: FSK, GFSK, MSK, GMSK, LoRa TM, OOK
- Interface form: SPI
- Sleep current: 0.2µA in sleep mode, 1.5µA in idle mode
- Working temperature: -40°C to +85°C
- Digital RSSI function
- Automatic frequency correction
- Automatic gain control
- Low voltage detection and temperature sensor
- Fast wake-up and frequency hopping
- Highly configurable packet handler
- GPS module: NEO-6M, 3V to 5V power supply compatible
- Ceramic antenna for improved signal
- EEPROM for saving configuration parameters

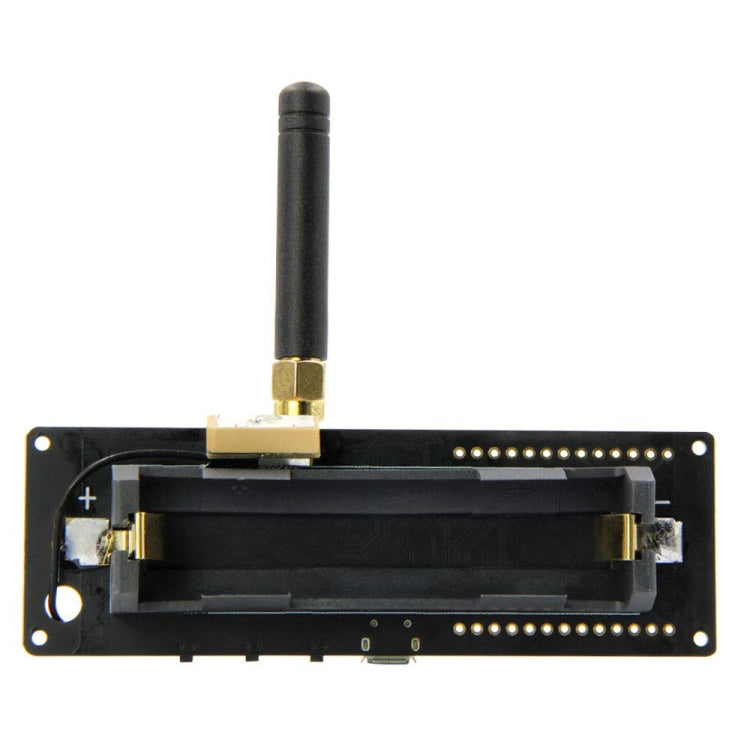

- Battery backup for data retention
- LED signal indicator
- Default baud rate: 9600
- Power management: TP5400, 1A
- CP2104-GMR chip
- Pre-flash firmware: SoftRF V4.0
- Radio frequency compatibility: 868MHz, 915MHz, 433MHz
