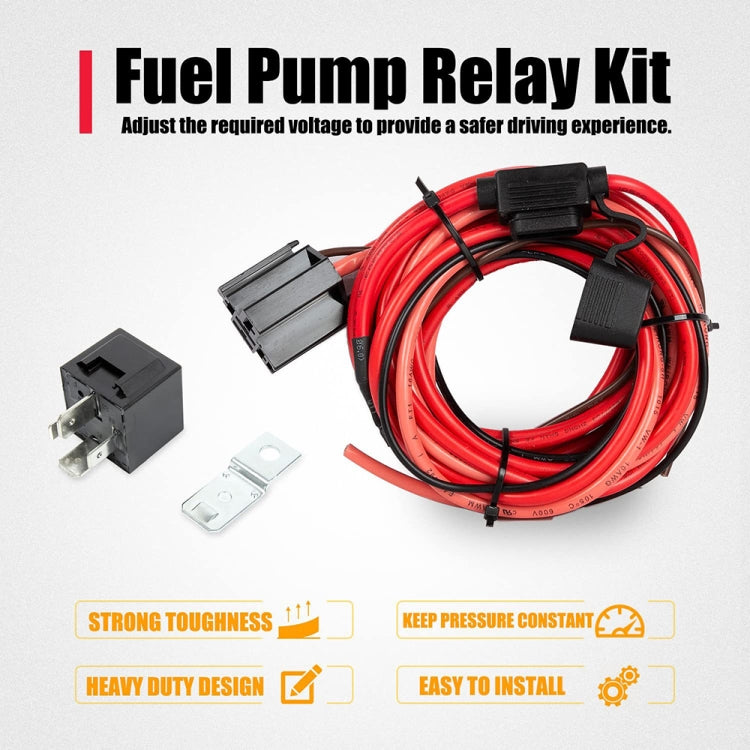

Universal 12V Electric Fuel Pump Relay Kit

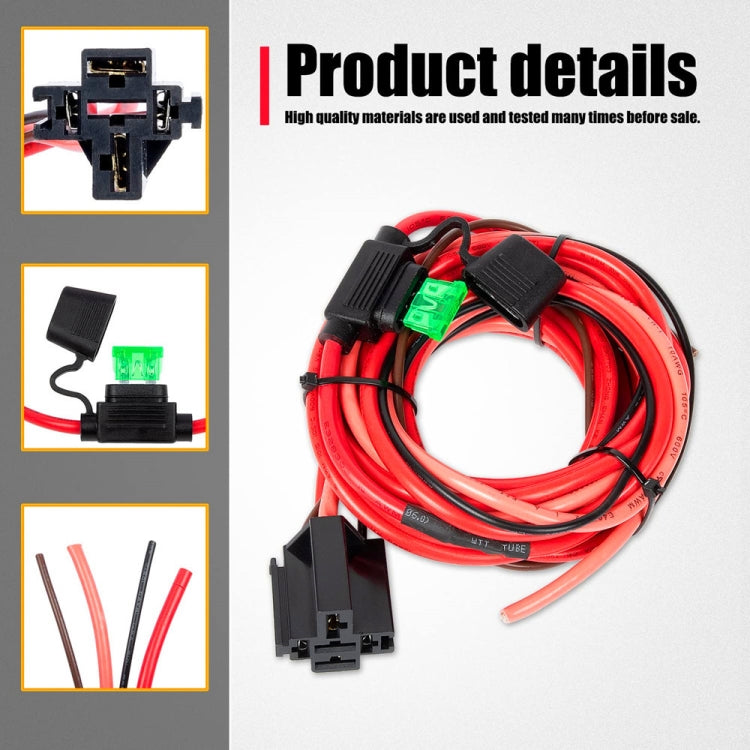

1. Heavy duty long wires: To safely, easily wire your pump directly to your battery, ensuring your high-pressure fuel pump is getting the voltage it needs. Designed specifically to prevent voltage drops at the fuel pump to maintain constant fuel pump pressure and to prevent fuel pump amperage overloads from damaging the electrical system of vehicle
2. Easy to install: All wires are clearly labeled and color-coded. And an easy-to-follow wiring diagram is included in the package. 10 feet 10 gauge RED wire to +12V battery, 6 feet 10 gauge ORANGE wire to fuel pump, 2 feet 16 gauge BROWN wire to 12V trigger switch, 4 feet 16 gauge BLACK wire to chassis ground

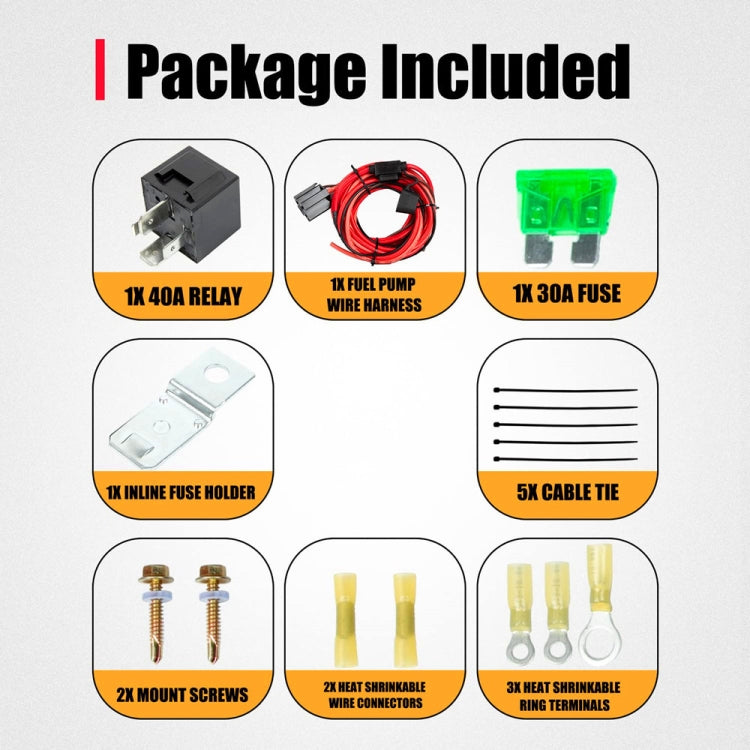

3. Universal fit 12V system: This will work on anything that is 12V activated that does not exceed a 40 amp continuous amperage draw water-resistant. 40 Amp Heavy duty water-resistant relay and inline water-resistant fuse box.
4. Relay: 40A
5. Fuse: 30A
6. How to use:

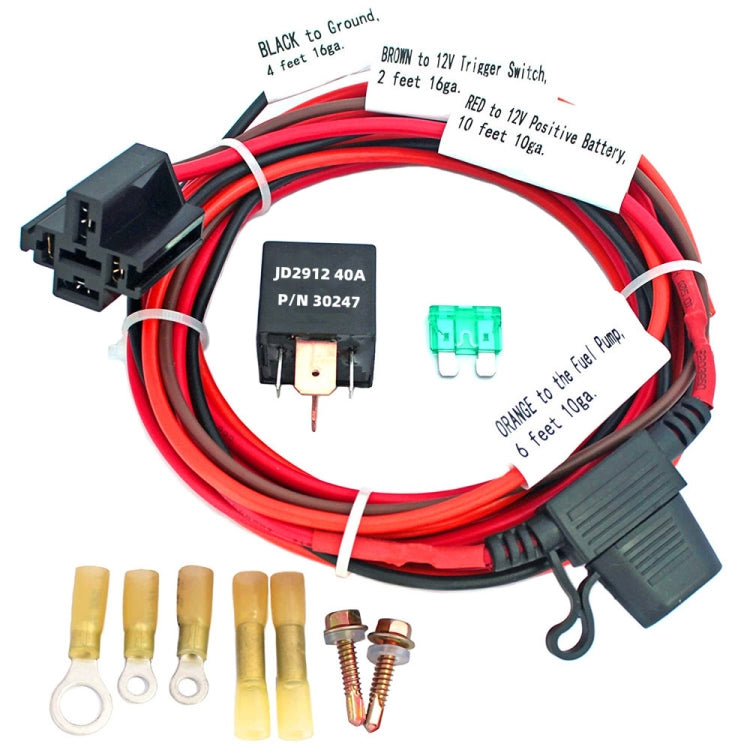

- 10 Feet 10 Gauge RED wire-to +12VDC
- 6 Feet 10 Gauge ORANGE wire-to fuel pump
- 2 Feet 16 Gauge BROWN wire-to 12V trigger switch
- 4 Feet 16 Gauge BLACK wire-to chassis ground
7. Material: ABS
