WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface
WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

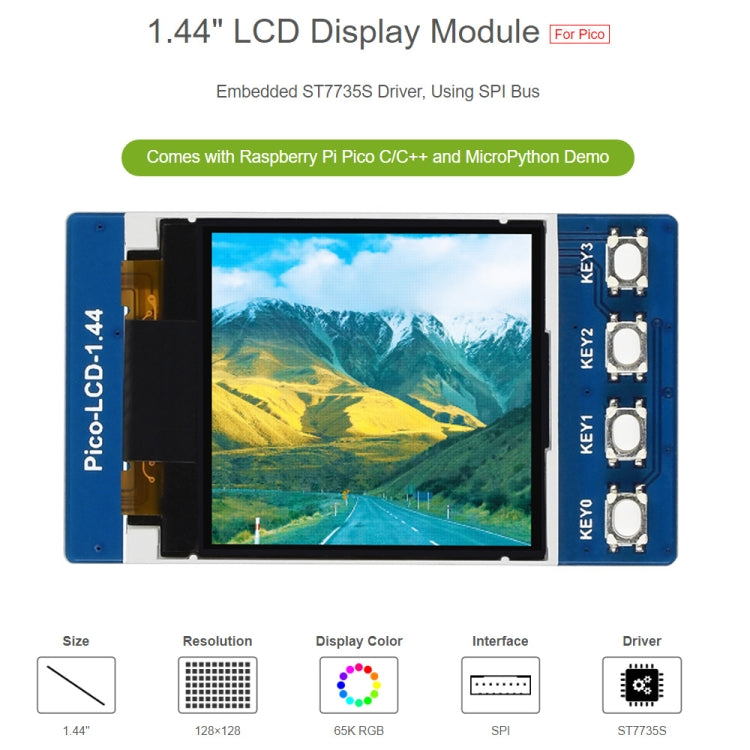

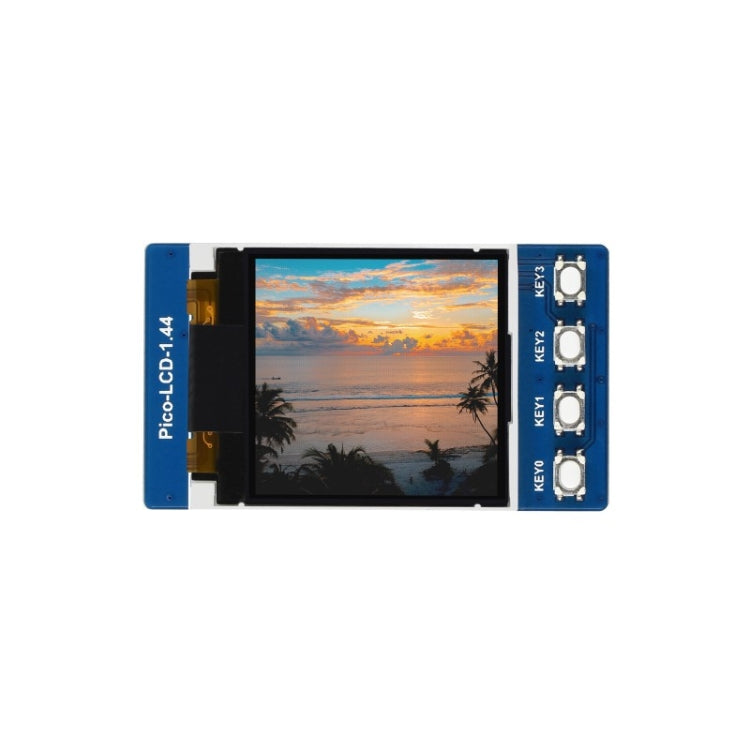

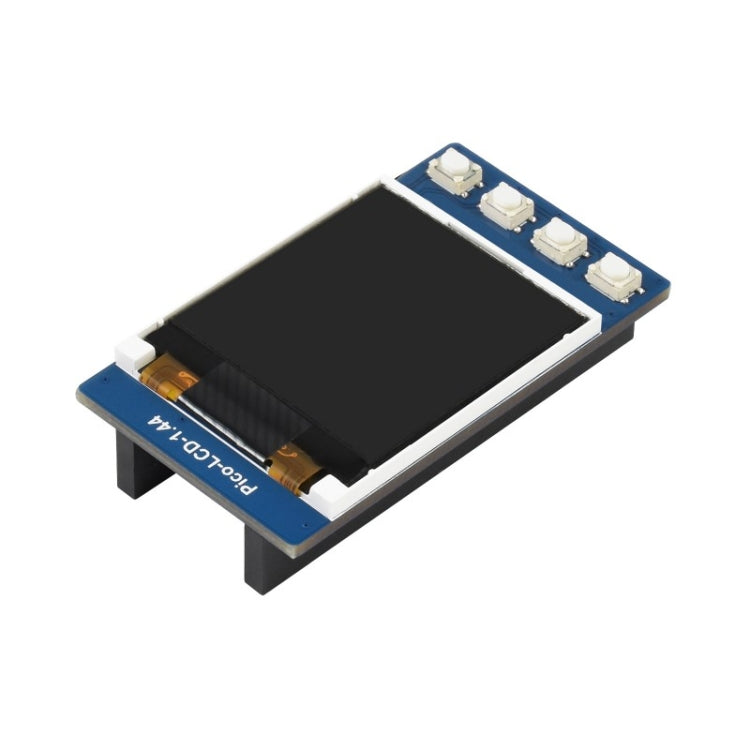

The WAVESHARE 1.44 inch LCD Display Module is designed for use with the Raspberry Pi Pico. It provides a clear display with 65K colors, suitable for various everyday applications.

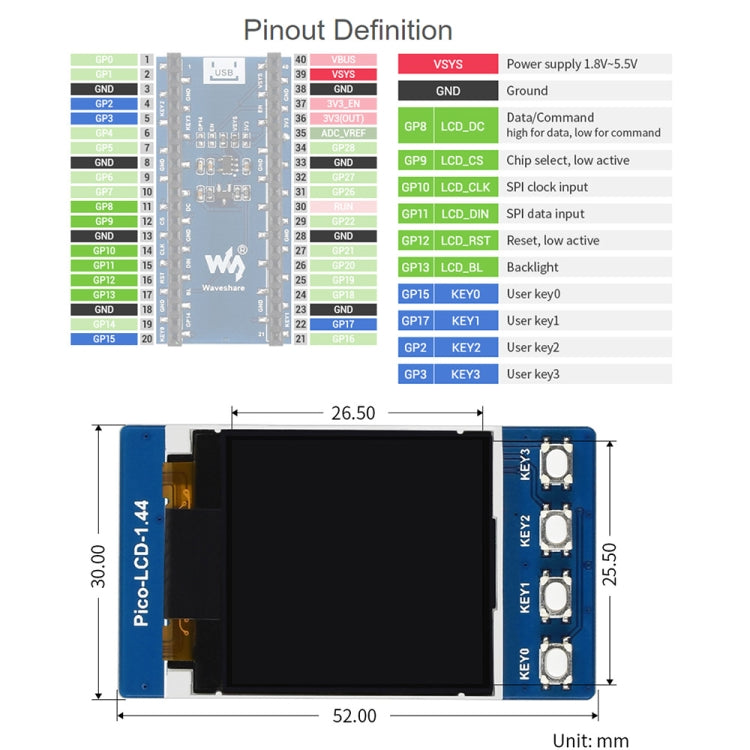

- Product Type: LCD & LED Display Module

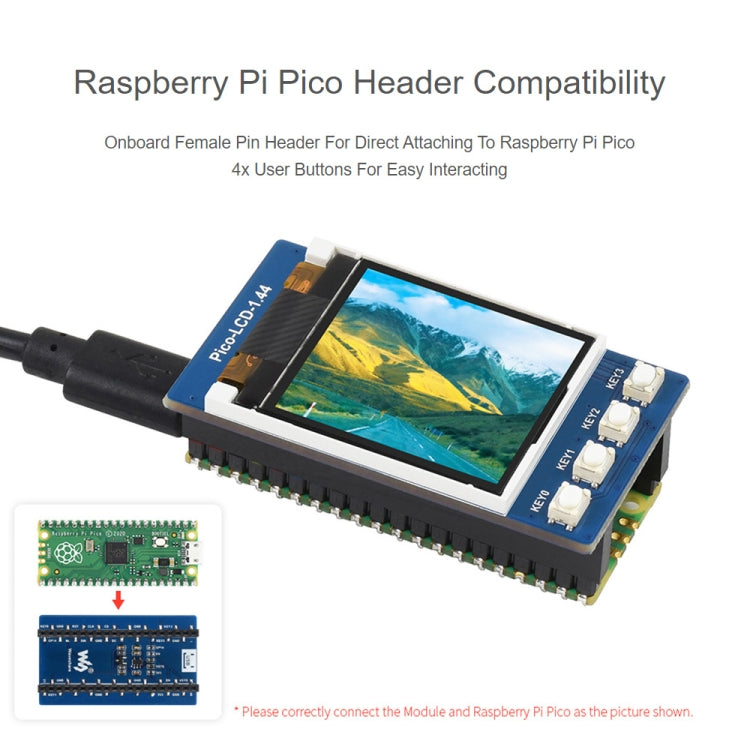

- Compatibility: Raspberry Pi Pico
- Material: TFT
- Display Resolution: 128 x 128 pixels
- Display Color: 65K RGB colors
- Display Size: 25.50 x 26.50 mm
- Pixel Size: 0.20 x 0.20 mm
- Operating Voltage: 3.15V ~ 5V
- Communication Interface: 4-wire SPI
- Communication BUS: SPI
- Driver: ST7735S
- Size: 52.0 x 30.0 mm
- Key Feature: Minimal IO pins required
- User Buttons: 4x for easy interaction
- Development Resources: Includes manual and examples for Raspberry Pi Pico C/C++ and MicroPython
Questions about features, compatibility, or warranty? Chat with our local support team!
