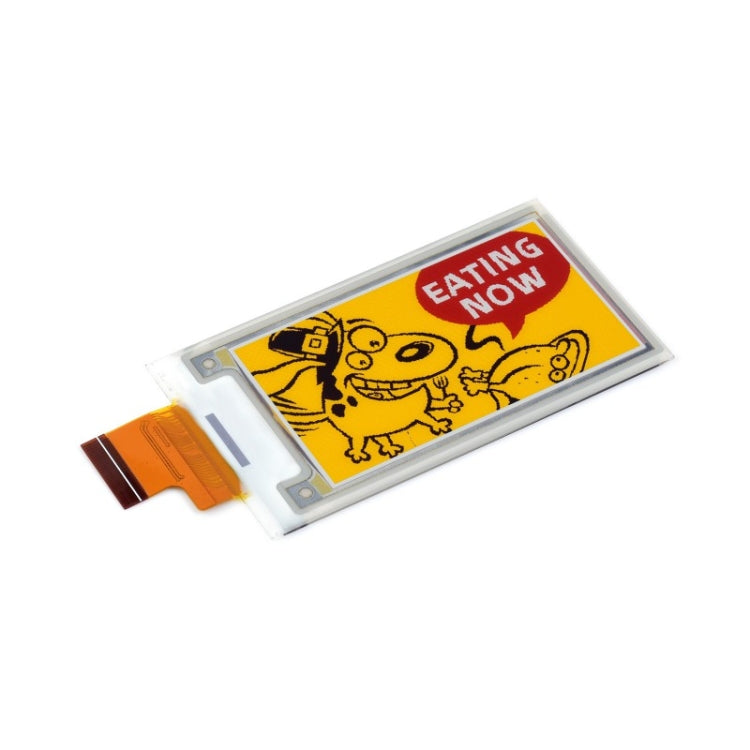

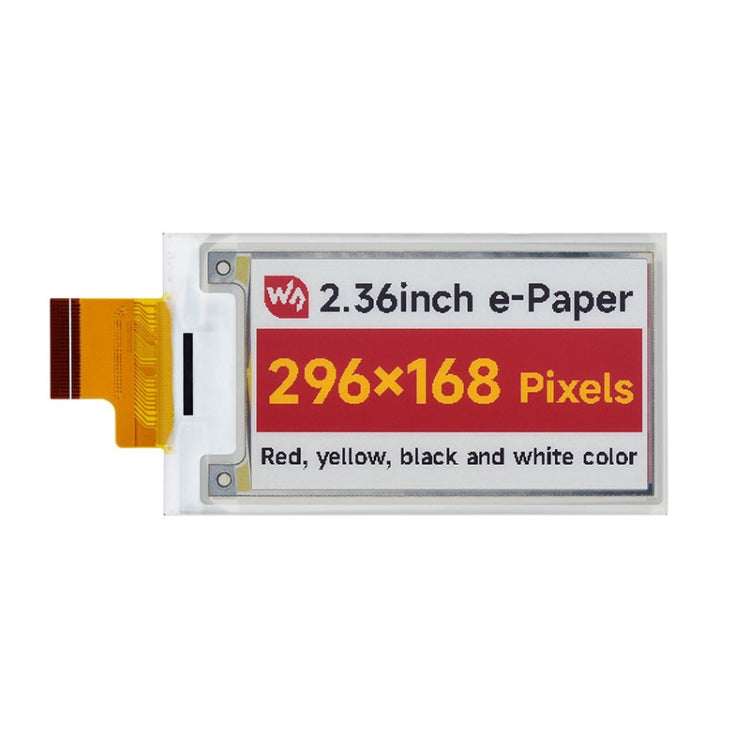

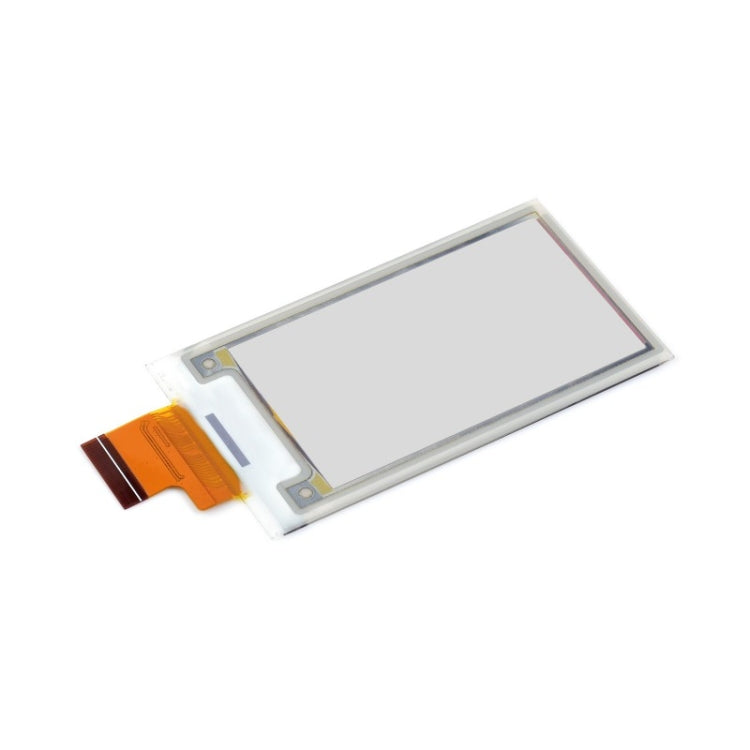

Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel
Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description
The Waveshare 2.36 inch E-Paper display panel is designed for low power consumption applications. It is suitable for use in projects requiring a display that retains content without power, such as electronic shelf labels or low-power IoT devices.

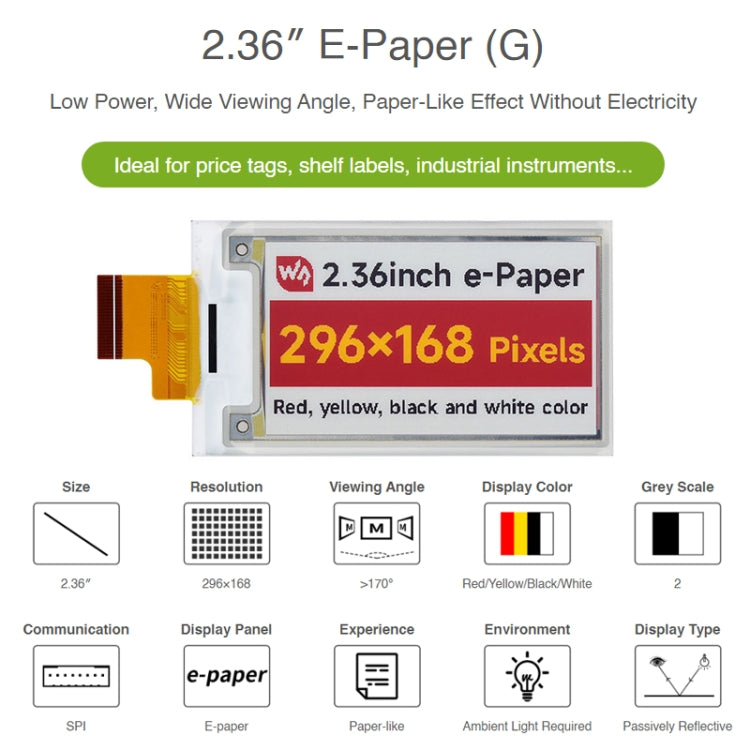

- Product Type: E-Paper Display Panel
- Compatibility: Raspberry Pi, Arduino, STM32
- Operating Voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI

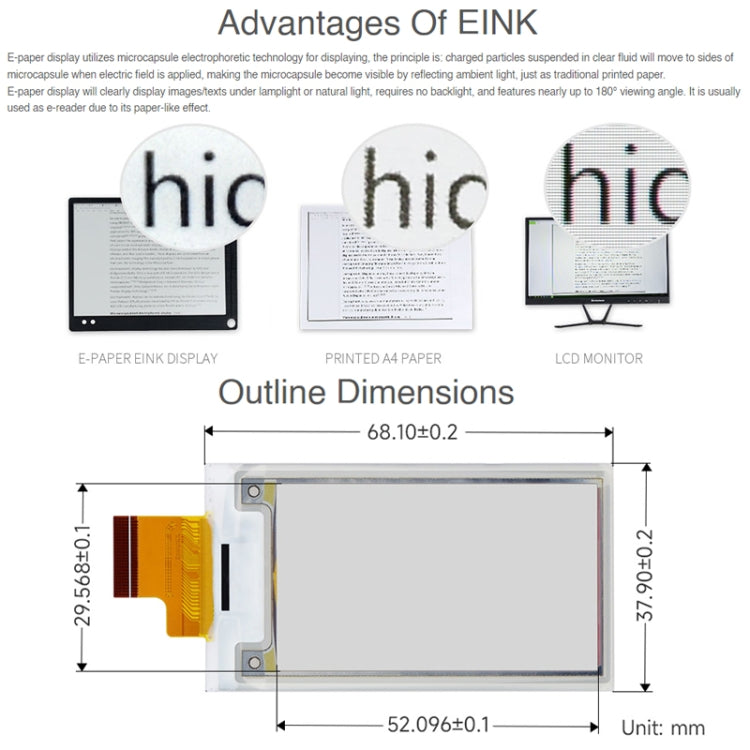

- Outline Dimension: 68.1 x 37.9 x 0.85 mm
- Display Size: 52.096 x 29.568 mm
- Dot Pitch: 0.176 x 0.176 mm
- Resolution: 296 x 168 pixels
- Display Color: Red, Yellow, Black, White
- Grey Level: 2
- Full Refresh Time: 12 seconds
- Refresh Power: Less than 57 mW (typical)
- Standby Power: Less than 0.01 µA
- Viewing Angle: Greater than 170 degrees
- Key Feature: Ultra low power consumption
- Intended Use: Everyday use
- Development Resources: Includes driver board schematic and examples for Raspberry Pi, Arduino, STM32
