Product details
Description
The Waveshare 23730 ESP32 Multi-Functional General Driver Board is designed for robotics applications. It enables control of multiple motors and sensors, facilitating complex robotic movements.
- Product Type: Modules Expansions Accessories
- Compatibility: ESP32
- Material: Not specified
- Key Features: Supports WIFI, Bluetooth, ESP-NOW
- Onboard motor control interface for 2x DC motors with encoder or 4x DC motors without encoder (2 groups)
- Onboard serial bus steering gear control interface, controls up to 253 ST3215 serial bus steering gears and obtains steering gear feedback

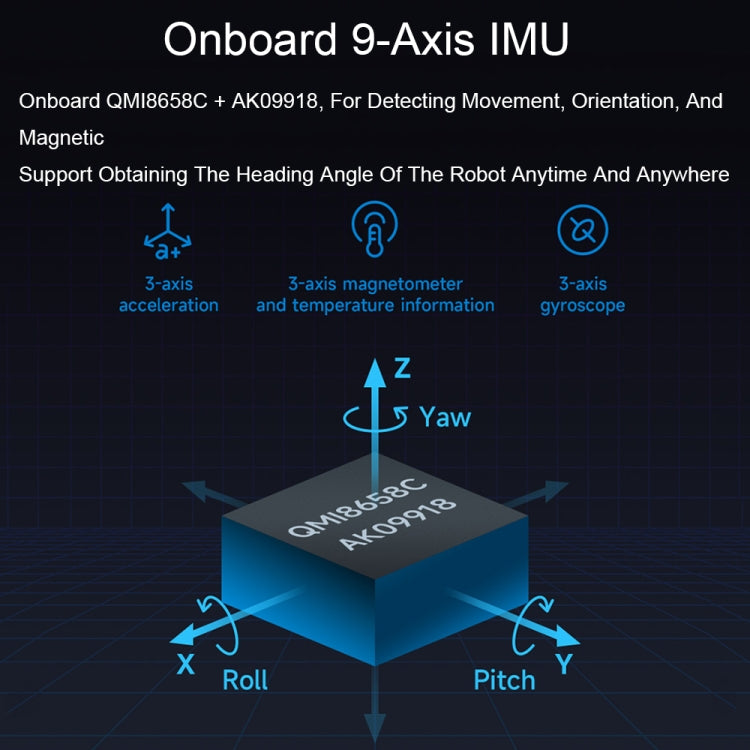

- Onboard 9-axis IMU for attitude and heading information
- Power Input: Supports 7-13V, can be powered by 2S or 3S lithium battery module
- Automatic download circuit for easy program upload
- Input voltage/current monitoring support
- Onboard TF card slot
- Onboard lidar interface with integrated UART to USB function

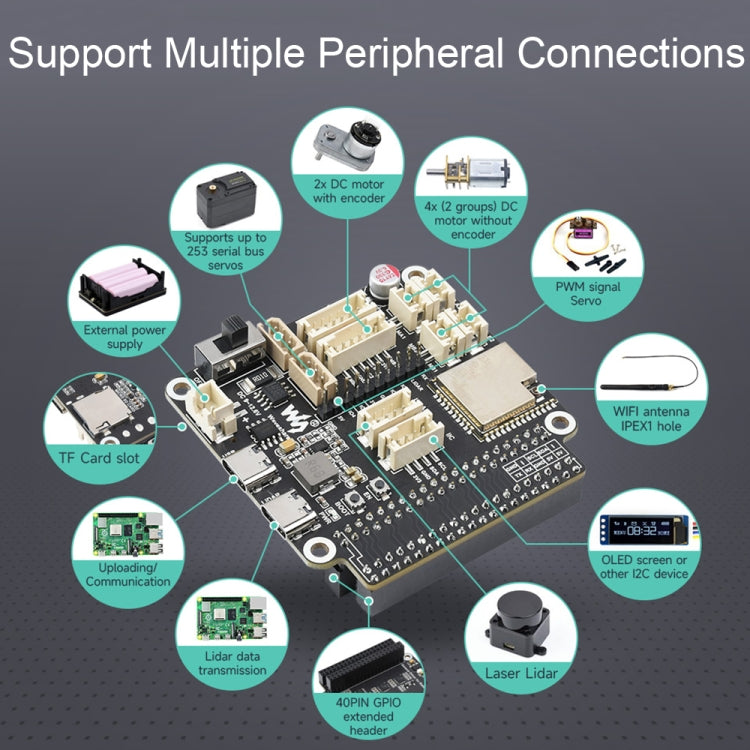

- I2C interface for connecting peripherals such as OLED, IMU, and other I2C devices
- Multi-function expansion connectors for additional functions, such as controlling servos or relays

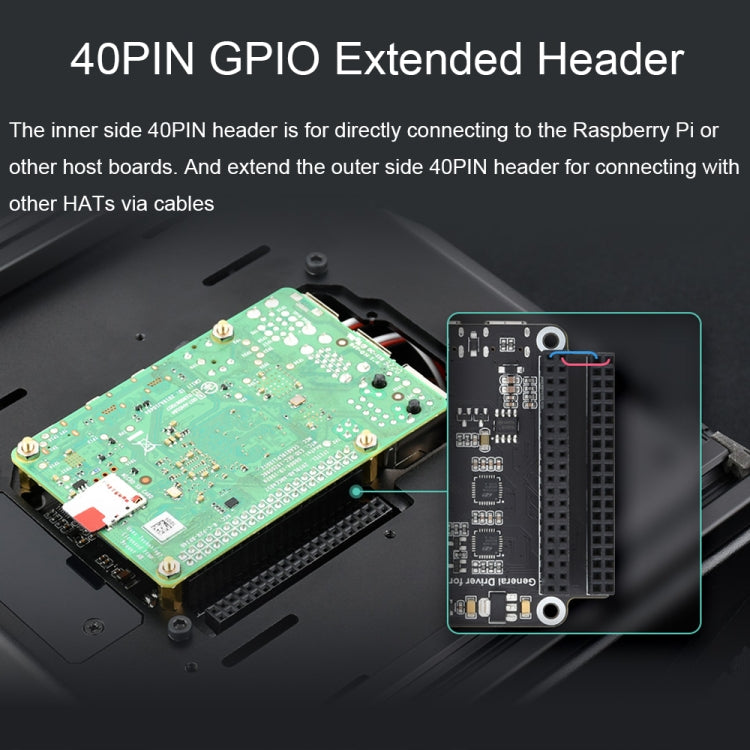

- Onboard 40PIN GPIO header for connection to host (Raspberry Pi/Jetson Nano, etc.) and power supply
- Open source demos and detailed tutorials provided for novices
