Product details
Description

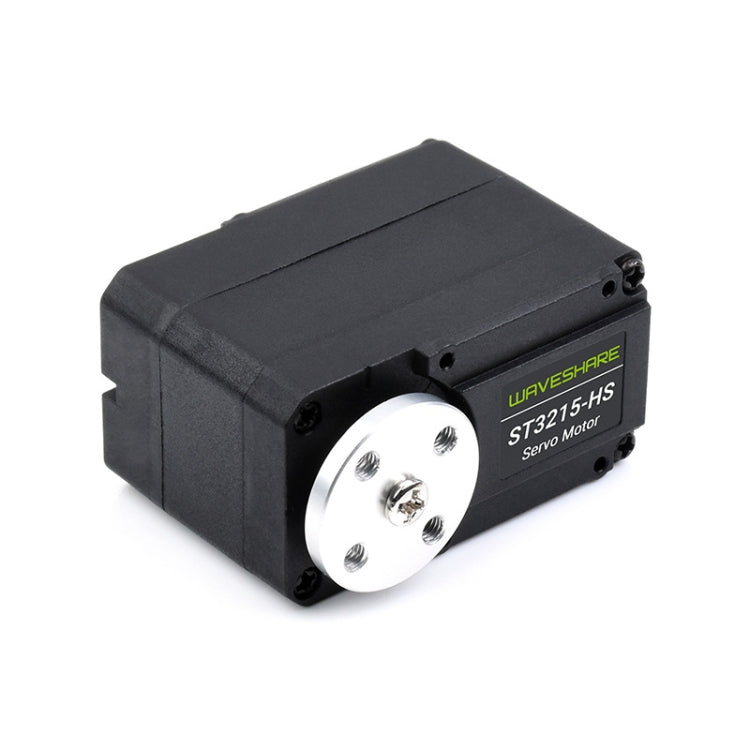

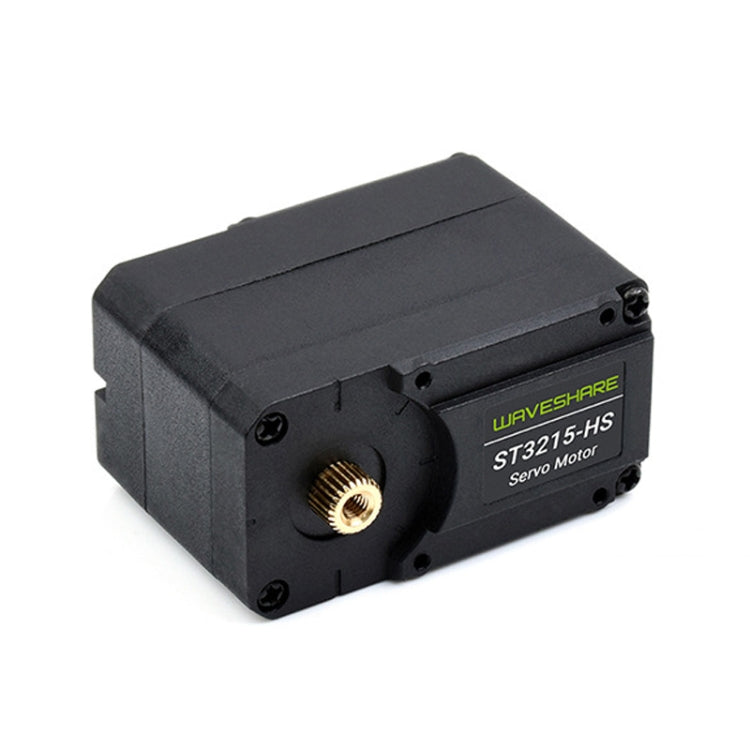

The Waveshare 25127 20kg.Cm 106PRM High Speed Bus Servo Motor is a high-performance servo motor designed for precise control applications. It is suitable for building wheeled robots and 3D printers that require accurate closed-loop speed control.

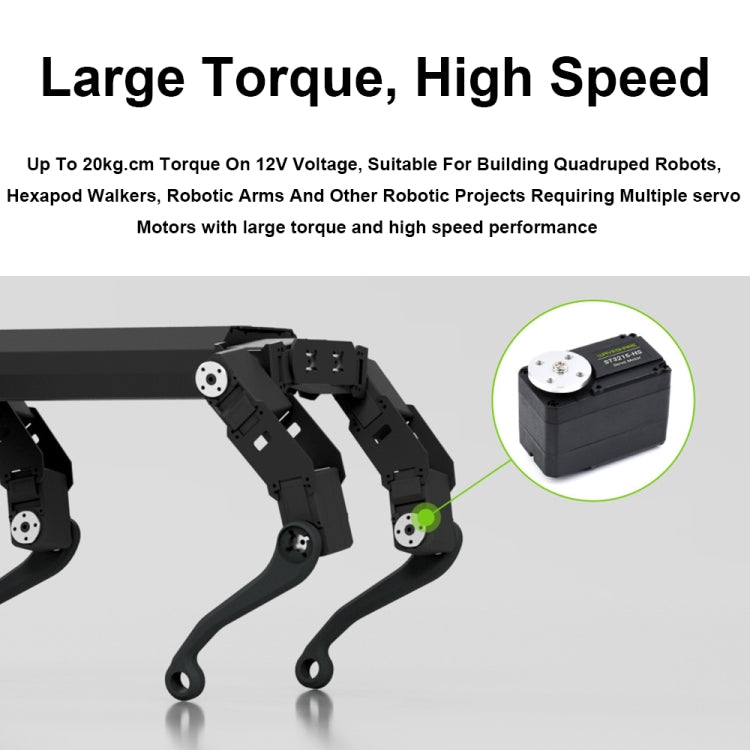

- Torque: 20 kg.cm @ 12V
- Rotation angle: 360 degrees (0-4095)
- Position sensor resolution: 360 degrees / 4096
- Mechanism limit angle: None
- Working voltage: 6-12.6V

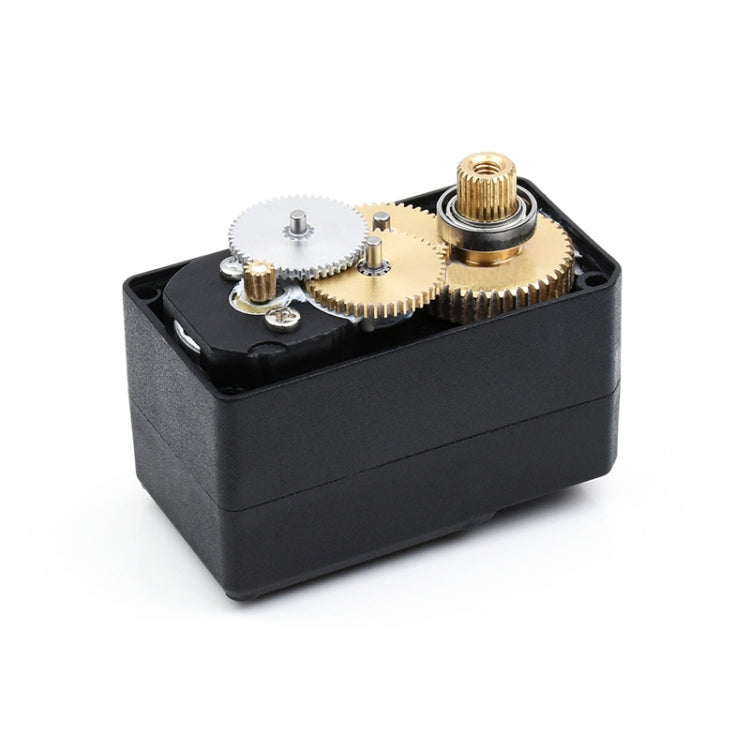

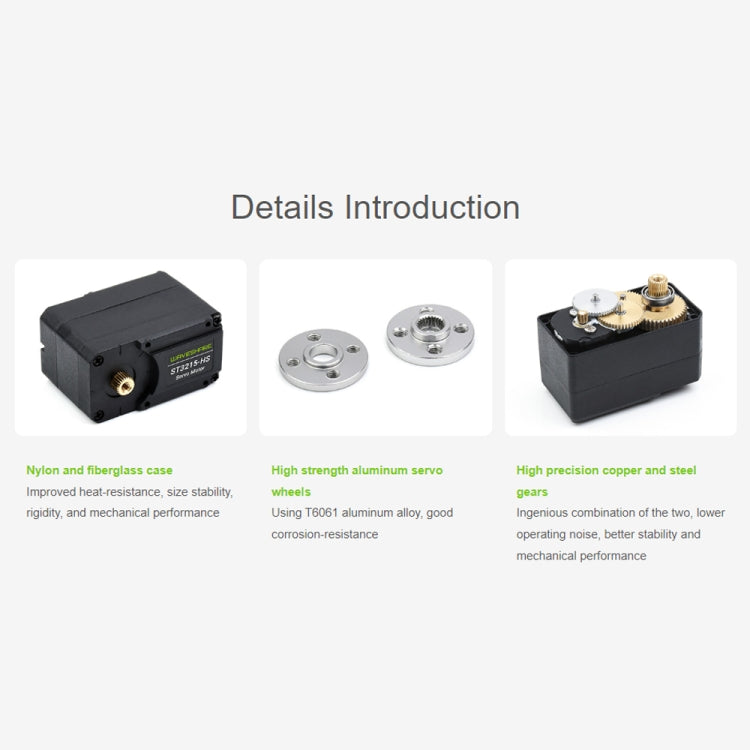

- Gear form: High-precision metal gear
- No-load speed: 0.094 sec/60 degrees (106 RPM)

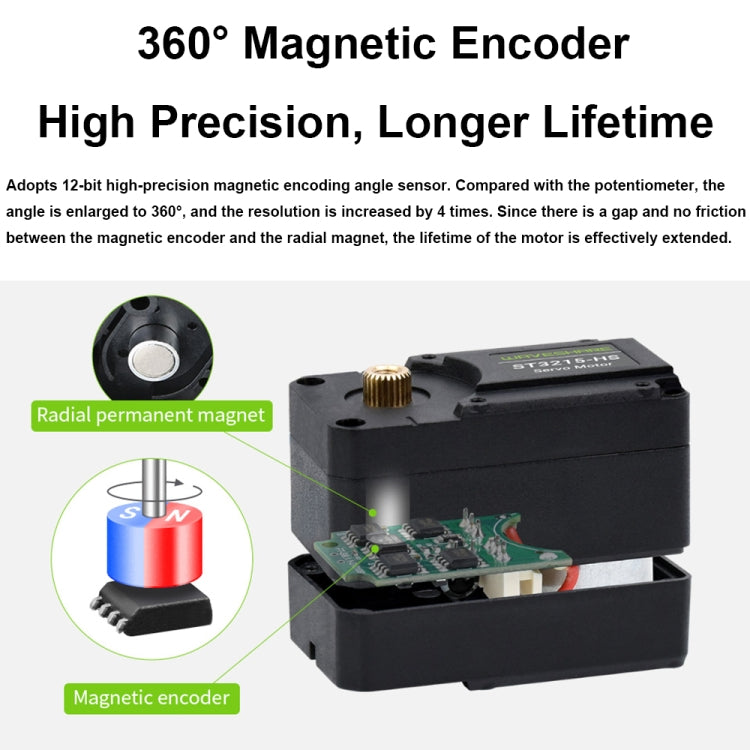

- Encoder type: 360-degree magnetic encoder

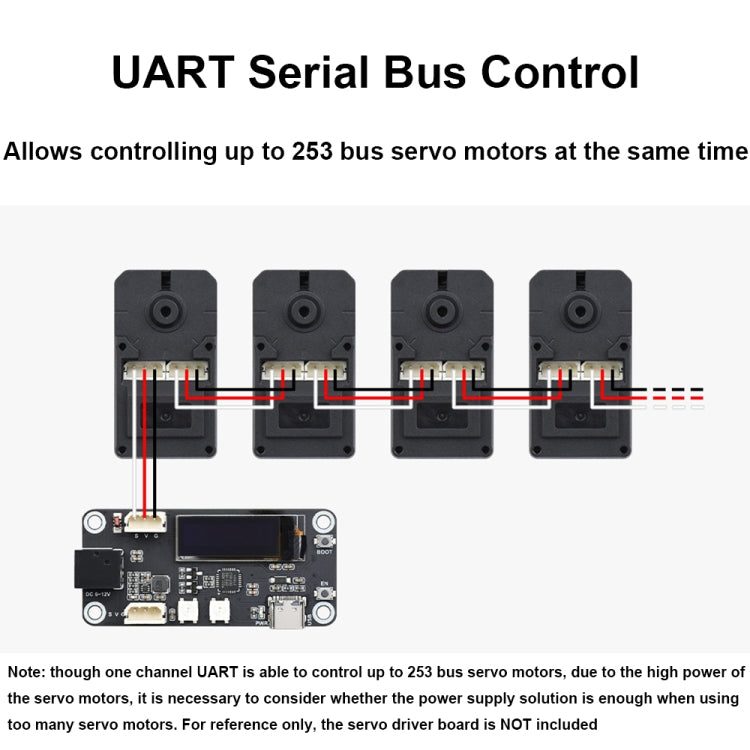

- ID range: 1-253
- Baud rate: 38400 bps - 1 Mbps (default 1 Mbps)

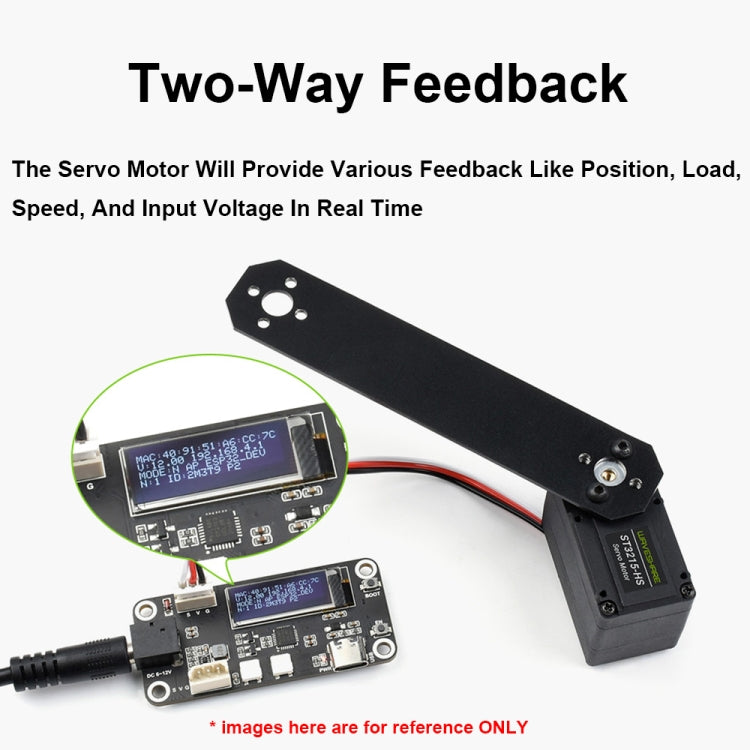

- Feedback: Position, Load, Speed, Input Voltage
- No-load current: 240 mA
- Stall current: 2.4 A
- Kt constant: 8.3 kg.cm/A

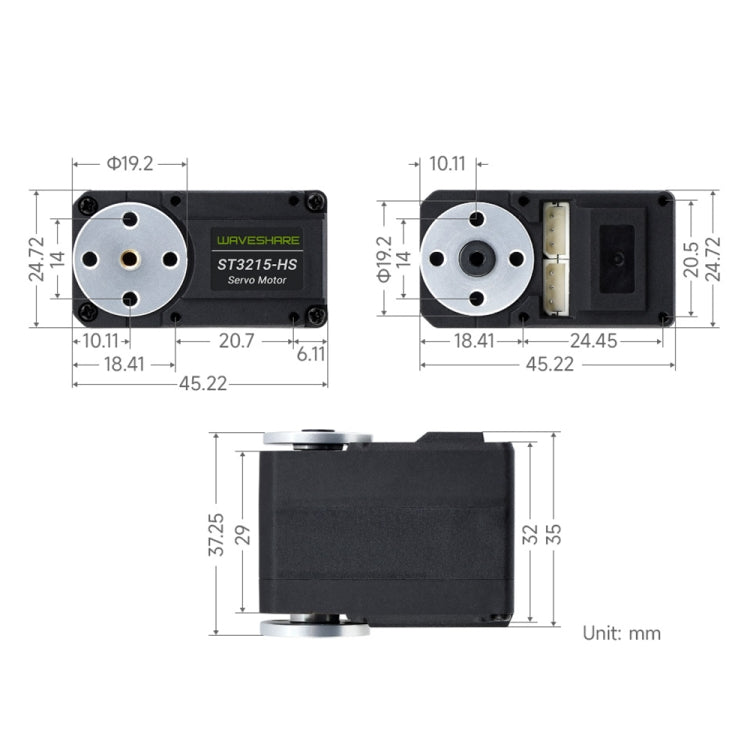

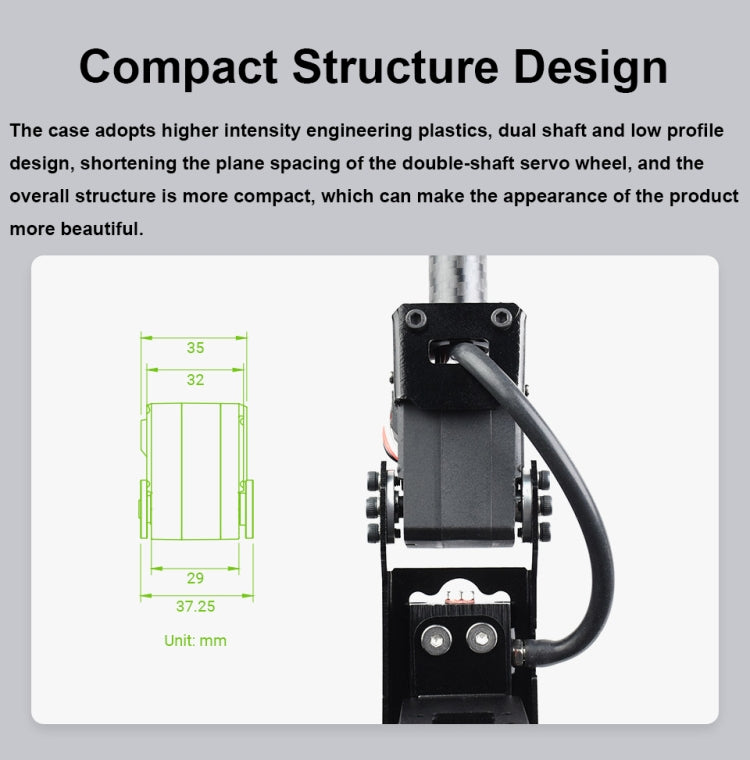

- Product size: 45.22 x 37.25 x 24.72 mm
