Product details
Description

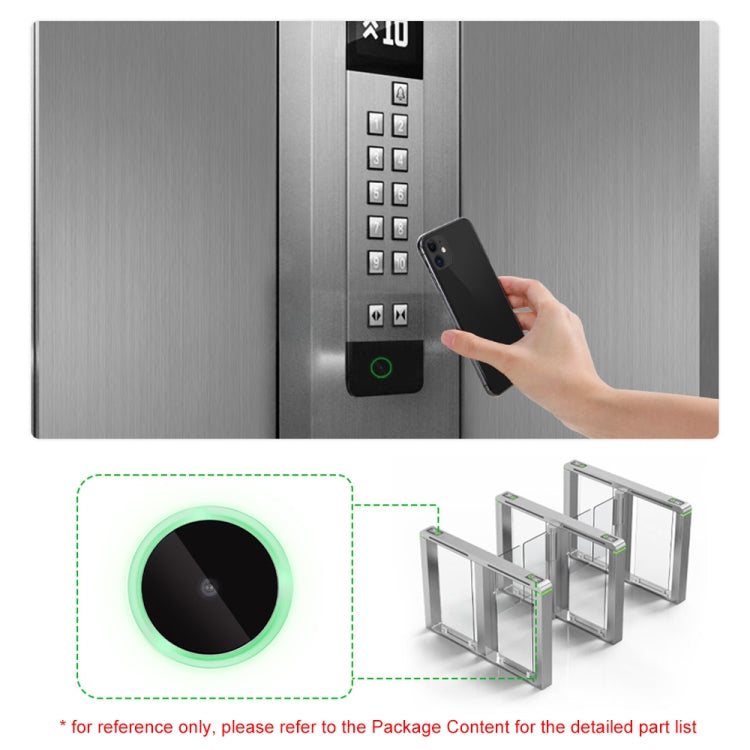

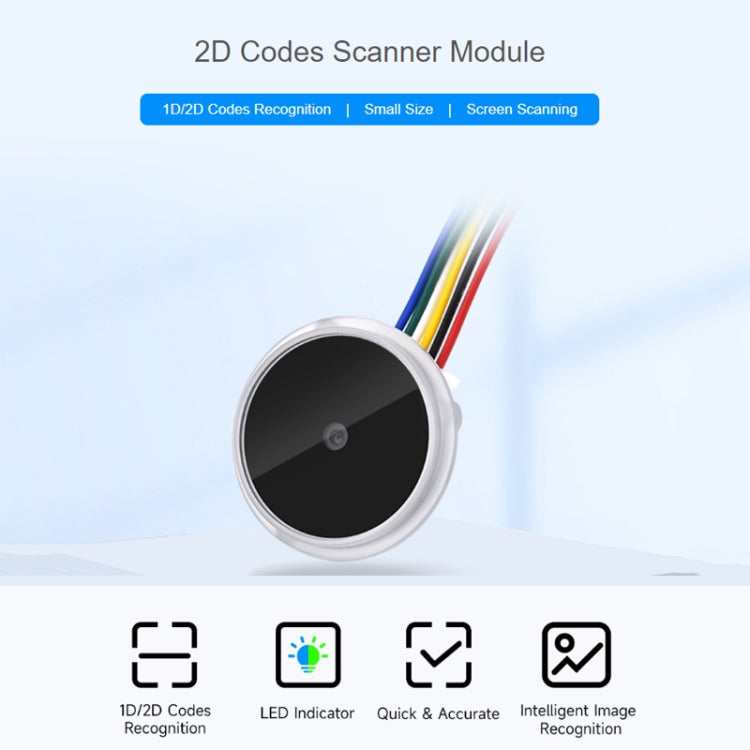

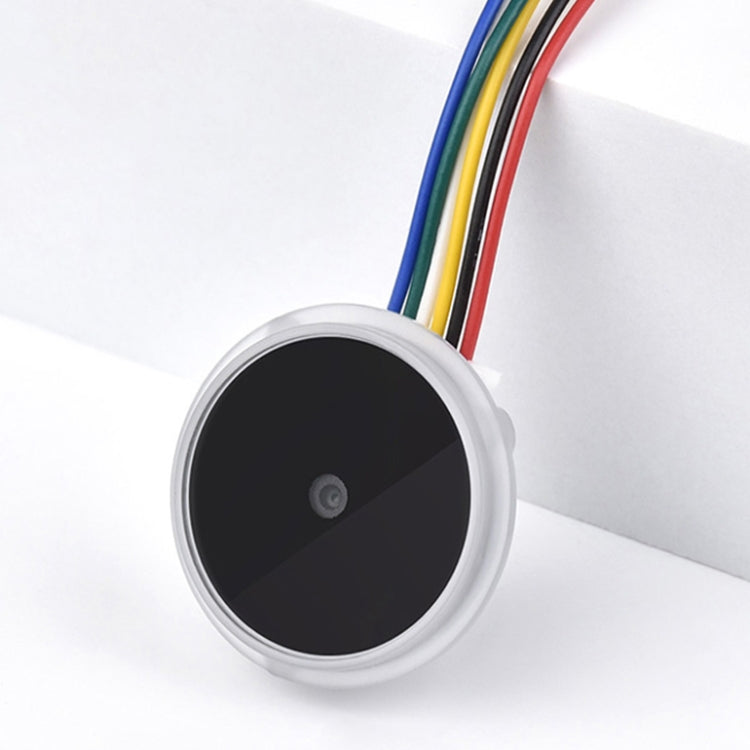

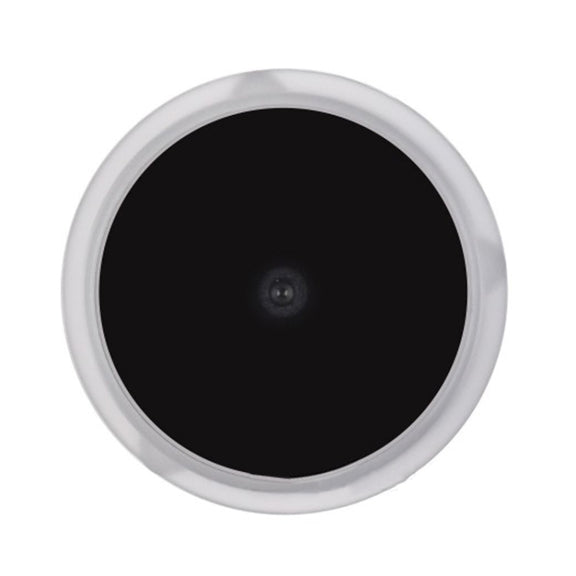

The Waveshare 25515 Round 2D Codes Scanner Module is a barcode and QR code reader designed for everyday use. It is suitable for applications such as elevator systems where accurate code scanning is essential.
- Product Type: Module
- Compatibility: Barcode/QR Code Reader
- Material: Not specified
- Key Feature: Advanced image recognition
- Color/Variant: Not specified
- Intended Use: Everyday use
- Resolution: 640 x 480
- Scanning Angle: Horizontal 70 degrees, Vertical 55 degrees, Rolling 360 degrees
- Scan Mode: Induction, Continuous
- Accuracy: One-dimensional code ≥ 5mil, Two-dimensional code ≥ 10mil

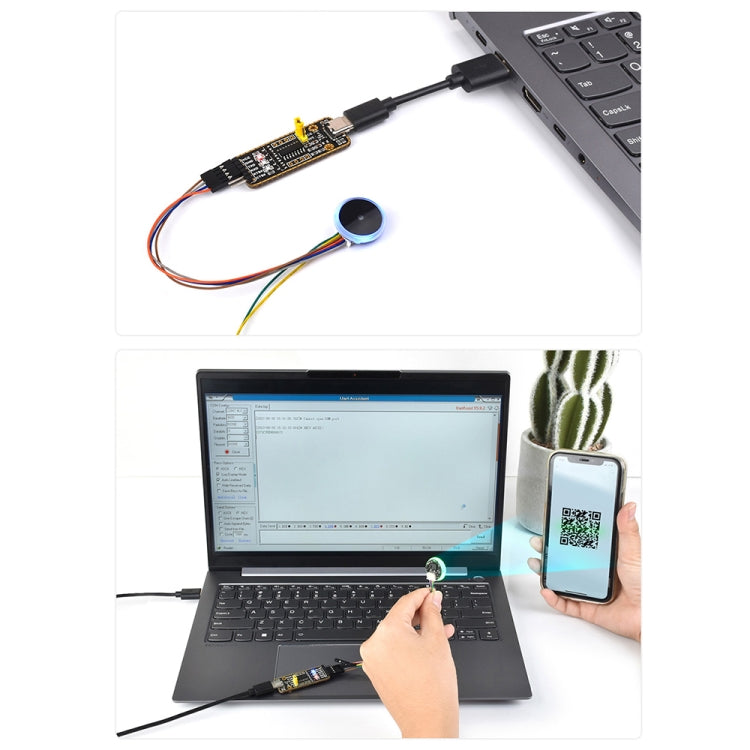

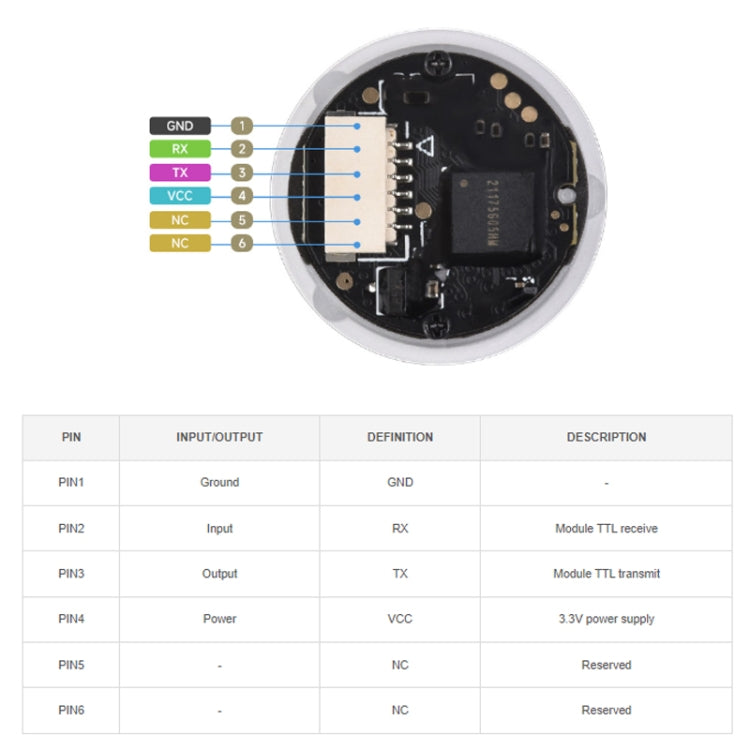

- Communication Interface: UART port (default 9600 8N1)

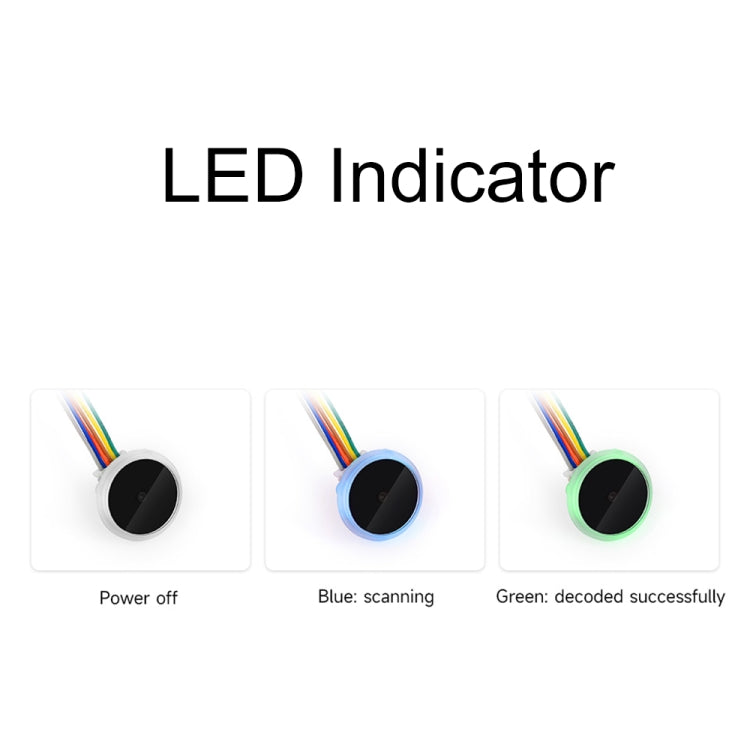

- LED Indicator: Blue (Scan), Green (Decoding successful)
- Power Supply: 3.3V
- Current: 120mA
- Security Protection: Electrostatic protection: contact discharge 6 kV, air discharge ±12KV; IP protection: IP54 (front)
- Operating Temperature: -30 to 70 degrees Celsius
- Storage Temperature: -40 to 80 degrees Celsius
- Working Humidity: 5%RH-95%RH (non-condensing)

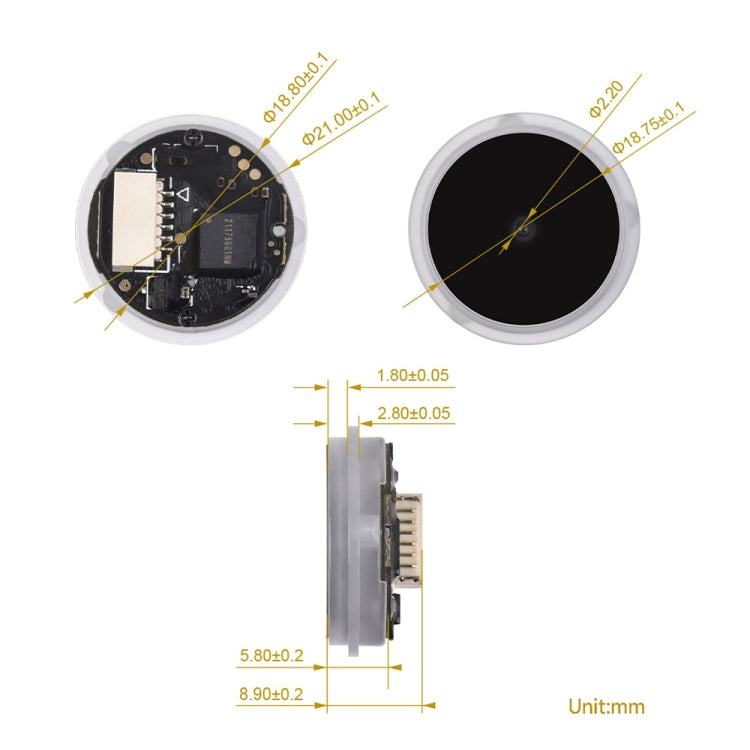

- Product Size: 21 x 21 x 8.9mm

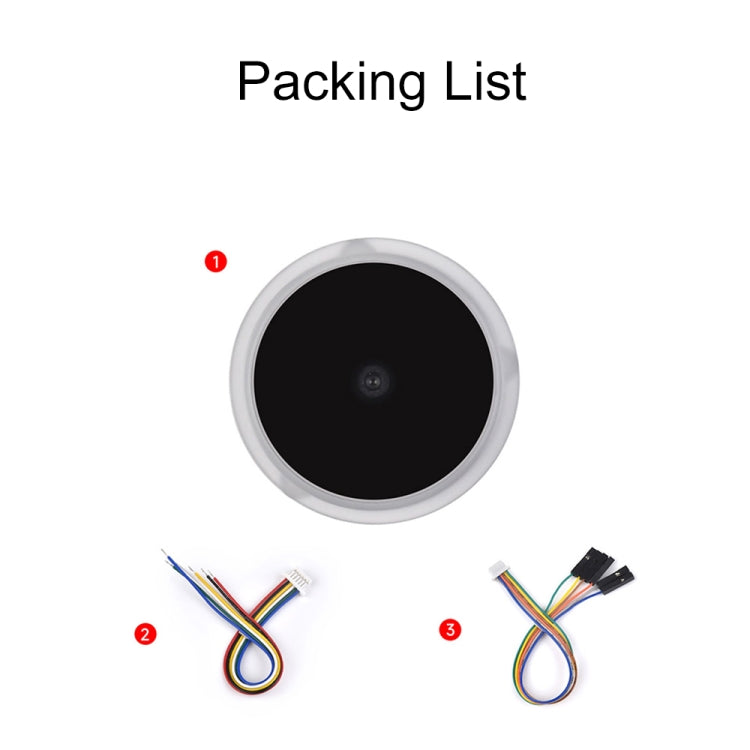

- Packing List: Barcode scanning module (D) x 1, 6PIN cable without header x 1, 6PIN cable x 1
