Product details
Description
The Waveshare 4-DOF Metal Robot Arm Kit is designed for use with micro:bit and enables Bluetooth control. It is suitable for robotics exploration and includes essential components for assembly and operation.
- Product Type: Modules Expansions Accessories
- Compatibility: micro:bit
- Material: Metal
- Key Feature: Bluetooth control
- Intended Use: Robotics exploration
- Servo Driver Specifications:
- Micro:bit edge connector, directly pluggable
- I2C controlled, using only 2 pins
- Up to 16-Channel servo/PWM outputs, 12-bit resolution (4096 scales)
- Integrates 5V regulator, up to 3A output current, powered from battery through VIN terminal
- Standard servo interface, supports common servos (SG90, MG90S, MG996R)
- Reserved I2C control pins for compatibility with other control boards
- Includes development resources and manual with graphical examples
- Robot Arm Structure Specifications:
- 4-DOF with large solid base and metal mechanical grasper
- Full aluminium alloy body with sandblasting oxidation surface
- Clever mechanical structure and mounting design for agile control
- Fitted with 4x metal gear servos (1x MG996R, 3x MG90S) for large torque and smooth movement

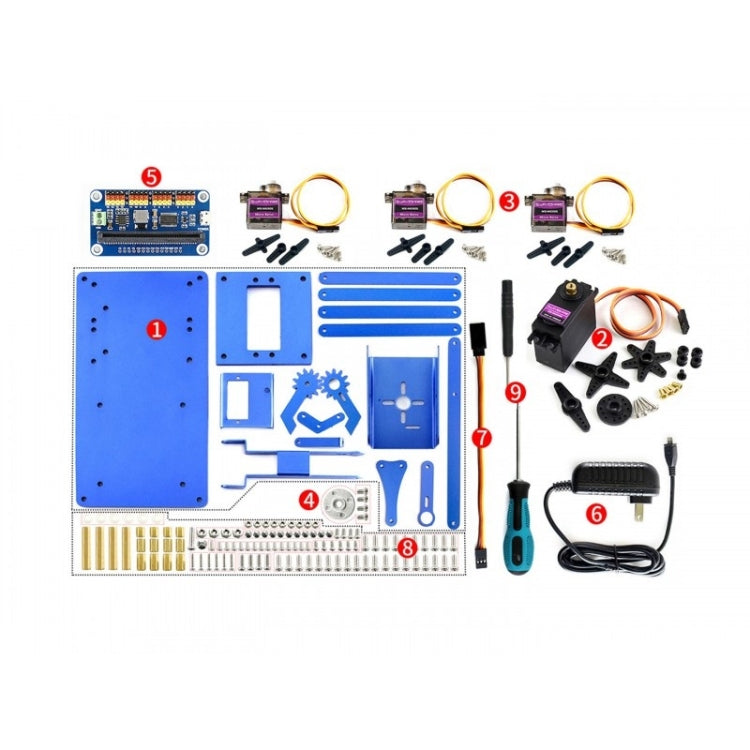

- Package Includes:
- Metal arm parts x12
- MG996R Servo x1
- MG90S Servo x3
- MG996R servo wheel x1
- Servo Driver for micro:bit x1
- Power adapter US plug 5V 3A Micro x1
- Servo extension wire 150mm x1
- Screws pack x1
- Screwdrivers 2PCS x1
