Product details
Description

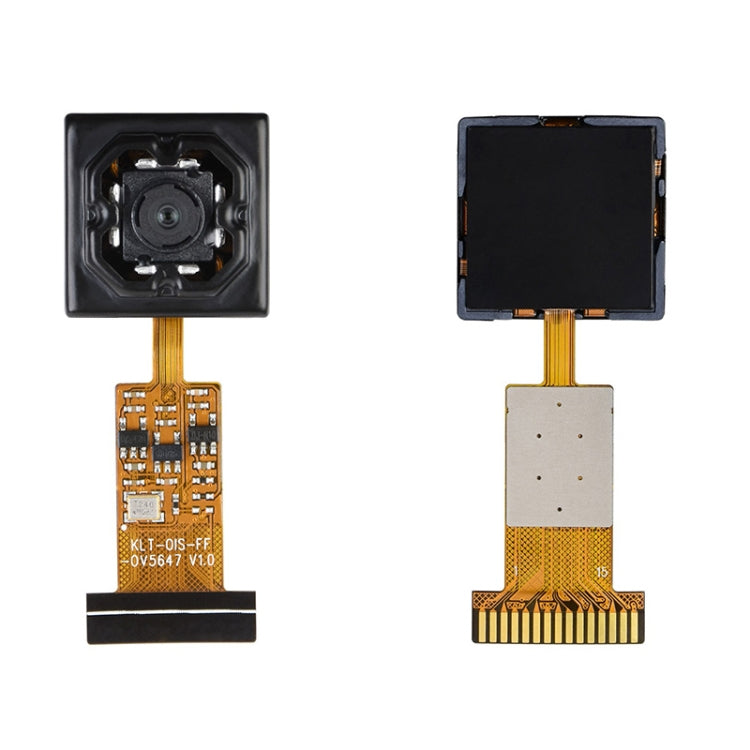

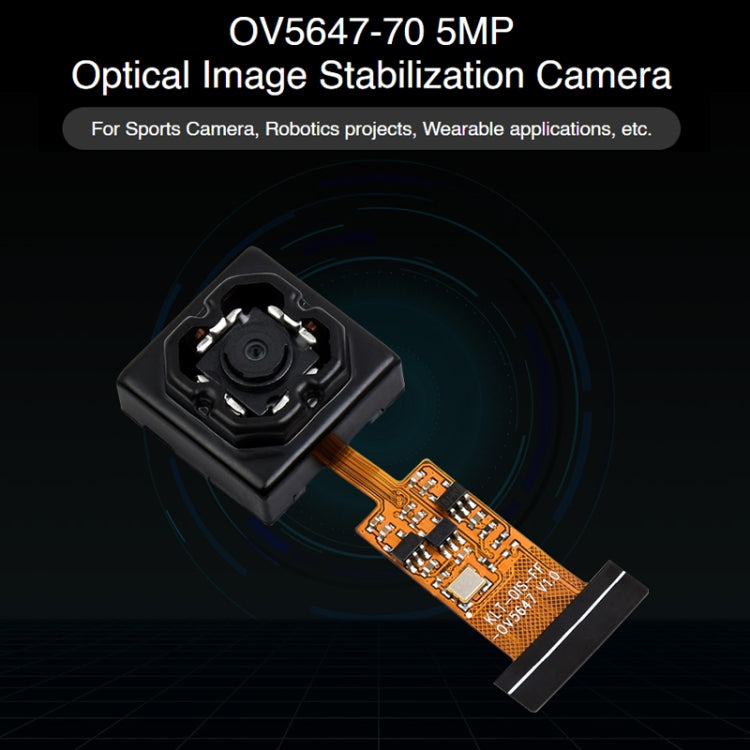

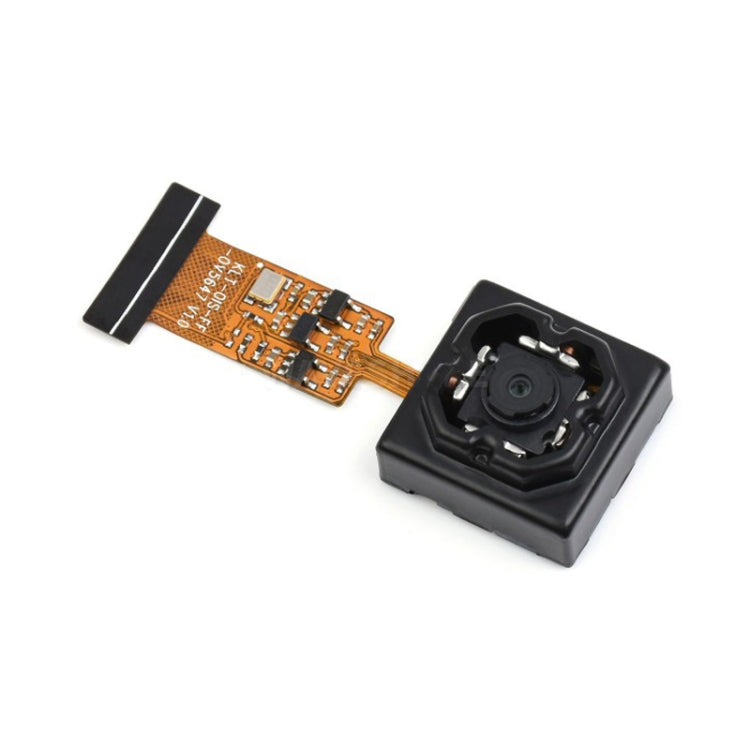

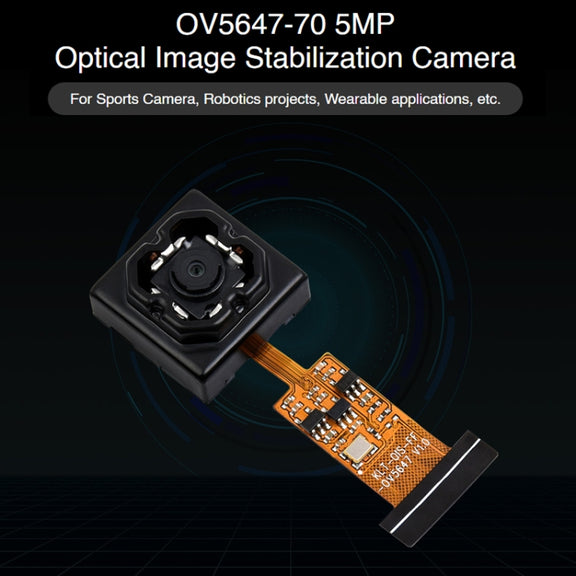

The Waveshare 5MP OV5647 Optical Image Stabilization Camera Module is a MIPI_CSI camera designed for Raspberry Pi and Sunrise X3 Pi. It is suitable for applications such as motion cameras, robots, and wearables.
- Product Type: Camera Module

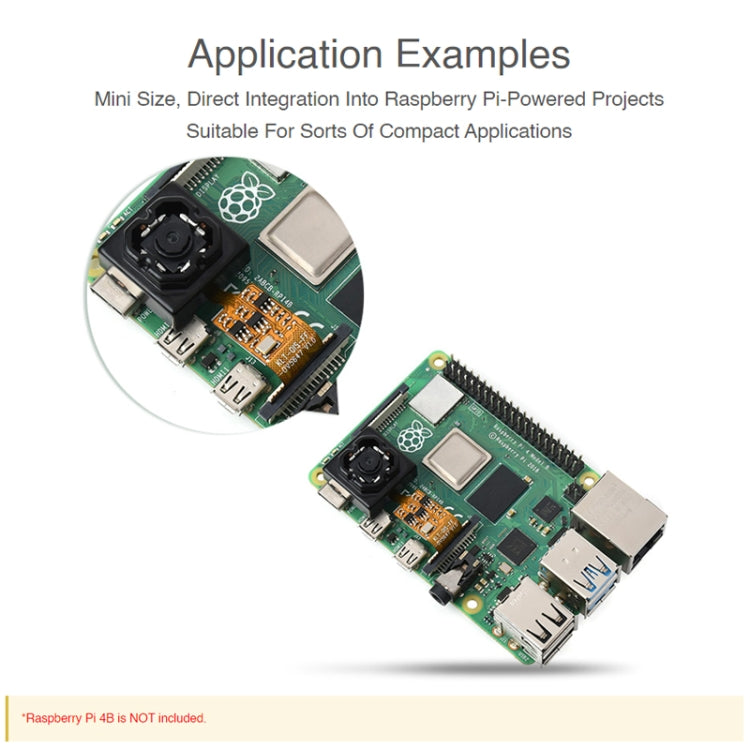

- Compatibility: Raspberry Pi, Sunrise X3 Pi
- Sensor: OV5647
- CMOS Size: 1/4 inch
- Pixel Resolution: 5MP
- Aperture: F 2.8
- Focal Length: 3.2mm
- Angle of View: 70 degrees
- Stabilization Type: Optical Image Stabilization (OIS)
- Focusing: Fixed focus
- Distortion: Less than 1.0%

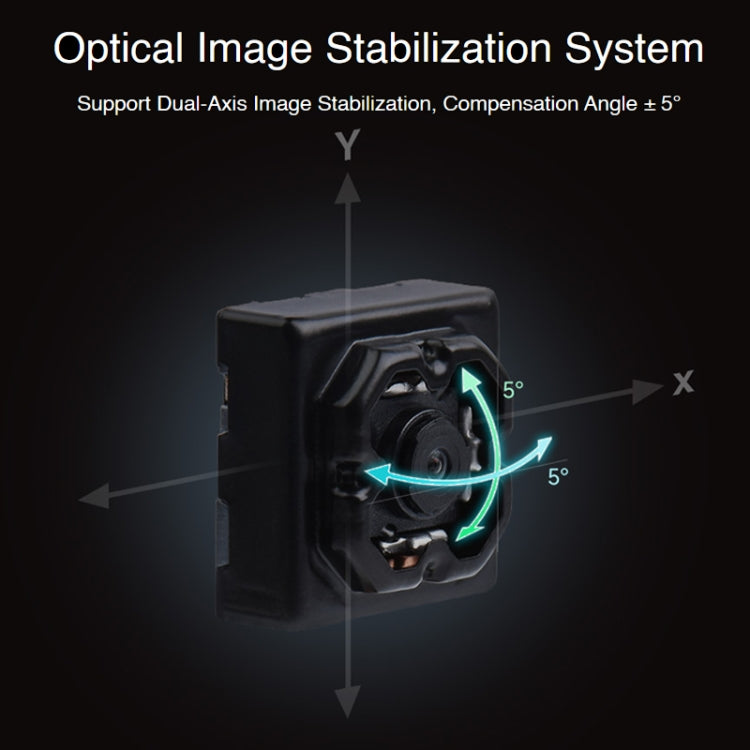

- Stabilization Range: XY axis +/- 5 degrees
- Image Resolution: 2592 x 1944 (still image)
- Video Recording Resolutions: 1920 x 1080p at 30fps, 1280 x 720p at 60fps, 640 x 480p at 60fps, 640 x 480p at 90fps
