Product details
Description

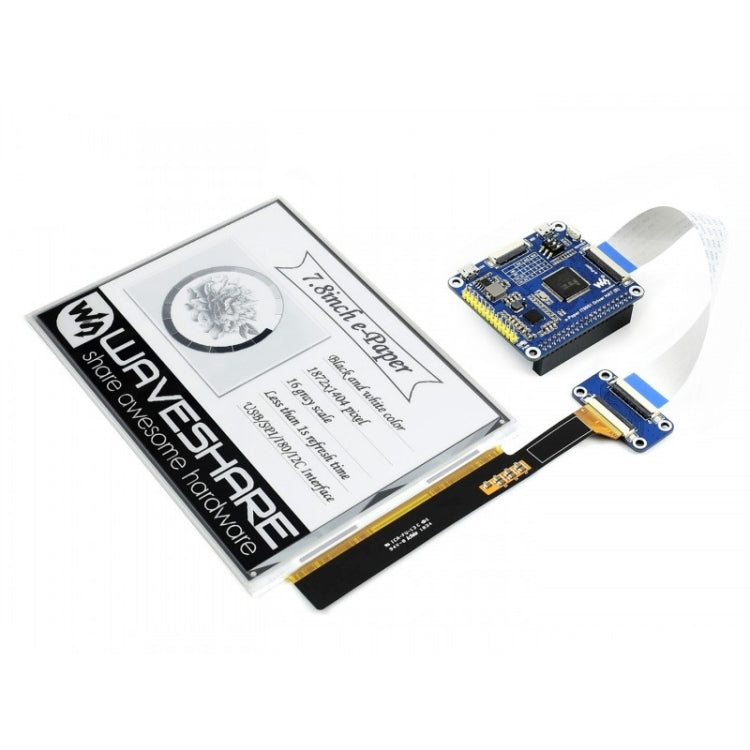

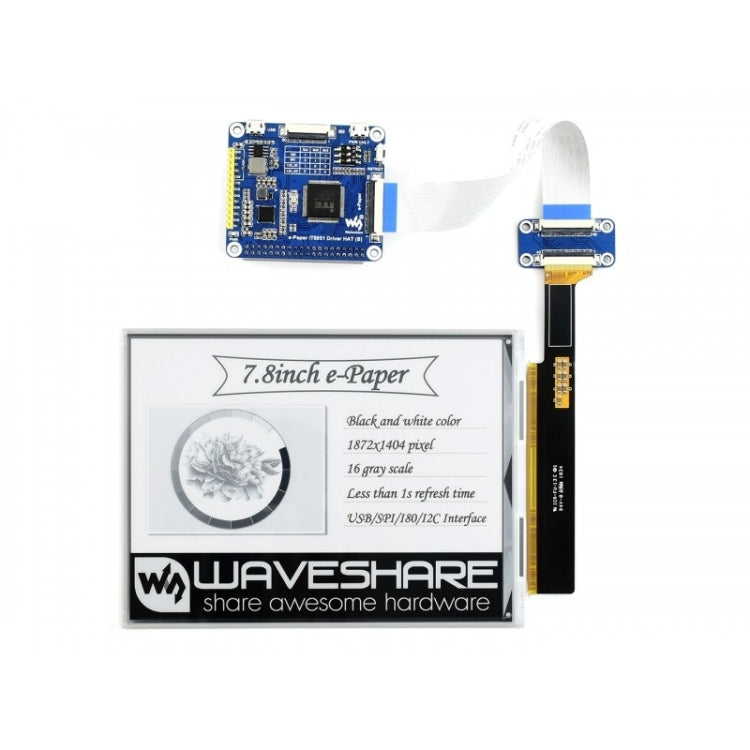

The Waveshare 7.8 inch E-Ink Display HAT is designed for Raspberry Pi applications. It is suitable for use in e-book readers and industrial instruments due to its low power consumption and clear display capabilities.
- Product Type: E-Ink Display HAT
- Compatibility: Raspberry Pi
- Material: Not specified
- Color: Black, White
- Operating Voltage: 5V
- Interface: USB/SPI/I80/I2C
- Outline Dimensions: 173.8mm x 127.6mm x 0.78mm
- Display Size: 158.184mm x 118.638mm
- Dot Pitch: 0.0845mm x 0.0845mm
- Resolution: 1872 x 1404
- Display Color: Black, White
- Gray Scale: 2-16 (1-4 bit)
- Full Refresh Time: 450ms
- Total Refresh Power: 1.2W (typical)
- Total Standby Power: 0.1W (typical)
- Viewing Angle: >170 degrees
- Weight: 77g

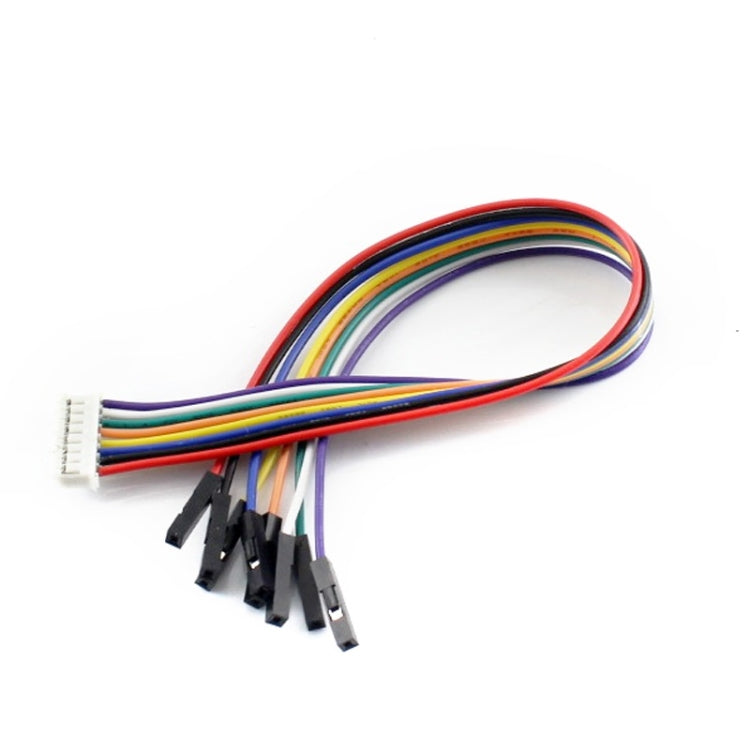

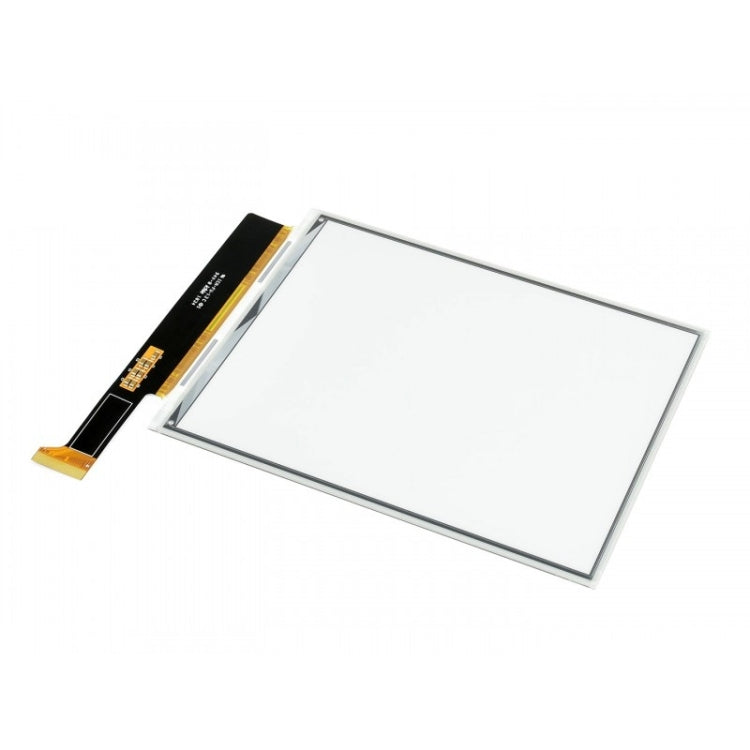

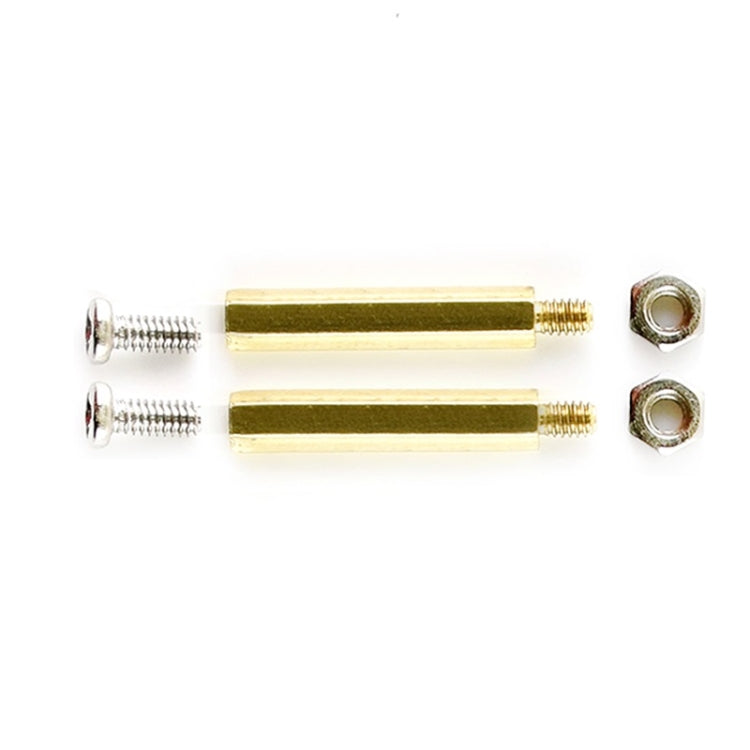

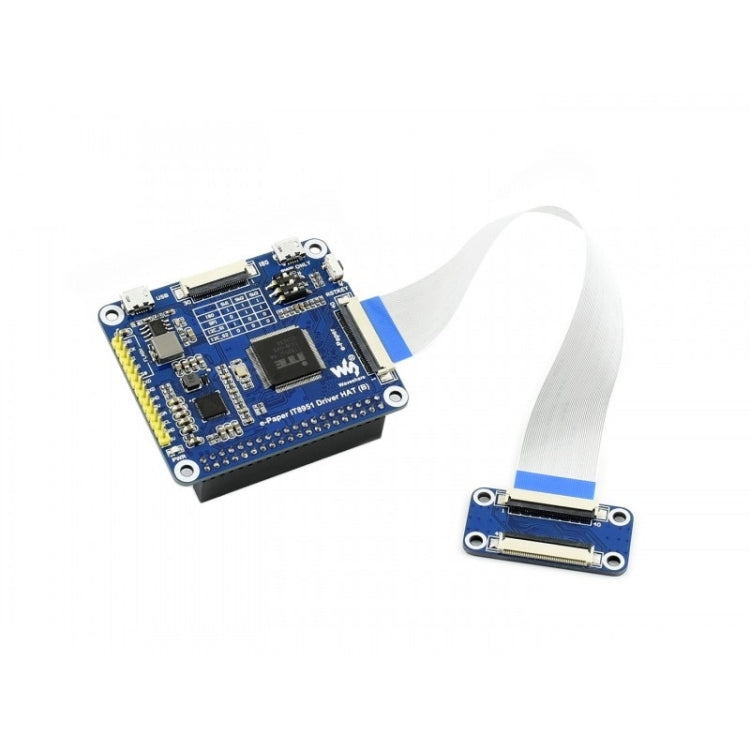

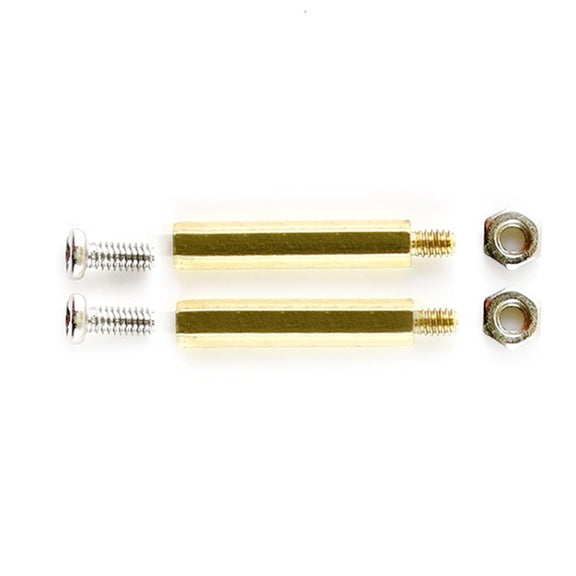

- Packing List: 7.8 inch e-Paper x1, e-Paper IT8951 Driver HAT (B) x1, 7.8 inch e-Paper Adapter x1, 33PIN FFC (same side contact) x1, USB type A plug to micro B plug cable x2, PH2.0 20cm 8Pin x1, RPi screws pack (2pcs) x1
