Product details
Description

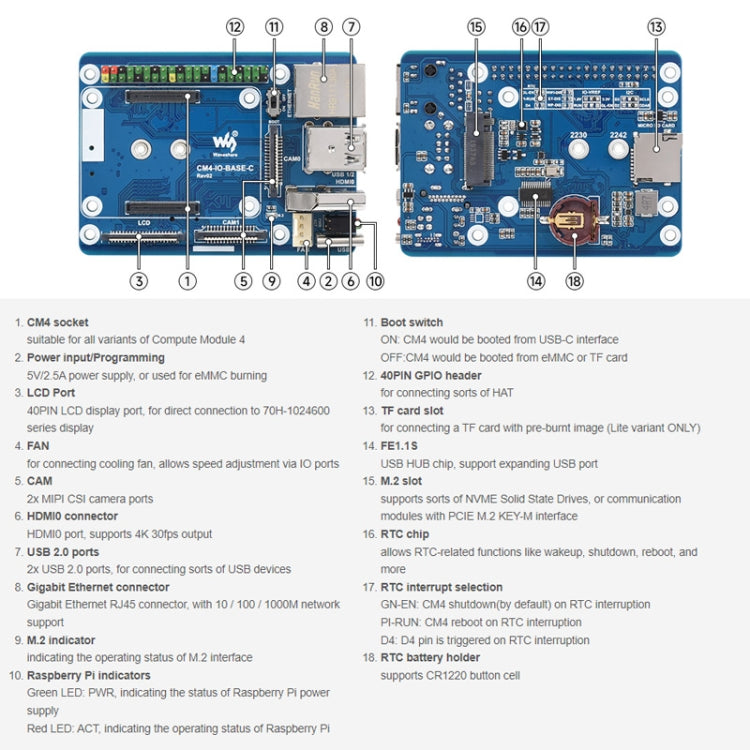

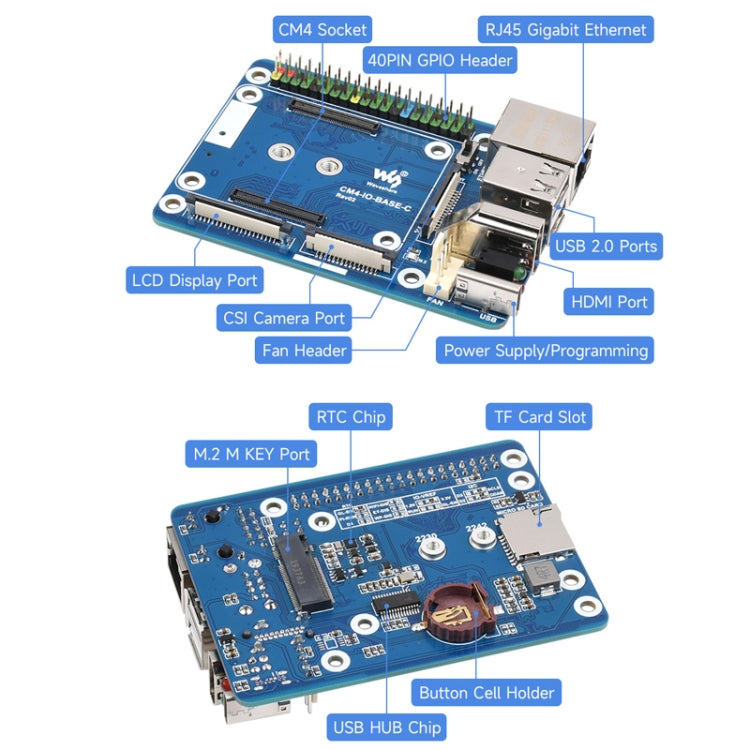

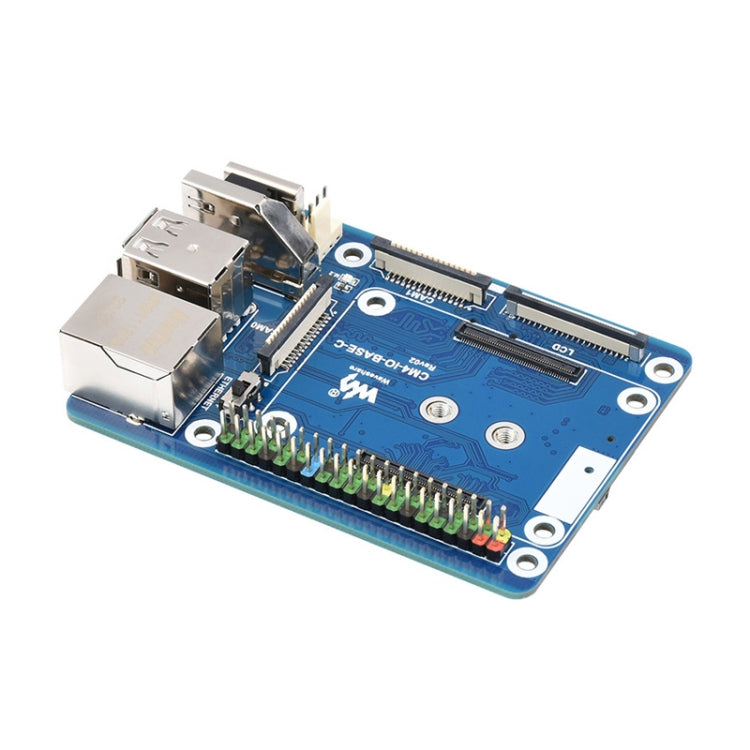

The Waveshare CM4-IO-BASE-C is a mini base board designed for the Raspberry Pi Compute Module 4. It provides multiple connectivity options for various applications, including networking and display capabilities.
- Product Type: Mini base board
- Compatibility: Raspberry Pi Compute Module 4
- Network: Gigabit Ethernet RJ45 connector
- Connectors:

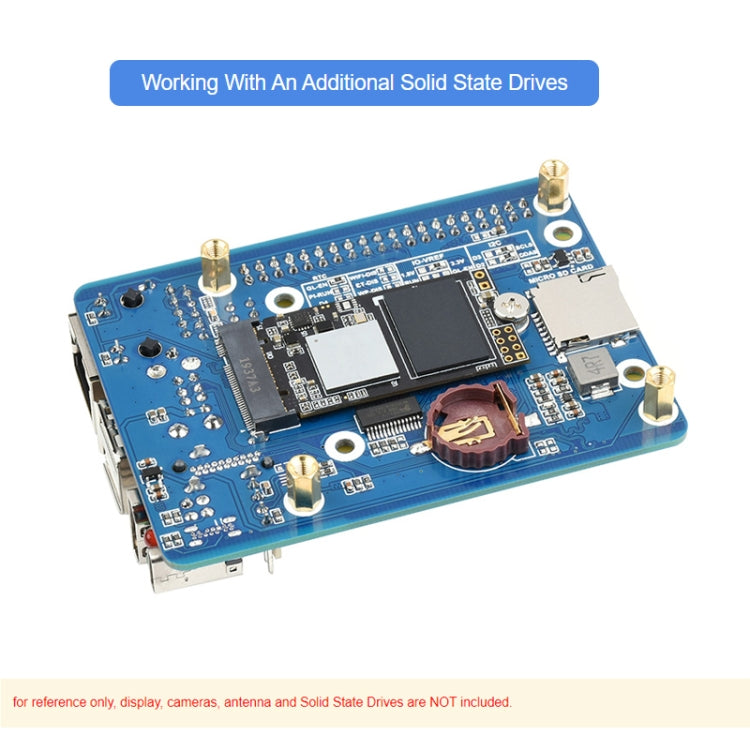

- M.2 M KEY for communication modules or NVME solid state drives
- Raspberry Pi 40PIN GPIO connector
- USB Ports: 2 x USB 2.0 Type A
- Display: LCD port (40pin 0.5mm FPC connector)
- Camera Ports: 2 x MIPI CSI-2 camera ports (15-pin 1.0mm FPC connector)
- Video Output: HDMI port, supports 4K 30fps output
- RTC: Real Time Clock with battery socket
- Storage: TF card socket for Compute Module 4 Lite (no eMMC)
- Fan Header: Allows speed adjustment, 5V
- Power Input: 5V

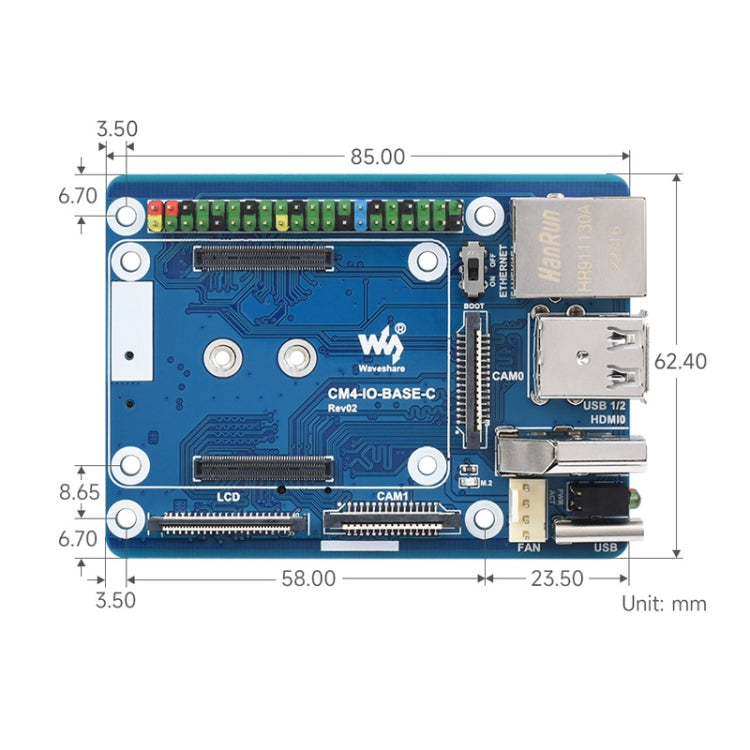

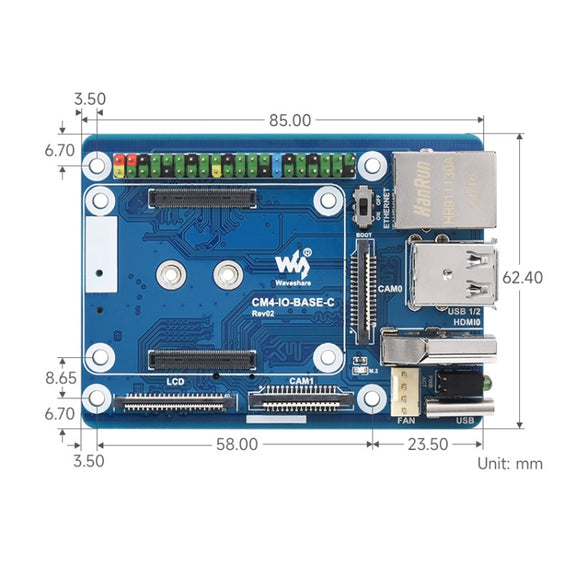

- Dimensions: Approx. 8.5 x 5.6 cm
