Product details
Description

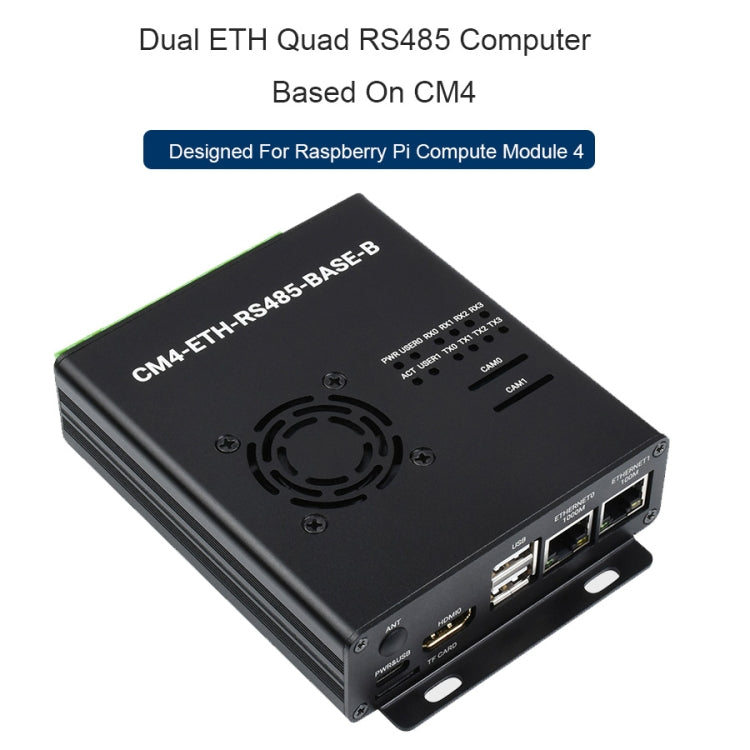

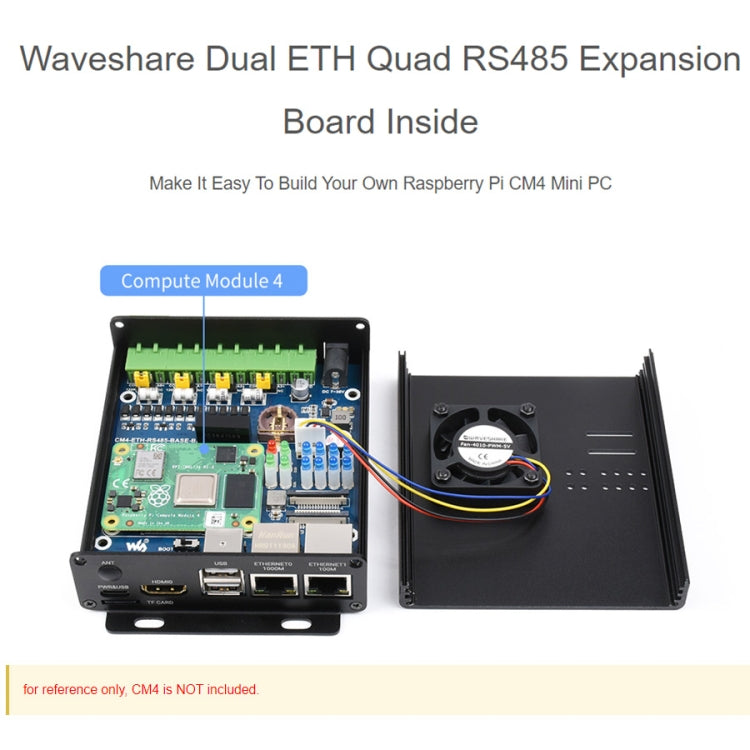

The Waveshare Dual ETH Mini-Computer is an accessory designed for the Raspberry Pi CM4. It provides dual Ethernet ports and multiple connectivity options for various applications.
- Product Type: Mini PC Accessories
- Compatibility: Raspberry Pi CM4
- Material: Metal

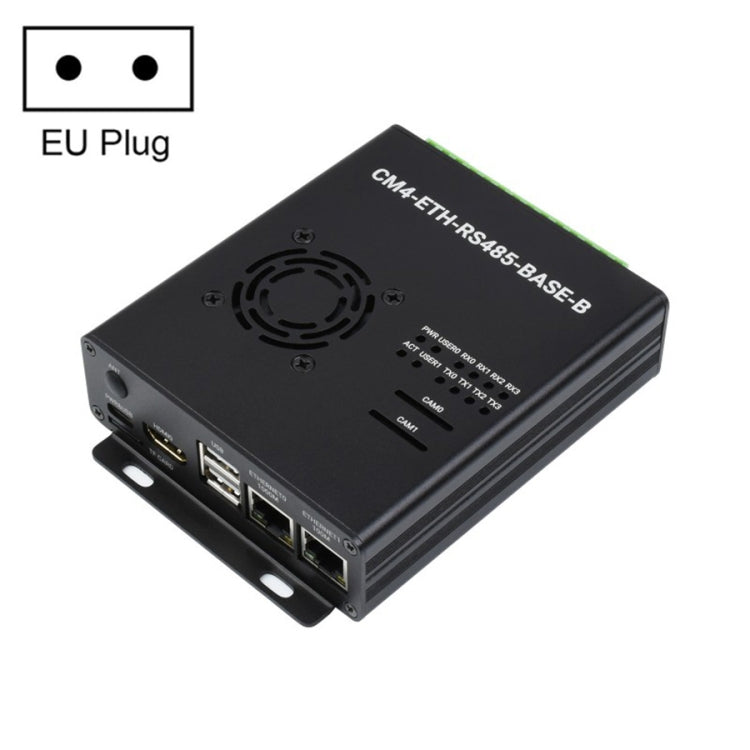

- Color/Variant: EU Plug
- Key Feature: Dual Ethernet ports

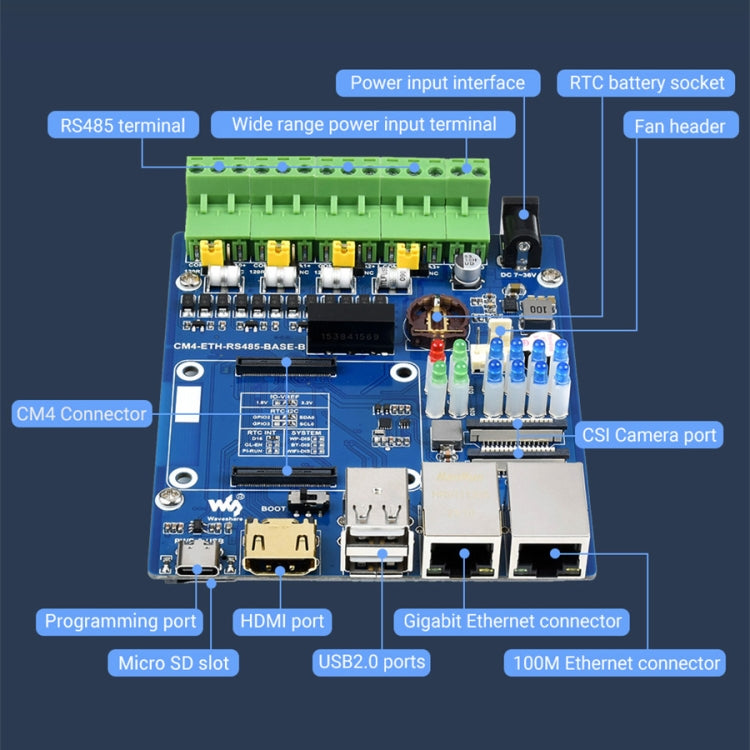

- CM4 Socket: Available on all variants of Compute Module 4

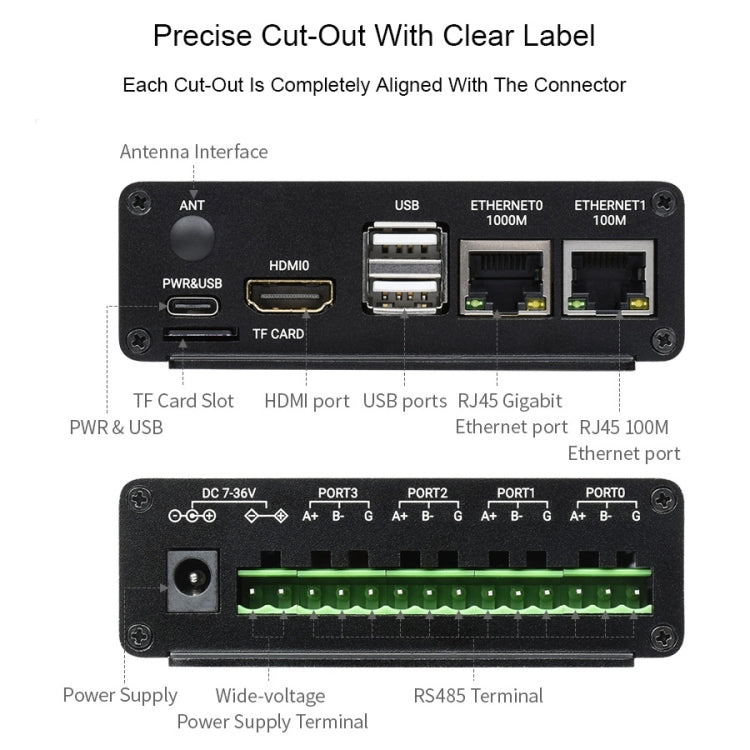

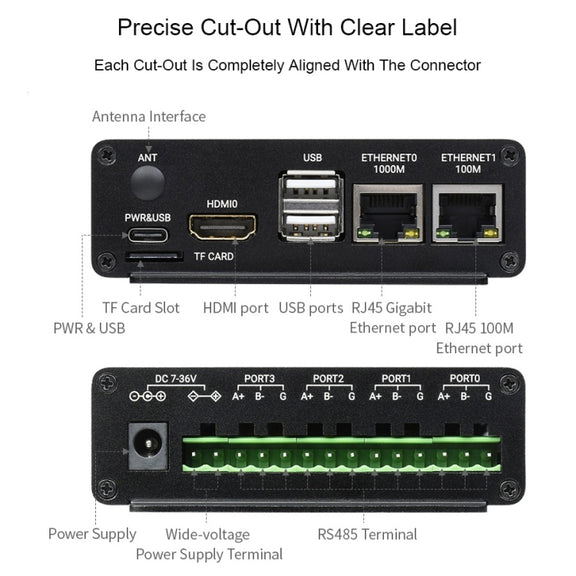

- Network: Gigabit Ethernet RJ45 connector, 100M Ethernet RJ45 connector
- USB: USB 2.0 Type A x 2
- Connector: Isolated RS485 x 4, power screw terminal x 1
- Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
- Video: HDMI interface x 1, supports 4K 30fps output
- RTC: Real Time Clock with Battery Socket and ability to wake Compute Module 4
- Storage: MicroSD card slot for Compute Module 4 Lite (no eMMC) variant

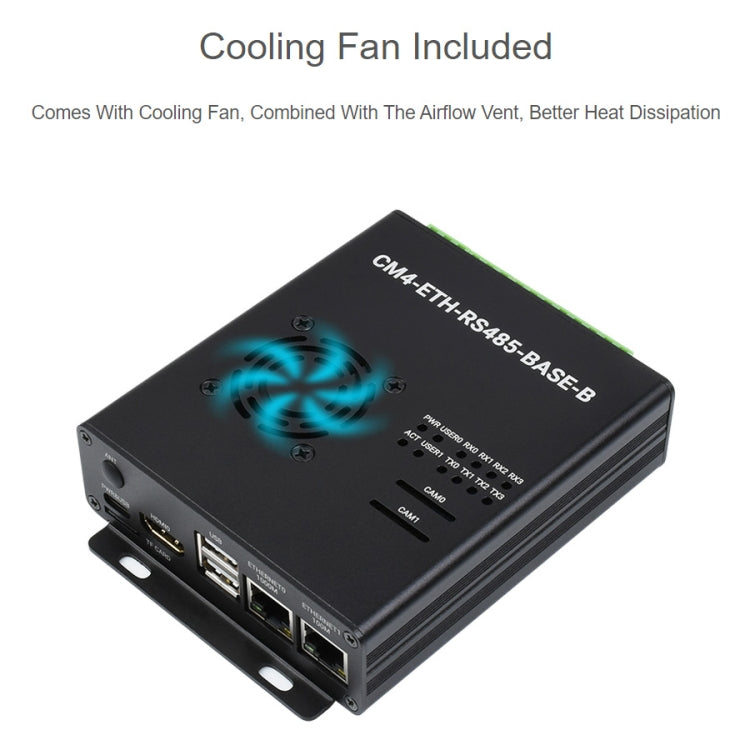

- Fan head: Allows speed adjustment, 5V
- Indicator: Power indicator x 1, CM4 status indicator x 1, User LED x 2, RS485 communication indicator x 8
- Power Input: 7-36V

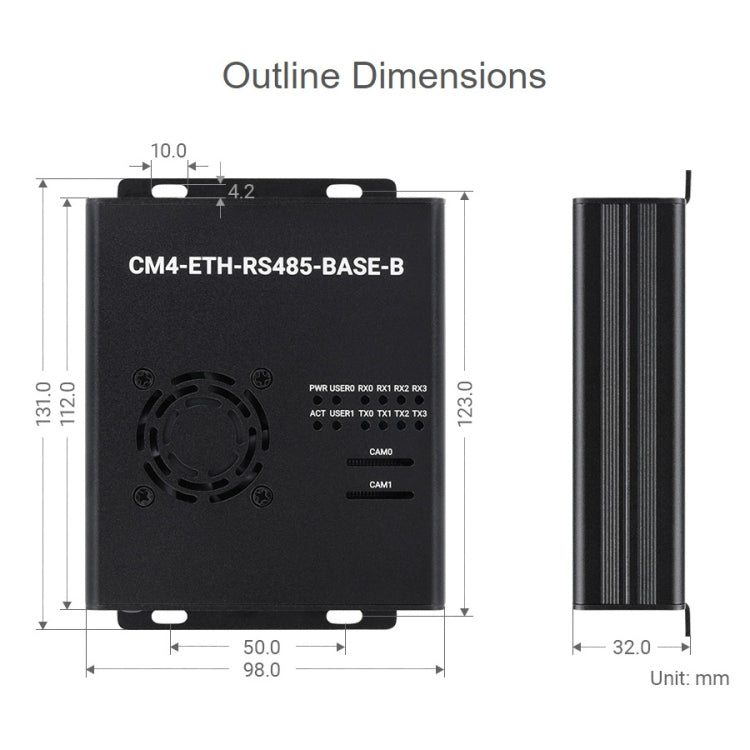

- Dimensions: 123 x 98 x 32 mm

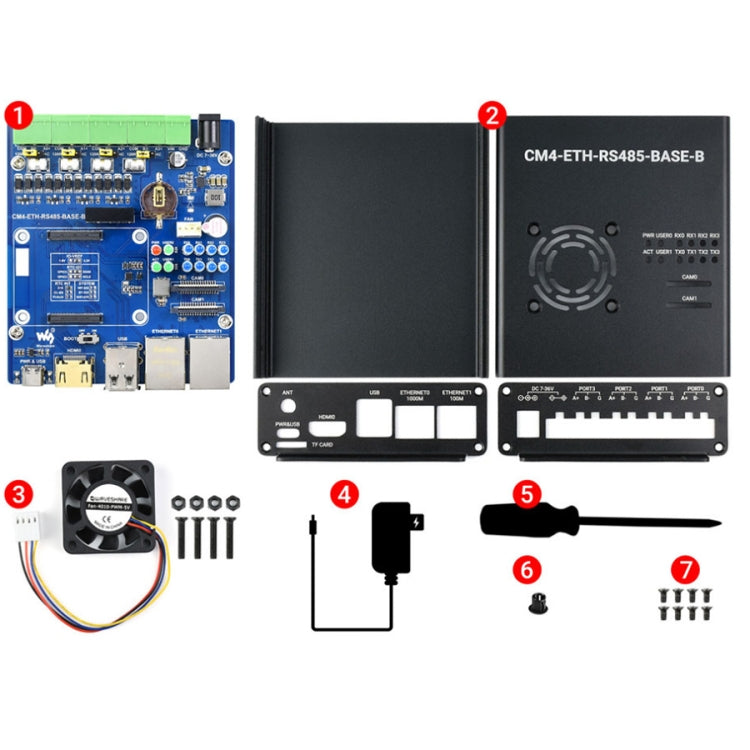

- Package List: CM4-ETH-RS485-BASE-B x 1, Metal case (top and bottom) x 1, Fan x 1, 12V 2A Power Supply x 1, Screwdriver x 1, Antenna connector rubber plug x 1, Screws pack x 1
