Product details
Description

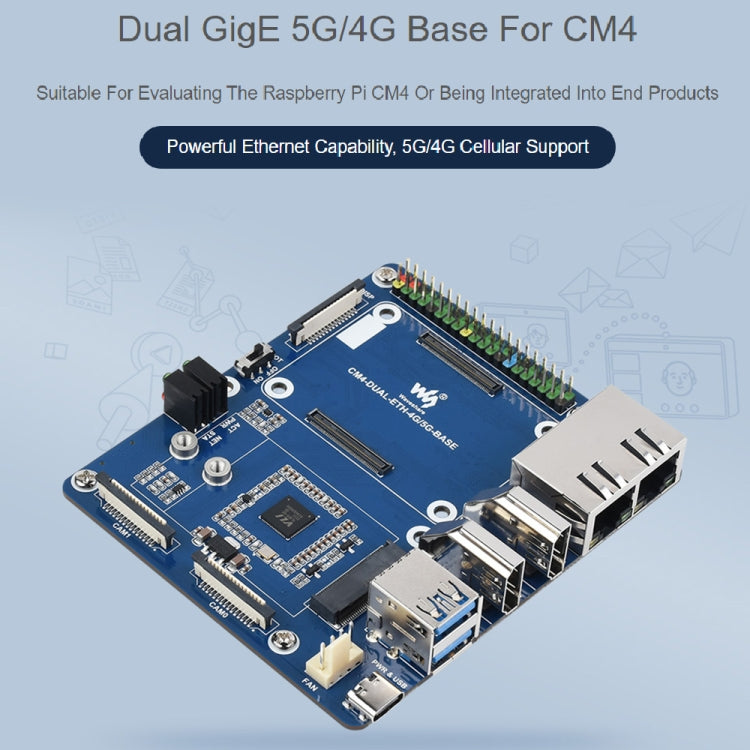

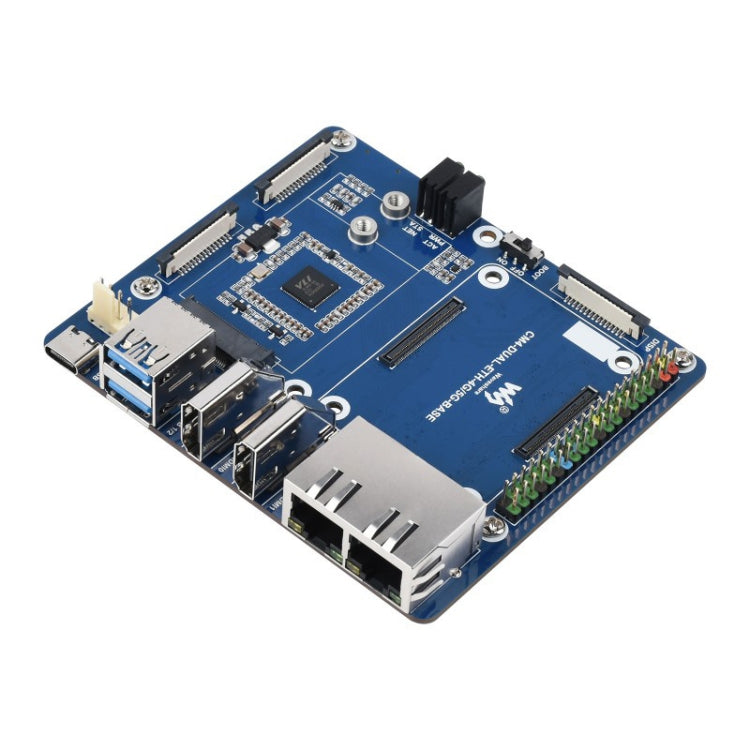

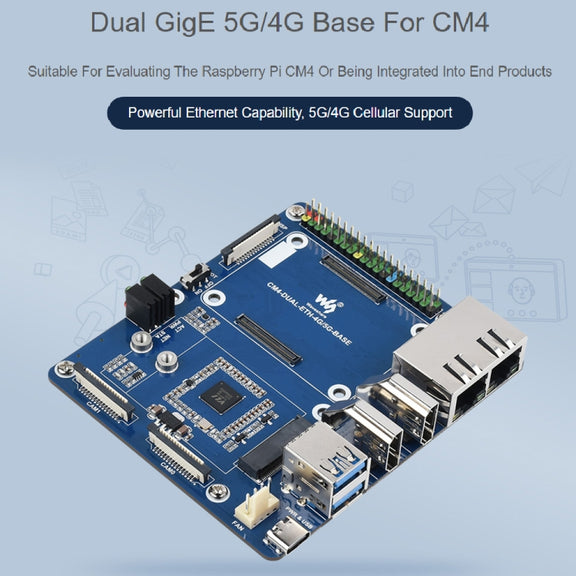

The Waveshare Dual Gigabit Ethernet 5G / 4G Base Board is designed for the Raspberry Pi Compute Module 4. It enables high-speed network connectivity and supports various communication modules.
- Product Type: Base Board
- Compatibility: Raspberry Pi CM4

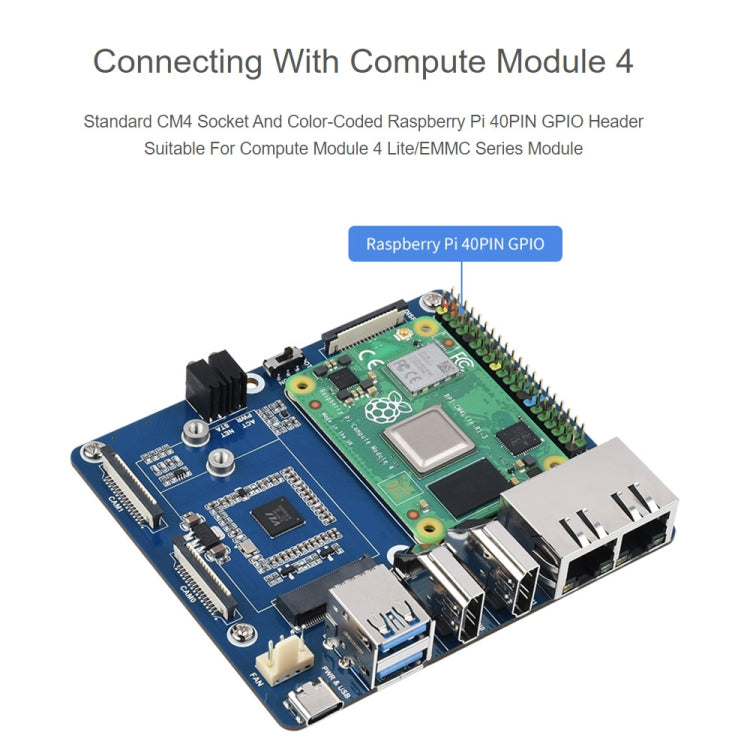

- CM4 Socket: Suitable for all variants of Compute Module 4

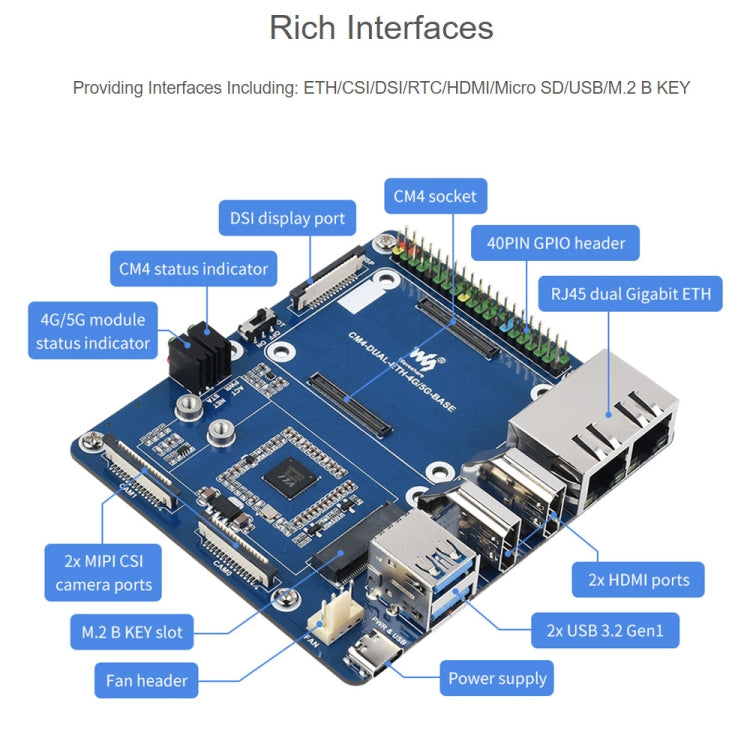

- Network:
- Dual Gigabit Ethernet RJ45
- M.2 B KEY for connecting 5G/4G module
- Nano-SIM card slot for 5G/4G/3G/2G communication
- USB: USB 3.2 Gen1 x 2
- PIN Header: Raspberry Pi 40PIN GPIO header x 15
- Display: MIPI DSI port (15pin 1.0mm FPC connector)
- Camera: MIPI CSI-2 port x 2 (15pin 1.0mm FPC connector)
- Video: HDMI x 2, supports 4K 30fps output

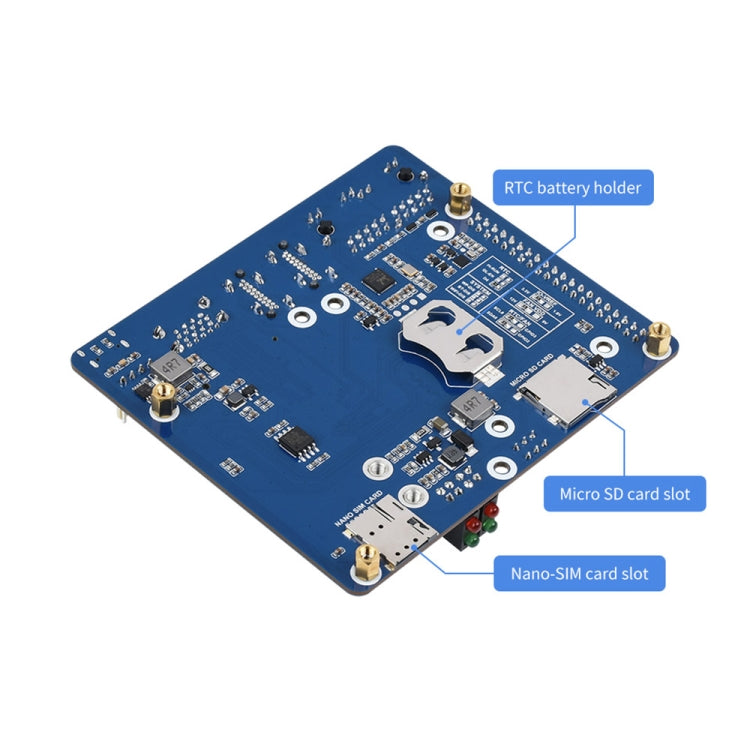

- RTC: Real-time clock with battery socket
- Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- Fan Header: 5V/12V (12V by default), allows speed adjustment and measurement
- Power Input: 5V/2.5A

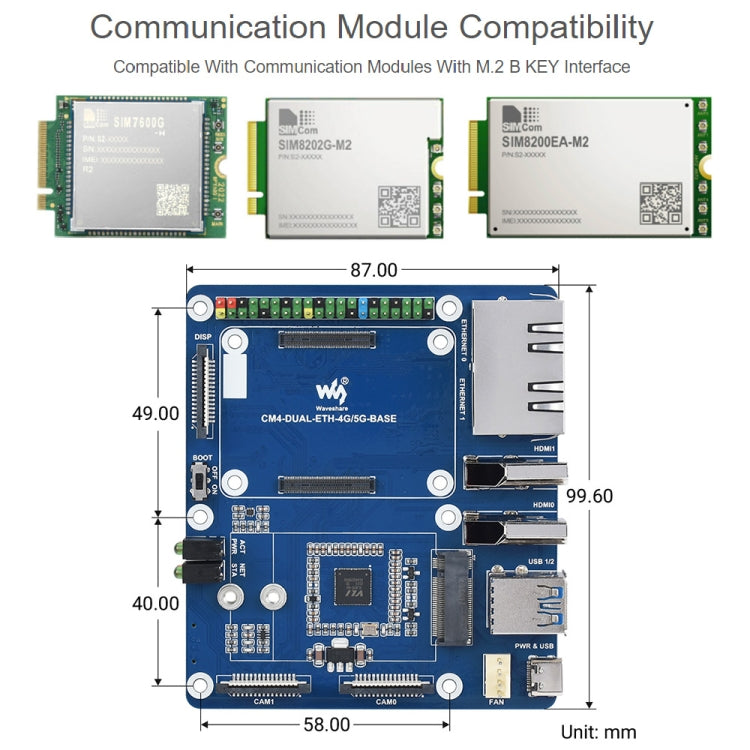

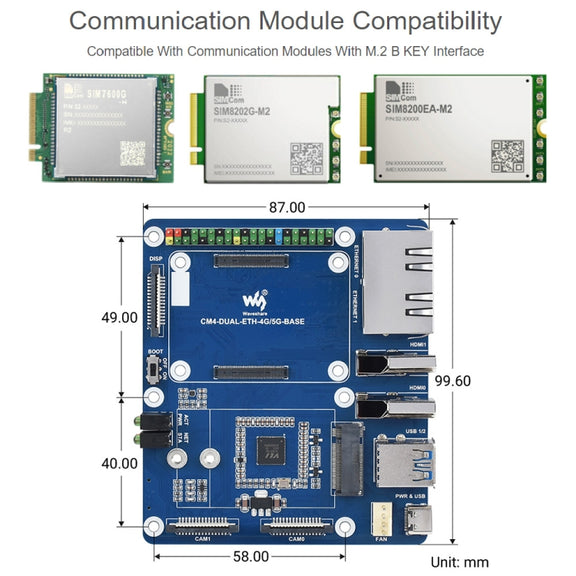

- Size: 99.6 x 87.0mm
