Product details
Description

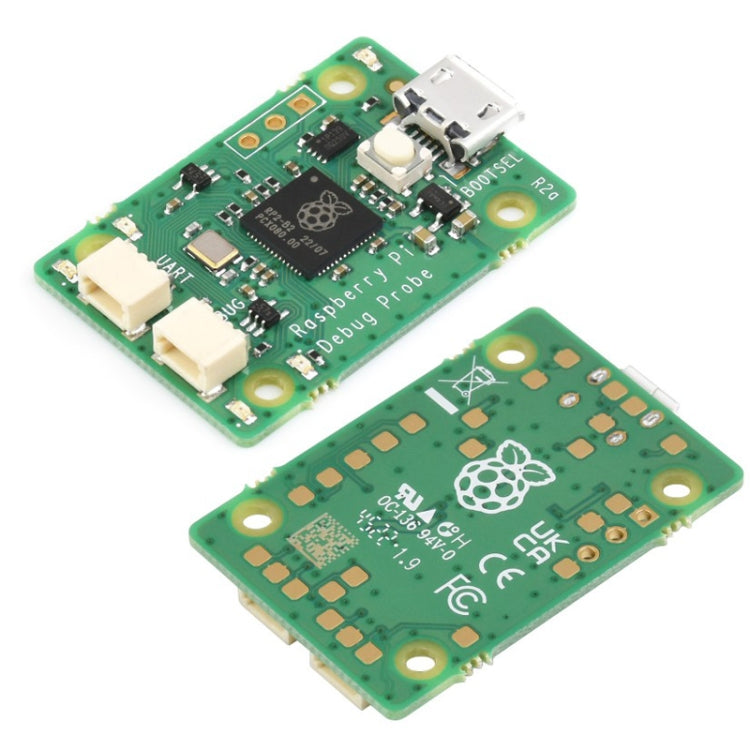

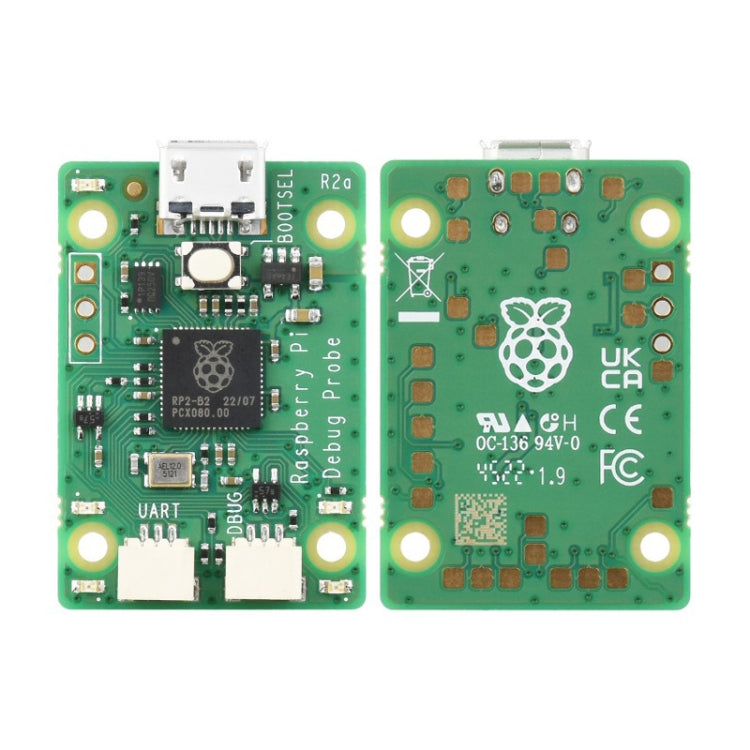

The Waveshare USB Debug Probe Module is a debugging tool designed for Raspberry Pi. It connects to the target board through the SWD interface, facilitating hardware debugging tasks.
- Product Type: Module
- Compatibility: Raspberry Pi
- Material: Plastic
- Color: Transparent

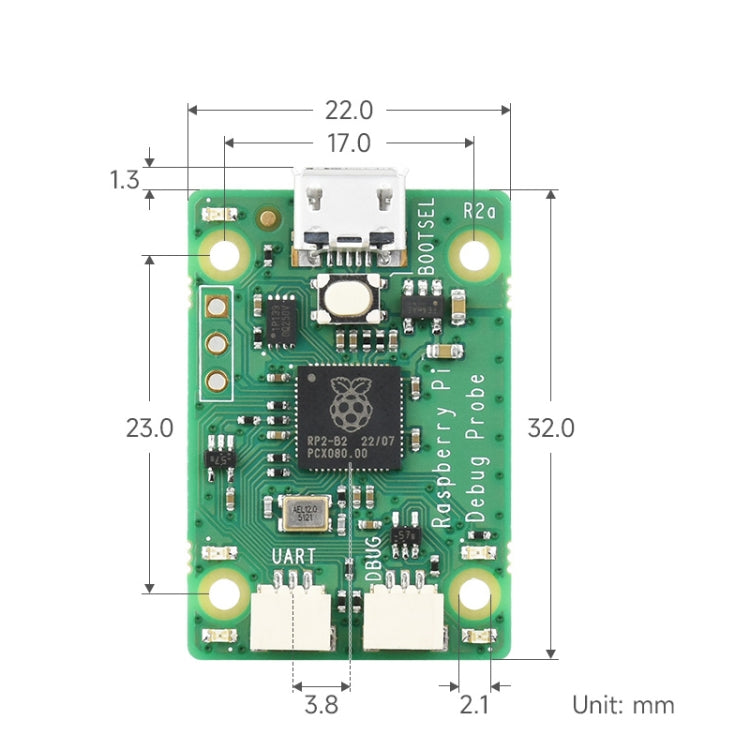

- Dimensions: 22mm x 32mm

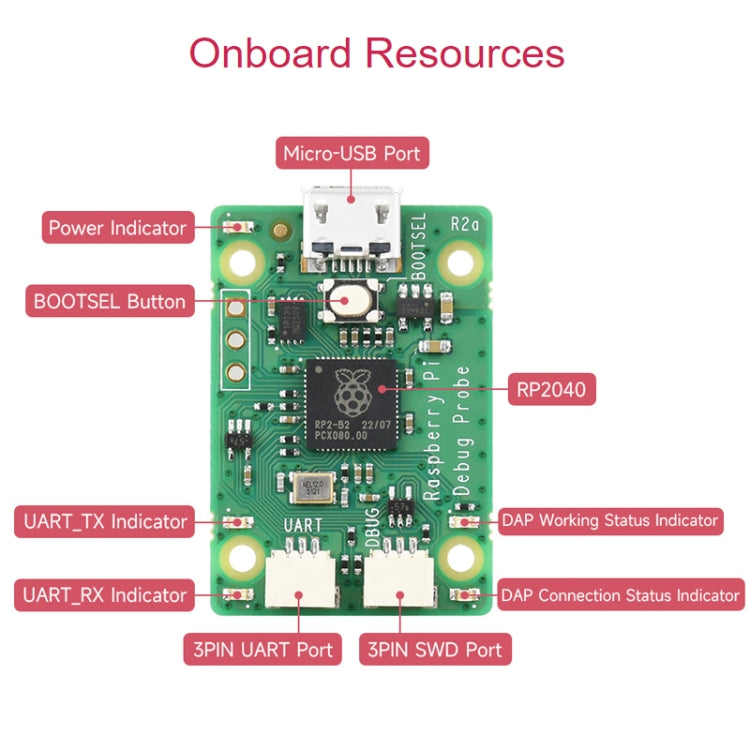

- Microcontroller: RP2040
- Interface: Micro-USB for PC connection

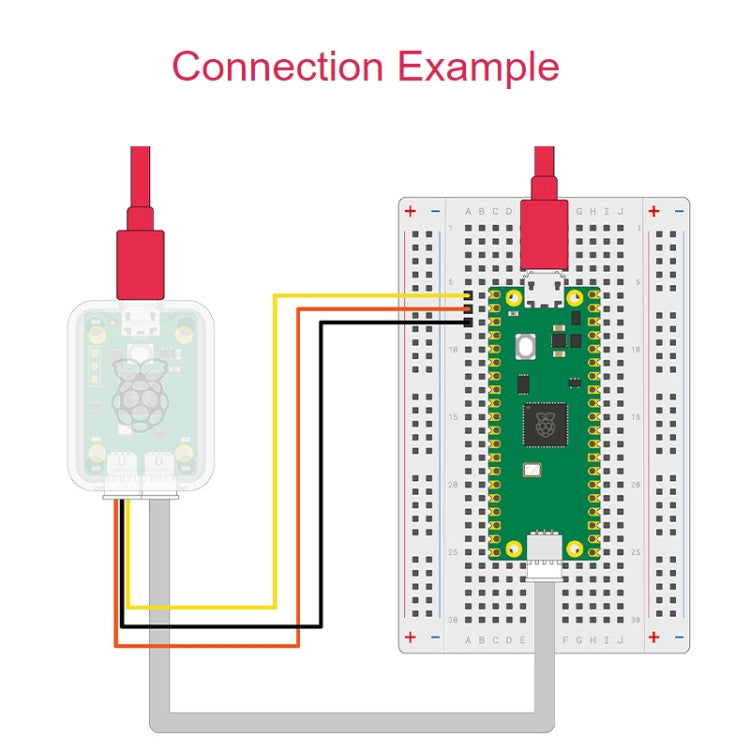

- SWD Interface: 3PIN for target board connection
- CMSIS-DAP Interface: 3PIN USB to UART bridge, compatible with most ARM microcontrollers
- Supported Tools: OpenOCD and other CMSIS-DAP compatible tools
- Design: Integrated, solder-free, plug-and-play

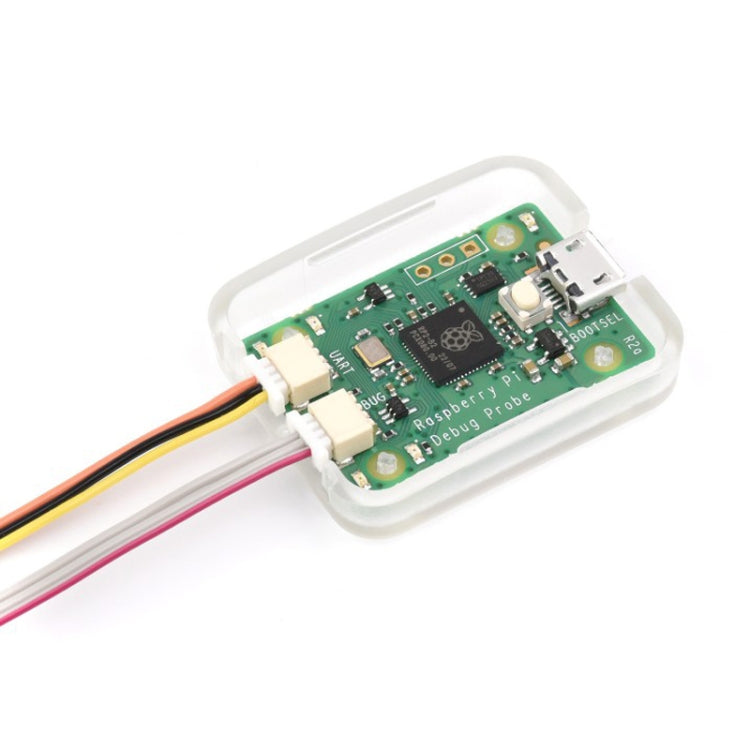

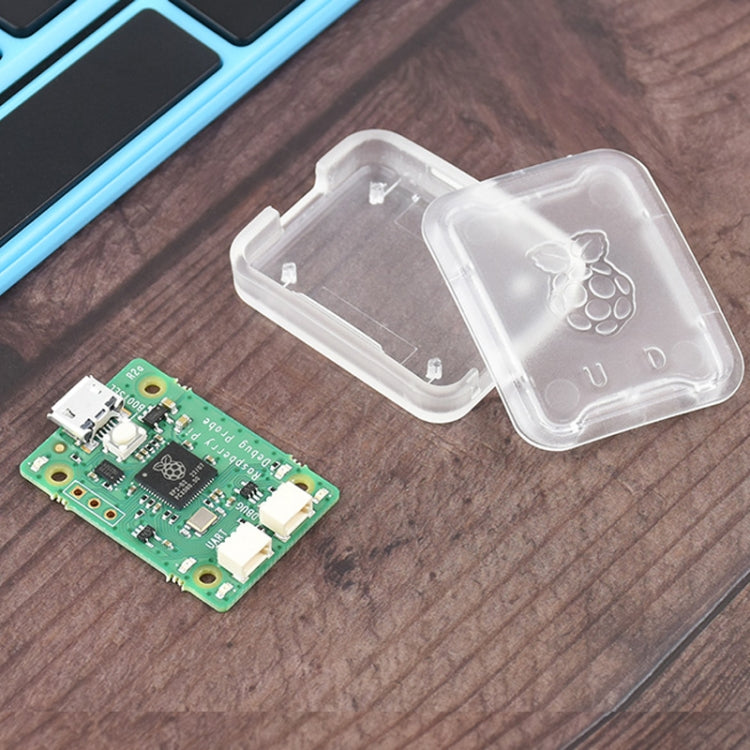

- Included Accessories: Transparent plastic case and connecting cable
- Firmware: Open source program for convenient upgrades
