Product details
Description

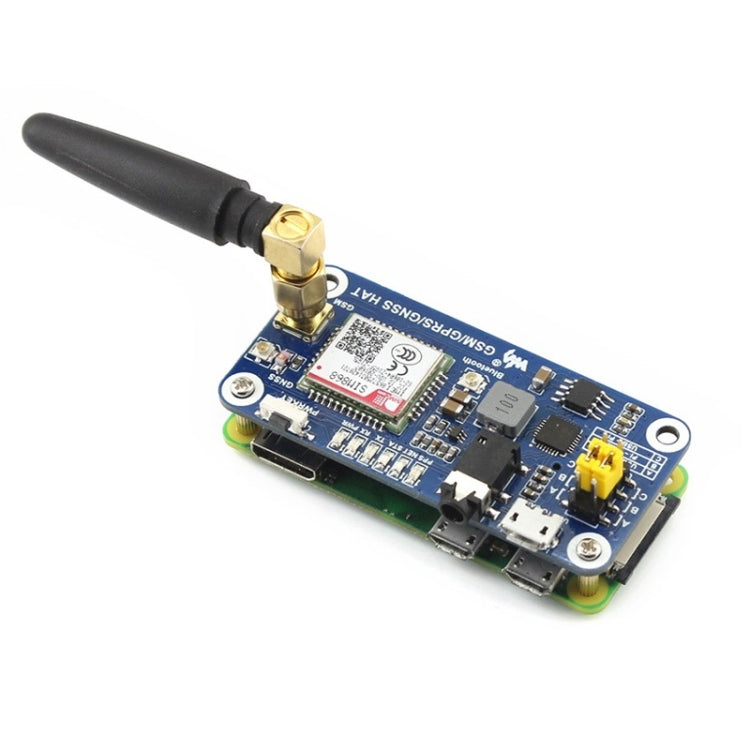

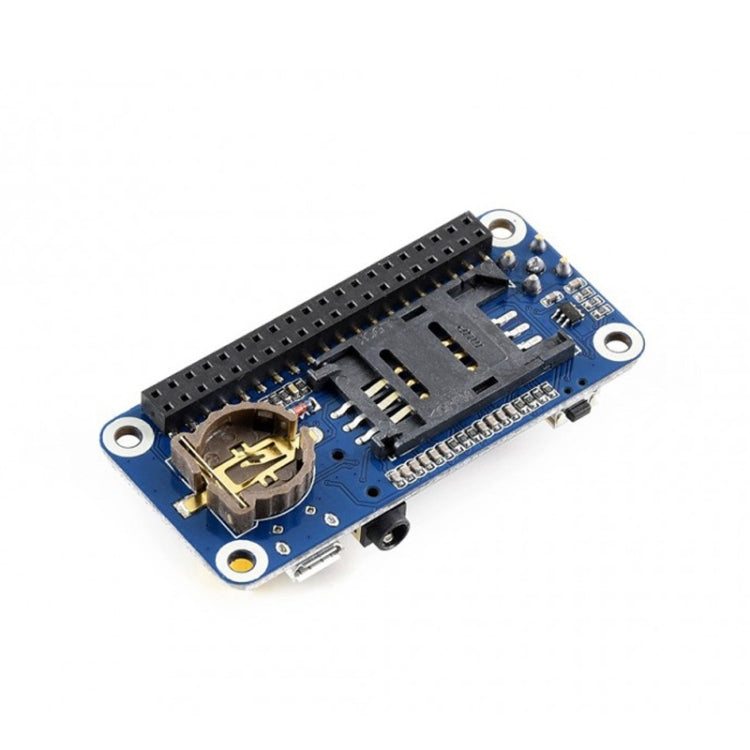

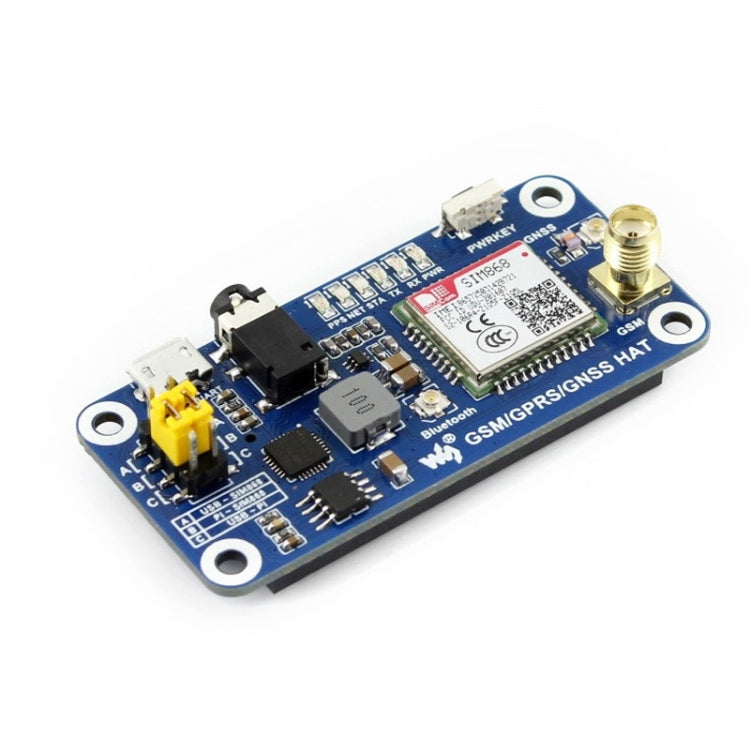

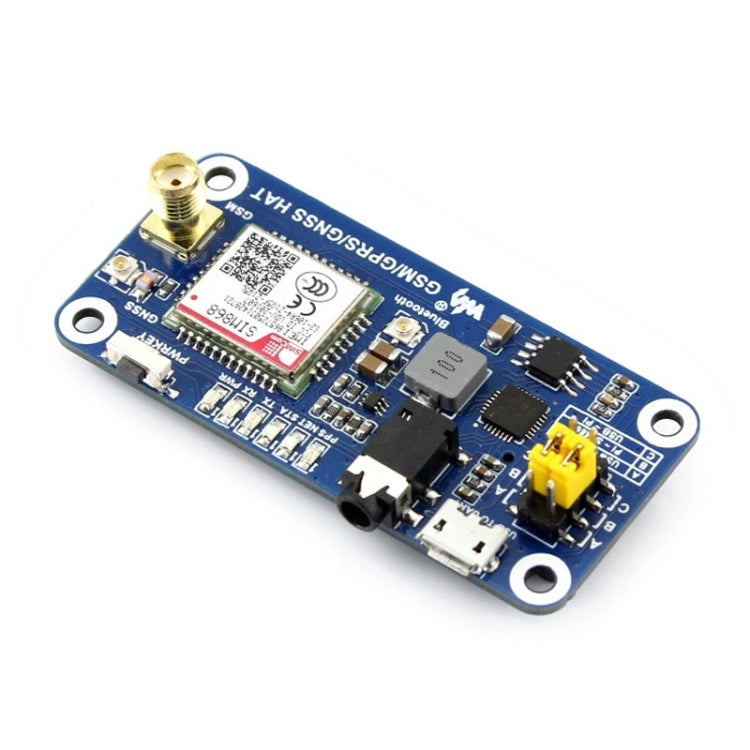

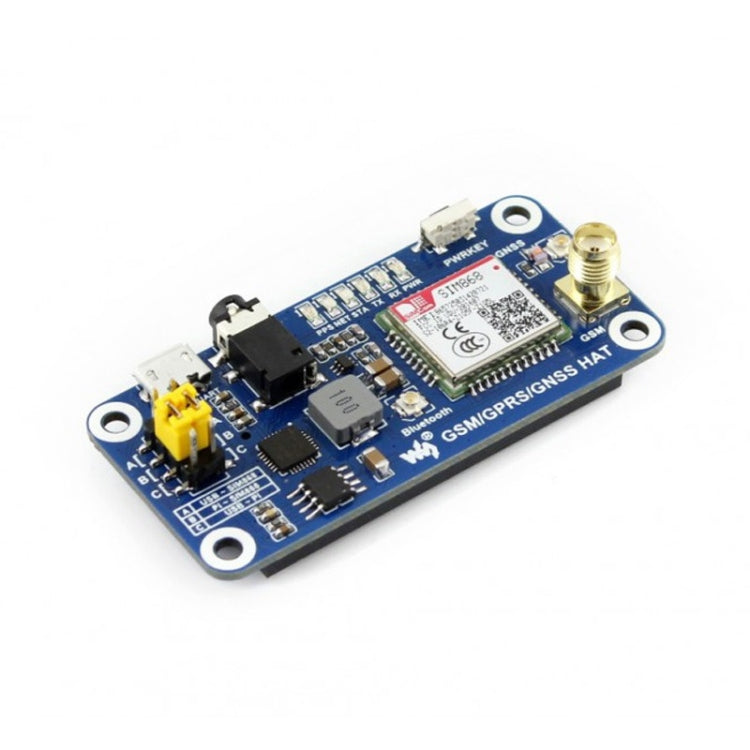

The Waveshare GSM/GPRS/GNSS/Bluetooth HAT is a communication module designed for Raspberry Pi. It enables the Raspberry Pi to make phone calls, send messages, connect to the internet, and determine location.
- Type: GSM/GPRS/GNSS/Bluetooth HAT
- Compatibility: Raspberry Pi 2B, 3B, 3B+, Zero, Zero W
- Communication Features: GSM, GPRS, GNSS, Bluetooth
- GSM Bands: 850/900/1800/1900 MHz (Quad-band)
- GPRS Multi-slot Class: 1-12 (configurable)
- GPRS Data Speed: Max 85.6 kbps (downlink and uplink)
- SMS Support: MT/MO/CB/Text/PDU mode
- Audio Features: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi Rate
- GNSS Features: 33 tracking channels, 99 acquisition channels, GPS L1 C/A code
- GNSS Sensitivity: Tracking -165 dBm, Cold starts -148 dBm
- Time-To-First-Fix: Cold starts 28s, Hot starts < 1s, Warm starts 26s
- Accuracy: Horizontal position < 2.5m CEP
- Bluetooth Version: 3.0 + EDR
- Operating Voltage: 5V
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -45°C to 90°C
- Dimensions: 30.2mm x 65mm

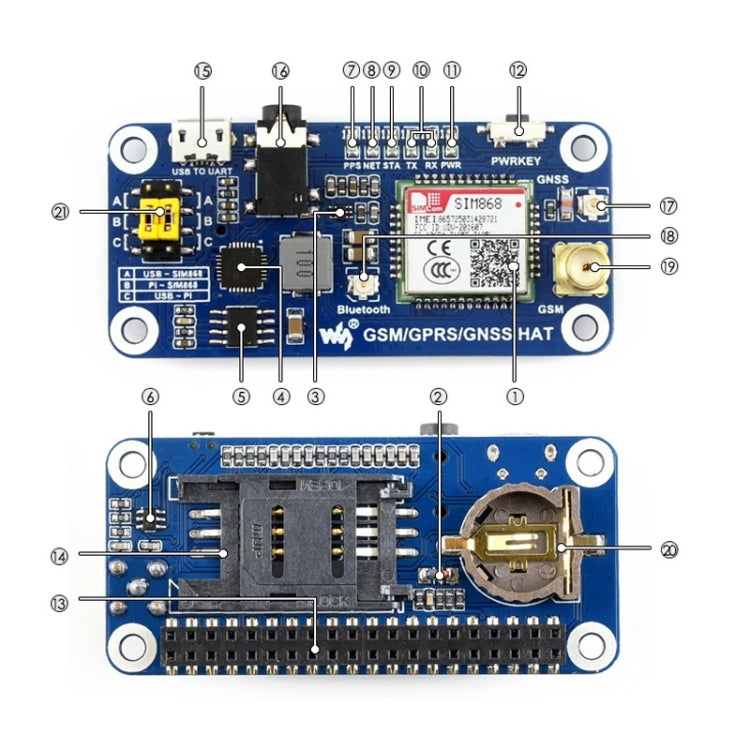

- Onboard Components: SIM868 module, CP2102 USB to UART converter, GNSS antenna connector, Bluetooth antenna connector, GSM antenna connector

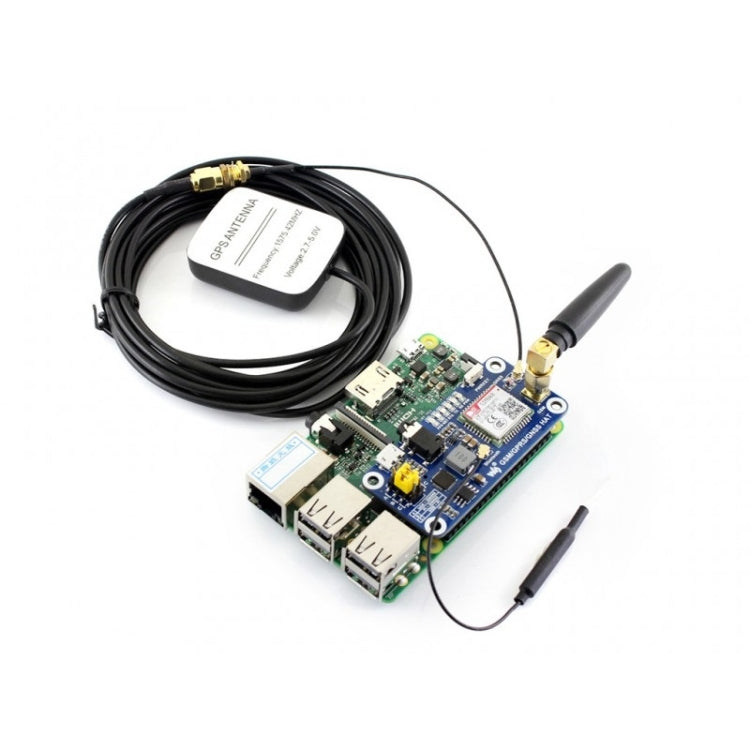

- Package Contents: GSM/GPRS/GNSS HAT, GSM Antenna, GPS External Antenna, Bluetooth Antenna, USB type A to micro plug cable, RPi screws pack
