Product details
Description

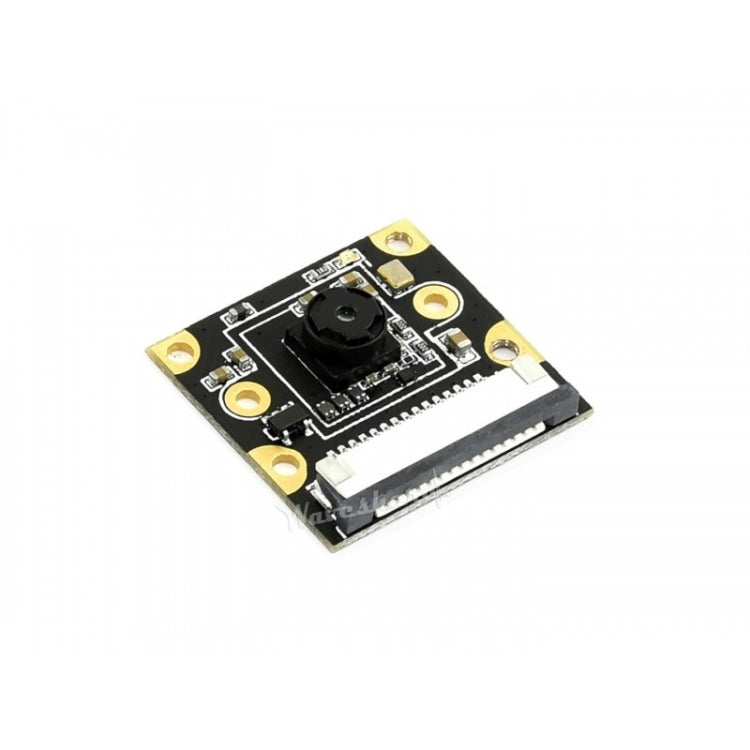

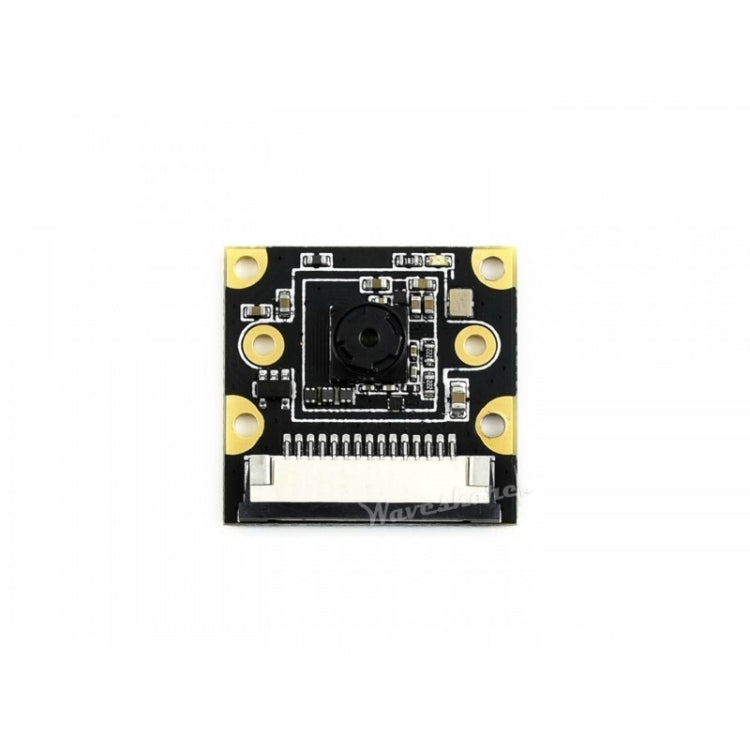

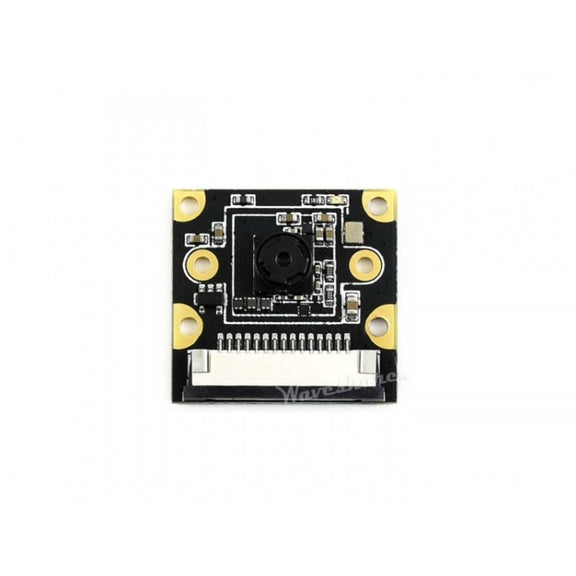

The Waveshare IMX219-77IR is an 8MP infrared camera module designed for use with the Jetson Nano. It is suitable for applications requiring night vision capabilities when paired with infrared LEDs.
- Product Type: Camera Module

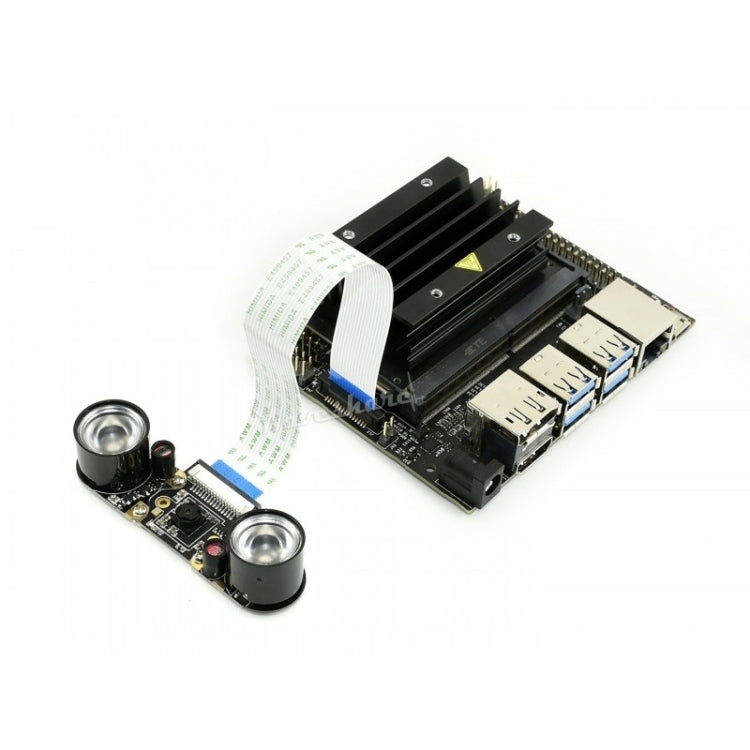

- Compatibility: NVIDIA Jetson Nano Developer Kit
- Sensor: IMX219
- Resolution: 3280 × 2464 pixels
- Megapixels: 8 MP
- Lens Specifications:
- CMOS Size: 1/4 inch
- Aperture (F): 2.0
- Focal Length: 2.96 mm
- Angle of View (Diagonal): 77 degrees
- Distortion: <1%
- Lens Dimensions: 6.5 mm × 6.5 mm
- Power Output: 3.3V
- Infrared Support: Yes, compatible with infrared LEDs
- Weight: 31 g
- Dimensions: 25 mm × 24 mm
- Includes:
- 1 x IMX219-77IR Camera

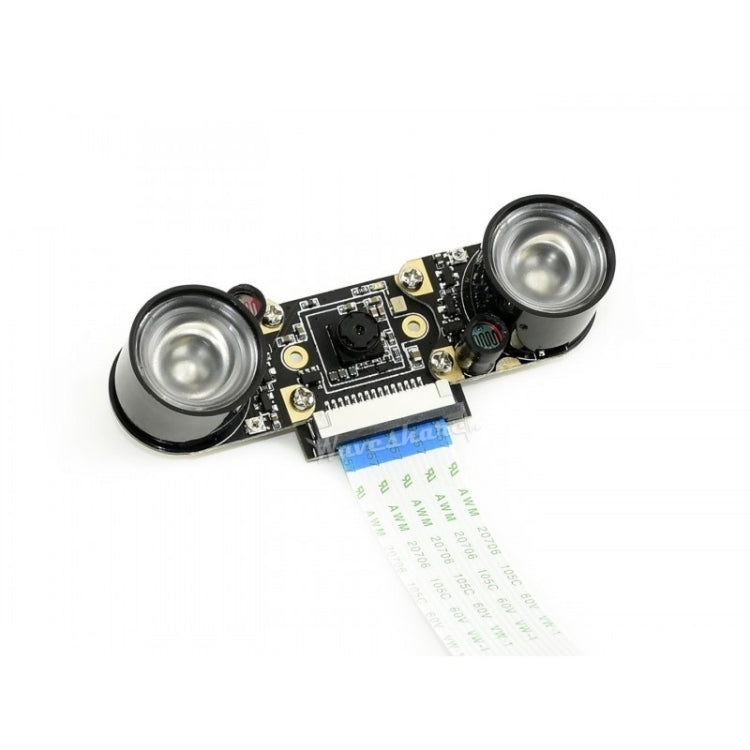

- 2 x Infrared LED Board (B)
- 1 x 15-pin FFC (opposite sides contact)
- 4 screw holes for attachment
