Product details
Description

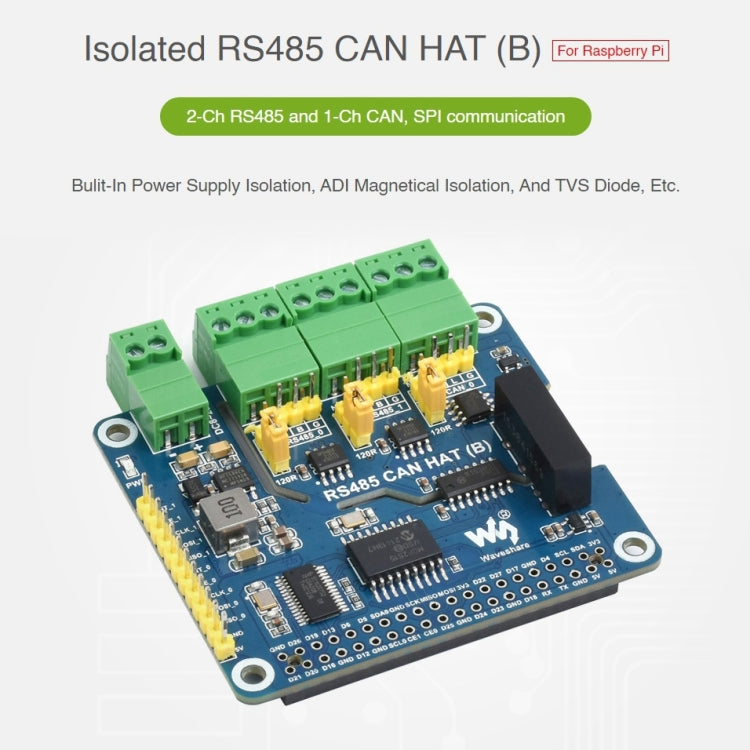

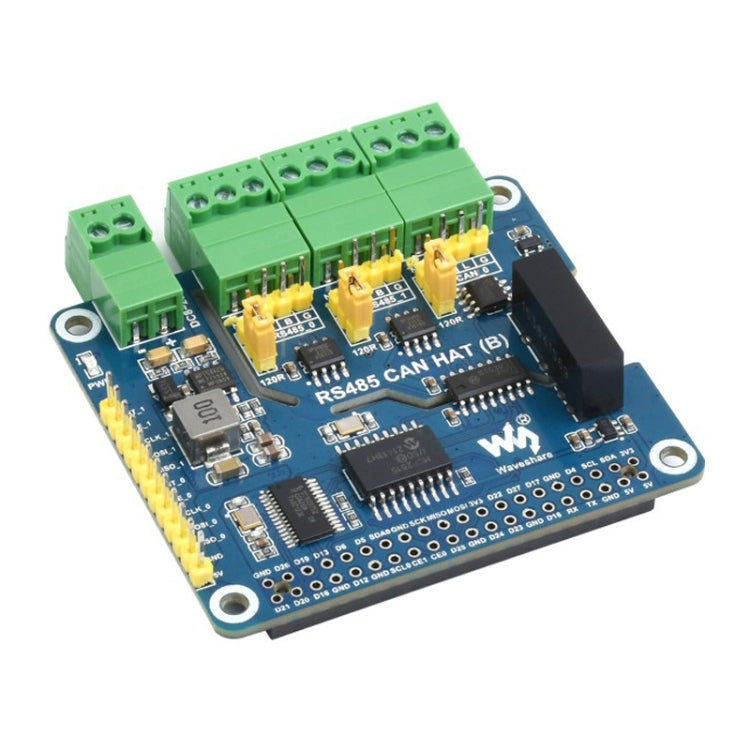

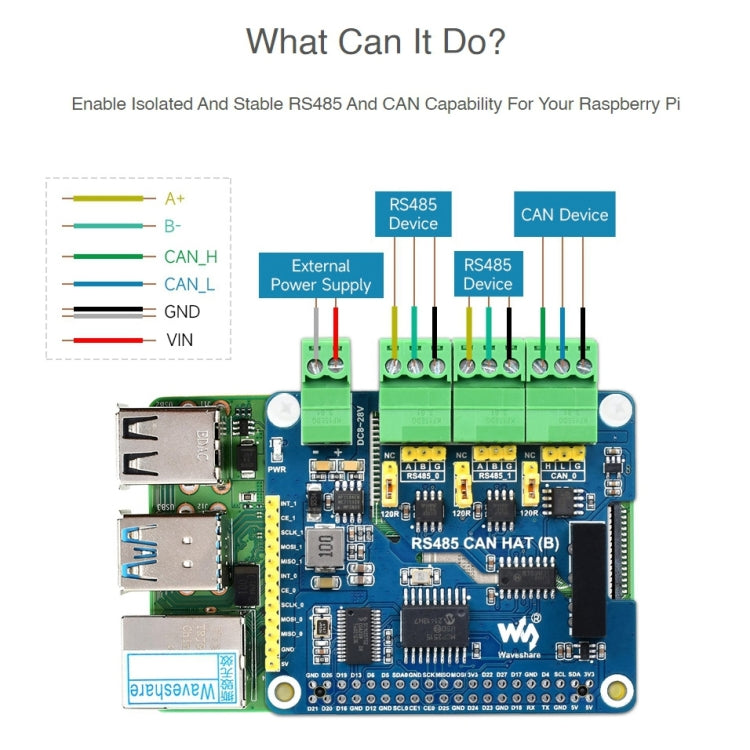

The Waveshare Isolated RS485 CAN HAT is a mini PC accessory designed for Raspberry Pi series boards. It provides isolated power and signal conversion for reliable communication in various electronic applications.
- Product Type: Mini PC Accessory
- Compatibility: Raspberry Pi series boards
- Material: Electronic components
- Key Feature: Isolated power and signal conversion

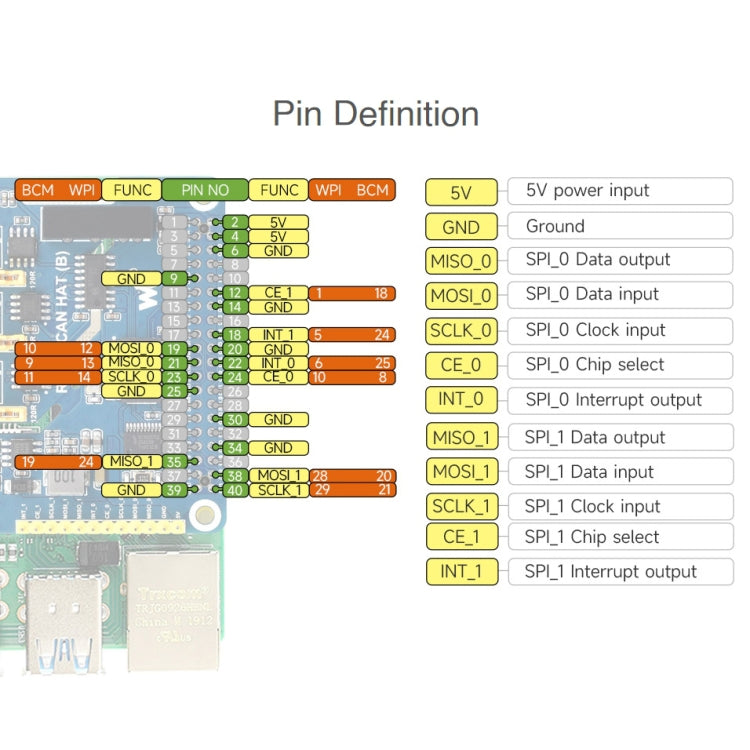

- Dimensions: Standard Raspberry Pi 40PIN GPIO extension header

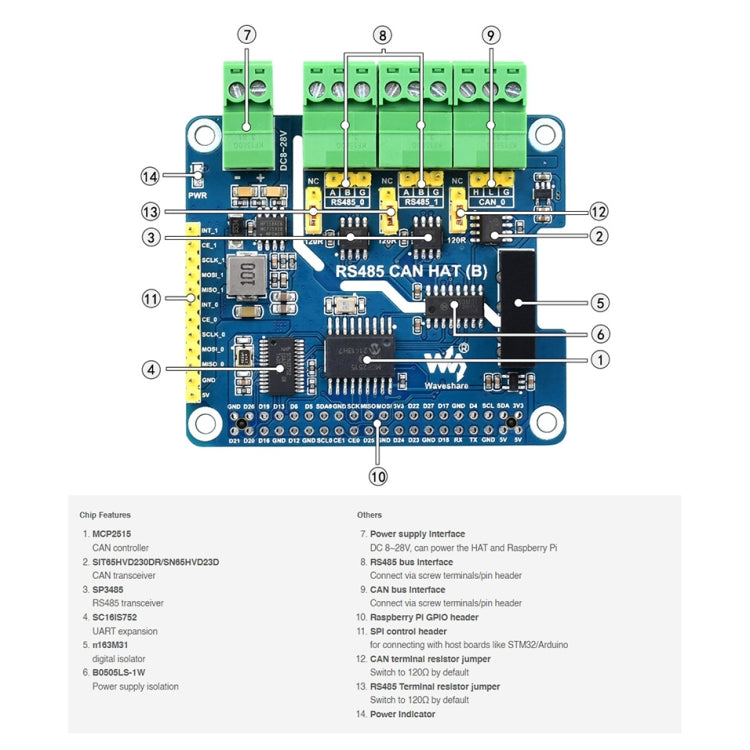

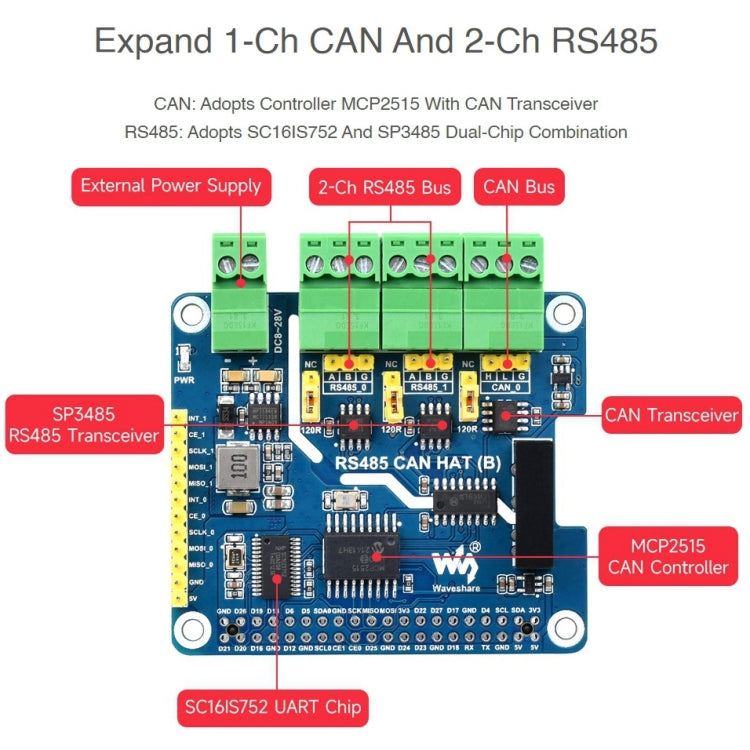

- CAN Channel: 1-Ch CAN with MCP2515 controller and CAN transceiver
- RS485 Channels: 2-Ch RS485 with SC16IS752+SP3485 dual-chip combination
- Power Supply: Supports 8~28V wide voltage power supply

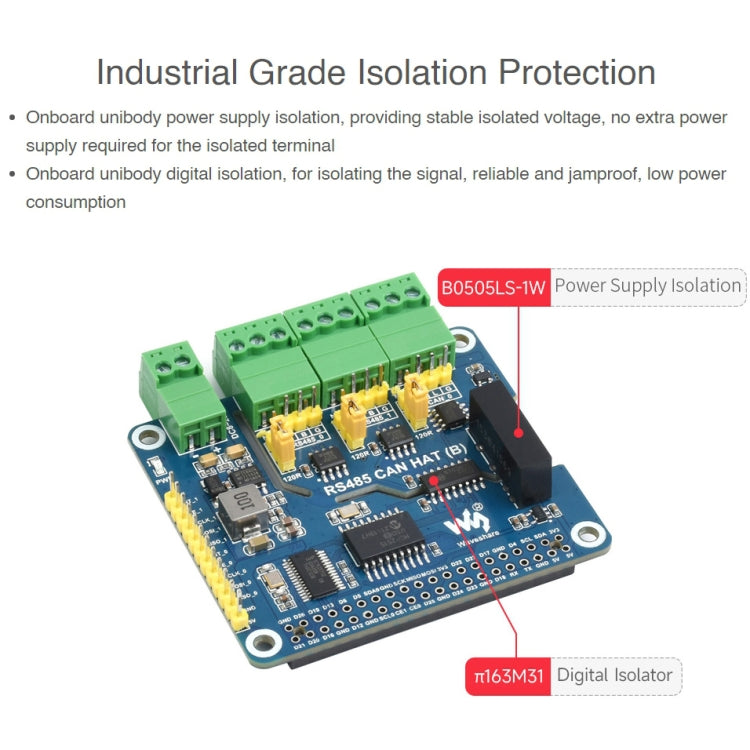

- Power Isolation: Onboard unibody power supply isolation
- Signal Isolation: Onboard unibody digital isolation
- Surge Protection: Onboard TVS (Transient Voltage Suppressor)
- Current Protection: Onboard resettable fuse and protection diodes
- Terminal Resistor: Onboard 120Ω terminal resistor, configured by jumper
- Connection: Onboard terminals and pin headers for convenient connection

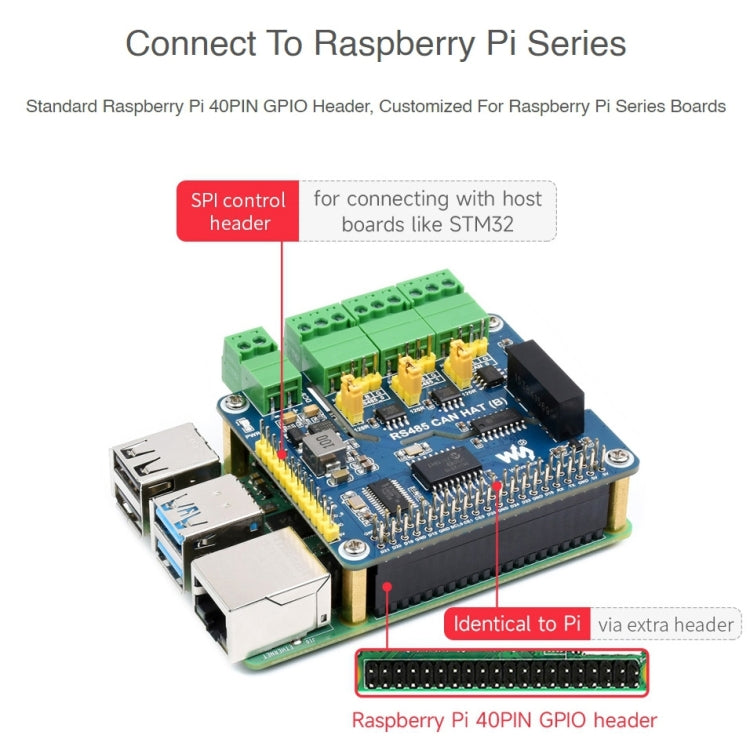

- SPI Control Pins: Breakout SPI control pins for connecting with host control boards
