Product details
Description

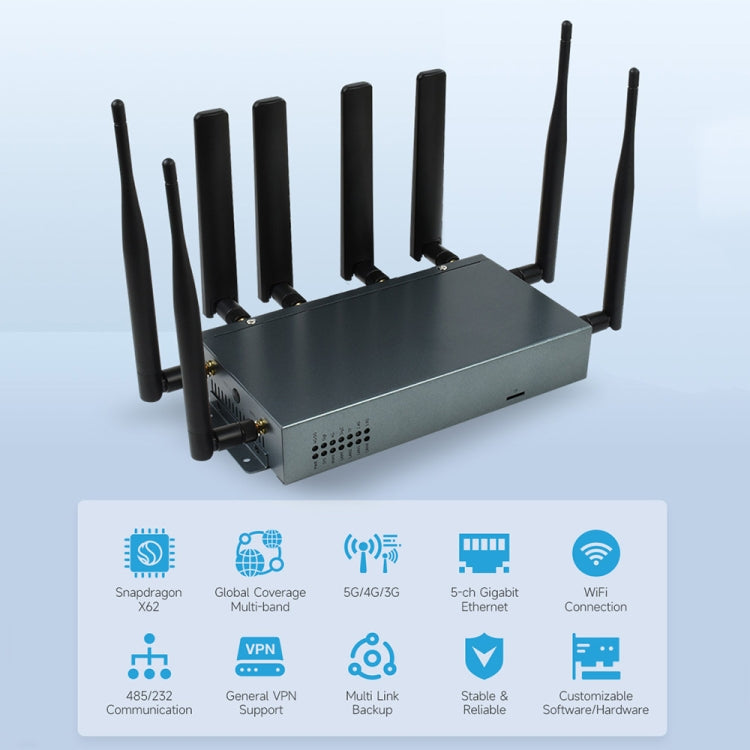

The Waveshare RM520N-GL Wireless CPE Industrial 5G Router is designed for high-speed wireless connectivity. It is suitable for industrial applications requiring reliable 5G and WiFi connections.

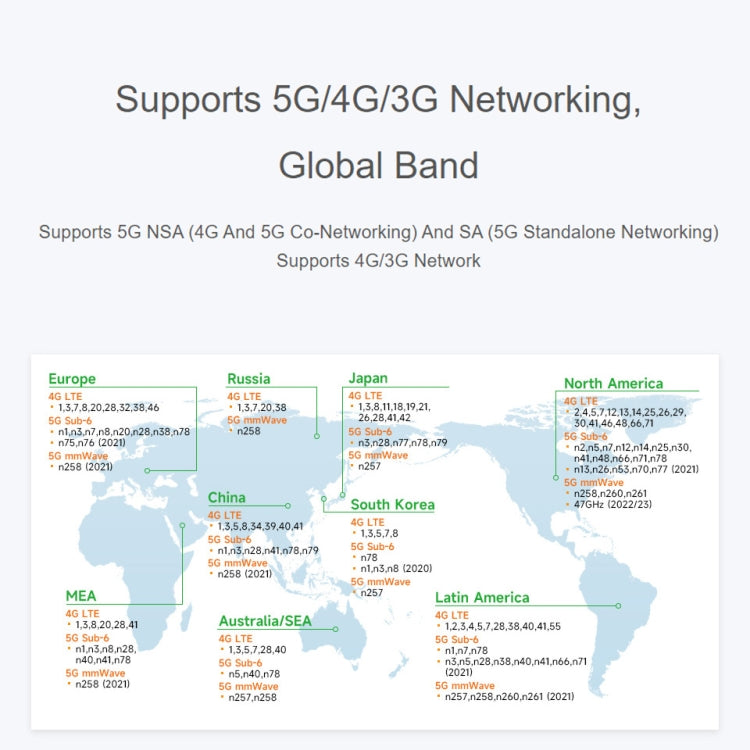

- 5G Wireless Specifications: Sub-6G: SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79; NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
- 4G Wireless Specifications: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B48; LAA: B46; UMTS: B1, B2, B4, B5, B8, B19

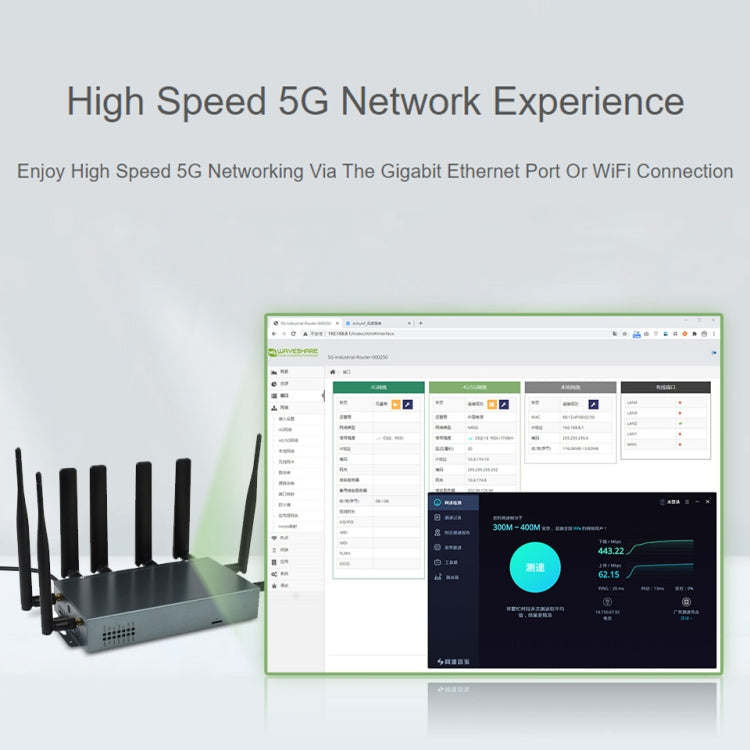

- Data Rate: 5G Sub-6G: SA: 2.4 Gbps (DL) / 900 Mbps (UL); NSA: 3.4 Gbps (DL) / 550 Mbps (UL); LTE: 1.6 Gbps (DL) / 200 Mbps (UL); HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
- WiFi Specifications: WiFi Standards: IEEE802.11b/g/n, IEEE802.11 Wi-Fi 5 (a/b/g/n/ac) compatible; Frequency: 2.4GHz, 5.8GHz; Data Rate: 2.4GHz: up to 300Mbps; 5.8GHz: up to 866Mbps; Authentication: Supports WEP, WPA, WPA2 and other encryption methods

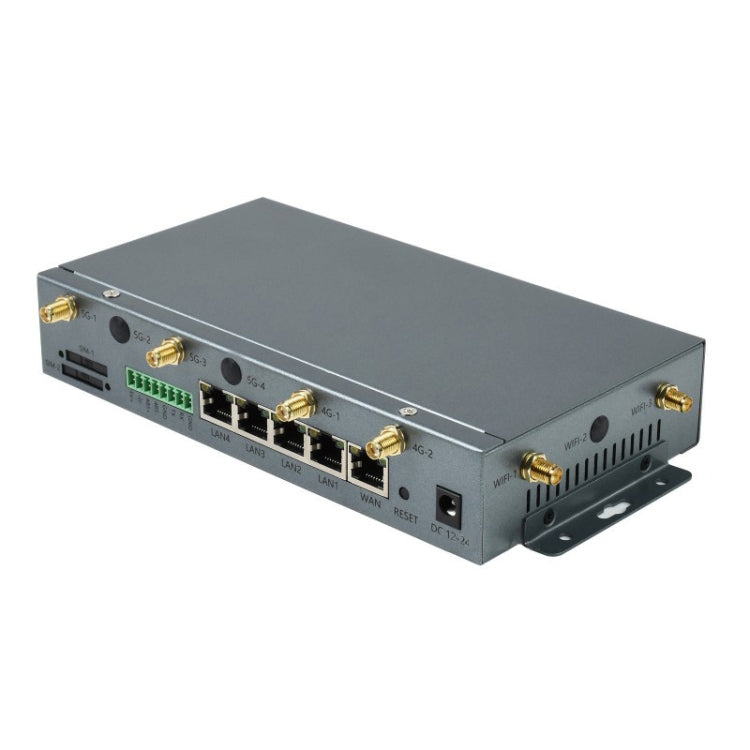

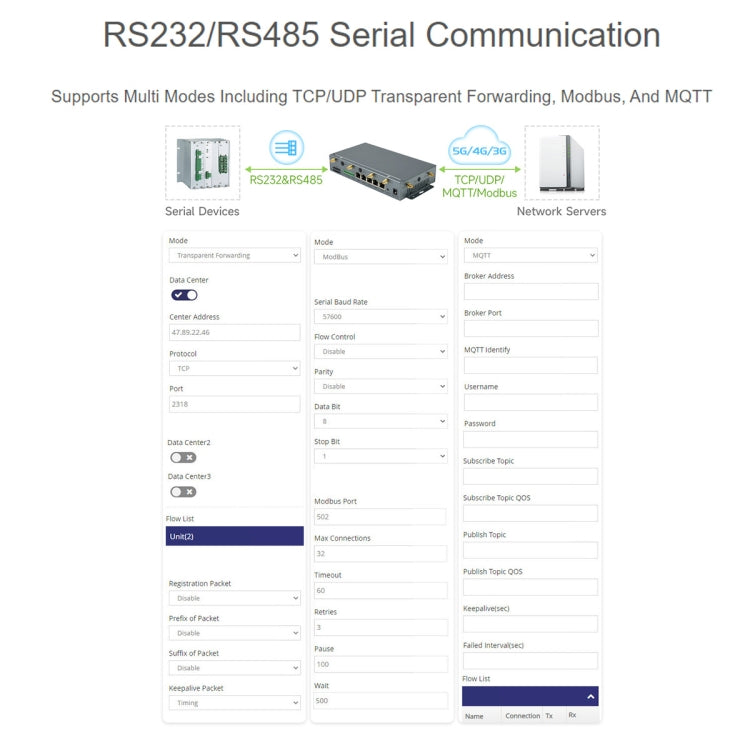

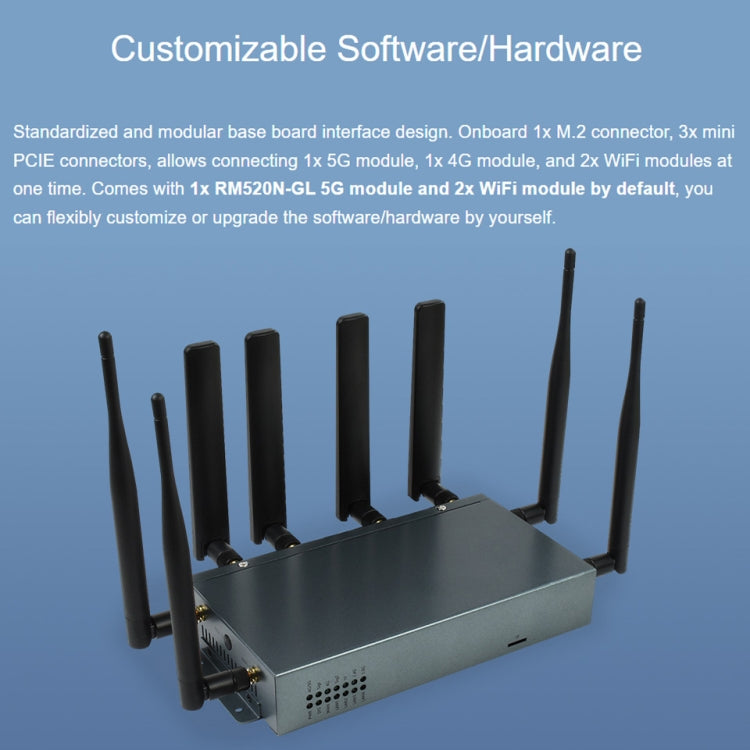

- Interface: M.2: 1 connector; Mini PCIe: 3 connectors; WAN: 1x 10/100/1000M Ethernet; LAN: 4x 10/100/1000M Ethernet; Serial port: 1x RS232 + 1x RS485; SIM/UIM card slot; Antenna interface: SMA standard; TF card slot
- Power Supply: DC 12V/2A; Input range: 12-24V; Power consumption: less than 1A@12V (data mode), less than 500mA@12V (idle mode)

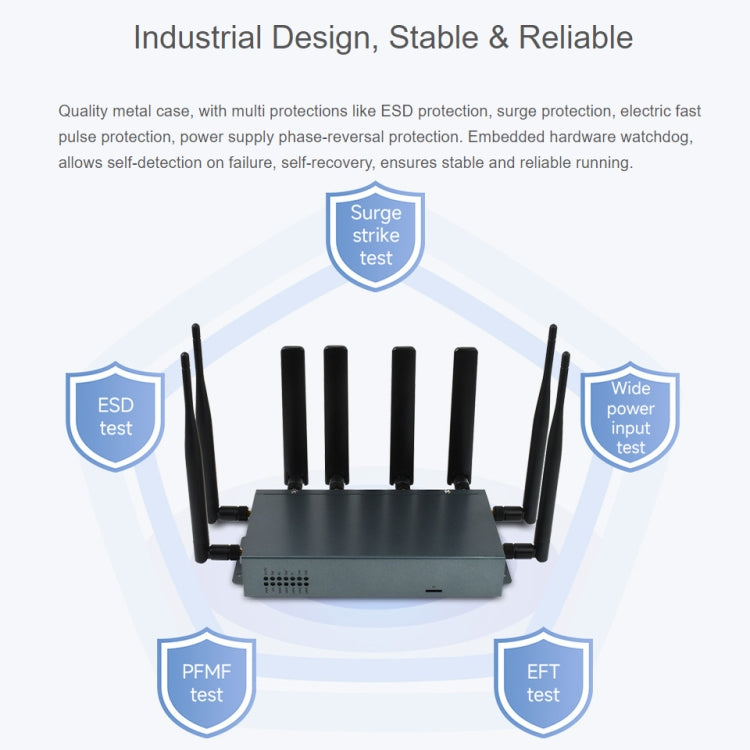

- Physical Parameters: Material: metal shell; Protection level: IP30; Operating temperature: -35 to 75 degrees Celsius; Storage temperature: -40 to 85 degrees Celsius; Relative humidity: 95 percent (non-condensing); Product size: 219 x 117 x 36.8mm; Weight: 919 grams

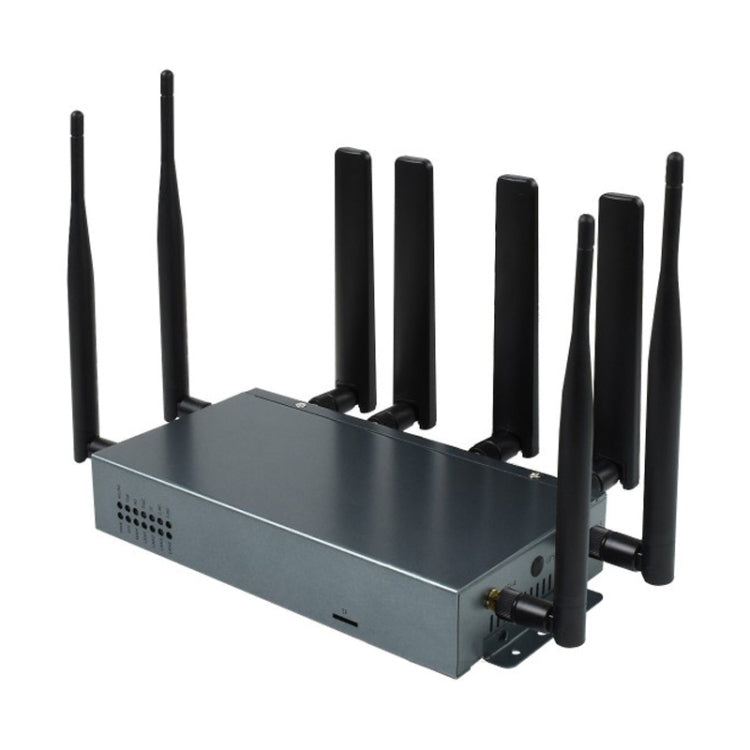

- Packing List: RM520N-GL 5G Router x 1; 5G antenna x 4; WiFi antenna x 4; 12V power adapter x 1
