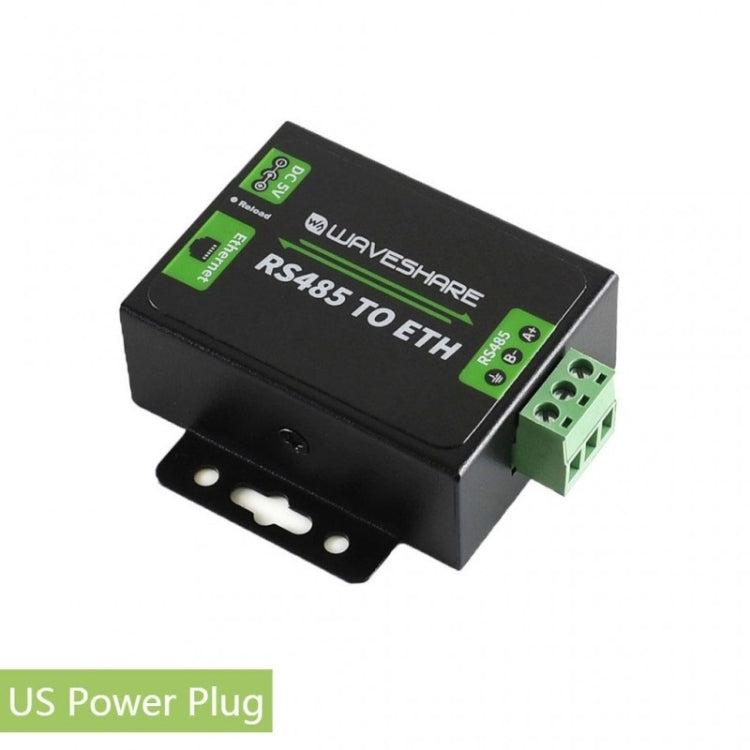

Waveshare RS485 to Ethernet Converter, US Plug
Waveshare RS485 to Ethernet Converter, US Plug
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

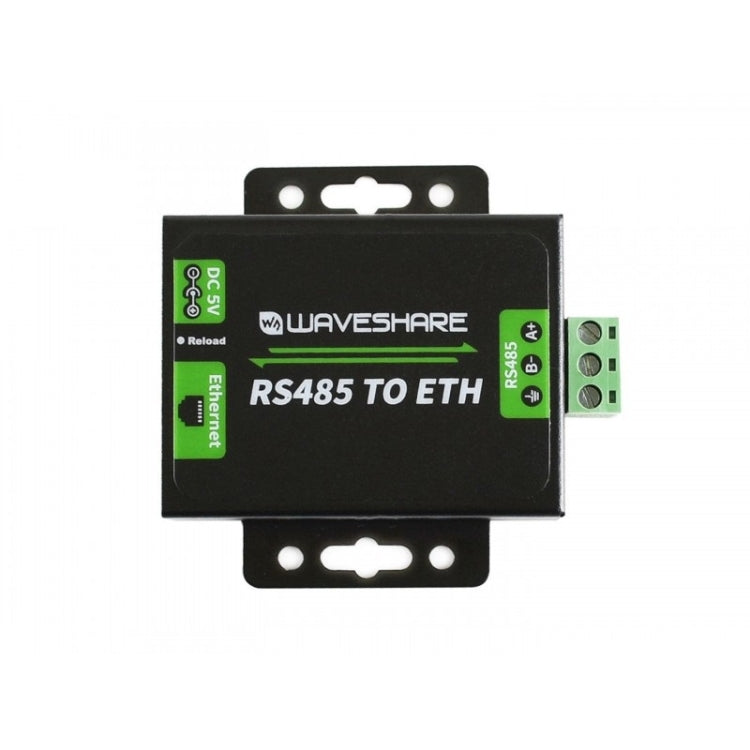

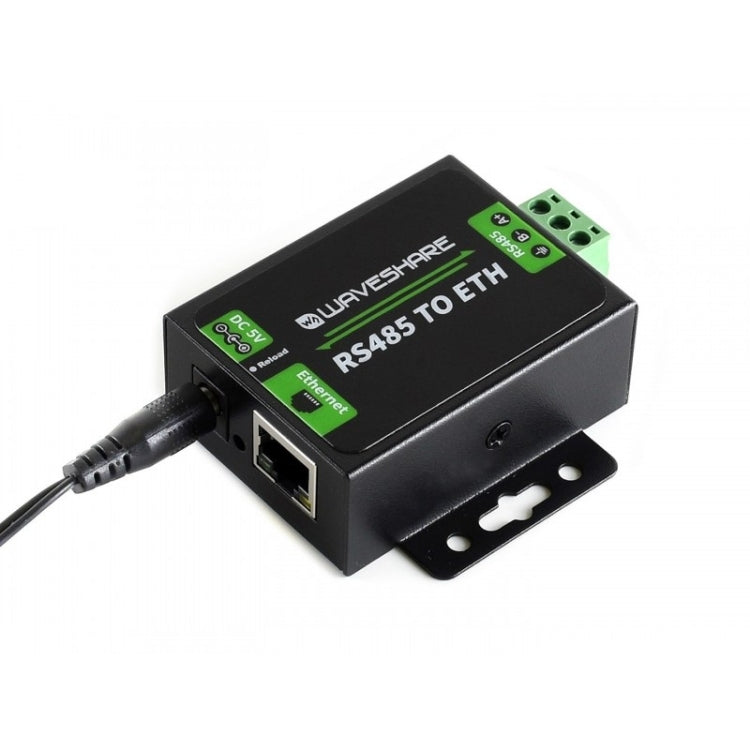

RS485 to Ethernet Converter designed for communication between RS485 and RJ45 port Ethernet. It is suitable for applications requiring stable and configurable network connections.
- Processor: M0 series 32-bit ARM
- Ethernet Interface: 10/100M Auto-MDI/MDIX
- Configurable RS485 baudrate: 600bps~230.4Kbps
- Parity check options: None, Odd, Even, Mark, Space
- Working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client
- Configuration methods: Webpage, AT commands, serial protocol, network protocol
- Customizable heartbeat and registration packets
- Customizable webpage for module configuration
- RFC2217-like protocol support
- KeepAlive mechanism for connection stability
- Time-out reboot feature
- DNS domain name resolution support
- DHCP support for IP configuration
- Firmware upgradable via network
- Factory reset capability
- Default MAC address, customizable
- Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- Example code available for various programming languages

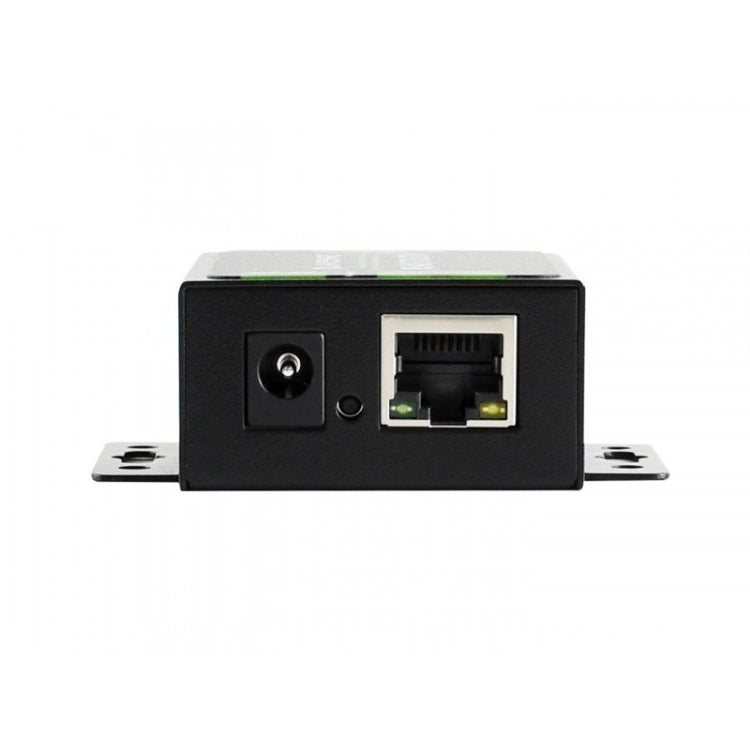

- Ethernet Connector: 4-pin RJ45
- Communication rate: 10/100Mbps
- Interface protection: 1.5KV electromagnetic isolation
- Protocols supported: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client
- TX cache: 6Kbyte
- RX cache: 4Kbyte

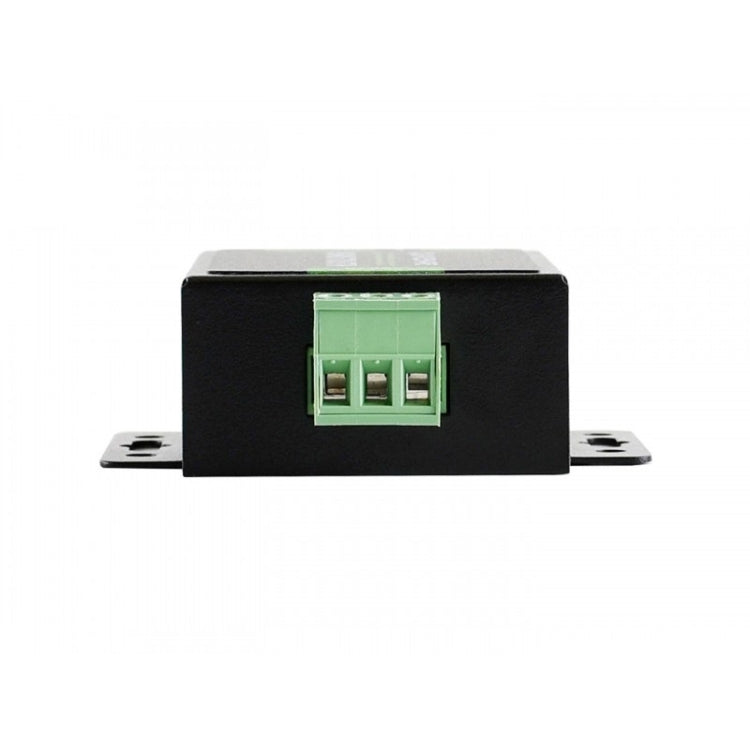

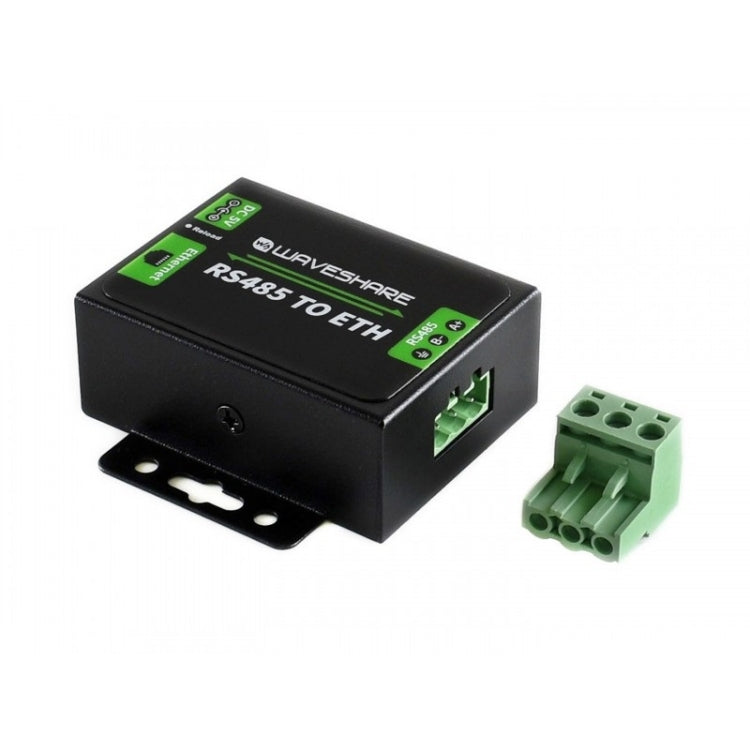

- RS485 Connector: screw terminal (A+, B-, GND)
- Data bit options: 5bit, 6bit, 7bit, 8bit
- Stop bit options: 1, 2
- RS485 RX cache: 800byte
- Power supply: 5.0~7.0V (5V recommended)
- Operating current: 150mA (@5V)
- Power consumption: <1W
- Operating temperature: -25~75°C
- Storage temperature: -40~105°C
- Dimensions: 69.65mm x 63.59mm x 25.47mm
