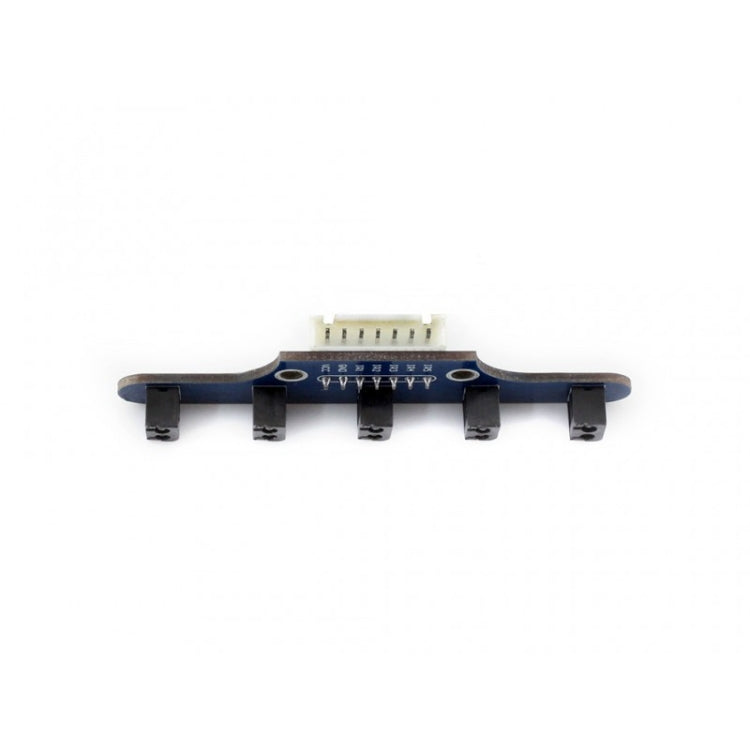

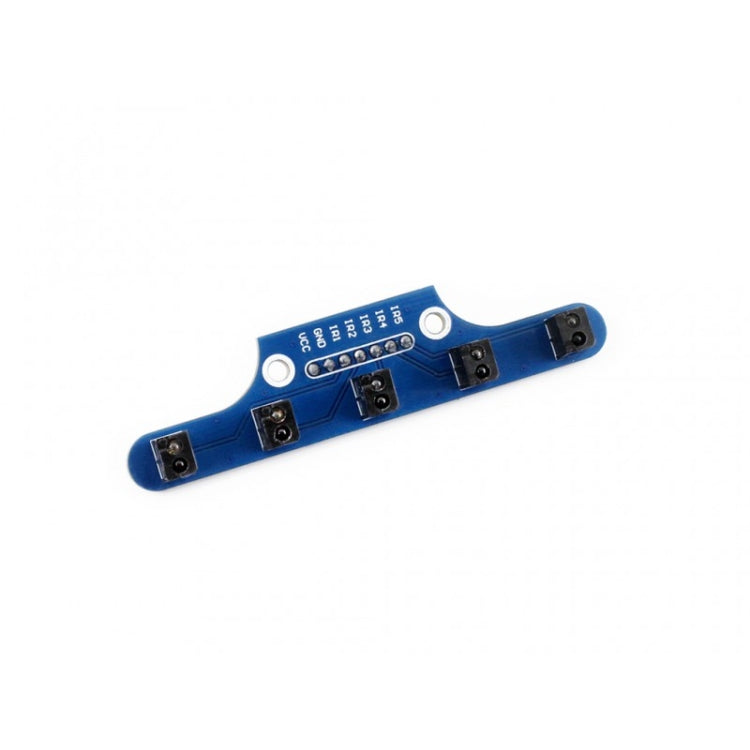

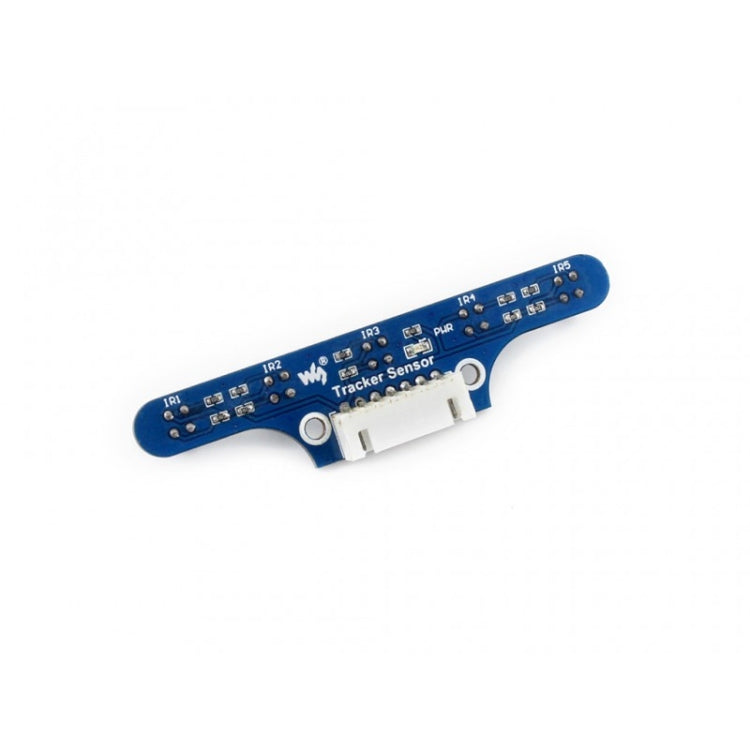

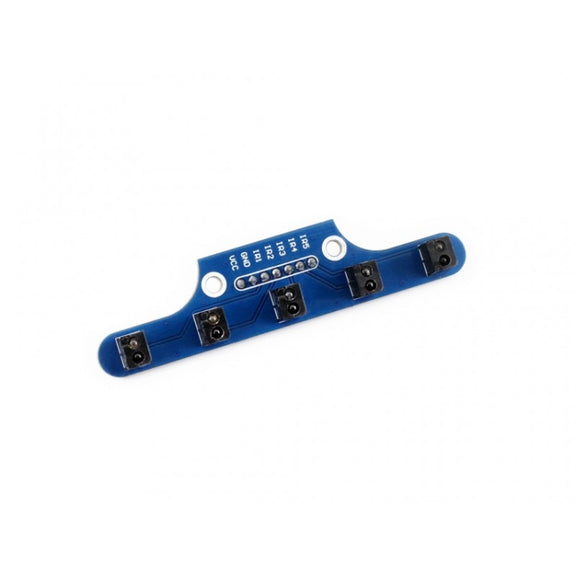

Waveshare Tracker Sensor, Infrared Line Tracking
Waveshare Tracker Sensor, Infrared Line Tracking
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Free shipping for this item Free shipping from R250 Orders under R250 ship for R49.
Couldn't load pickup availability
Product details
Description
2. High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable
Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 78mm × 18mm
3. Detector spacing: 16mm
4. Mounting holes size: 3mm
5. Detection range: 1cm ~ 5cm
Applications

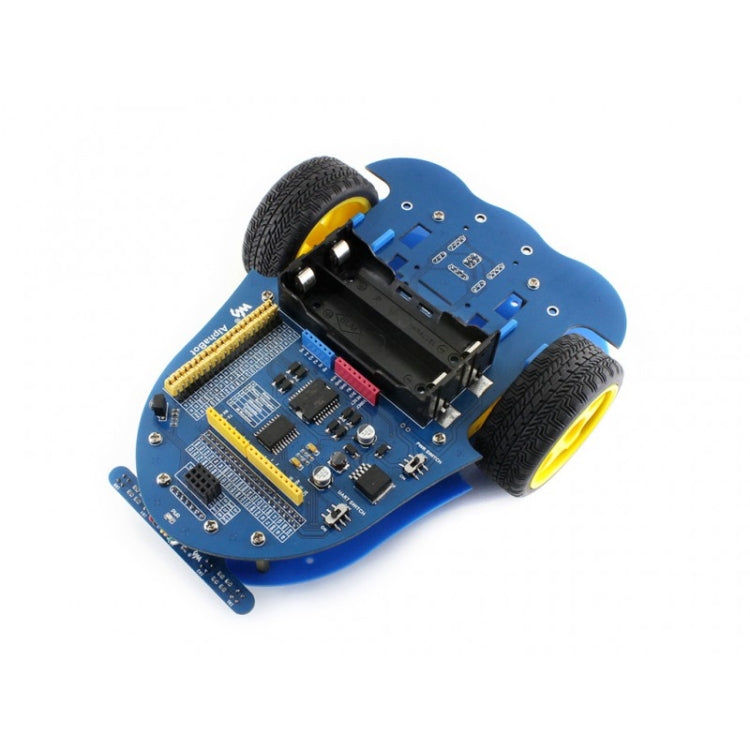

Robot line tracking
How to Use
In the case of working with a MCU:
- VCC ? 3.3V ~ 5V
- GND ? GND
- IR1 ? MCU.IO (ch1, analog output)
- IR2 ? MCU.IO (ch2, analog output)
- IR3 ? MCU.IO (ch3, analog output)
- IR4 ? MCU.IO (ch4, analog output)
- IR5 ? MCU.IO (ch5, analog output)
