Product details
Description
Power module designed for adjustable output voltage and current. It is suitable for various applications including charging lithium batteries and powering high-power LEDs.
- Input voltage: 5-36V (effective above 6.5V for voltmeter)
- Output voltage: 1.25-32V, continuously adjustable (input must exceed output by >2V)
- Output current: adjustable, up to 5A (recommended use within 4.5A)
- Output power: up to 75W (recommended use within 50W)
- Working frequency: 180KHZ
- Short circuit protection: yes
- Over-temperature protection: yes (automatically turns off output)

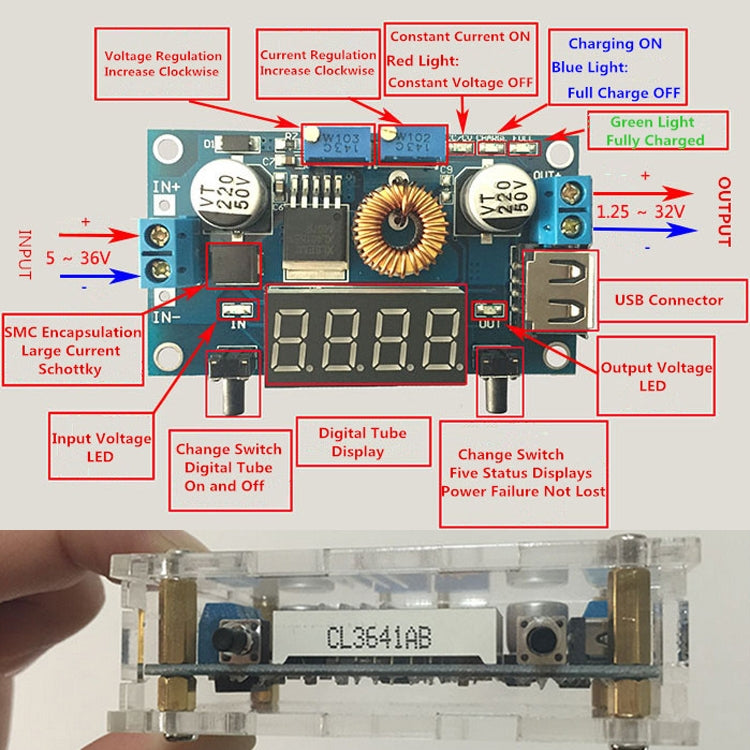

- Wiring method: wiring terminal or welding terminal (V-IN is input, V-OUT is output)
- Size: approximately 6.82x3.88x1.5cm
- Weight: approximately 73g
- Features:

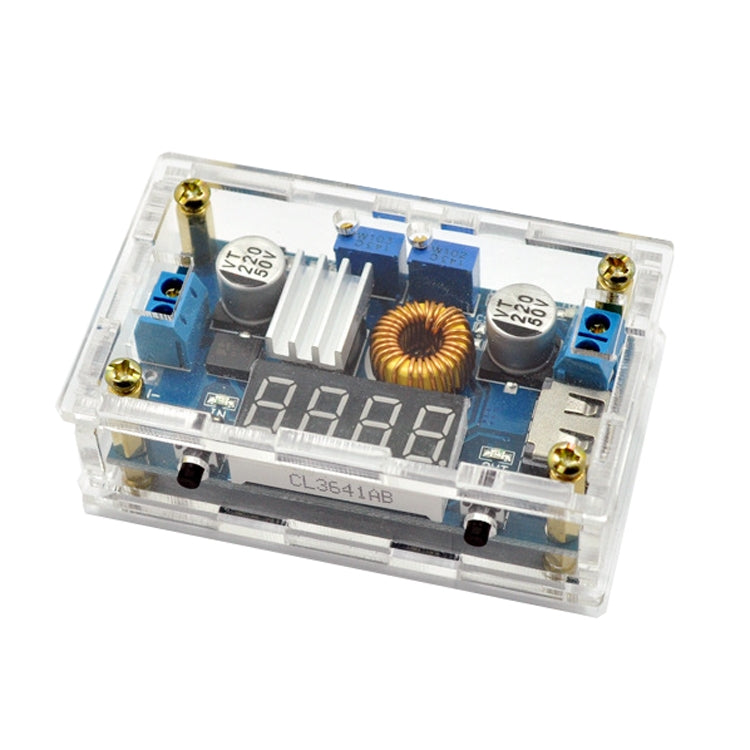

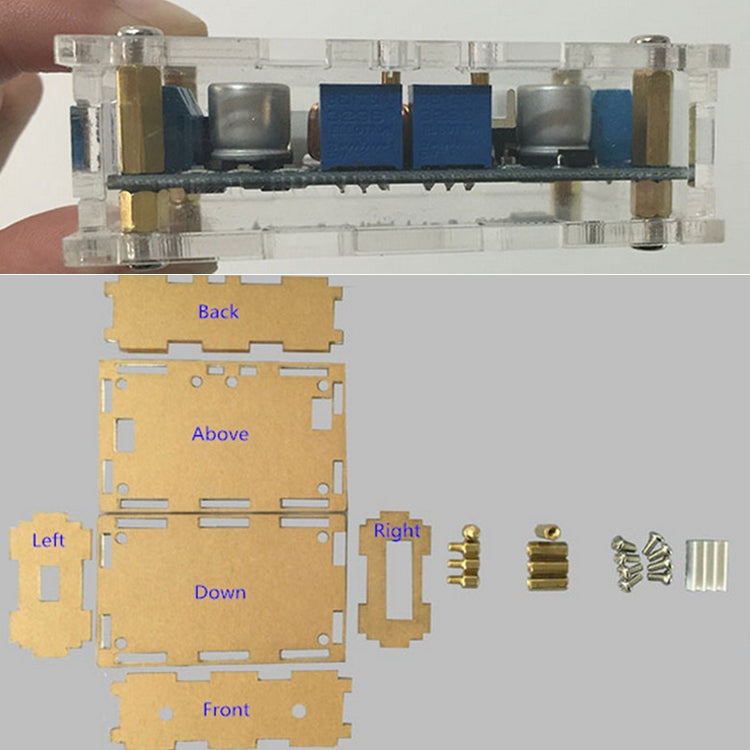

- Crystal case for safety and practicality

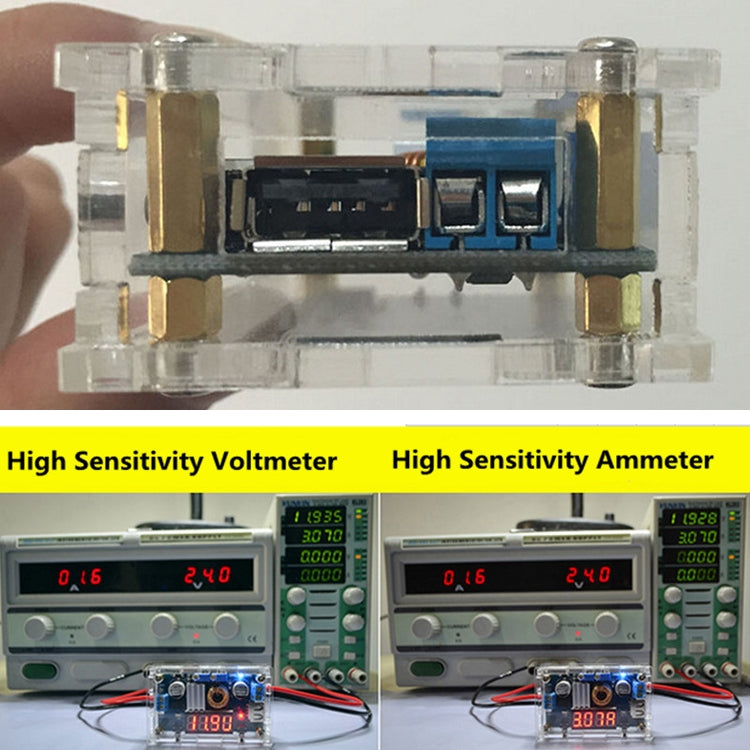

- On-board voltage, current, and power meter
- USB interface for charging digital products (output voltage matches module output)
- High efficiency, low ripple
- Overcurrent protection capability
- Charger for various battery types
- High-power LED constant current driver
- Two modes: constant voltage and constant current with indicators
- Floating charging voltage and current settings for lithium battery charging
- Current limiting protection function
- Self-calibrating voltage and ammeter
- Displays five states: fixed input voltage, output voltage, power, current, or turn display
