Product details
Description

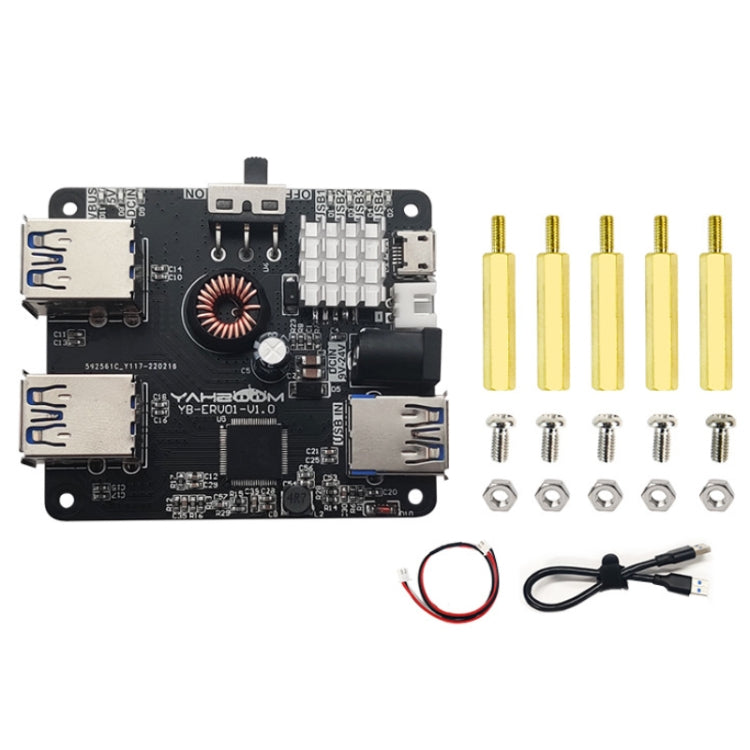

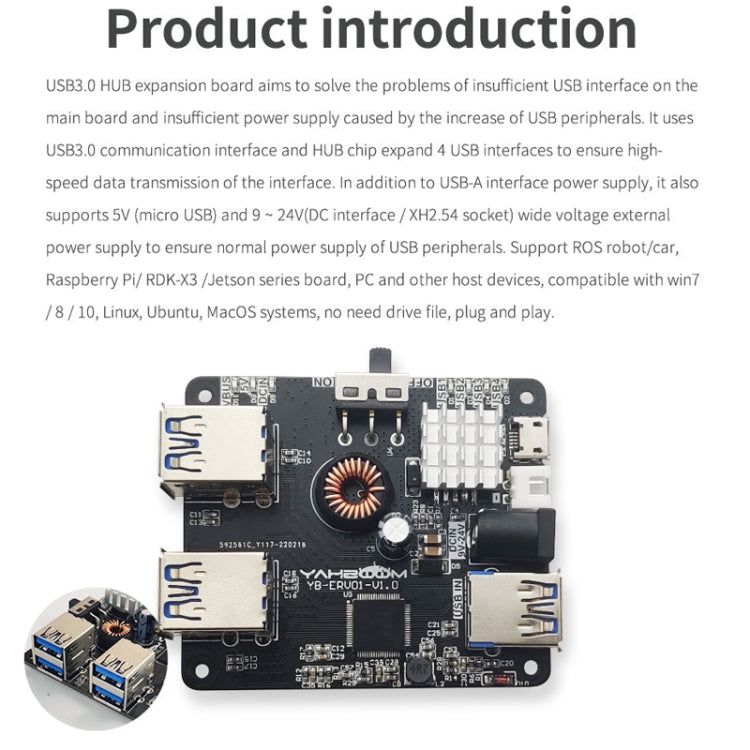

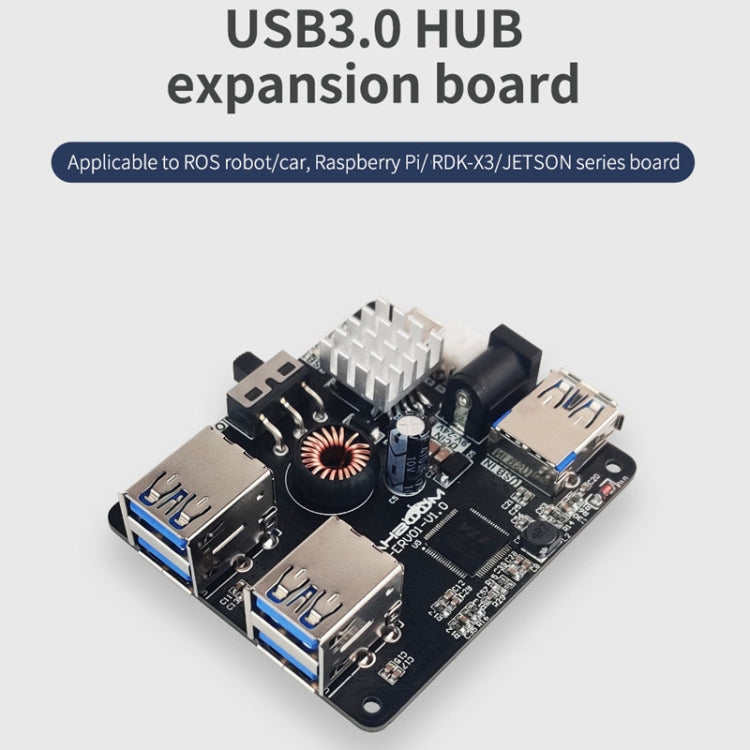

The Yahboom USB3.0 HUB Expansion Board is a robotics accessory designed to expand USB connectivity for various devices. It is suitable for use with ROS robots, Raspberry Pi, Jetson series motherboards, and PCs, addressing the need for additional USB interfaces and power supply.
- Product Type: Robotics Accessories

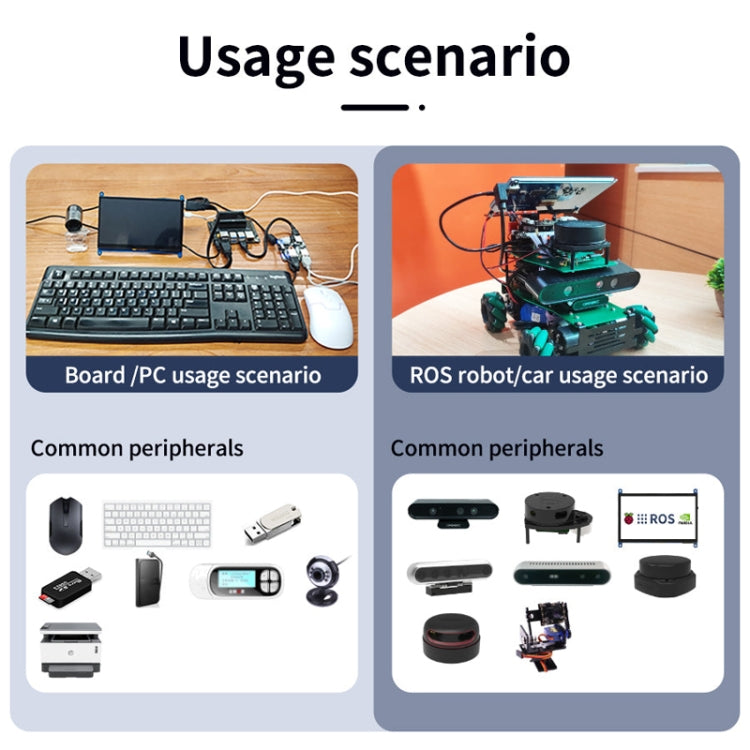

- Compatibility: ROS robots, Raspberry Pi, Jetson series, PC
- Chip Model: VL817

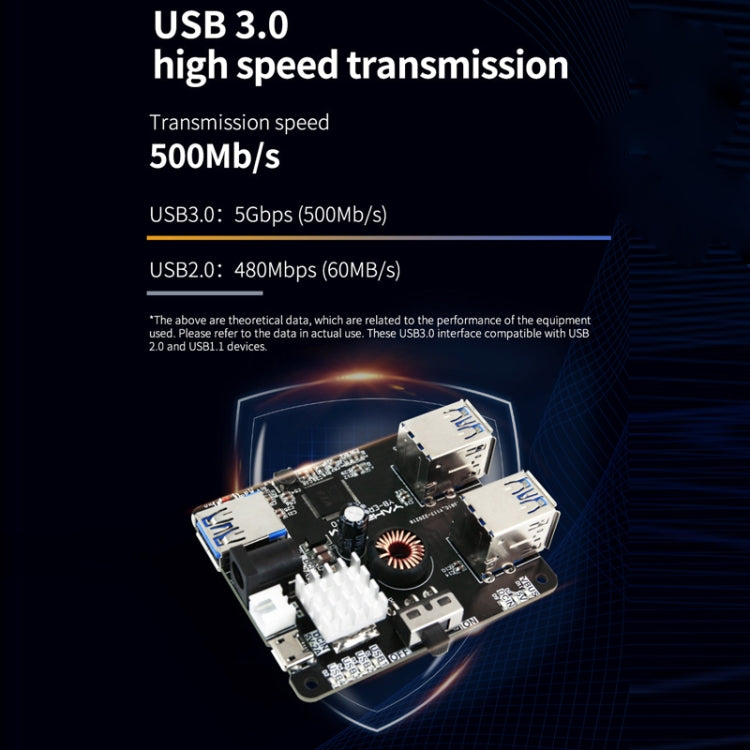

- Transmission Speed: 5Gbps (theoretical)
- Input Interface: USB-A
- Data Cable Length: 30cm
- Output Interface: 4x USB3.0
- Interface Compatibility: USB3.0, backward compatible with USB2.0 and USB1.1

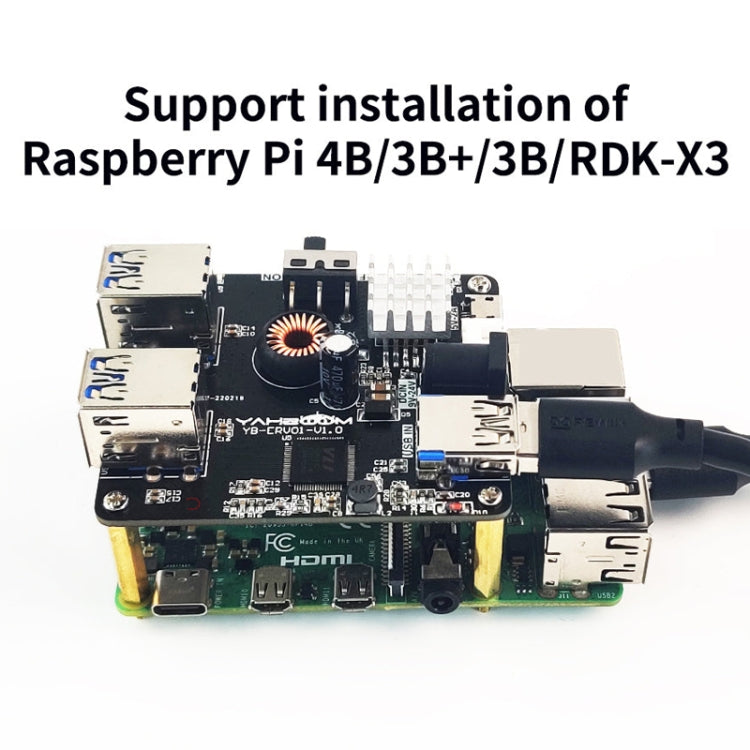

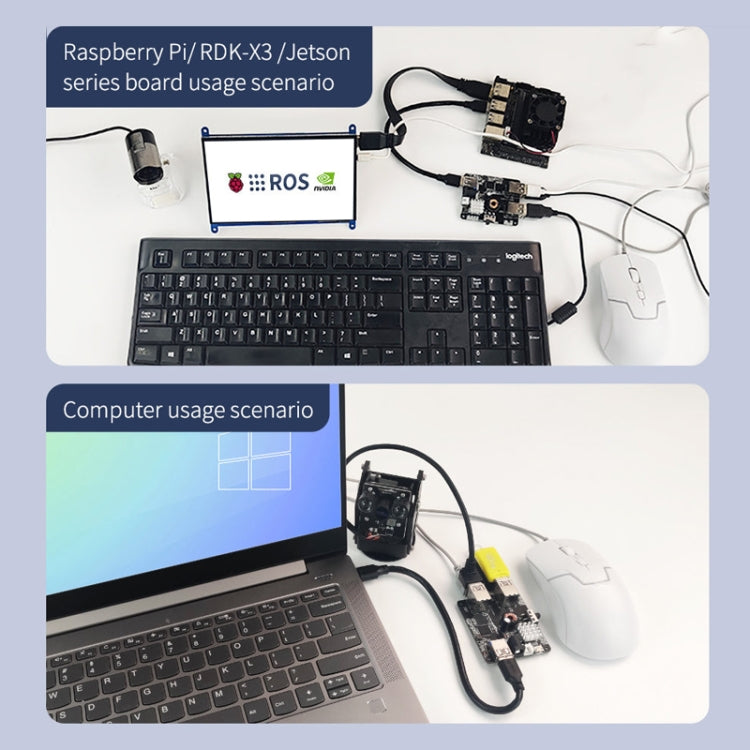

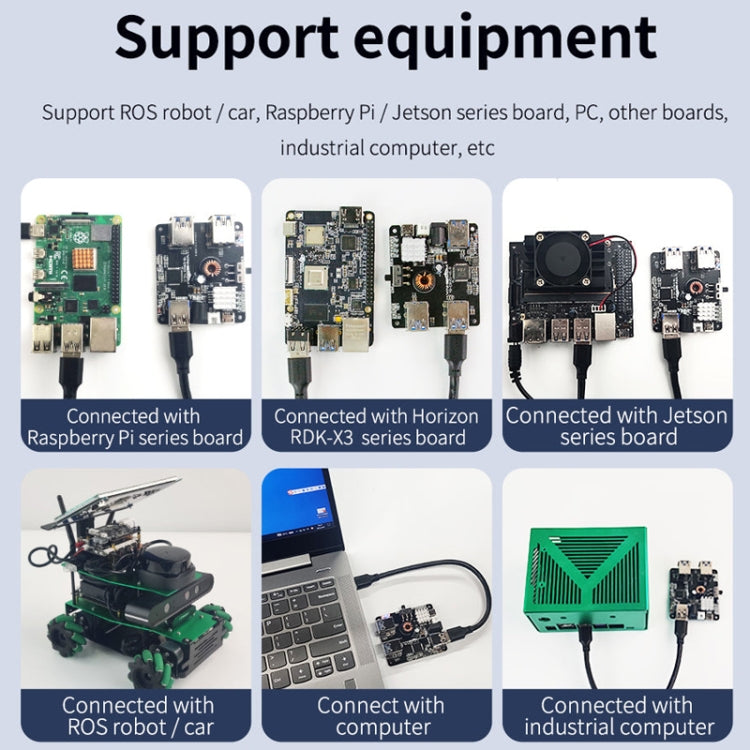

- Supporting Equipment: ROS robot/car, Raspberry Pi/Rising Sun RDK/Jetson series motherboards, PC computer, industrial computer
- Compatible Systems: Windows 7/8/10, Linux, MacOS, Ubuntu
- Working Voltage: 5V
- Working Current: 90mA

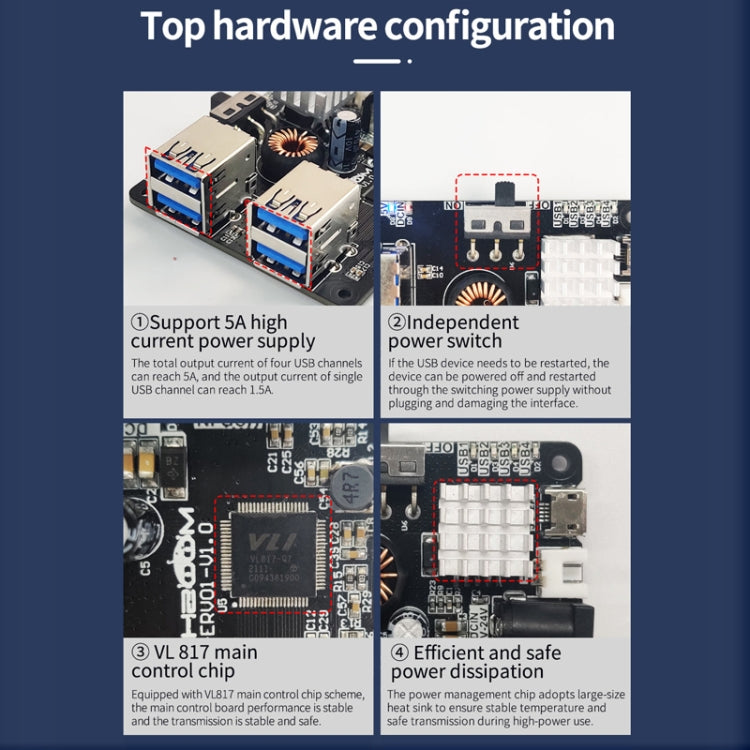

- Output Current: Total output current of four USB channels can reach 5A; single USB channel can reach 1.5A when external power supply conditions are met

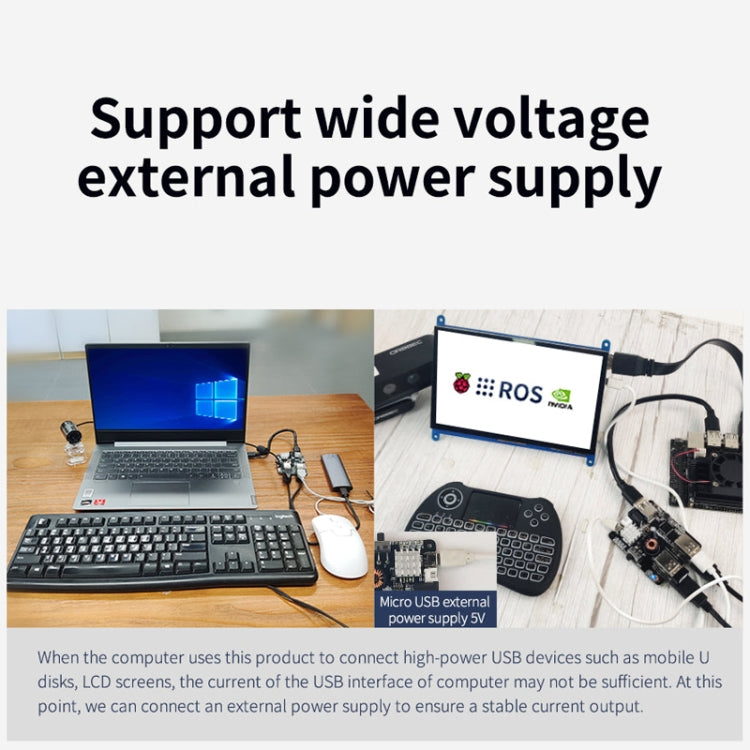

- External Power Supply Voltage and Current: 12V input 2.5A, 24V input 1.35A (laboratory data)
- External Power Supply Interface: microUSB (5V), DC5.5x2.5 (9V-24V), XH2.54 interface (9V-24V)

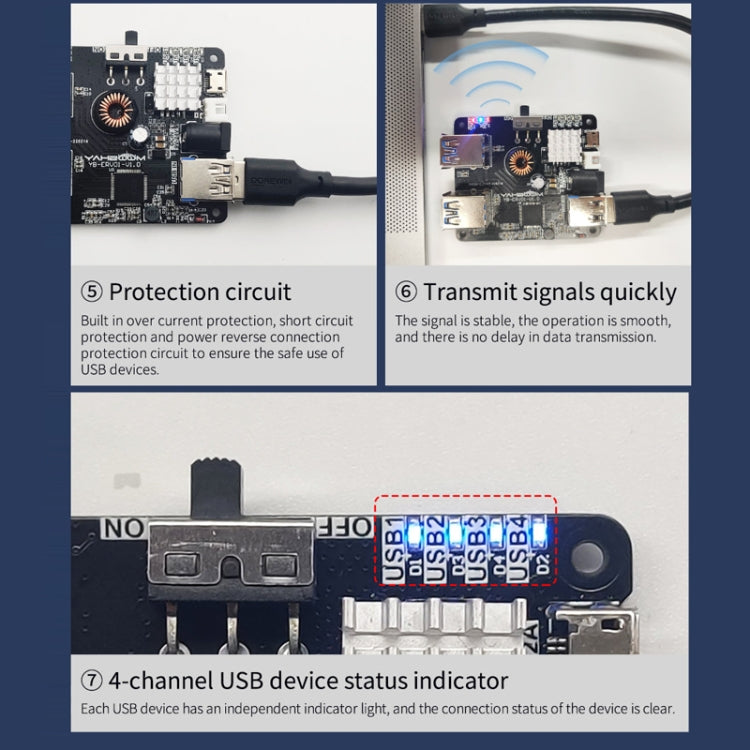

- Protection Circuit: Overcurrent protection, short circuit protection, power reverse connection protection
- Dimensions: 68mm x 60mm x 18.5mm
- Weight: 36.5 grams

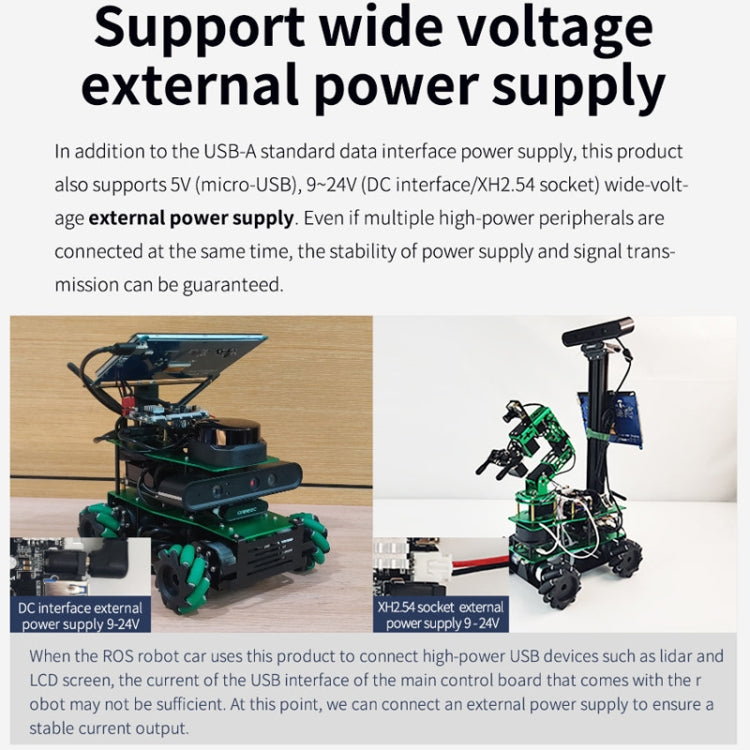

- Power Supply Modes: Supports 9-24V external voltage input

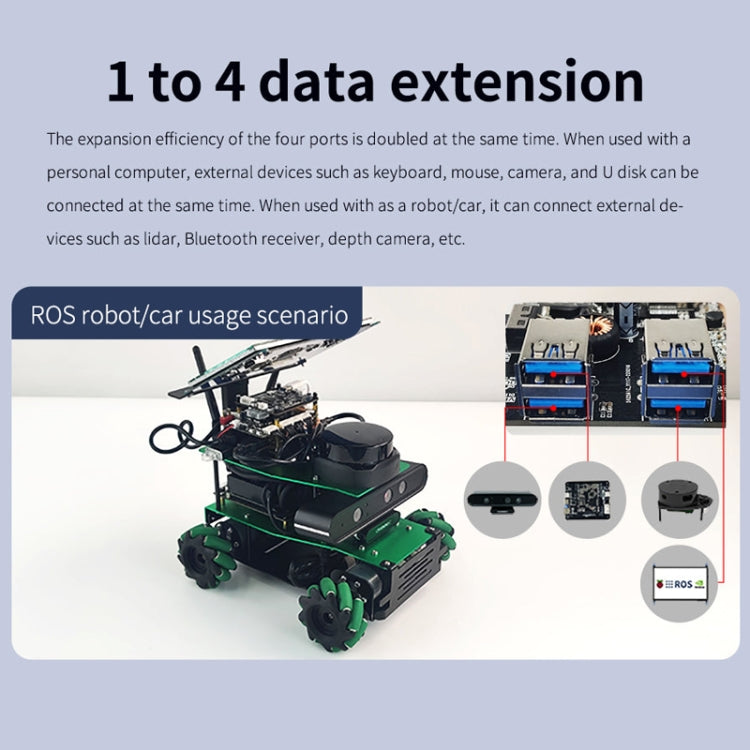

- Application: Designed to solve insufficient USB interface and power supply issues caused by increased USB peripherals
- Plug and Play: No driver required
- Power Supply Restart: Allows device restart by switching power supply without unplugging
- Cooling Management: Equipped with a cooling management chip and large heat sink for stable temperature during high-power use
- Device Status Indicators: 4-way USB device status indicators for clear connection status
